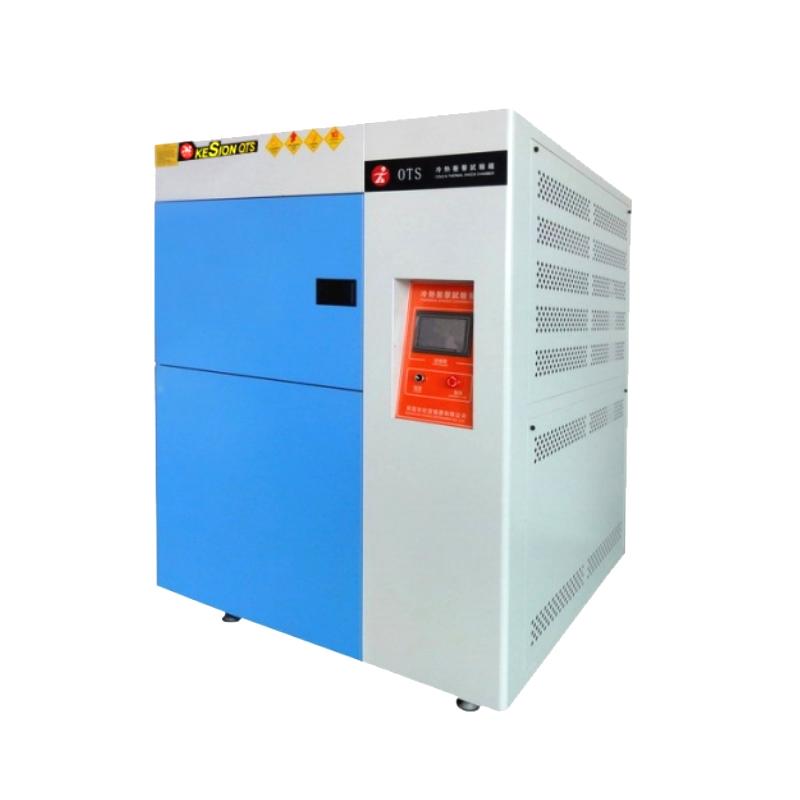

KESIONOTS Electronic High and Low Temperature Impact Tester KS-OTS-LR50LB Low Temperature -55 ℃/50L
SEHigh temperature zone, low temperature zone, test zone three boxes, volume 50L, 304 stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
$10612.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR50LB
kesionots KS-OTS-LR50LB Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR50LB Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR50LB Thermal Shock Test ChamberPacking list
- SKU
- NB041548
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -55 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 360*400*350mm
- Dimensions
- 1380*1800*1550mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 700kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
- Inner Volume
- 50L
KS-OTS-LR50LB
Thermal Shock Test Chamber
High temperature zone, low temperature zone, test zone three boxes, volume 50L, 304 stainless steel inner box material, suitable for testing material structure or composite, temperature control accuracy +/- 0.5 ℃.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QI want to test the tolerance of electronic components under rapid temperature changes. Do you have a suitable Thermal Shock Test Chamber recommended?
A
KS-OTS-LR50LB Thermal Shock Test Chamber adopts three-box structure, high temperature zone up to 150 ℃, low temperature zone as low as -55 ℃, temperature conversion time only 10 seconds, can quickly simulate extremely cold and hot environment, very suitable for testing the thermal expansion and contraction performance of electronic components, to help you evaluate product Reliability.
QWhen selecting a Thermal Shock Test Chamber, how can the function be selected to ensure test accuracy and efficiency?
A
Choose KESIONOTS KS-OTS-LR50LB, it uses P.I.D + S.S.R + microcomputer equilibrate temperature control system, temperature control accuracy of +/- 0.5 ℃, recovery time ≤ 5 minutes, to ensure stable and efficient testing. Air-cooled or water-cooled optional, equipped with French Taikang or German Bitzer refrigeration system, durable and reliable. The touch interface is easy to operate and can quickly perform Thermal Shock to improve your testing efficiency.
