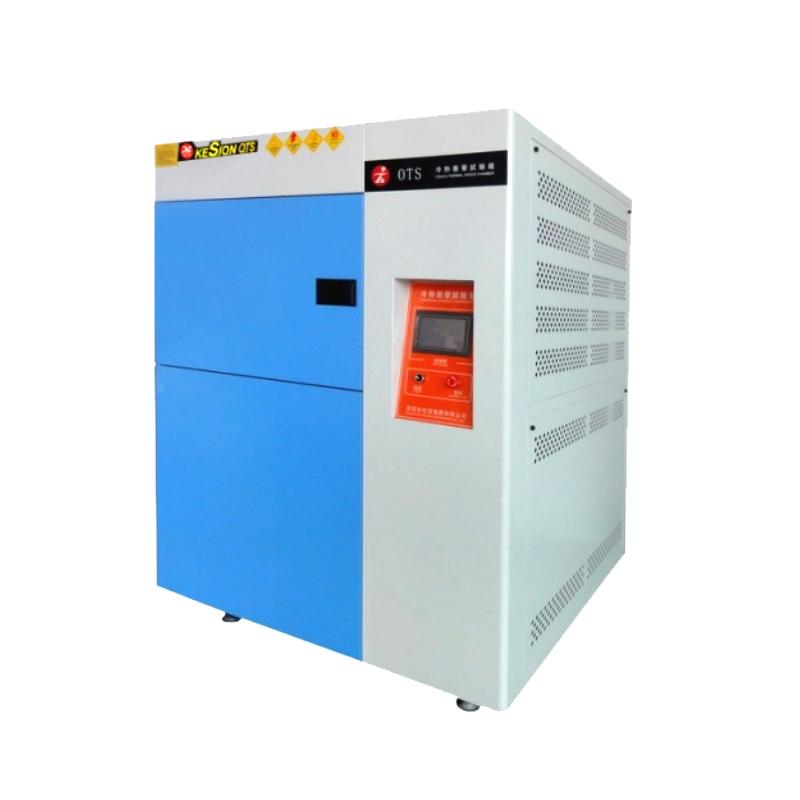

KESIONOTS Electronic Thermal Shock Tester KS-OTS-LR80LC Low Temperature -65 ℃/80L
SELow temperature zone -10 ℃~ -65 ℃, divided into high temperature zone, low temperature zone, test zone three boxes, volume 80L, 304 stainless steel inner box material, suitable for testing material structure or composite.
$20104.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR80LC
kesionots KS-OTS-LR80LC Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR80LC Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR80LC Thermal Shock Test ChamberPacking list
- SKU
- NB041550
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -65 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 400*500*400mm
- Dimensions
- 1500*1900*1600mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 900kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
- Inner Volume
- 80L
KS-OTS-LR80LC
Thermal Shock Test Chamber
Low temperature zone -10 ℃~ -65 ℃, divided into high temperature zone, low temperature zone, test zone three boxes, volume 80L, 304 stainless steel inner box material, suitable for testing material structure or composite.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QOur company mainly does electronic component testing, and needs to quickly detect the performance of products under extreme temperature changes. Do you recommend a suitable Thermal Shock Test Chamber?
A
The KS-OTS-LR80LC Thermal Shock Test Chamber adopts a three-box structure with an independent test area, which can simulate the instantaneous impact of extremely high temperature and extremely low temperature. The temperature conversion time is less than or equal to 10 seconds, and the recovery time is less than or equal to 5 minutes. It is very suitable for the rapid thermal expansion and contraction test of electronic components, and can efficiently detect potential physical damage or chemical changes of materials.
QWe want to choose a Thermal Shock Box with simple operation and high Reliability for mass improvement research. How about your one in terms of function and durability?
A
KESIONOTS KS-OTS-LR80LC is equipped with touch graphic control interface, easy to operate; using French Taikang or German BITZER refrigeration system, with semi-hermetic double-stage compressor, high cooling down efficiency and stability. The equipment has multiple protection devices (such as compressor high and low voltage protection, fault alarm), the shell is SUS304 stainless steel or paint treatment, durable and easy to maintain, can support product mass improvement testing for a long time.
Knowledge
- 1What parts of Thermal Shock Test Chamber need to be cleaned frequently?
- 2How to distinguish between low/high Temperature Test Chamber and heat & cold shock chamber
- 3Thermal Shock Test Chamber FAQ and calibration method
- 4What are the similarities between the two-box thermal shock Test Chamber and the Three-Chamber thermal shock Test Chamber?
- 5What is the difference between the two-box thermal shock Test Chamber and the Three-Chamber thermal shock Test Chamber?
- 6What is the difference between the two-box thermal shock Test Chamber and the Three-Chamber thermal shock Test Chamber?
- 7What are the precautions for using a thermal shock Test Chamber?
- 8Introduction of operating conditions and safety protection devices of thermal shock Test Chamber
- 9What is the difference between a thermal shock Test Chamber and a high-low temperature shock Test Chamber?
- 10Which materials are not suitable for hot and cold shock Test Chamber testing?
