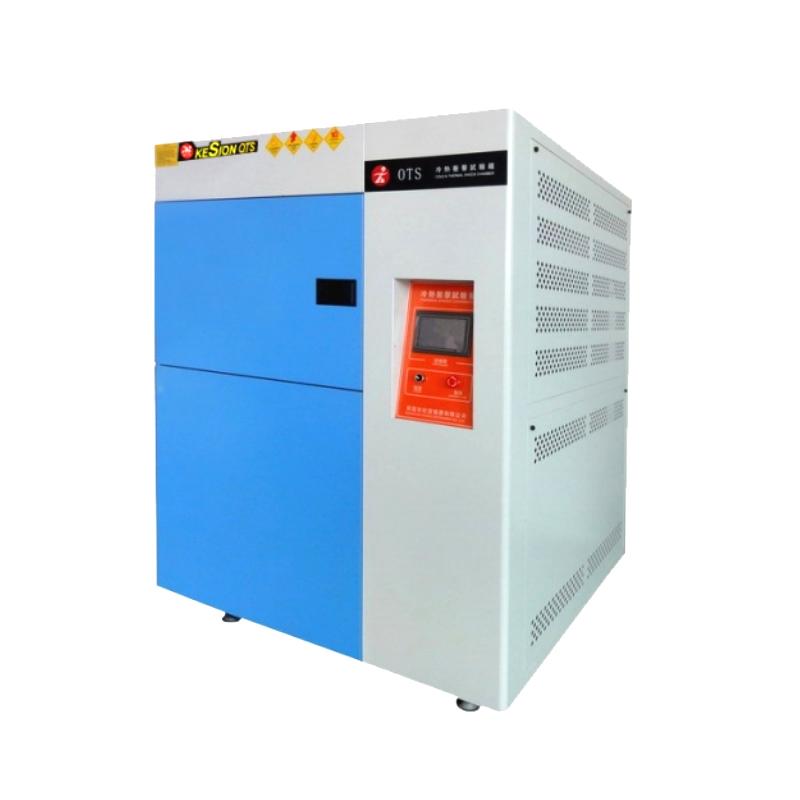

KESIONOTS Thermal Shock Tester KS-OTS-LR225LC Low Temperature -65 ℃/225L
SELow temperature zone -10 ℃~ -65 ℃, divided into high temperature zone, low temperature zone, test zone three boxes, volume 225L, 304 stainless steel inner box material, suitable for testing material structure or composite.
$53638.00/set
PromotionLoading...
Coupon
Model：
KS-OTS-LR225LC
kesionots KS-OTS-LR225LC Thermal Shock Test ChamberSPEC
kesionots KS-OTS-LR225LC Thermal Shock Test ChamberDetails
kesionots KS-OTS-LR225LC Thermal Shock Test ChamberPacking list
- SKU
- NB041552
- Temperature range
- High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -65 ℃
- Heating rate
- RT-200 ℃ takes about 35min
- Cooling rate
- RT-70°C≈85min
- Liner size
- 600*750*500mm
- Dimensions
- 2100*2200*2050mm
- Temperature recovery time
- Within ≤ 5min
- Temperature transition time
- ≤ 10s
- Temperature control Accuracy
- ±0.5℃
- Temperature Uniformity
- ±2.0℃
- Liner material
- stainless steel
- Enclosure Material
- The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint
- Thermal insulation material
- High temperature resistant high density formic acid vinegar foam insulator material
- system
- P.I.D + S.S.R + microcomputer equilibrate temperature Control system
- Chill down the system
- Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled)
- protection device
- Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm
- Accessories
- viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets
- Power
- AC 380V 50HZ/60HZ
- Weight
- 1400kg
- Controller
- South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card
- Refrigeration system
- French "Taikang" brand or German BITZER
- Inner Volume
- 225L
KS-OTS-LR225LC
Thermal Shock Test Chamber
Low temperature zone -10 ℃~ -65 ℃, divided into high temperature zone, low temperature zone, test zone three boxes, volume 225L, 304 stainless steel inner box material, suitable for testing material structure or composite.
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
FAQ
QOur company mainly does Reliability testing of electronic components, and we need a device that can quickly switch between high and low temperatures. What do you recommend?
A
KESIONOTS KS-OTS-LR225LC Thermal Shock Test Chamber temperature conversion time is very fast, ≤ 10 seconds can complete the high and low temperature switching, can well simulate the components in extreme temperature abrupt environment tolerance, is the Reliability test ideal choice.
QOur laboratory space is limited, but we need to test some slightly larger plastic parts. Is there a suitable Thermal Shock box?
A
The liner size of KS-OTS-LR225LC is 600 * 750 * 500mm, and the capacity of 225 liters can meet the testing requirements of most plastic parts. At the same time, it adopts a three-box structure, and the test area is independent, which can make efficient use of space. It is a good choice for limited laboratory space.
