SMART SENSOR AR6818 Cable Tester
SE
AR6818
SMART SENSOR AR6818 Cable TesterSPEC
SMART SENSOR AR6818 Cable TesterDetails

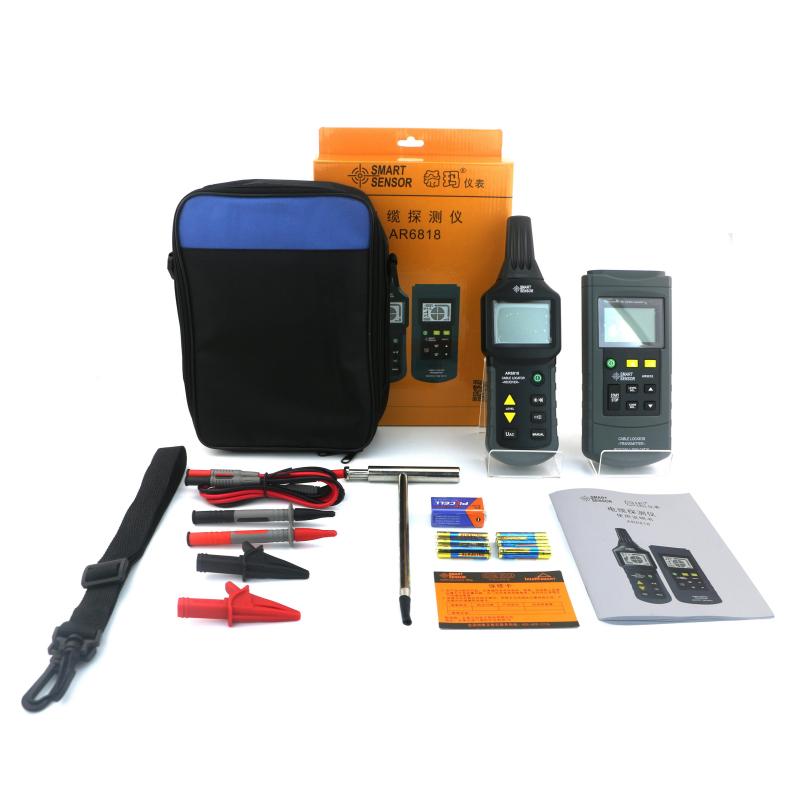

SMART SENSOR AR6818 Cable TesterPacking list
- SKU
- NB041692

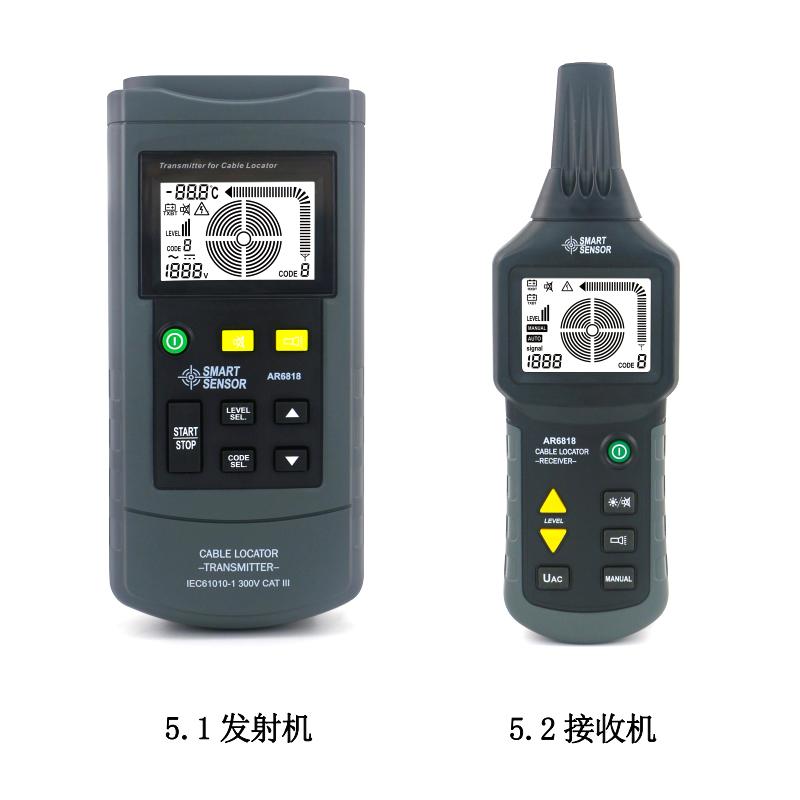

- 5.1 Transmitters - Output signals
- 125kHz
- 5.1 Transmitter - External Voltage Identification Voltage Range
- DC 12-400V±2.5%；AC 12-400V（50-60Hz）±2.5%
- 5.1 Transmitter - temperature measurement technical indicators
- ±2.5℃
- 5.1 Transmitter - Display
- LCD with functional display and bar chart
- 5.1 Transmitter - External Voltage Dielectric Strength
- Max 400V AC/DC
- 5.1 Transmitters - OverVoltage Category
- CAT Ⅲ 300V
- 5.1 Transmitters - Pollution Class
- 2
- 5.1 Transmitter - Power Supply
- 1*9V，IEC 6LR61
- 5.1 Transmitter - Minimum Current
- Approx. 31mA
- 5.1 Transmitter - maximum current
- Approx. 115mA
- 5.1 Transmitters - Fuses
- F0.5A 1000V,6.3*32mm
- 5.1 Transmitter - Operating temperature range
- -10 ℃ to 50 ℃, maximum 80% Relative Humidity (non-condensing)
- 5.1 Transmitter - Storage temperature range
- -20 ℃ to 60 ℃, maximum 80% Relative Humidity (non-condensing)
- 5.1 Transmitters - Altitude
- Maximum 2000m
- 5.1 Transmitters - Dimensions
- 190Mm * 89mm * 42.5mm (height * width * height)
- 5.1 Transmitter - without battery Weight
- About 360g
- 5.1 Transmitter with battery Weight
- About 420g
- 5.2 Receiver - Tracking Depth
- Tracking depth depends on the medium and the specific application
- 5.2 Receiver-Cable Positioning Mode
- Unipolar applications: approximately 0 to 2m; Bipolar applications: approximately 0 to 0.5m; Single loop: up to 2.5m
- 5.2 Receiver - Grid Voltage Identification
- About 0 to 0.4m
- 5.2 Receiver - Display
- LCD with functional display and bar chart
- 5.2 Receiver - Power Supply
- 6*1.5V AAA,IEC LR03
- 5.2 Receiver - Minimum Current
- Approx. 32mA
- 5.2 Receiver - Maximum Current
- Approx. 89mA
Introduction
The cable Detector is a portable instrument, which is composed of a transmitter, a receiver and accessories. It adopts new integrated devices and digital circuit technology, and its electrical performance is stable and reliable. The transmitter sends an AC Voltage modulated by a digital signal to the detected cable (or metal pipe), and this AC Voltage generates an alternating electric field around the cable; when the receiver probe is brought close to this electric field, the probe will generate Induced Voltage, the weak Voltage signal is amplified hundreds of times, then processed by audio decoding, detection and digital technology, and finally displayed on the LCD. According to the change of the signal, the specific location of the buried cable or pipeline can be detected. location and failure.
The cable Detector is suitable for the maintenance of communication cable construction, power cable construction, building pipeline construction, communication cable, power supply line and electric heating line .
