SMART SENSOR ST9333 magnetic Induction eddy Current Coating Thickness Gauge
ST9333
SMART SENSOR ST9333 Coating Thickness GaugeSPEC
SMART SENSOR ST9333 Coating Thickness GaugeDetails

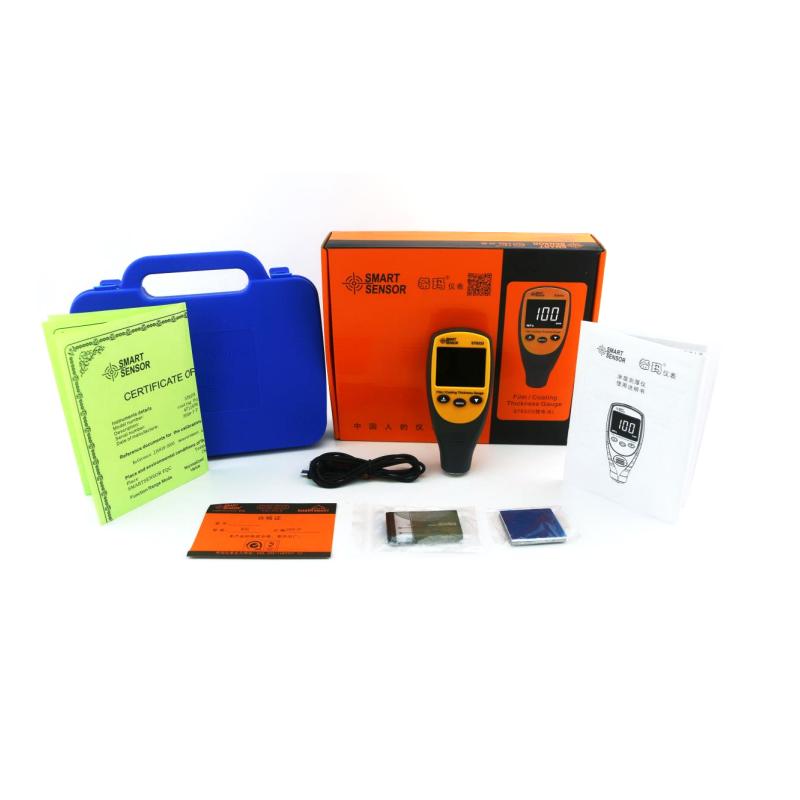

SMART SENSOR ST9333 Coating Thickness GaugePacking list
- SKU
- NB041699
- Measurement principle
- Magnetic Induction + eddy Current
- margin of error
- ±（1+3%H）μm
- Resolution
- 0.1μm|1μm
- Minimum measurement surface
- Magnetic: 25 × 25mm; nonmagnetic: 25 × 25mm
- Minimum radius of curvature
- Convex 5mm; Concave 30mm
- thinnest substrate
- Magnetic: 0.2mm; nonmagnetic: 0.05mm
- Calibrated mode
- Zero calibrated/Automatic calibration
- statistical function
- Yes.
- Power Supply
- 3.7V lithium battery
- Display screen
- LCD color screen display
- MAX Maximum/MIN Minimum/Average
- Yes.
- Automatic shutdown
- Yes.
- unit conversion
- Yes.
- Screen swirling/spinning
- Yes.
- Low power display
- Yes.
- Storage temperature
- -10~60℃
- Operating temperature
- 0℃~50℃
- interface
- USB
Introduction
Coating Thickness Gauges are divided into magnetic thickness measurement and eddy current thickness measurement. Magnetic is used to test non-magnetic coatings on a magnetic substrate, such as paint on steel. Steel is magnetic and paint is non-magnetic. Eddy current is used to test non-magnetic coatings on a non-ferrous metal substrate. Test non-conductive insulating coatings, such as paint on Lu. Lu is a non-ferrous metal and the paint is non-conductive. It can non-destructively measure the thickness of non-magnetic coatings (such as aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (such as steel, iron, alloys and hard magnetic steel, etc. ) and non-magnetic metal substrates (such as copper , aluminum, zinc, tin, etc.) on the non-conductive coating (such as: enamel, rubber, paint, plastic, etc.). Coating Thickness Gauge has the characteristics of small measurement error, high reliability, good stability and easy operation. It is a testing instrument required to control and ensure product quality. It is widely used in manufacturing, metal processing industry, chemical industry, Commodity inspection and other inspection fields.
