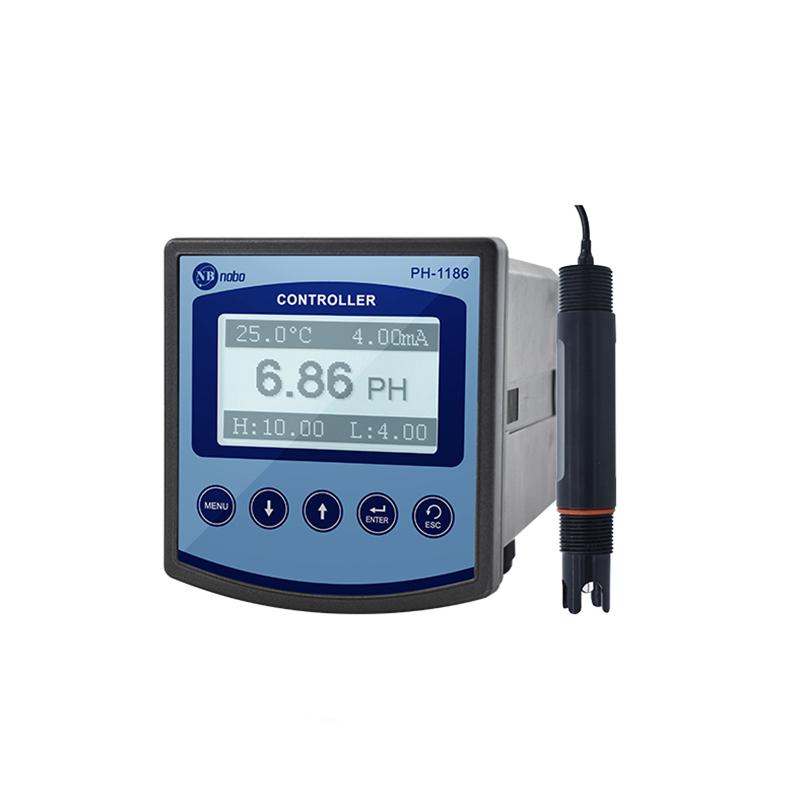

NOBOTECH PH-1186 Industrial online pH meter -2.00~16.00pH
PH-1186(pH)
NOBOTECH PH-1186(pH) Industrial in-line pH meterSPEC
NOBOTECH PH-1186(pH) Industrial in-line pH meterDetails
NOBOTECH PH-1186(pH) Industrial in-line pH meterPacking list
- SKU
- NB041733
- Measurement parameters
- pH, ORP, temperature
- PH range
- -2.00~16.00pH
- Temperature Measurement Range
- -10~130.0℃
- PH resolution
- 0.01PH
- Temperature Resolution
- 0.1℃
- PH Accuracy
- ±0.02PH
- Temperature Accuracy
- ±0.3℃
- Stability
- ≤0.01pH/24h
- PH standard solution
- 6.86/4.00/9.18、7.00/4.00/10.01
- Temperature compensation range
- 0-99.9℃(PH) ，PT1000
- PH correction range
- Zero point +/- 1.45PH; slope +/- 30%
- control interface
- Two sets of ON/OFF relay contacts, divided into high point and low point alarm control
- 4-20mA current output
- One current output, photoelectric isolation protection, improve anti-interference ability, 4-20mA corresponding range can be output in reverse.
- 485 interface
- Optoelectronic isolation output, IoT support, (MODBUS protocol partially compatible)
- relay
- The relay lag can be set arbitrarily, and the relay load is 3A 220VAC.
- Operating Conditions
- Ambient Temperature is 0~60 ℃, Relative Humidity ≤ 90%
- Impedance
- ≥ 1 × 10 (12 power) Ω
- output load
- Load < 750Ω (4-20mA)
- Operating Voltage
- 220VAC 10%, 50/60Hz or book DC24V and DC12V Power
- size
- 100×106×168mm
- opening size
- 92×92mm
- Weight
- 0.9Kg
- Installation method
- Disk mount
- Protection class
- IP65
Introduction
PH-1186 is a new generation of intelligent water quality Detector independently developed. It has the characteristics of Chinese menu operation, high stability, excellent repeatability, and multi-function. It can accurately measure the pH value/oxidation reduction potential (ORP) and temperature value in the solution. It is widely used in online detection of PH/ORP values ââin wastewater treatment, pure water, circulating water, boiler water and other systems, as well as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceuticals, fermentation, chemical industry and other process fields, and in surface water and pollution source emissions, etc. It has powerful functions in environmental monitoring and remote system applications.
Introduction
âNew waterproof, dustproof and moisture-proof shell (IP65) technology, surface spray painting process, the instrument appearance is generous and high-end.
âThe product has high precision, high stability and strong anti-interference ability.
âLarge-screen dot matrix LCD display, supports Chinese and English menus (mutual switching), and displays multiple parameters at the same time: PH/ORP value, temperature, output current, alarm point, etc. are displayed at the same time, intuitive and easy to read.
âAutomatic temperature compensation function, which can manually correct the PH and temperature values.
âCommunication function: Interface photoelectric isolation technology, with RS-485 communication interface (partially compatible with MODBUS protocol) (optional), and can be converted to RS-232. The PH value corresponding to the 4-20 mA current output can be set arbitrarily and can be adjusted correctly. Counter control 4-20 mA, widely used in some dosing fields. Support company-wide IoT and customer-customized IoT.
âOptional host computer online collection software for data collection and processing.
âNotepad: PH/ORP mode can store 50 measurement data respectively, and users can record measurement data as needed.
âAutomatically identify standard solutions and restore factory settings.
âWatchdog function: ensure that the instrument will not crash.
âPower failure protectionï¼10 years.
âCore components come from foreign brands.
