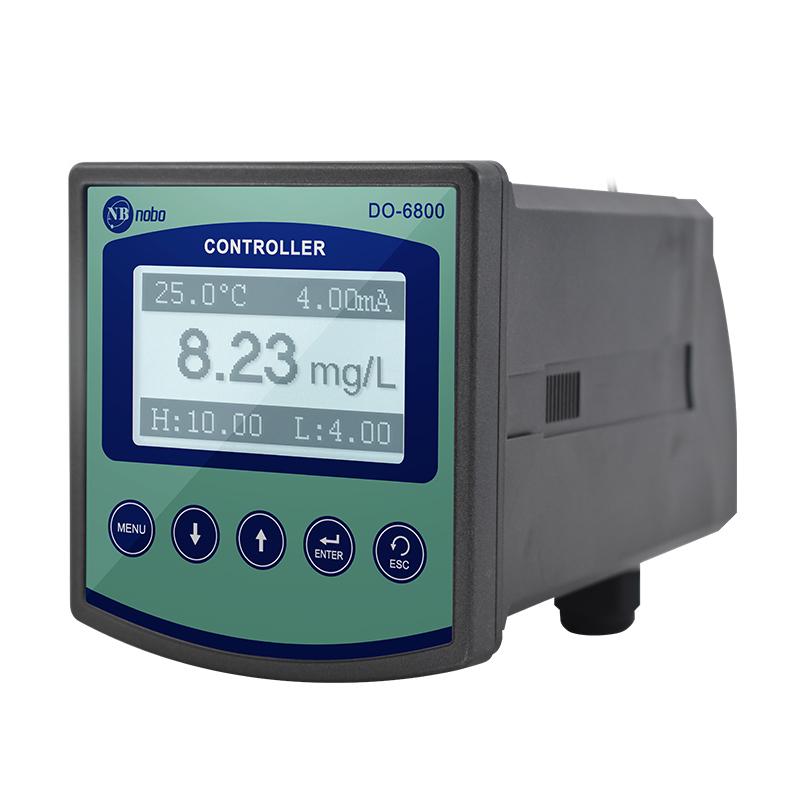

NOBOTECH DO-6800 Industrial Online Dissolved Oxygen Meter
SE
DO-6800
NOBOTECH DO-6800 Industrial online dissolved oxygen instrumentSPEC
NOBOTECH DO-6800 Industrial online dissolved oxygen instrumentDetails
NOBOTECH DO-6800 Industrial online dissolved oxygen instrumentPacking list
- SKU
- NB041736
- Measurement parameters
- Dissolved oxygen value, temperature
- Measurement range
- 0~200.0ug/L, 0~20.00mg/L, the range is automatically switched; 0~60 ℃ (the microgram instrument should be equipped with DO-6800G)
- Resolution
- 0.1ug/L，0.0 1mg/L，0.1℃
- Accuracy
- ±1.0%FS，±0.3℃
- Automatic temperature compensation
- 0~60℃
- control interface
- Two sets of ON/OFF relay contacts, divided into high point and low point alarm signal photoelectric isolation output
- Automatic cleaning interface
- A set of automatic cleaning control points, cleaning time 0-9999 seconds, interval 0-9999 minutes
- 4~ 20mA current output
- Two current outputs, photoelectric isolation protection, improve anti-interference ability, 4-20mA corresponding range can be output in reverse
- 485 interface
- Optoelectronic isolation output, IoT support, (MODBUS protocol partially compatible)
- relay
- The relay lag can be set arbitrarily, and the relay load is 3A 220VAC.
- Operating Conditions
- Ambient Temperature is 0~60 ℃, Relative Humidity ≤ 90%
- output load
- Load < 750Ω (4-20mA)
- Operating Voltage
- 220VAC 10%, 50/60Hz, or book DC24V, DC12V Power
- size
- 100×106×168mm
- opening size
- 92×92mm
- Weight
- 0.9Kg
- Installation method
- Disk mount
- Protection class
- IP65
Introduction
DO-6800 is an online intelligent dissolved oxygen Detector produced by my introduction of foreign technology. It adopts imported components and dissolved oxygen film head, based on polarographic analysis technology, and excellent production process and surface sticker technology. Using this series of excellent analysis technology, ensure the stable, reliable and accurate long-term operation of the instrument. With Chinese/English menu operation, notepad storage measurement data, 485 communication and other functions. It can be widely used in chemical fertilizers, metallurgy, sewage treatment aeration, environmental protection water treatment engineering, pharmaceutical, biochemical, food, breeding and tap water and other solutions for continuous monitoring of dissolved oxygen value.
Features
The new waterproof, dustproof and moisture-proof good shell (IP65) process, surface painting process, the appearance of the instrument is generous and high-end.
With automatic cleaning function (optional), the cleaning device (optional) is tap water cleaning method.
The product has high precision, high stability and strong anti-interference ability.
The use of imported components and dissolved oxygen film head, based on the new polarographic analysis technology.
Large-screen dot matrix LCD display, support for Chinese and English menus (switch between each other).
◆ Simultaneous display of multiple parameters: dissolved oxygen value, temperature, output current, alarm point, etc. are displayed simultaneously, and there is a range overrun prompt.
The screen displays the alarm status and can be accompanied by switch ON/OFF signal output at the same time.
◇ Compensation function: automatic temperature compensation 0~60 ℃, salinity compensation. Manual correction value (optional)
◇ Communication function: interface photoelectric isolation technology, with RS-485 communication interface (MODBUS protocol part compatible) (optional), can convert RS-232. The DO value corresponding to the current output of 4~ 20 mA can be set arbitrarily, and the DO value can be controlled by positive and negative 4~ 20 mA, which is widely used in some fields. Support the company's internal Internet of Things and customer-customized Internet of Things.
Two channels of 4 to 20 mA: one of them is optional.
History curve: It can record 50 sets of historical data (sampling interval 1-240 minutes), and has query function.
Notepad: can store 50 measurement data, users can query the data.
The hysteresis can be set arbitrarily to avoid frequent operation of the switch relay.
The watchdog function: to ensure that the instrument does not crash.
The core components are all from foreign brands.
◇ Factory settings can be restored. Power-down protection > 10 years.
- 1JJF 1565-2016《Calibration Specification for Water Quality On-line Analyzers of Heavy Metals》
- 2JJG 2104-2024《Calibration Specification for Seawater Dissolved Oxygen Analyzers》
- 3CJ/T 139-2001《Dissolved Oxygen Meter with non-membrane electrode》
- 4 096-2007《Test method of seawater dissolved oxygen analyzer》
- 5SC/T 7006-2001《Dissolved Oxygen Meter》
- 6GB/T 1576-2018《Water quality for industrial boilers》
- 7GB/T 33328-2016《Paints and varnishes—Determination of electrical conductivity and resistance》
