NOBOTECH YD-5100 Online Salinometer intelligent salinity meter, automatic temperature compensation

SE
Using high performance CPU chip and SMT chip technology, Measurement accuracy and Repeatability, automatic temperature compensation range 0~100 ℃, with RS-485 Communication interface and 4~ 20mA current output function.
$424.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI

NOBOTECH YD-5100 Online SalinoMeterSPEC

NOBOTECH YD-5100 Online SalinoMeterDetails

NOBOTECH YD-5100 Online SalinoMeterPacking list

SKU
NB041737
Measurement Range
0-300‰
resolution
0.1‰
Accuracy
±2.0%(FS)
Automatic temperature compensation
0~100 ℃, temperature compensation NTC 10K, based on 25 ℃, the temperature compensation coefficient can be corrected
control interface
Two sets of ON/OFF relay contacts (passive ports). Divided into salinity, temperature control signal photoelectric isolation output
signal isolated output
Photocoupler isolation protection 4~ 20mA signal output
relay
The relay lag can be set arbitrarily, and the relay load is 10A 220VAC.
Ambient Operating Temperature
Environment temperature is 0~60 ℃, Relative Humidity ≤ 90%
load
＜750Ω（4-20mA）
Working Voltage
220V [L] or DC24V + or DC12V +
Dimensions
100×106×168mm
opening size
92×92mm
Weight
0.9Kg
Working Relative Humidity
≤90%
YD-5100
Online SalinoMeter
Using high performance CPU chip and SMT chip technology, Measurement accuracy and Repeatability, automatic temperature compensation range 0~100 ℃, with RS-485 Communication interface and 4~ 20mA current output function.

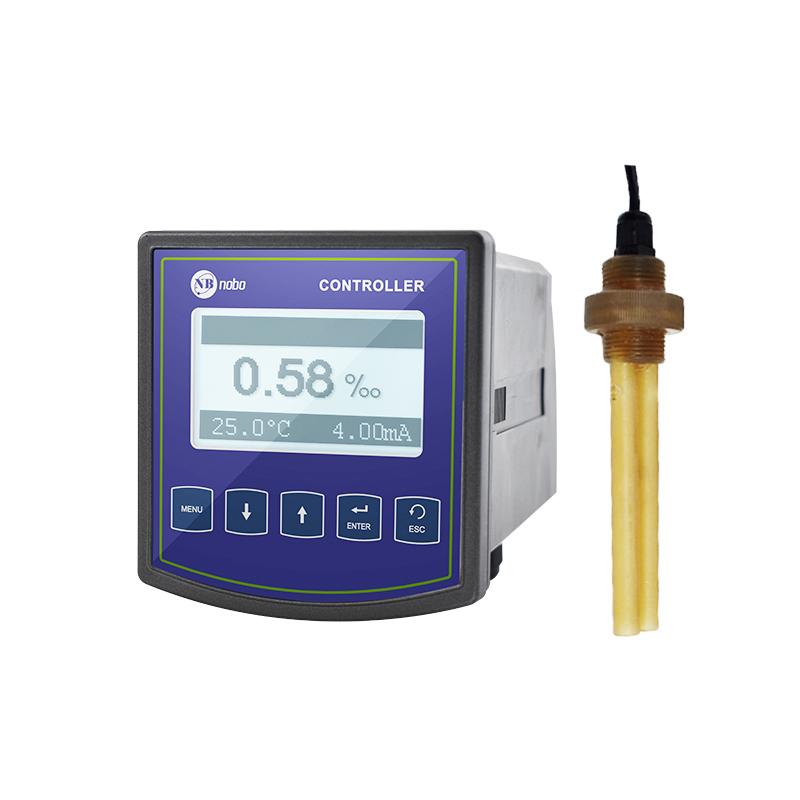

NOBOTECH YD-5100 Online Salinometer intelligent salinity meter, automatic temperature compensation Picture

Introduction

The salinity meter is an online intelligent salinity meter independently developed by our company. It adopts high-performance CPU chip and SMT patch technology to complete the measurement and temperature compensation of salinity and temperature, with high precision and good repeatability. It can be widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water and other solutions for continuous monitoring of salinity value.

Features

Large screen dot matrix LCD display, Chinese menu menu.

Used for salinity measurement and upper and lower limit control.

The screen displays the alarm status and can be accompanied by the switch ON/OFF signal output at the same time.

Automatic temperature compensation function: automatic 0~100 ℃.

Communication function (optional): With RS-485 communication interface (MODBUS protocol is partially compatible), the salinity value corresponding to the 4-20 mA current output can be set arbitrarily.

Watchdog function: Ensure that the meter does not crash.

The core components are all from foreign brands.

Factory settings can be restored. Power-down protection > 10 years.


FAQ
QIs there a kind with higher accuracy, such as the warm salt one, is it more accurate?
A This is the only accuracy for measuring salinity
QMeasurement range 0-35% o is required by our working conditions, which are mainly installed in river navigation beacon ships, ship locks or side walls of lock chambers. 485 interface is required, which can realize remote transmission. The output unit should be% o as much as possible, and it needs to be placed in fresh water/seawater for a long time. Mainly installed in the lock, sunken installation.
A Submerged installation requires the purchase of a mounting bracket before it can be used.
