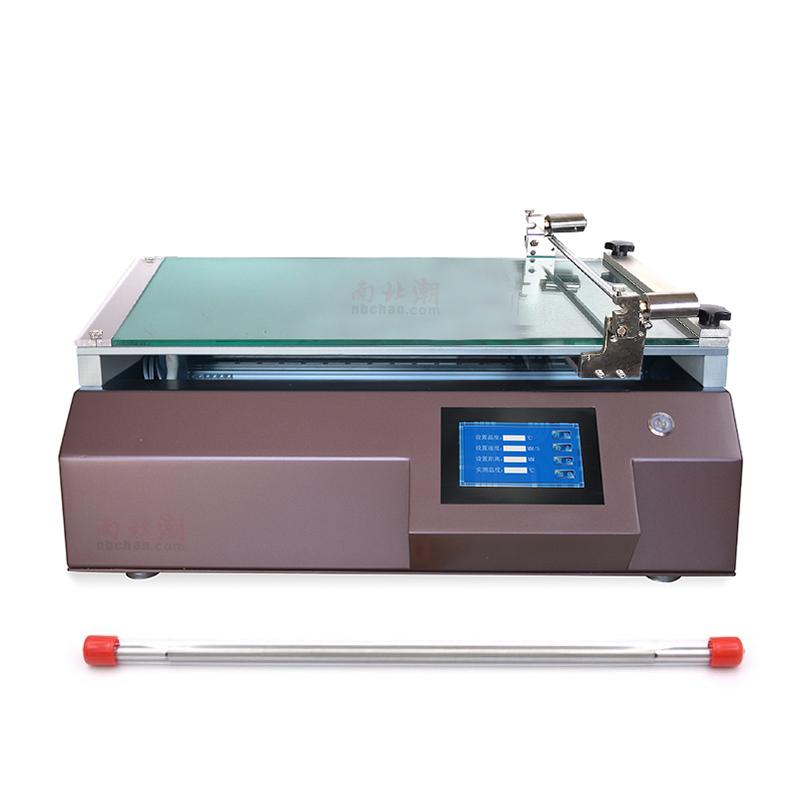

China Bar Coater Scraping Machine TBJ-A1-DJ5 Spreader 500 * 600mm customized

SE
Customized large area coater, bar type, effective coating area 500 * 600mm, suitable for low viscosity samples or ultra-thin film high-precision Spreader, standard with an imported bar.
$3024.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT OI
Similar products

zy TBJ-A1-DJ5 Automatic Film ApplicatorSPEC

zy TBJ-A1-DJ5 Automatic Film ApplicatorDetails

zy TBJ-A1-DJ5 Automatic Film ApplicatorPacking list

SKU
NB041760
Coating method
Rod
Mayer Rod Thickness Range
1-571.5 μm (Spreader thickness according to bar model)
Mayer Rod Accuracy
±0.001mm
Coating speed
5-200Mm/s (< 5mm/s can be customized)
Coating size
500 * 600Mm (Miscellaneous size can be customized)
Spreader distance control
The number can be set arbitrarily within the range of 1-600mm
Substrate clamping method
Mechanical fixture
Control mode
Touch screen control
Power supply Voltage
220V  50HZ
Dimension
750*410*620mm
Weight
45KG
speed control
Infinitely variable speed
Bottom plate material
Glass
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
TBJ-A1-DJ5
Automatic Film Applicator
Customized large area coater, bar type, effective coating area 500 * 600mm, suitable for low viscosity samples or ultra-thin film high-precision Spreader, standard with an imported bar.
China Bar Coater Scraping Machine TBJ-A1-DJ5 Spreader 500 * 600mm customized Picture

product description

The touch laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.

This automatic coating machine comes standard with an imported wire rod with a precision up to 1μm.



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 1



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 2



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 3



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 4



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 5



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 6

CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 7



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 8



CHINA Wire Bar coater Coater TBJ-A1-DJ5 Spreader 500 * 600mm Customized Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate
