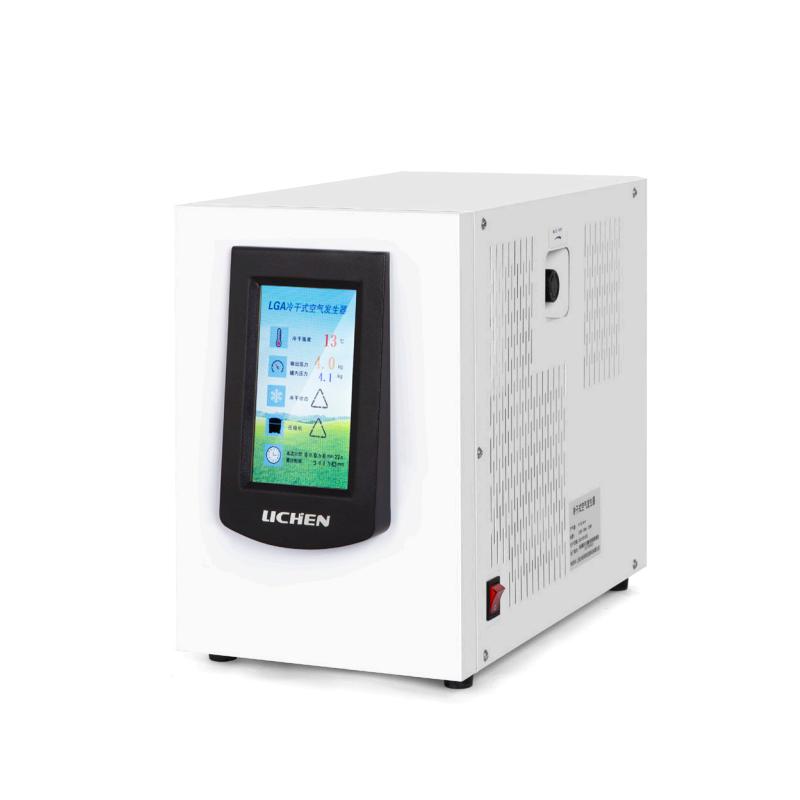

LICHEN LC-LGA-3 Cold Dry Air Generator

LC-LGA-3

Cold dry air generator

As the air source of Gas Chromatograph, the cold dry cyclone cools down, the output Flow rate is 0~3L/min, and the 8L mg aluminum alloy gas storage tank can replace the traditional high Voltage air cylinder.

Introduction

As the air source for gas chromatographs, cold-dry air generators can replace high-pressure cylinders in the laboratory, making your analysis work more convenient and safer. This instrument has a secondary over-Voltage protection device and an over-temperature automatic control device. When the gas pressure exceeds the set value or the compressor casing temperature rises to 80℃, the automatic control system will automatically turn off the power to protect the instrument, which is safe and reliable. In addition The instrument is equipped with a normal pressure starting device, which extends the life of the compressor; the gas purification system of this instrument uses a cold-drying system and activated carbon to ensure the purity of the output gas; the gas line system uses two-stage Voltage stabilization to improve the stability of the gas source .

Features

▪ The 7-inch color screen displays the cold-drying temperature, output pressure, tank pressure, cold-drying status, and compressor status, enabling online monitoring

▪ The output pressure and the pressure inside the tank adopt precision pressure sensors and are digitally displayed on the screen, eliminating the need for traditional pointer pressure gauges.

▪ Cold-dry cyclone cooling, low gas temperature, daily maintenance-free

▪ The output gas temperature is low, better than -70℃ dew point, and the output gas has low moisture content

▪ It has the memory function of the current startup time and accumulated working time, which facilitates humanized management of the laboratory.

▪ The instrument has three-level automatic protection of overpressure, overcurrent and overheating.

▪ Double-stage Voltage stabilization, externally adjustable output pressure, easy to operate

▪ Easy to operate, just turn on the power switch to produce gas, the output pressure is stable, and it can provide gas source for both gas phase and nitrogen generators at the same time

▪ The 8L magnesium-aluminum alloy gas storage tank is used, which is resistant to high pressure and has a large gas storage capacity. The instrument starts and stops less often, which greatly extends the service life of the compressor.

▪ The instrument is equipped with an automatic drainage valve, which can set the cycle drainage time arbitrarily and fully automatic drainage without manual operation.

▪ The gas purification system uses activated carbon and cold drying system to remove impurities and moisture in the air without the need for additional purification pipes

▪ Can replace traditional high-pressure air cylinders and enable laboratory instrumentation

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
