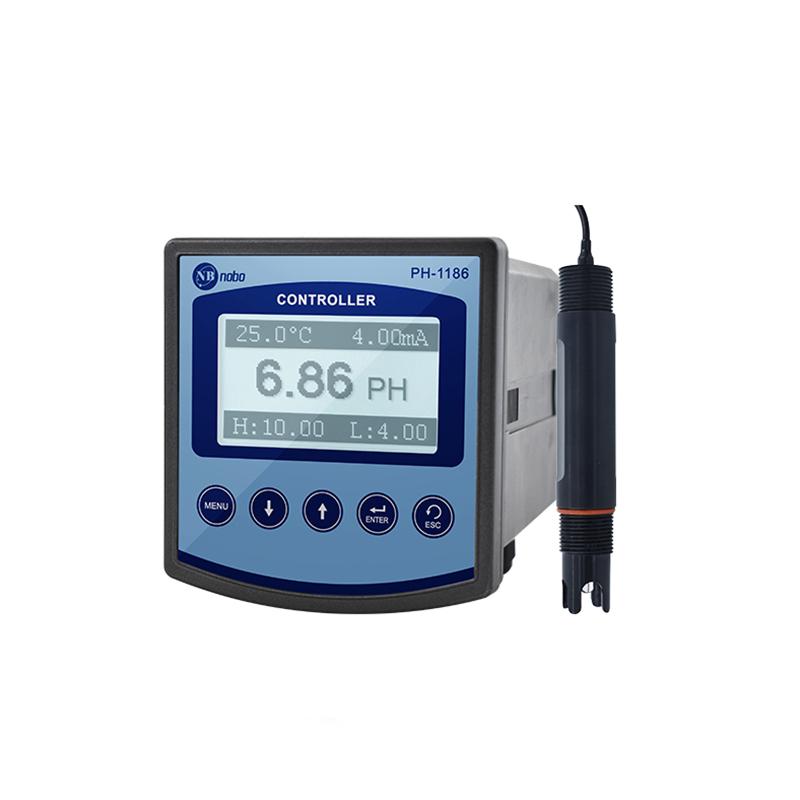

NOBOTECH PH-1186 Industrial Online ORP Meter-1999~ + 1999mV
SE
PH-1186(ORP)
NOBOTECH PH-1186(ORP) Industrial Online ORP MeterSPEC
NOBOTECH PH-1186(ORP) Industrial Online ORP MeterDetails
NOBOTECH PH-1186(ORP) Industrial Online ORP MeterPacking list
- SKU
- NB041875
- ORP Measurement Range
- -1999~+1999mV
- Temperature Measurement Range
- -10~130.0℃
- ORP resolution
- 1mV
- Temperature Resolution
- 0.1℃
- ORP Accuracy
- ±1mV
- Temperature Accuracy
- ±0.3℃
- Stability
- ≤0.01pH/24h
- Temperature compensation range
- PT1000
- control interface
- Two sets of ON/OFF relay contacts, divided into high point and low point alarm control
- 4-20mA current output
- One current output, photoelectric isolation protection, improve anti-interference ability, 4-20mA corresponding range can be reversed output.
- 485 interface
- Optoelectronic isolation output, IoT support, (MODBUS protocol partially compatible)
- relay
- The relay lag can be set arbitrarily, and the relay load is 3A 220VAC.
- Operating Conditions
- Ambient Temperature is 0~60 ℃, Relative Humidity ≤ 90%
- Impedance
- ≥ 1 × 10 (12 power) Ω
- output load
- Load < 750Ω (4-20mA)
- Operating Voltage
- 220VAC 10%, 50/60Hz or book DC24V and DC12V Power
- size
- 100×106×168mm
- opening size
- 92×92mm
- Weight
- 0.9Kg
- Installation method
- Disk mount
- Protection class
- IP65
Introduction
PH-1186 is a new generation of intelligent water quality Detector independently developed. It has the characteristics of Chinese menu operation, high stability, excellent repeatability, multi-function, etc. It can accurately measure the pH value/oxidation-reduction potential (ORP) and temperature value in the solution. Widely used in waste water treatment, pure water, circulating water, boiler water and other systems, as well as online detection of PH/ORP value in the fields of electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceuticals, fermentation, chemical industry, etc., in surface water and pollution source discharge, etc. It has powerful functions in environmental monitoring and remote system applications.
Introduction
◇New waterproof, dustproof and moistureproof shell (IP65) process, surface painting process, the appearance of the instrument is generous and high-end.
◇The product has high precision, high stability and strong anti-interference ability.
◇Large-screen dot-matrix liquid crystal display, supports Chinese and English menus (mutual switching), multi-parameter display at the same time: PH/ORP value, temperature, output current, alarm point, etc. are displayed at the same time, intuitive and easy to read.
◇Automatic temperature compensation function, which can manually correct PH and temperature values.
◇Communication function: Interface photoelectric isolation technology, with RS-485 communication interface (MODBUS protocol partially compatible) (optional), convertible to RS-232. PH value corresponding to 4-20 mA current output can be set arbitrarily, and can be positive Anti-control 4-20 mA, widely used in some dosing fields. Support the company's internal IoT and customer-customized IoT.
◇The host computer can be equipped with online acquisition software for data acquisition and processing.
◇Notepad: PH/ORP mode can store 50 measurement data respectively, and users can record measurement data according to their needs.
◇Automatically identify the standard solution, and can restore the factory settings.
◇Watchdog function: to ensure that the instrument will not crash.
◇Power-off protection>10 years.
◇The core components are from foreign brands.
