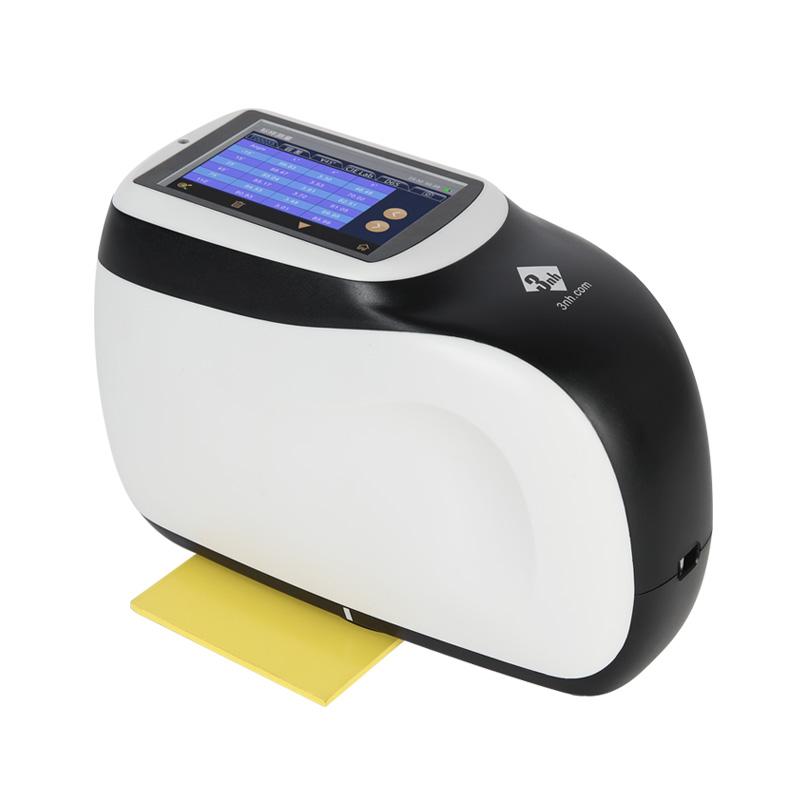

Kutai MS3006 Multi-angle Colorimeter Industrial MCU 6 Measurement angles
SEAppearance of the finished coating is affected by different Viewing Angles and observation conditions, which can not only measure multi-angle color difference, but also measure and characterize special finishes through 6 Measurement angles, even on curved surfaces. Measurement accuracy and Stability.
Price: Please contact customer service
Model：
MS3006
3NH MS3006 ColorimeterSPEC
3NH MS3006 ColorimeterDetails
3NH MS3006 ColorimeterPacking list
- SKU
- NB041882

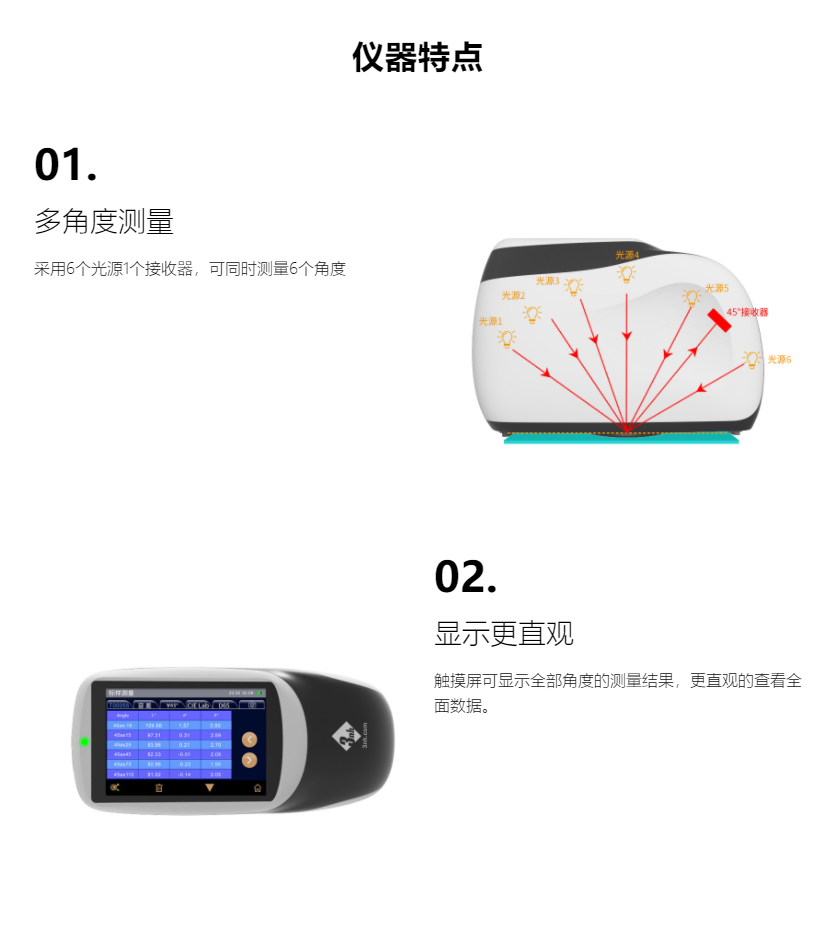

- Measurement geometry
- 6 Geometry (6 light sources, 1 receiver)
- Color Geometry
- 45 °: 45as-15 °, 45as15 °, 45as25 °, 45as45 °, 45as75 °, 45as110 °
- Standards
- ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545

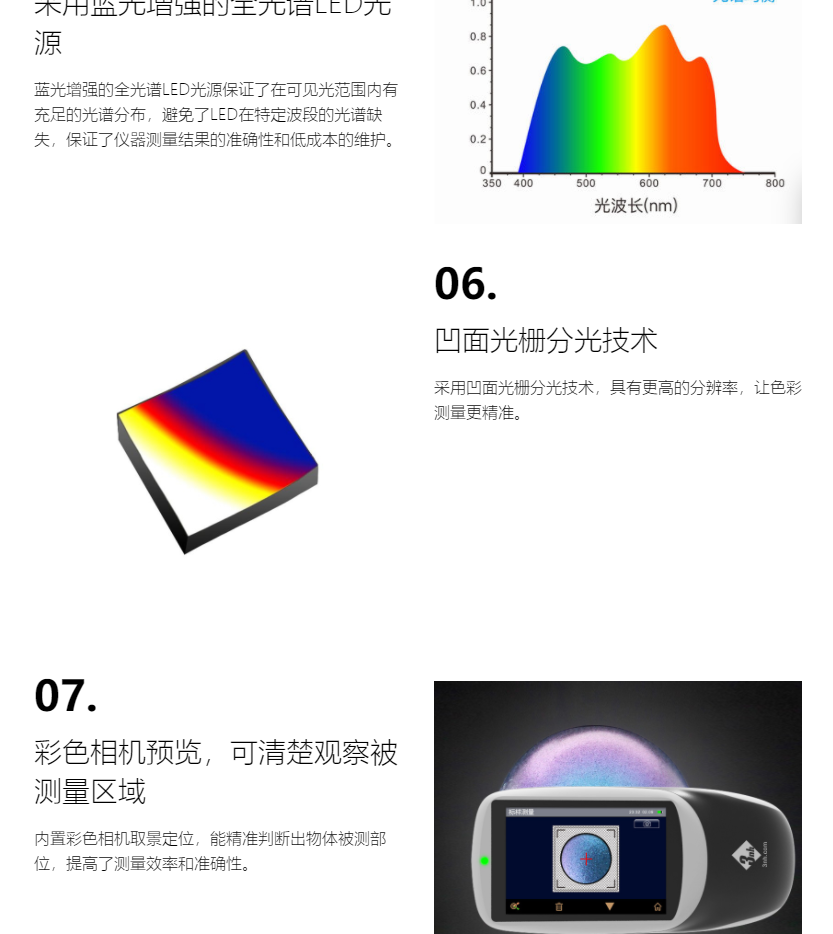

- lighting source
- White Full Light spectrum LED with blue light enhancement
- Lighting source life
- 5 years 3 million measurements
- Spectroscopic method
- Concave grating

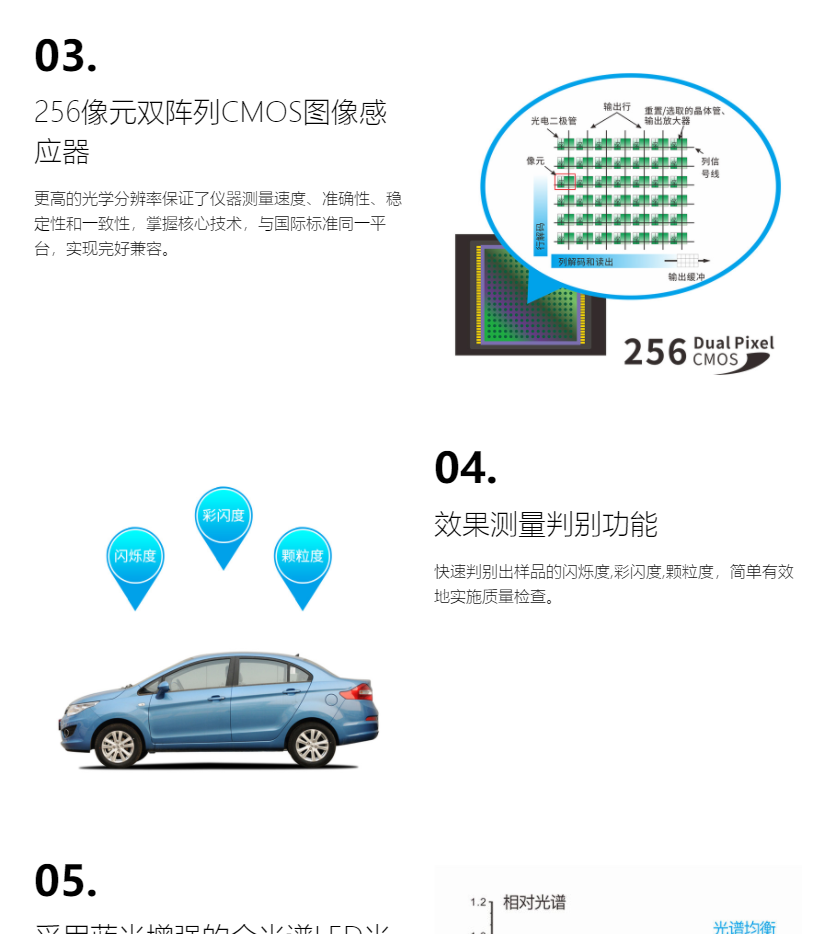

- Detector
- 256-Pixel dual array CMOS image sensor
- Measurement Wavelength range
- 400nm-700nm
- wavelength spacing
- 10nm
- Measuring range
- 0~600%
- Half Bandwidth
- 10nm
- Measurement caliber
- F12mm

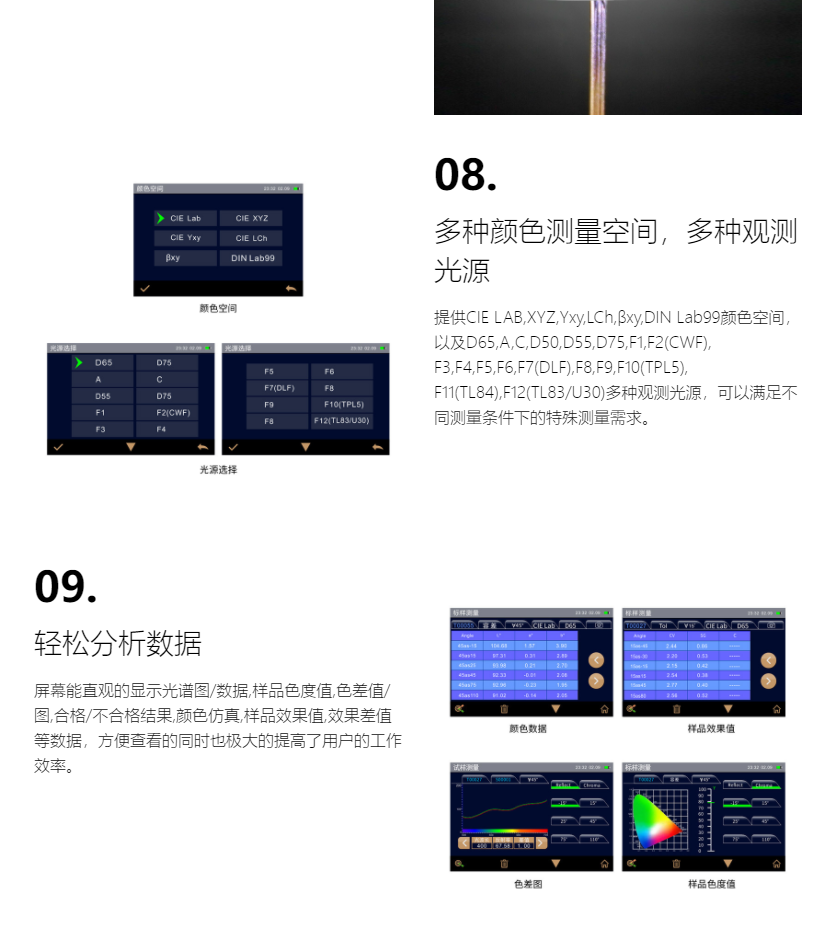

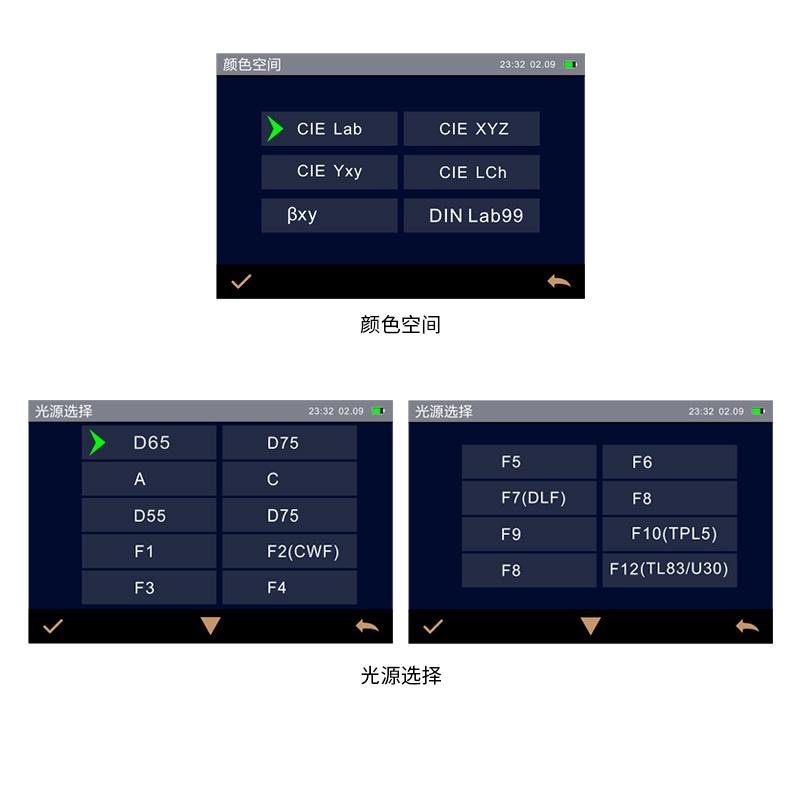

- Color space
- CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
- Color difference formula
- ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
- Miscellaneous chromaticity indicator
- Flop Index, Radiation Intensity Value
- Observer angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
- show
- Light spectrum diagram/data, sample chromatic value, color difference value/graph, pass/fail result, Color simulation, sample effect value, effect difference value
- Color repeability
- Spectral reflectance: standard deviation within 0.08% chromatic value: 0.03ΔE * ab
- Color reproducibility
- △ E * < 0.10, average on gray BCRA swatches △ E * < 0.25, average on color BCRA swatches
- Inter-instrument difference
- 0.2ΔE * 00 (BCRA series Ⅱ 12 color plate measurement average)
- Effect measurement
- 6 Angle scintillation, color scintillation data: 15as-45 °, 15as-30 °, 15as-15 °, 15as15 °, 15as45 °, 15as80 ° 15d diffuse granularity
MS3006
Colorimeter
Appearance of the finished coating is affected by different Viewing Angles and observation conditions, which can not only measure multi-angle color difference, but also measure and characterize special finishes through 6 Measurement angles, even on curved surfaces. Measurement accuracy and Stability.

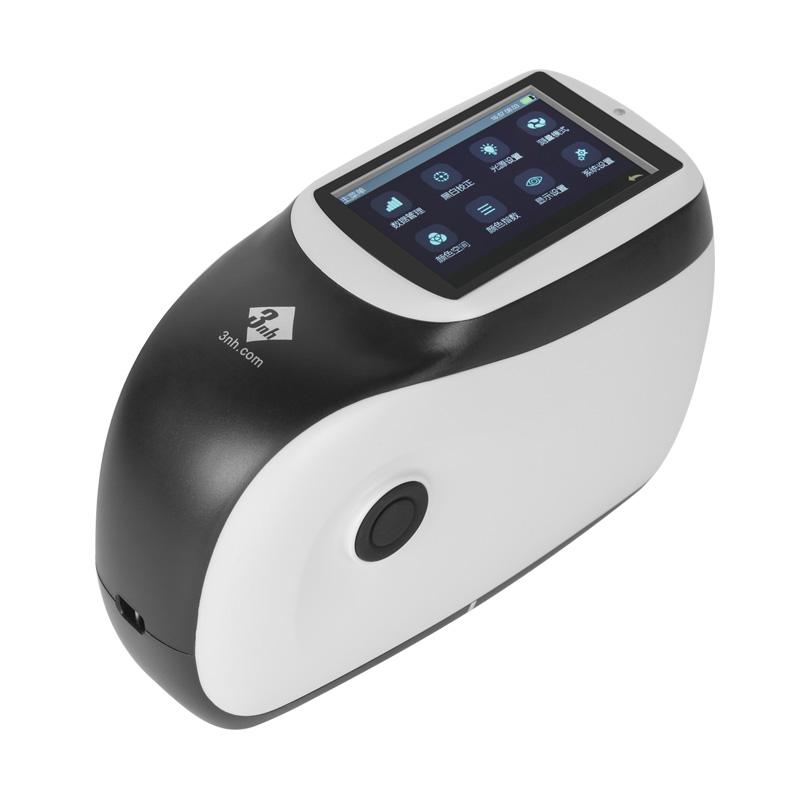

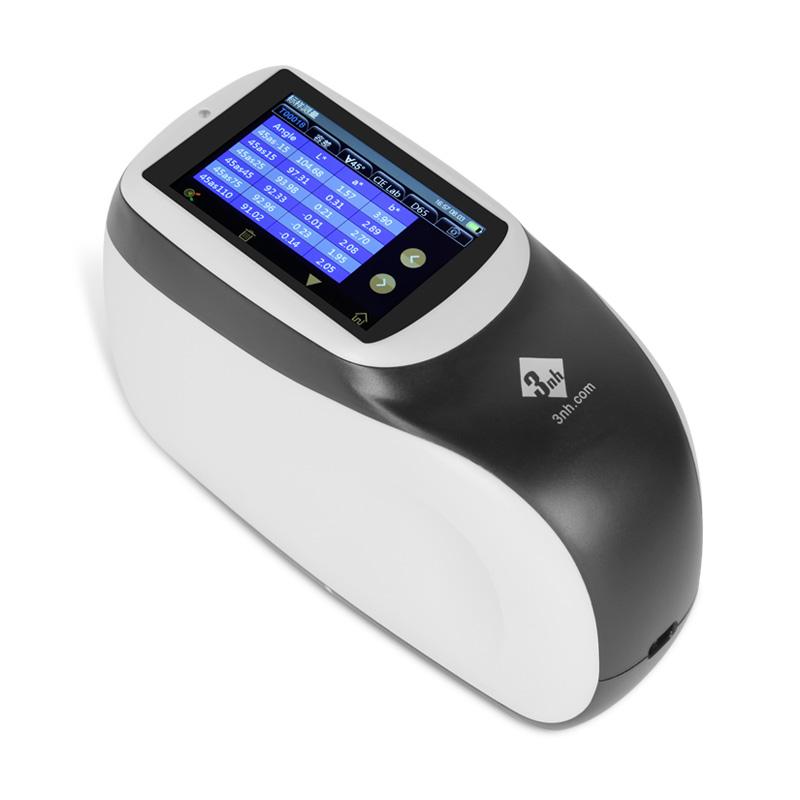

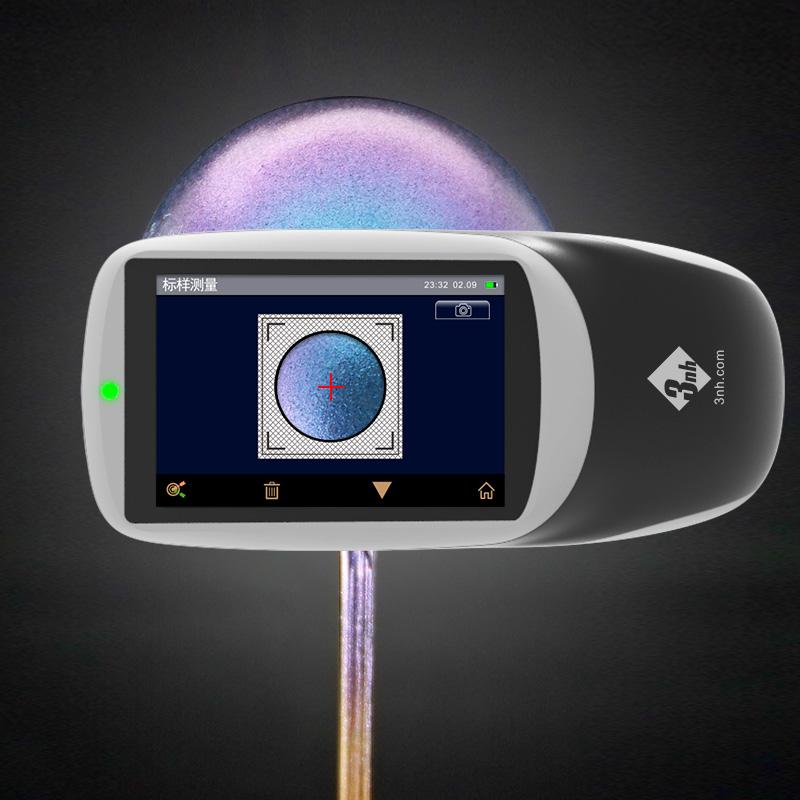

Kutai MS3006 multi-angle Spectrophotometer adopts industrial-grade MCU and is equipped with 6 measurement angles, which can provide accurate and consistent color measurement for metallic colors, pearlescent colors and other complex special effect color products. The smooth operating system and superior optical measurement system allow MS3006 multi-angle Spectrophotometer to provide repeatable and reproducible scintillation, color sparkle, and particle size measurements.

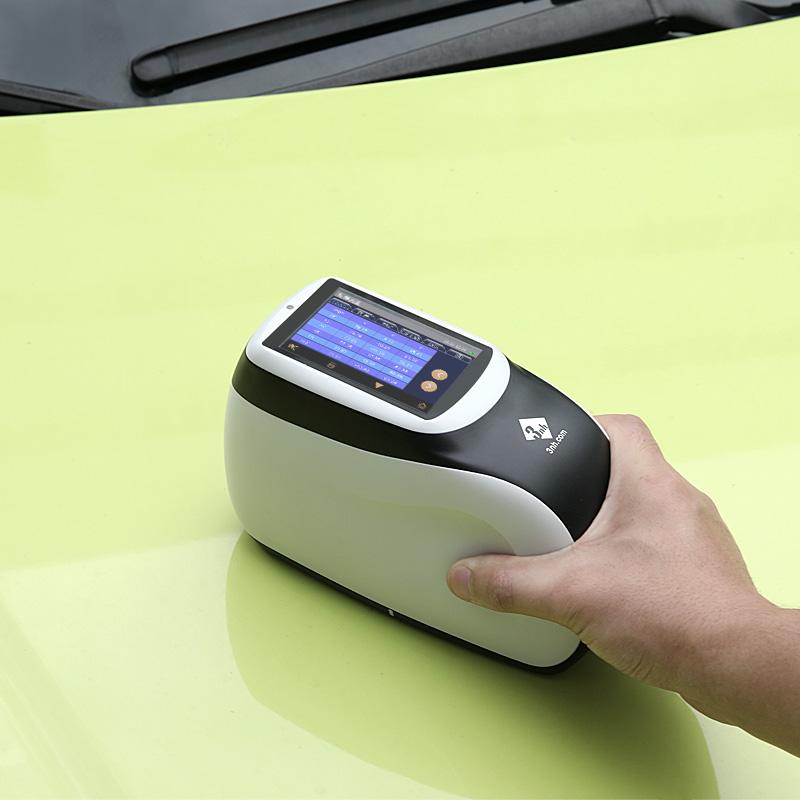

3nh multi-angle Spectrophotometer Kutai MS3006 is used to evaluate the effect. The surface appearance of the topcoat is affected by different observation angles and observation conditions. Measurement and characterization, even on curved surfaces, with high measurement accuracy and stability.
