Kutai MS3003 Multi-angle Colorimeter Industrial MCU 3 Measurement angles

SE
Industrial grade MCU, 3 Measurement angles, used to evaluate the effect of finish coating surface Appearance affected by different conditions, suitable for color, pearlescent color and other complex special effect Color.
Model：
Certificate
Contact
Details SPEC Con CAT OI

3NH MS3003 ColorimeterSPEC

3NH MS3003 ColorimeterDetails

3NH MS3003 ColorimeterPacking list

SKU
NB041883

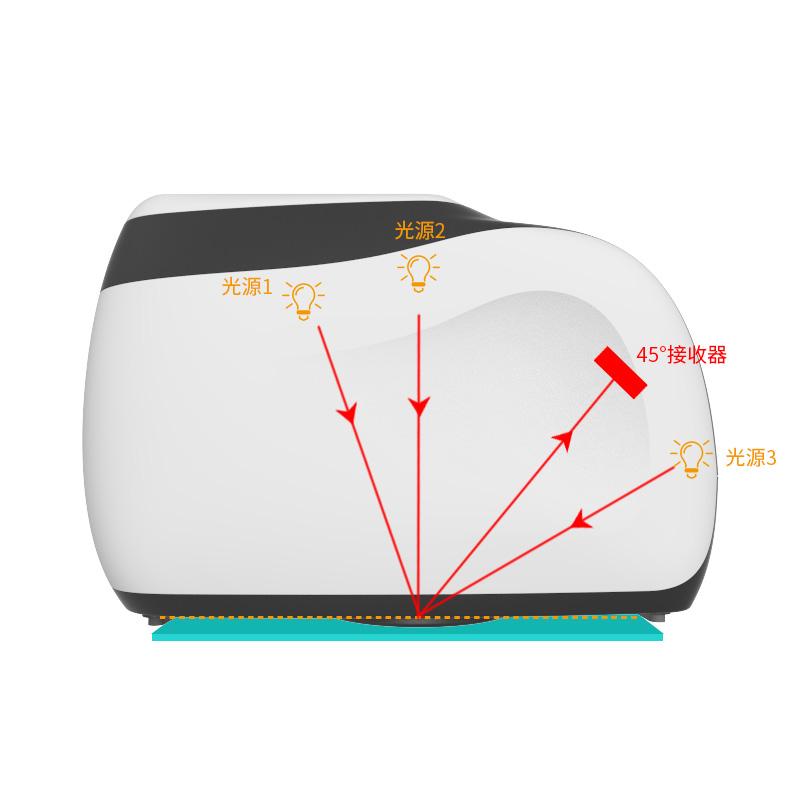

Measurement geometry
3 Geometry (3 Light Sources, 1 Receiver)
Color Geometry
45 ° receiver: 45as25 °, 45as45 °, 45as110 °
lighting source
Blue Enhanced Full Light spectrum LED
Lighting source life
5 years 3 million measurements
Spectroscopic method
Concave grating
Detector
256-Pixel dual array CMOS image sensor
Measurement Wavelength range
400nm-700nm
wavelength spacing
10nm
Measuring range
0~600%
Half Bandwidth
10nm
Measurement caliber
F12mm
Color space
CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color difference formula
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Miscellaneous chromaticity indicator
Flop Index
Observer angle
2°/10°
Observation light source
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
show
Light spectrum diagram/data, sample chromatic values, color difference values/diagram, pass/fail results, Color simulation
Measurement time
Single angle measurement time is about 1s, all angle measurement takes about 3s
Color repeability
Spectral reflectance: standard deviation within 0.08% chromatic value: 0.04ΔE * ab (after instrument preheating correction, the average value of the whiteboard is measured 30 times at intervals of 5s)
Color reproducibility
△ E * < 0.10, average on gray BCRA swatches △ E * < 0.25, average on color BCRA swatches
Inter-instrument difference
0.2ΔE * 00 (BCRA series Ⅱ 12 color plate measurement average)
Effect parameters
/
Effect measurement
/
Effect, sexual repeability
/
Effect reproducibility
/
Trigger method
Pressure sensing trigger, button trigger, software trigger
Measurement method
Single measurement, average measurement (1~ 99 times), continuous measurement (1~ 99 times)
Positioning method
Color camera preview
size
L x W x H = 195X83X128mm
Weight
About 1Kg
Battery level
Lithium battery, 3.7V, 3200mAh, can be continuously tested 6000 times within 8 hours of being fully charged
Display
TFT true color 3.5inch, capacitive touch screen
interface
USB
Store data
1000 master standards, 4000 samples.
language
Chinese (Simplified, Traditional) English
Operating temperature range
10 ℃ to 50 ℃, humidity not exceeding 85%, non-condensing
Storage temperature range
-20 ℃ to 50 ℃, humidity not exceeding 85%, non-condensing
Calibrate
Built-in whiteboard parameters, external whiteboard, black light trap
Calibrated interval
4 hours, 8 hours, 24 hours, boot correction
Standard accessories
Power adapter, data cable, manual, quality management software (official website download), correction box, black light trap, protective cover, wristband
Optional accessories
Micro printer
Standards
ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
MS3003
Colorimeter
Industrial grade MCU, 3 Measurement angles, used to evaluate the effect of finish coating surface Appearance affected by different conditions, suitable for color, pearlescent color and other complex special effect Color.

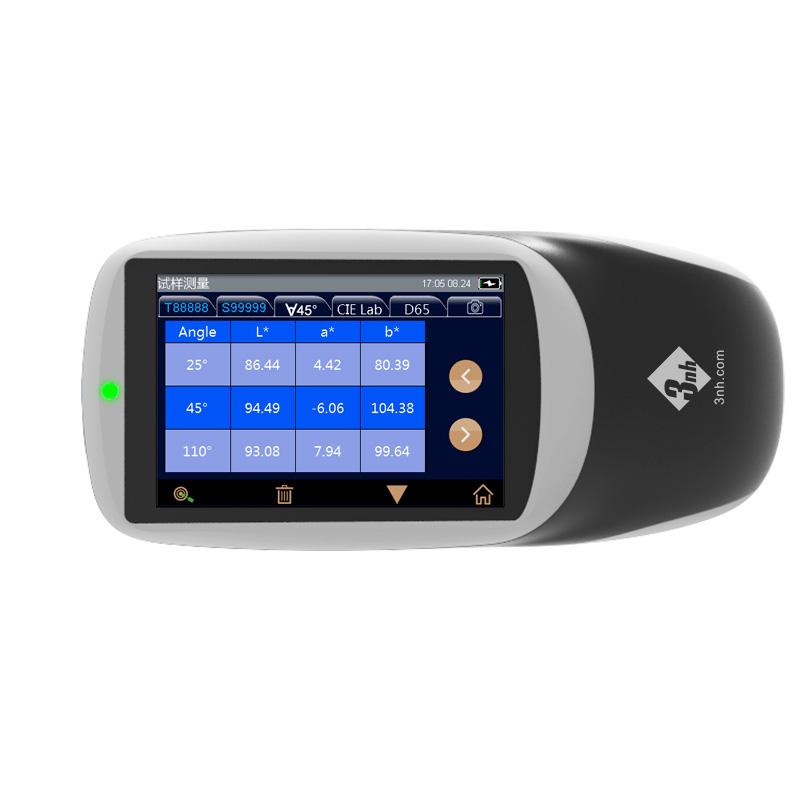

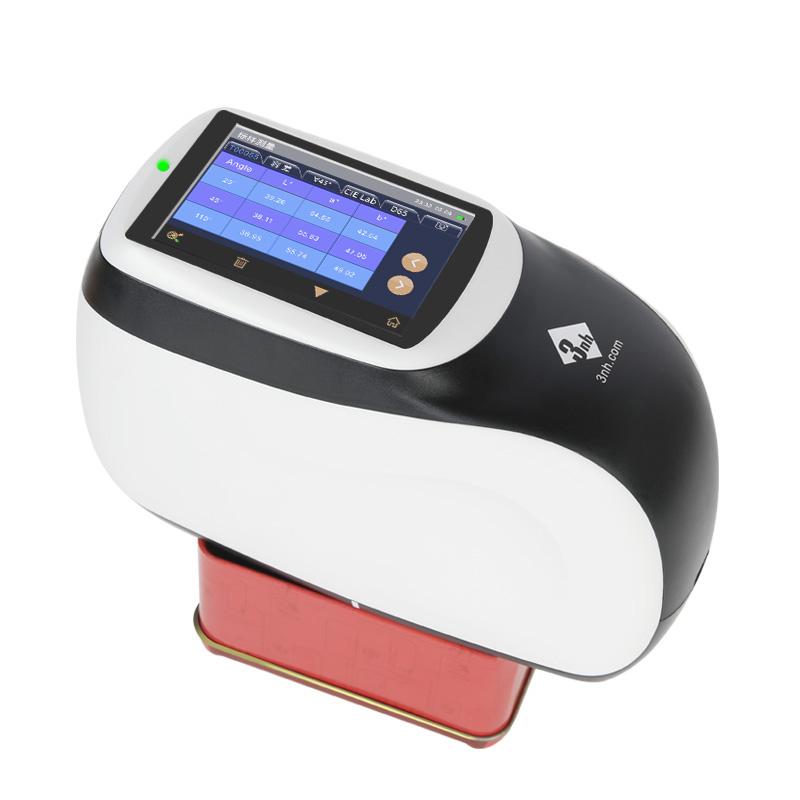

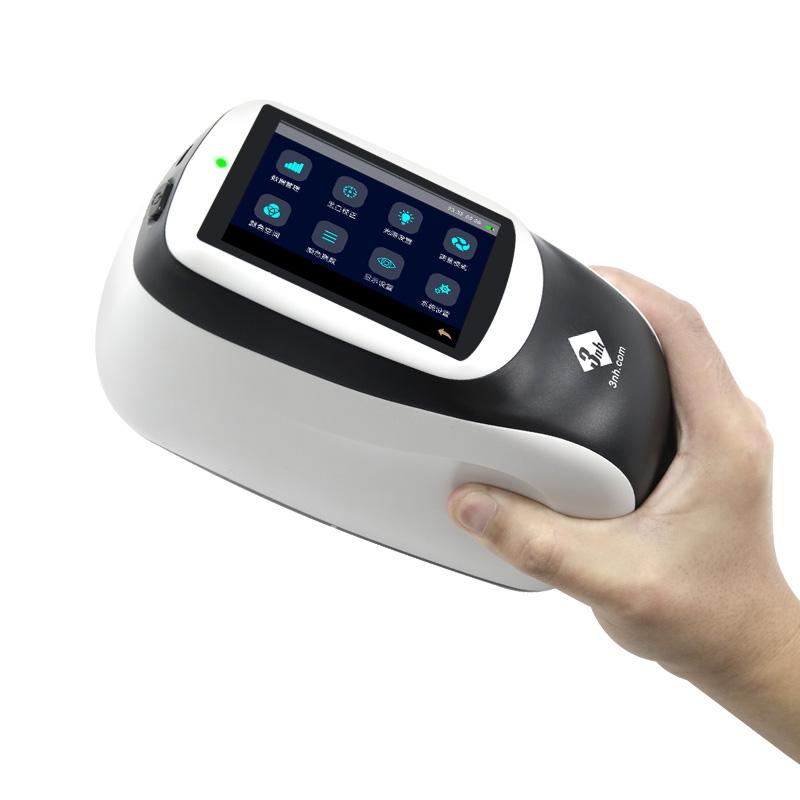

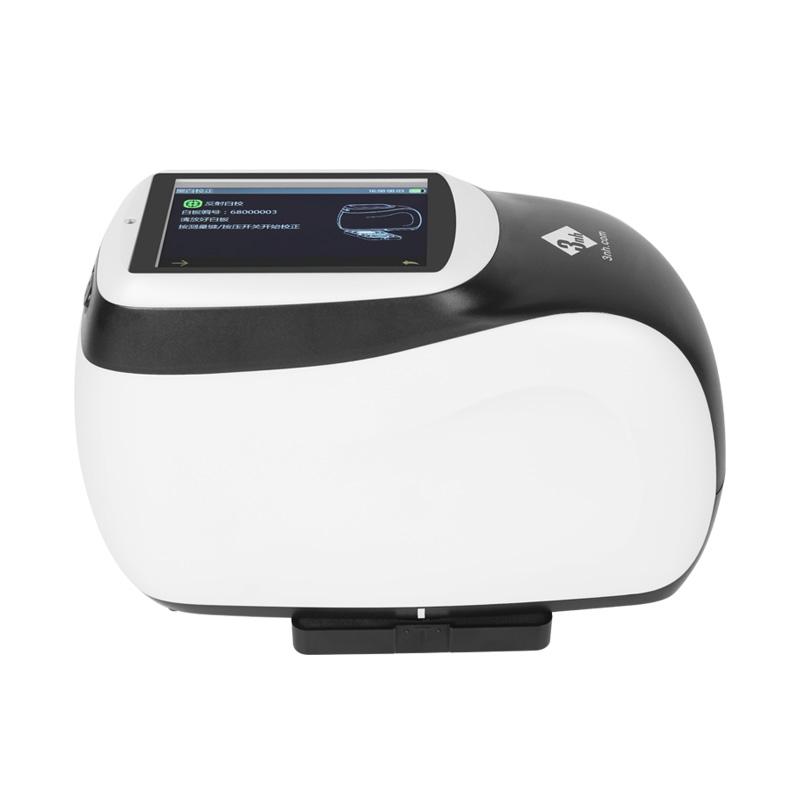

Kutai MS3003 Multi-angle Colorimeter Industrial MCU 3 Measurement angles Picture

3nh multi-angle Spectrophotometer Kutai MS3003 is used to evaluate the surface appearance of the effect topcoat is affected by different Viewing Angles and conditions, and can provide accurate and consistent colors for metallic colors, pearlescent colors and other complex special effect color products Measurement.



Kutai MS3003 multi-angle Spectrophotometer adopts industrial-grade MCU and is equipped with 3 measurement angles. With the support of the superior optical measurement system, the MS3003 multi-angle Spectrophotometer has excellent performance in multi-angle color difference measurement, even if it is On curved surfaces, it also has high measurement accuracy and stability.
