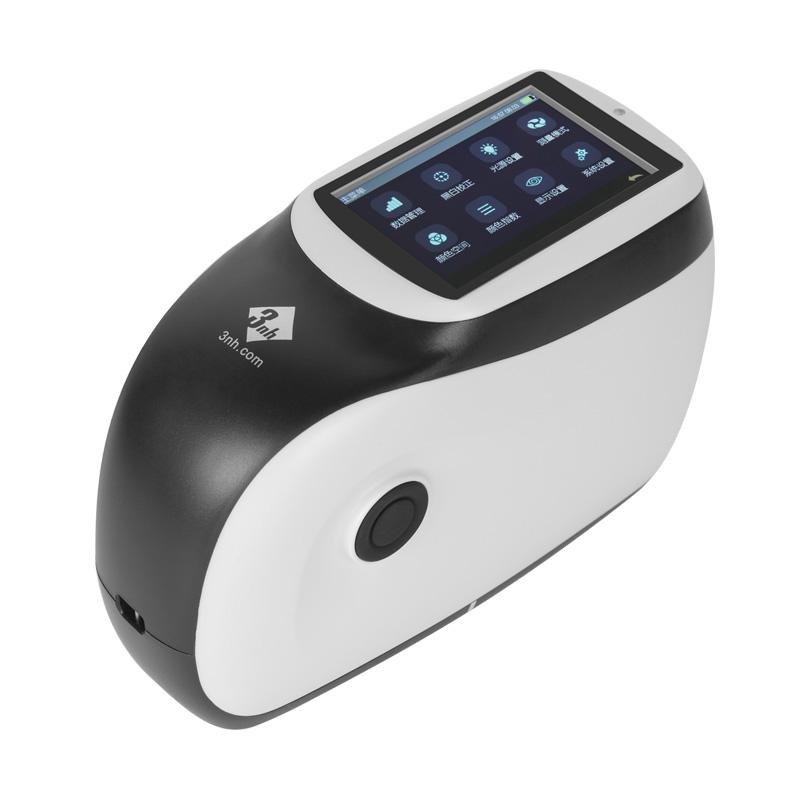

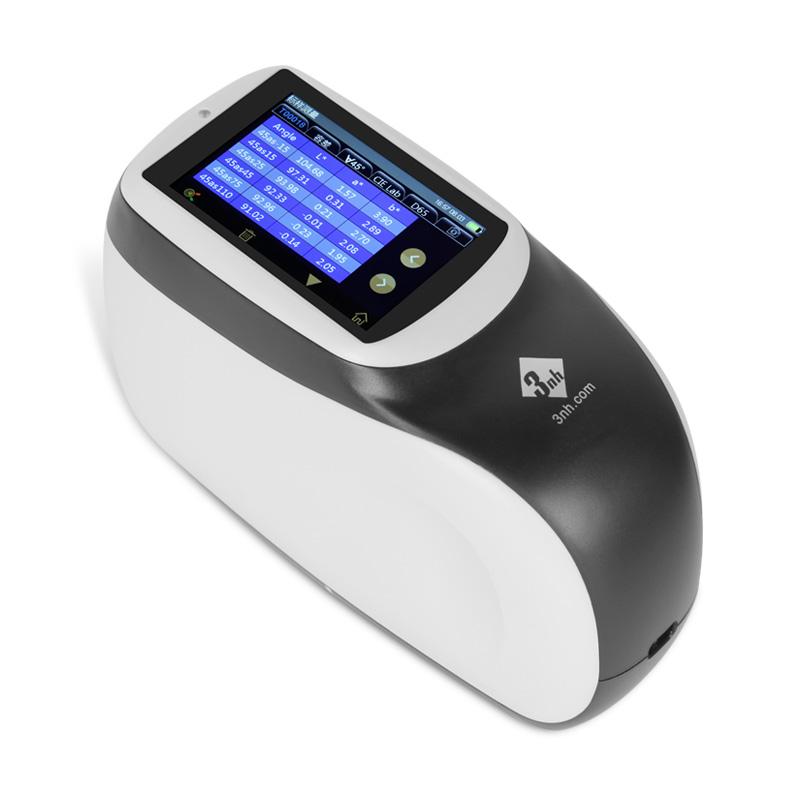

Kutai MS3008 Automotive Colorimeter 8 Measurement angles
SEIndustrial grade MCU, 8 Measurement angles, can be used for metal color, pearlescent color and other complex special effect Color product detection, can quickly determine the scintillation of the sample, color flash, granularity.
Price: Please contact customer service
Model：
MS3008
3NH MS3008 ColorimeterSPEC
3NH MS3008 ColorimeterDetails
3NH MS3008 ColorimeterPacking list
- SKU
- NB041885

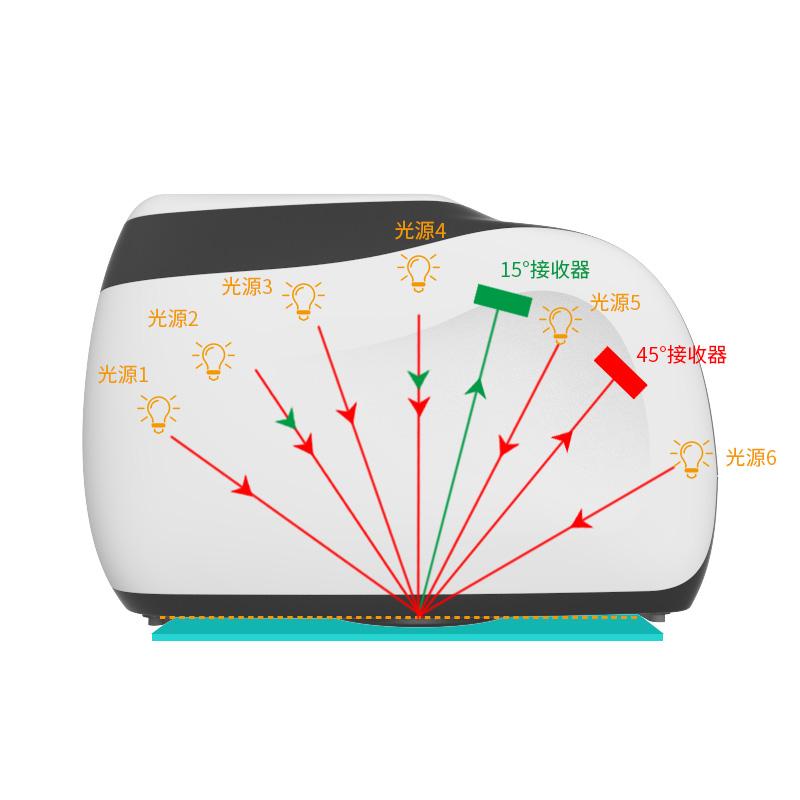

- Measurement geometry
- 8 Geometry (6 light sources, 2 receivers)
- Color Geometry
- 45 ° receiver: 45as-15 °, 45as15 °, 45as25 °, 45as45 °, 45as75 °, 45as110 °; 15 ° receiver: 15as-45 °, 15as-15 °
- lighting source
- Blue Enhanced Full Light spectrum LED
- Lighting source life
- 5 years 3 million measurements
- Spectroscopic method
- Concave grating
- Detector
- 256-Pixel dual array CMOS image sensor
- Measurement Wavelength range
- 400nm-700nm
- wavelength spacing
- 10nm
- Measuring range
- 0~600%
- Half Bandwidth
- 10nm
- Measurement caliber
- F12mm
- Color space
- CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
- Color difference formula
- ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
- Miscellaneous chromaticity indicator
- Flop Index, Radiation Intensity Value
- Observer angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
- show

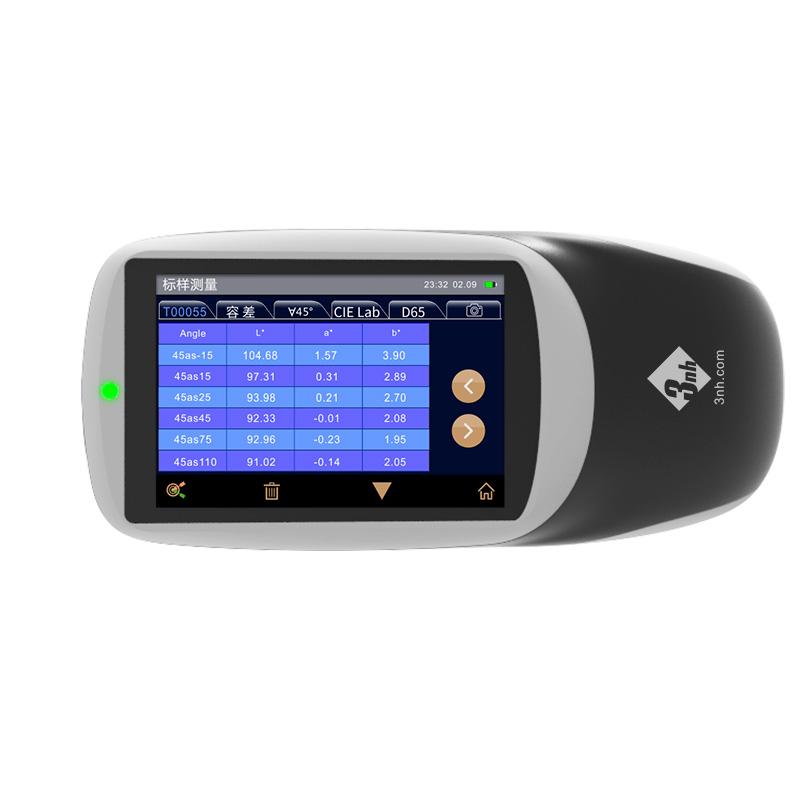

- Light spectrum diagram/data, sample chromatic value, color difference value/graph, pass/fail result, Color simulation, sample effect value, effect difference value
- Measurement time
- Single angle measurement time is about 1s, all angle measurement takes about 8s
- Color repeability
- Spectral reflectance: standard deviation within 0.08% chromatic value: 0.03ΔE * ab (after instrument preheating correction, the average value of the whiteboard is measured 30 times at intervals of 5s)
- Color reproducibility
- △ E * < 0.10, the average on the gray BCRA swatch; △ E * < 0.25, the average on the color BCRA swatch
- Inter-instrument difference
- 0.18ΔE * 00 (BCRA series Ⅱ 12 color plate measurement average)
- Effect parameters
- Flicker, color flicker, granularity
- Effect measurement
- 6 Angle flicker, color flicker data: 15as-45 °, 15as-30 °, 15as-15 °, 15as15 °, 15as45 °, 15as80 °; 15d diffuse granularity
- Effect, sexual repeability 1
- Short-term scintillation, repeability: 0.12% (10 standard deviations) (after instrument preheating correction, the average value of the color plate is measured 10 times at intervals of 10s)
- Effect, sexual repeability 2
- Granularity short-term, repeability: 0.09% (10 standard deviation) (after instrument preheating correction, 10 average measurements of color plates at intervals of 10s)
- Trigger method
- Pressure sensing trigger, button trigger, software trigger
- Measurement method
- Single measurement, average measurement (1~ 99 times), continuous measurement (1~ 99 times)
- Positioning method
- Color camera preview
- size
- L x W x H = 195X83X128mm
- Weight
- About 1Kg
- Battery level
- Lithium battery, 3.7V, 3200mAh, can be continuously tested 6000 times within 8 hours of being fully charged
- Display
- TFT true color 3.5inch, capacitive touch screen
- interface
- USB, Bluetooth 5.0
- Store data
- 1000 master standards, 4000 samples.
- language
- Chinese (Simplified, Traditional) English
- Operating temperature range
- 10 ℃ to 50 ℃, humidity not exceeding 85%, non-condensing
- Storage temperature range
- -20 ℃ to 50 ℃, humidity not exceeding 85%, non-condensing
- Calibrate
- Built-in whiteboard parameters, external whiteboard, black light trap, color board
- Calibrated interval
- 4 hours, 8 hours, 24 hours, boot correction
- Standard accessories
- Power adapter, data cable, manual, quality management software (official website download), correction box, black light trap, protective cover, wristband
- Optional accessories
- Micro printer
- Standards
- ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
- Effect reproducibility 1
- Scintillation reproducibility: 1.9% (10 standard deviation) (BCRA series Ⅱ 12 color plate measurement average)
- Effect reproducibility 2
- Granularity reproducibility: 1.4% (10 standard deviation) (BCRA series Ⅱ 12 color plate measurement average)
MS3008
Colorimeter
Industrial grade MCU, 8 Measurement angles, can be used for metal color, pearlescent color and other complex special effect Color product detection, can quickly determine the scintillation of the sample, color flash, granularity.

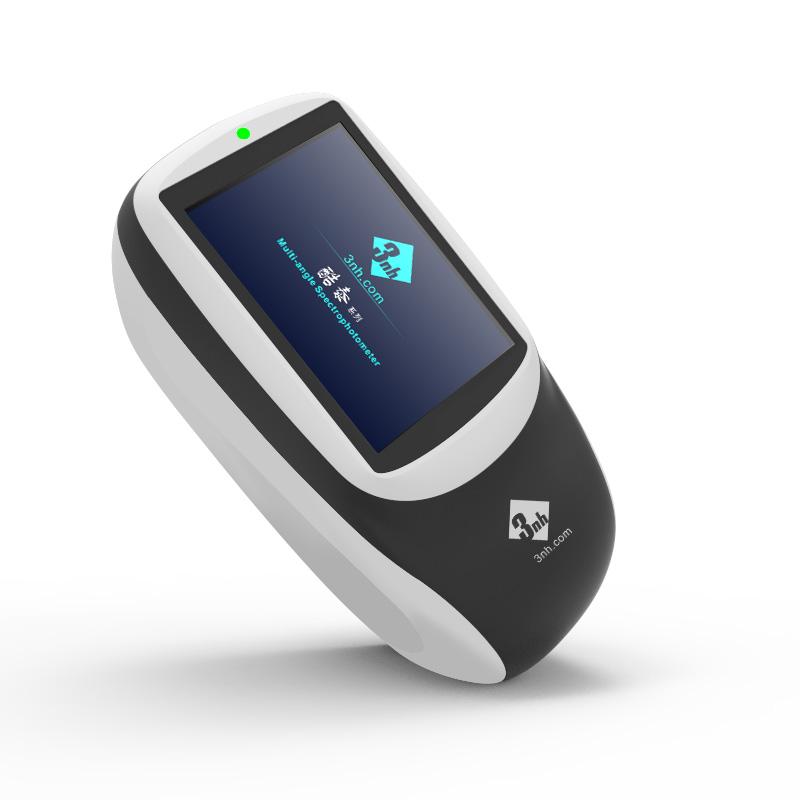

Kutai MS3008 multi-angle Spectrophotometer adopts industrial-grade MCU and is equipped with 8 measurement angles, which can provide accurate and consistent color measurement for metallic colors, pearlescent colors and other complex special effect color products. The smooth operating system and superior optical measurement system allow the MS3008 multi-angle Spectrophotometer to provide repeatable and reproducible scintillation, color sparkle, and particle size measurements.

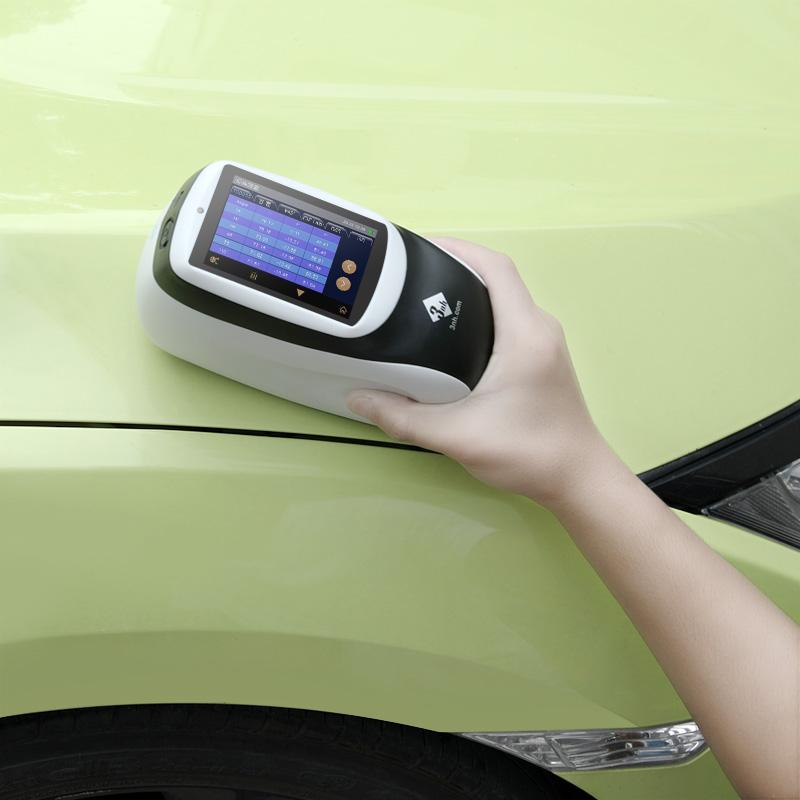

3nh multi-angle Spectrophotometer Kutai MS3008 is used to evaluate the effect. The surface appearance of the topcoat is affected by different observation angles and observation conditions. Measurement and characterization, even on curved surfaces, with high measurement accuracy and stability.
