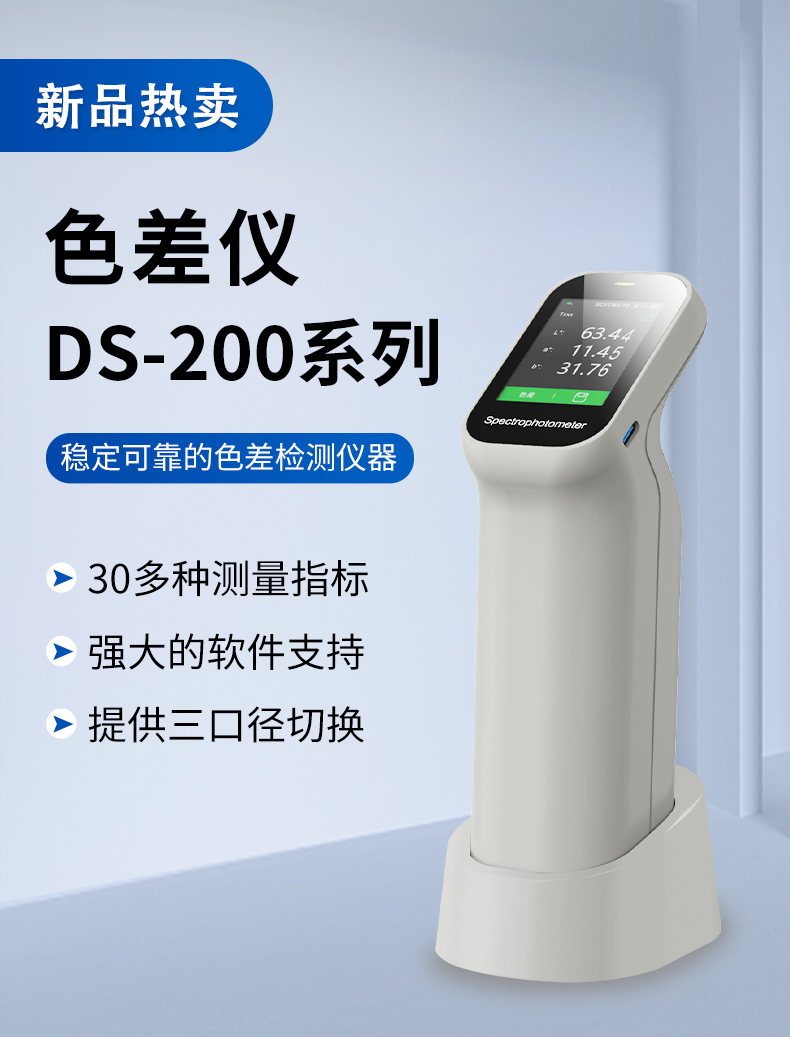

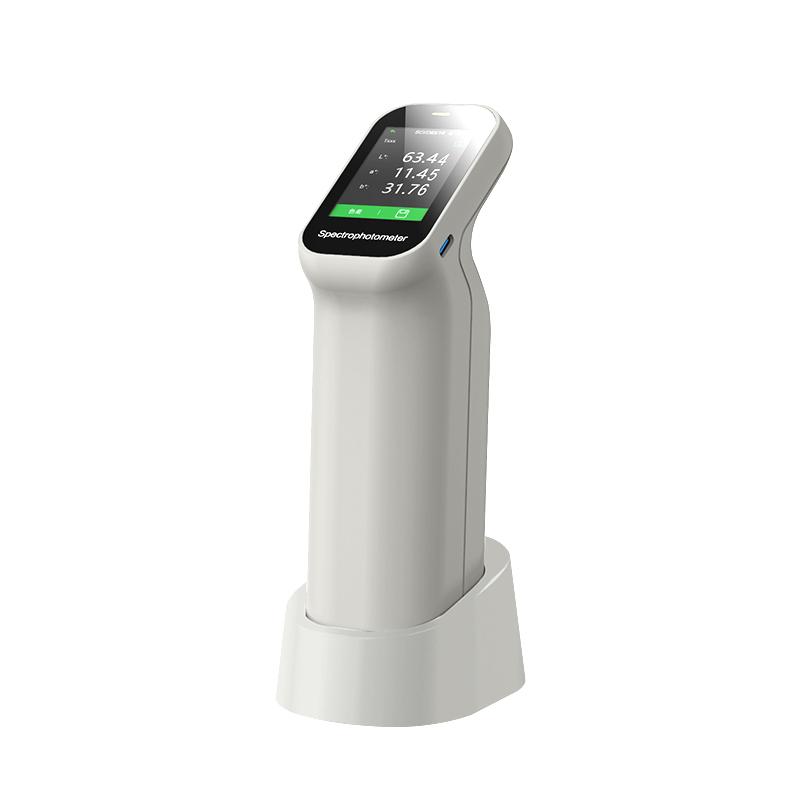

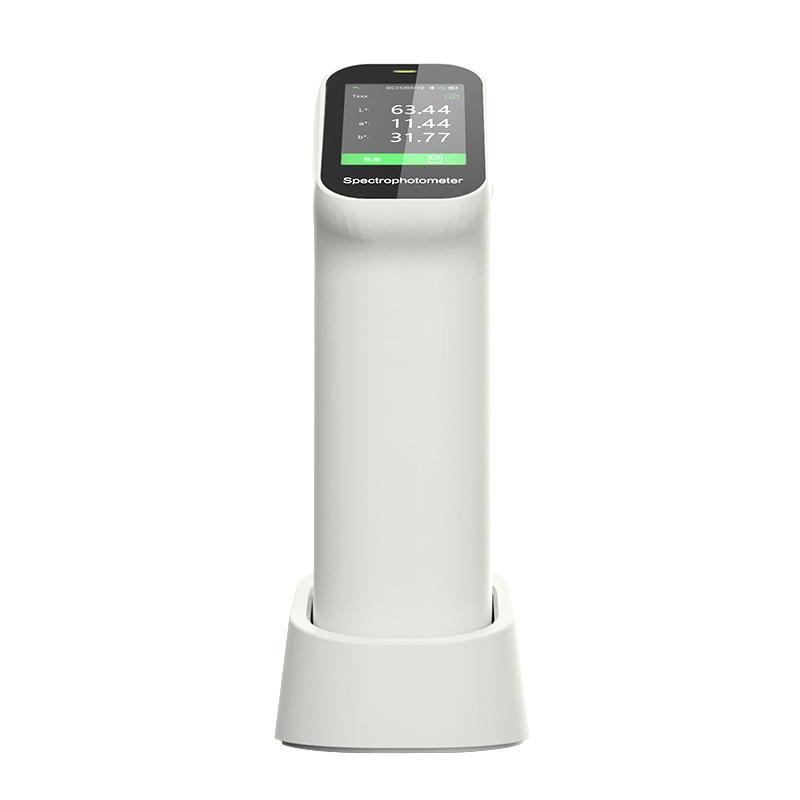

CHNSPEC DS-200 handheld Colorimeter 6mm caliber

DS-200

Color difference meter

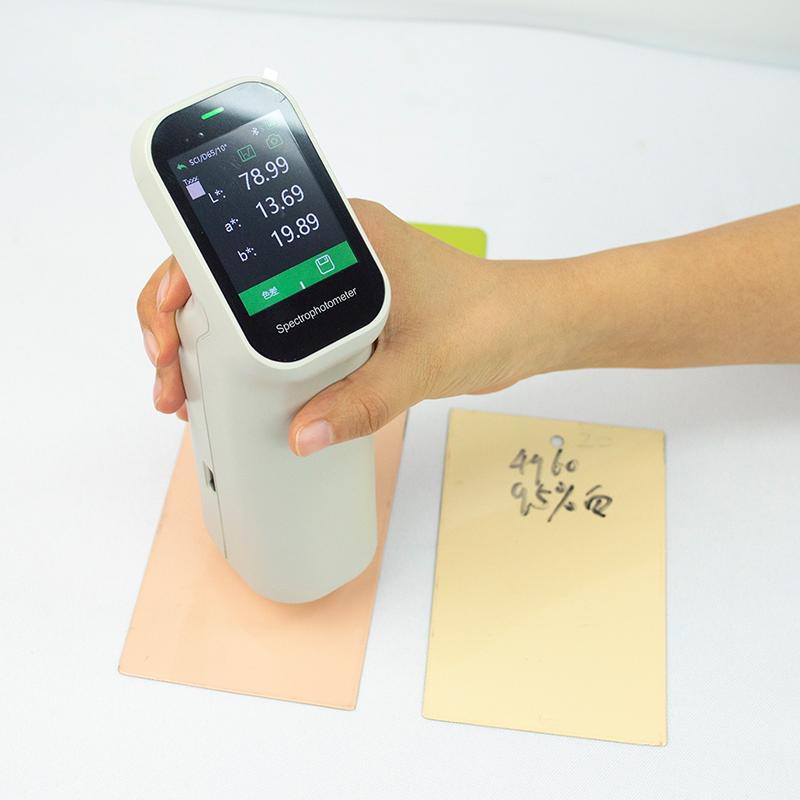

DS-200 series Colorimeter is a stable and reliable color difference detection instrument. Repeatability accuracy can reach: dE * ab ≤ 0.03, which can be connected to mobile app, WeChat Mini Program, computer management software.

Core technology

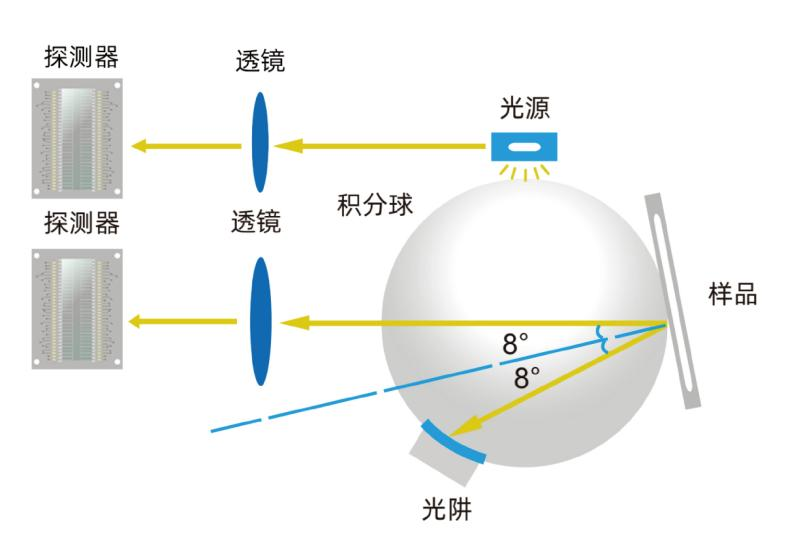

(1) Dual-optical path design improves repeatability, dE*ab≤0.03

The dual-optical path design monitors the energy fluctuations of the light source while measuring the sample signalThe measurement is reduced with interference, higher measurement stability is obtained, and the repeatability index of the instrument measurement is increased to dE*ab≤0.03. The measurement speed, accuracy and stability of the instrument are guaranteed. The related technology is protected by Chinese invention patents and American invention intellectual property rights.

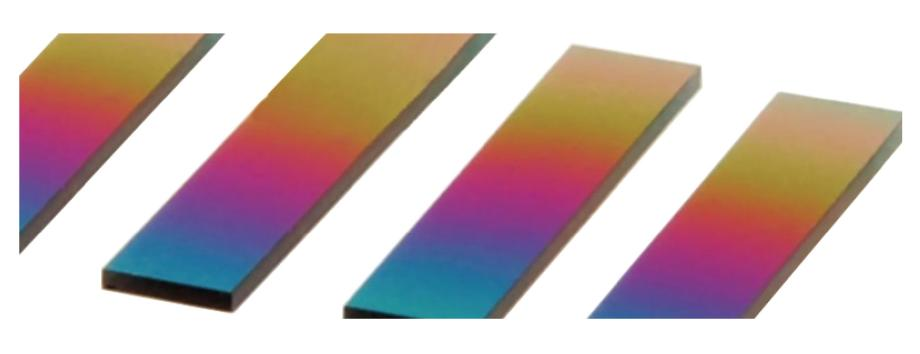

(2) Innovative 5 micron thickness nano-integrated optics

After painstaking research, the nano-integrated optical device is used as the optical splitting device, and only 5 micron thickness of the optical device can achieve nano-level spectroscopy ability, which greatly improves the technical performance of the product. The relevant technology is protected by the intellectual property rights of Chinese inventions.

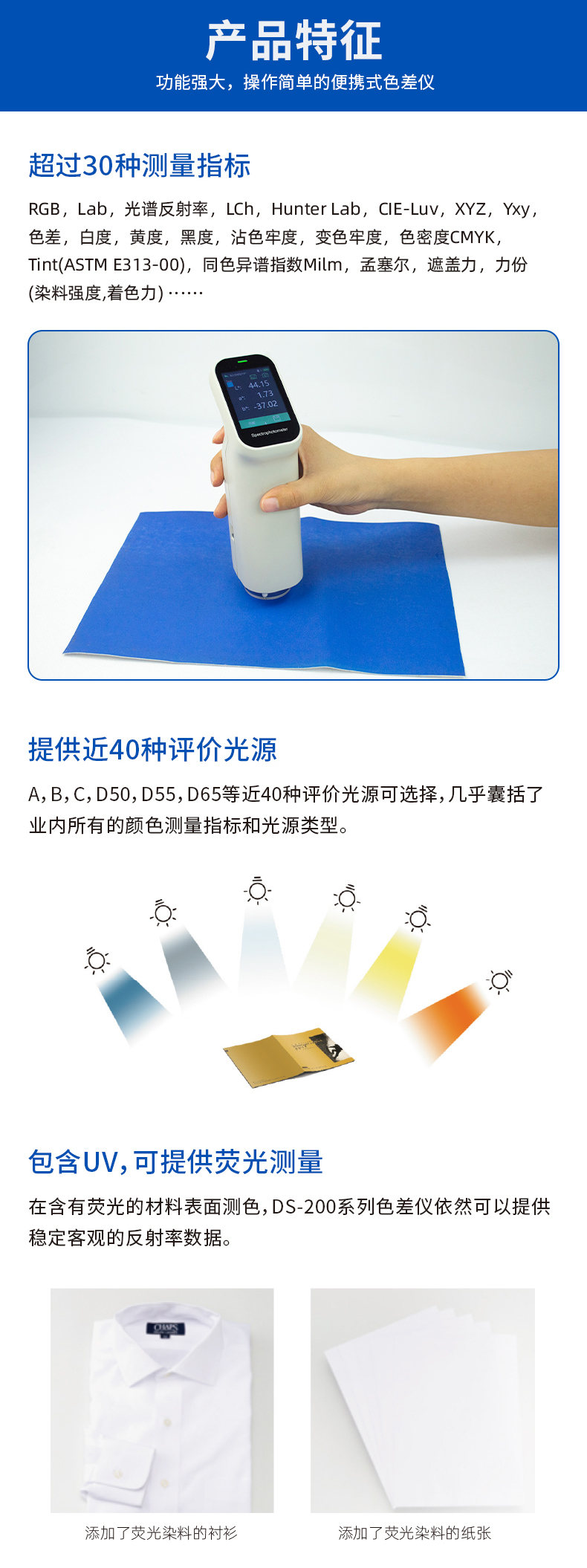

Product Features

(1) More than 30 measurement indicators

   • RGB, Lab, Spectral Reflectance, LCh, Hunter Lab, CIE-Luv, XYZ, Yxy

   • Chromatic aberration (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00)

   • 白度(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby)

   • Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)

   • Blackness (My, dM), Stainfastness, Fastness to Change, Tint (ASTM E313-00)

   • Color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, force (dyeStrength, tinting strength)

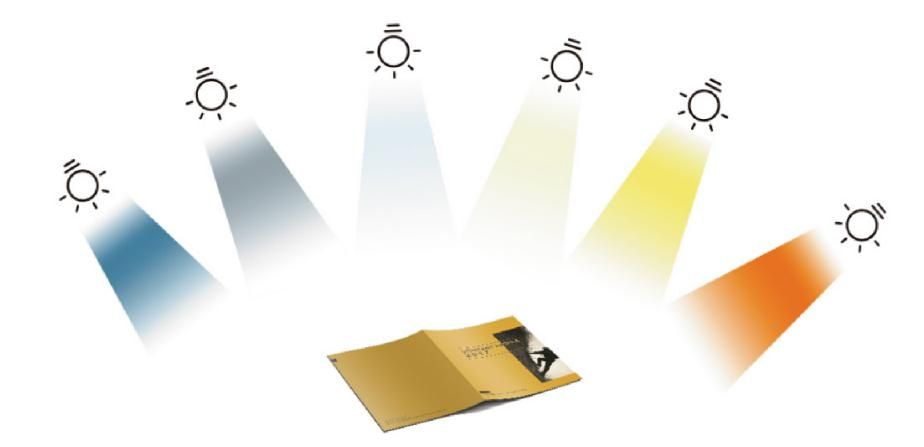

(2) Evaluate whether the color jumps the lamp, and provide nearly 40 kinds of evaluation light sources

Nearly 40 evaluation light sources such as A, B, C, D50, D55, D65 and so on are available, covering almost all color measurement indicators and light source types in the industry.

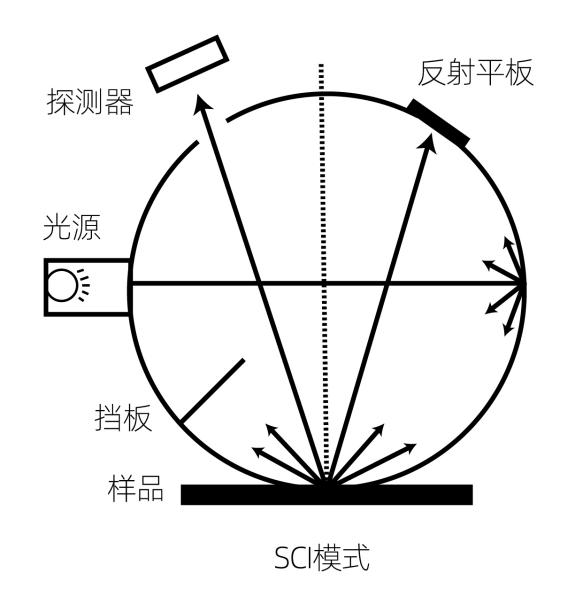

(3) SCI measurement mode is included

SCI refers to the specular reflection method, which is generally used to study the properties of the color itself and does not care about the surface gloss of the color adherence.

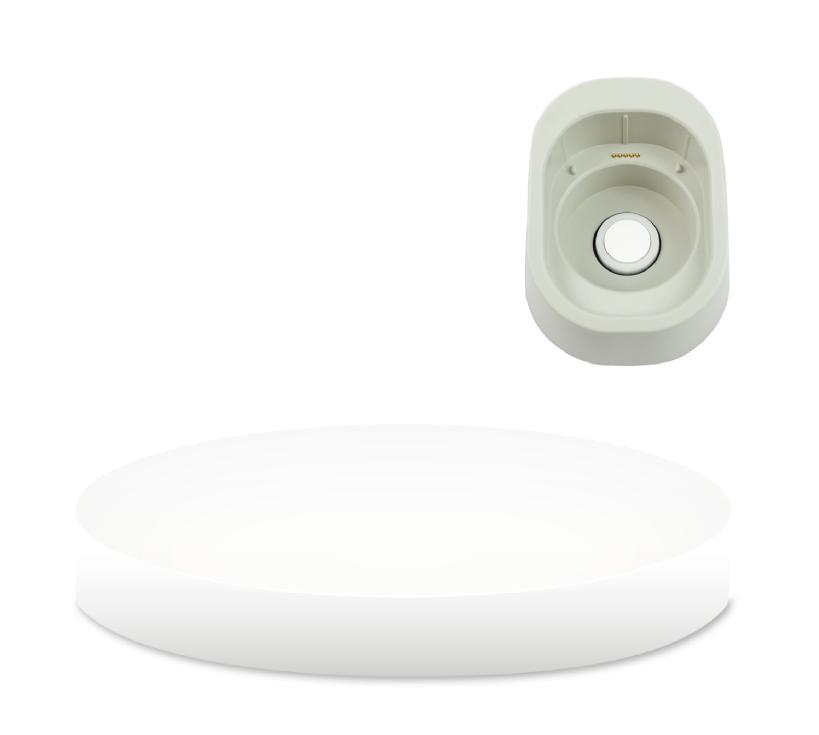

(4) The calibration base and the zirconium reference with Mohs hardness of 9 calibrate the instrument to ensure the long-term stability of the instrument

In contrast to existing products, the DS-200 Colorimeter does not require frequent manual calibration when in useAs long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own state and environmental factors, so as to ensure that the instrument is always in a stable state and ready to be on call at any time.

The whiteboard in the calibration base serves as a benchmark for the accuracy of the instrument. Through long-term investment and research, CHNSpec has integrated zirconium material, known as "artificial diamond", as a calibration whiteboard, with a surface Mohs hardness of 9. Because the material itself has a hardness and stability comparable to that of diamonds, it is guaranteed that the surface of the calibration whiteboard will not be scratched and will not change color with changes in temperature and humidity. Compared with similar products in foreign and domestic (CN) countries, ordinary industrial ceramics and even plastics are used as calibration whiteboards, which further improve the stability and durability and ensure the performance of the instrument.

Calibration whiteboard (artificial diamond zirconium material)

Mohs hardness: 9

Spectral reflectance > 90%

Temperature and humidity change without discoloration

Oxidation does not change color

Ultra-high hardness does not scratch

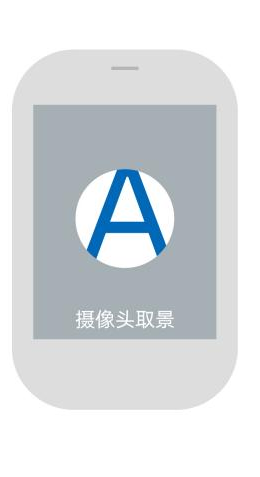

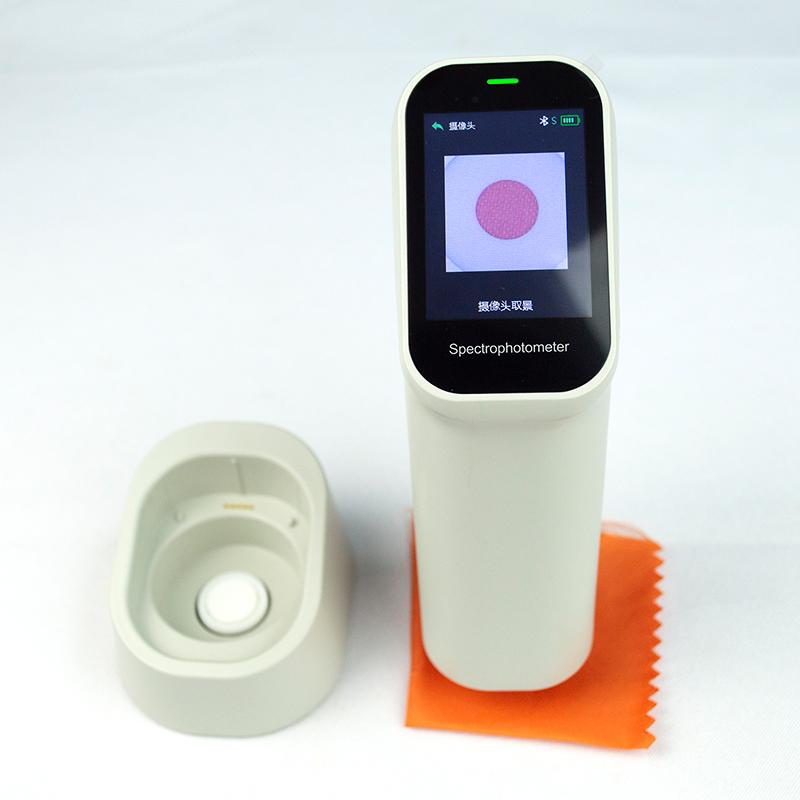

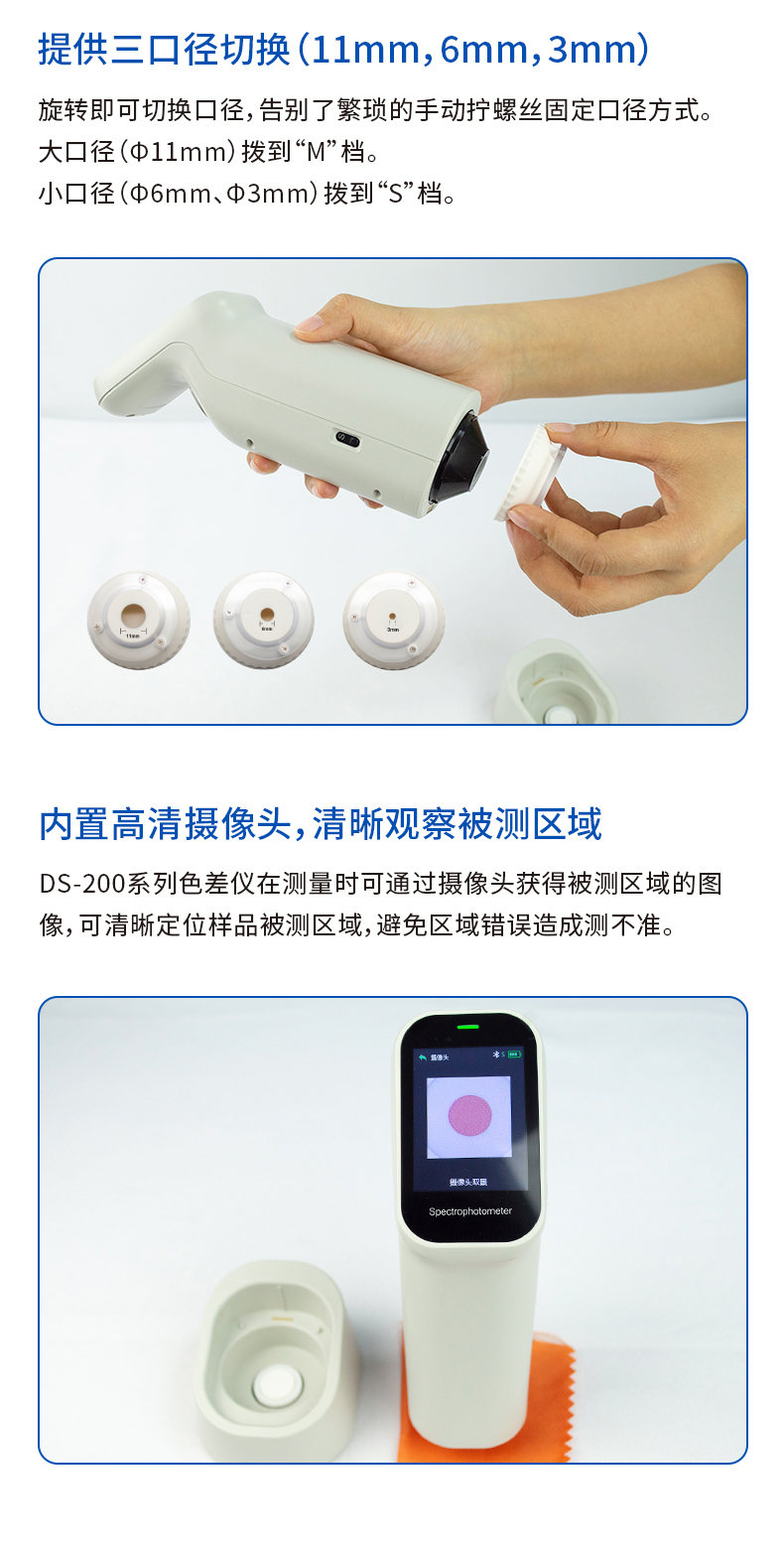

(5) Built-in high-definition camera, clear observation of the measured area

The DS-200 Colorimeter can obtain an image of the measured area through the camera during measurement, which can clearly locate the measured area of the sample and avoid inaccurate measurement caused by regional errors.

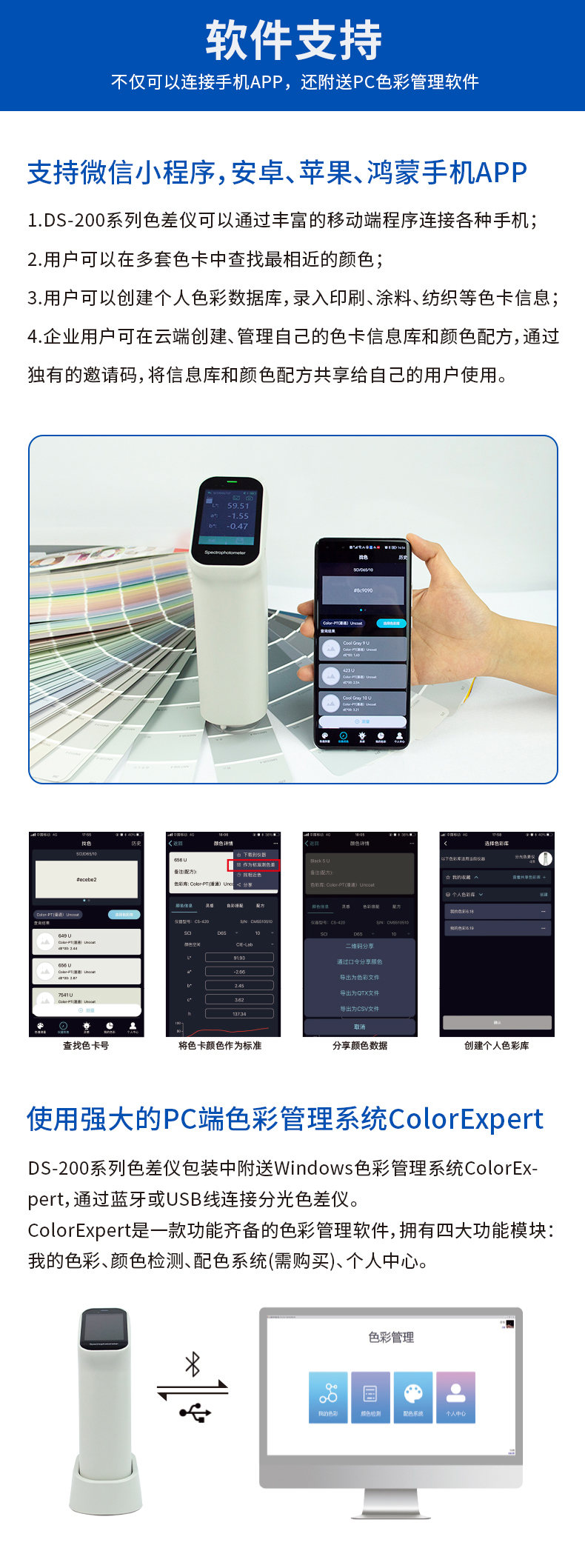

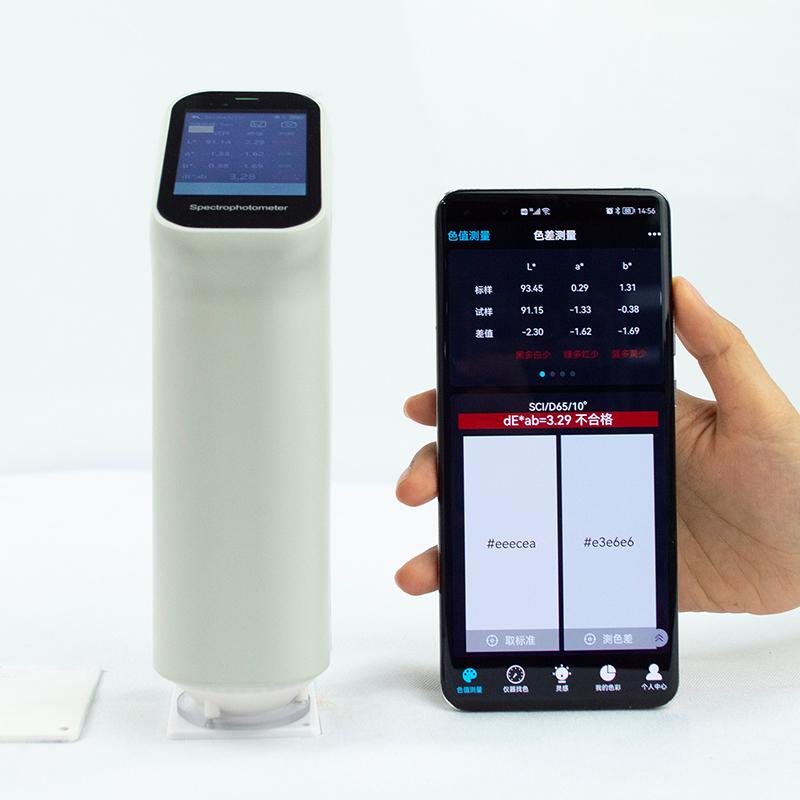

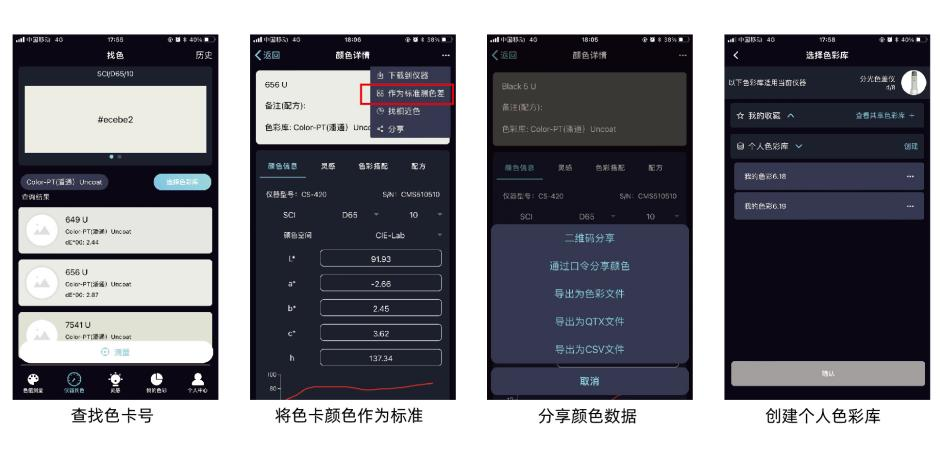

(6) Support WeChat applet, Android, Apple, Hongmeng mobile APP

• DS-200 Colorimeter can be connected to a variety of mobile phones through a variety of mobile applications. Users no longer need to pass the color value of the sample and the physical object, and can easily transmit the color data through WeChat.

• Users can find the closest colors in multiple color swatches.

• Users can create a personal color database, enter the Color Chart information of printing, coating, textile, etc., and the created color library can be uploaded to the cloud for multi-device data sharing.

• Enterprise users can create and manage their own Color Chart information and color recipes in the cloud, and share the information base and color recipes with their own users by having an invitation code.

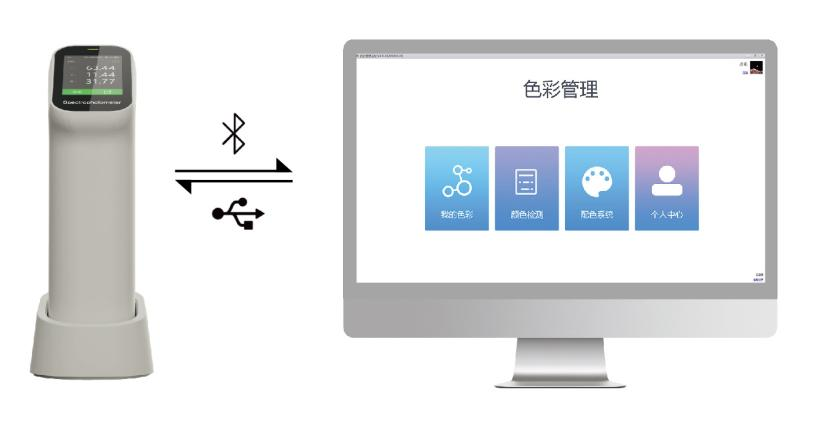

(7) Use the powerful PC color management system ColorExpert

The DS-200 Colorimeter comes with a Windows color management system, ColorExpert, which connects to the Colorimeter via Bluetooth or USB cable.

ColorExpert is a full-featured color management software with four functional modules: My Color, Color Detection, Color Matching System (to be purchased), and Personal Center.

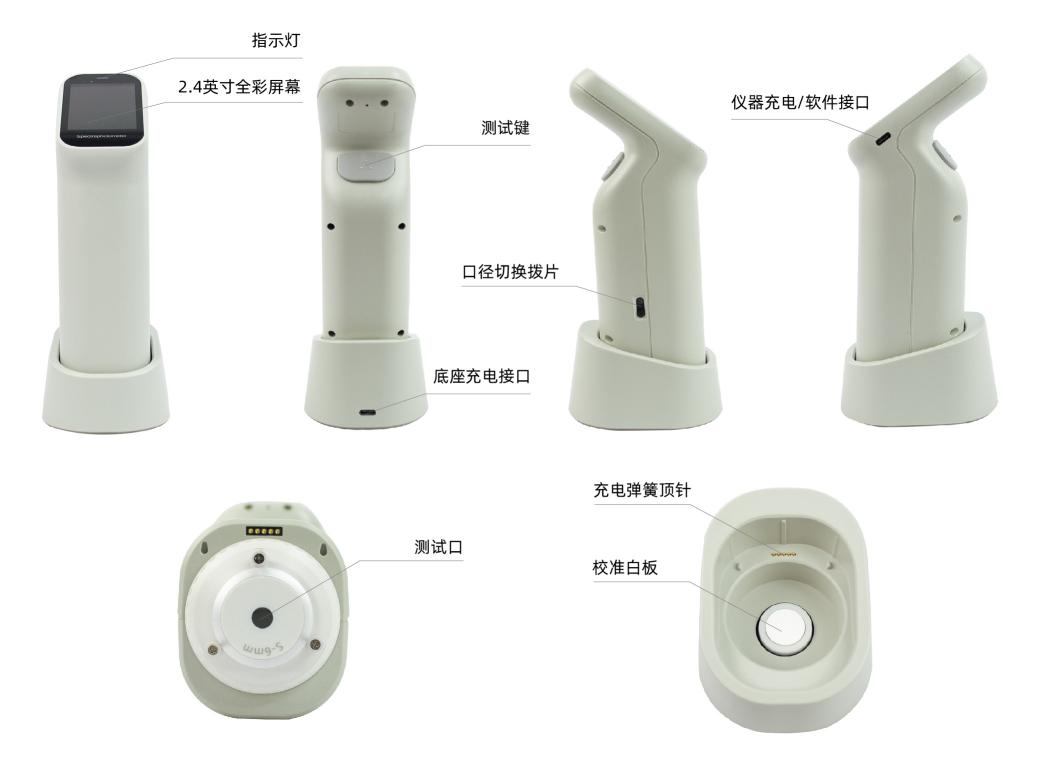

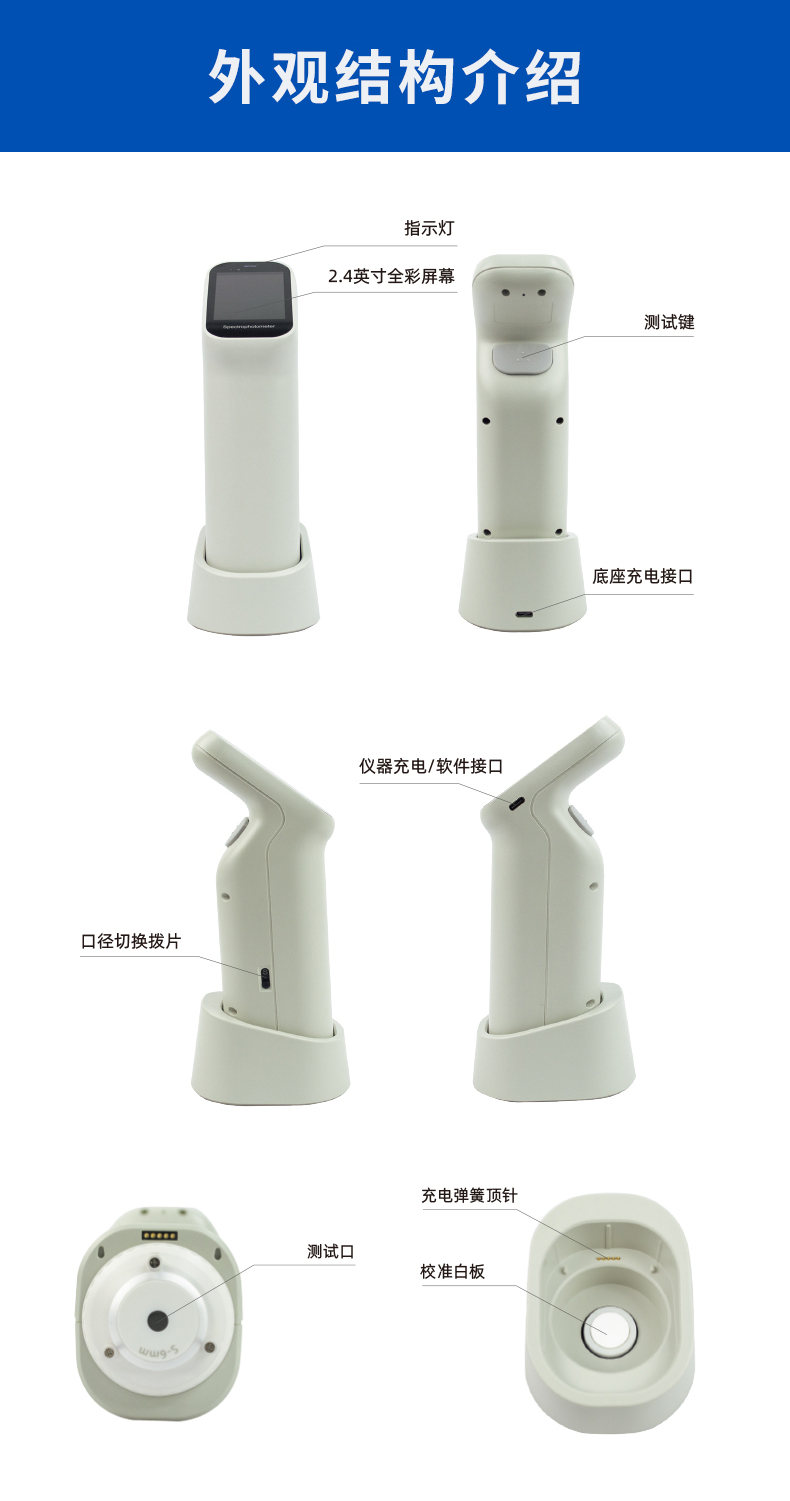

appearanceIntroduction to the structure

Application examples

Plastics, paints, printing, food, textiles, printing and dyeing

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
