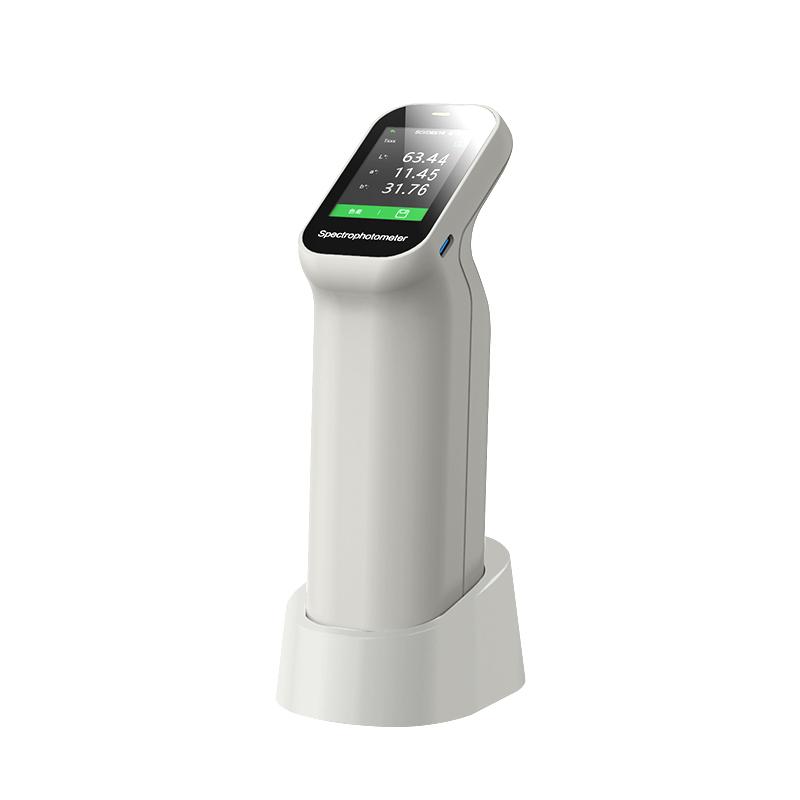

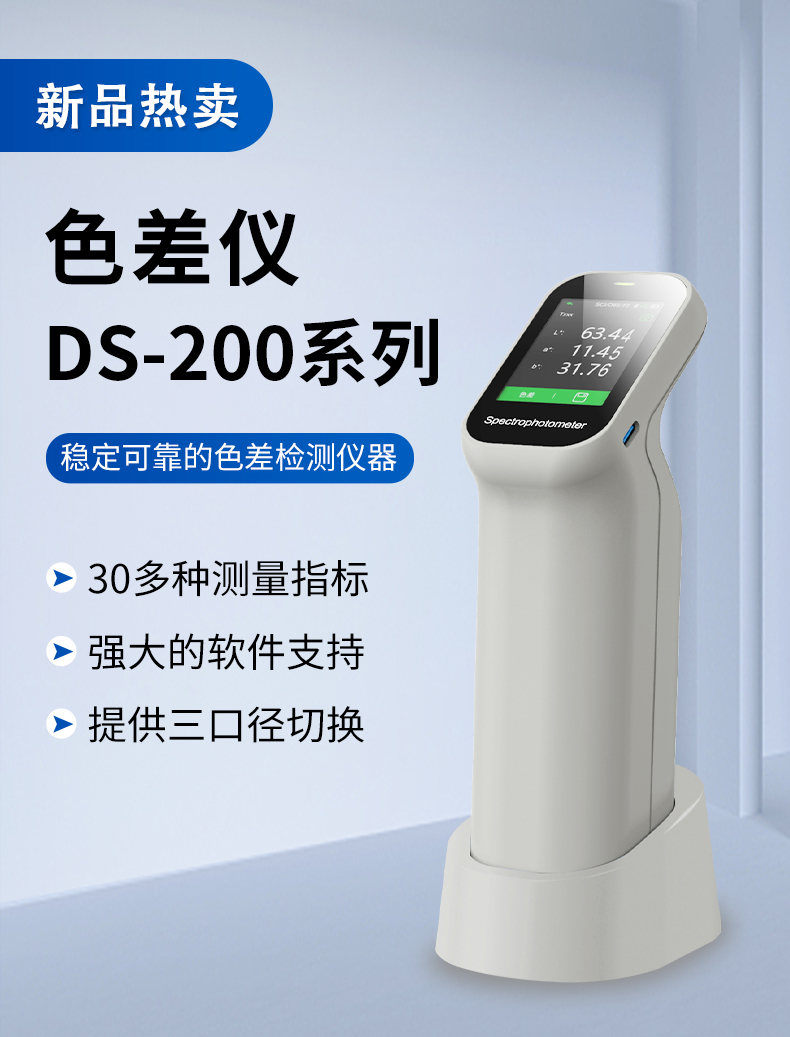

CHNSPEC DS-220 Colorimeter 11mm + 6mm + 3mm caliber

DS-220

Color difference meter

Repeatability dE * ab ≤ 0.03, including 3 diameters (11mm/6mm/3mm), including UV Light source measurable fluorescent material, camera framing; can be connected with mobile app, WeChat Mini Program, computer management software for color measurement work.

Introduction

DS-220 Colorimeter is a stable and reliable Colorimeter measuring instrument. DS-220 Colorimeter has a repeatability of dE*ab≤0.03, including 3 calibers (11mm/6mm/3mm), including UV light source, camera viewing, complete functions, and can also be connected with mobile phone APP, WeChat applet, and computer management software for color measurement.

Core technology

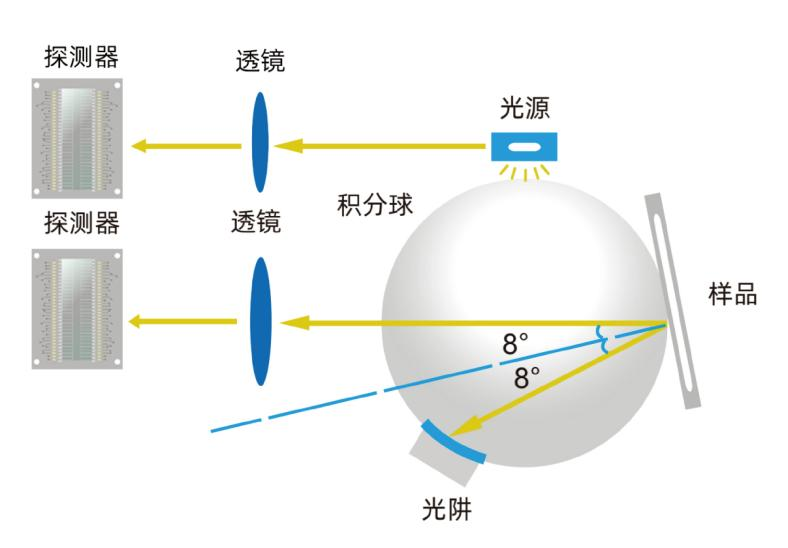

(1) Dual-optical path design improves repeatability, dE*ab≤0.03

The dual-optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during measurement, obtains higher measurement stability, and improves the repeatability of the instrument to dE*ab≤0.03. The measurement speed, accuracy and stability of the instrument are guaranteed. The related technology is protected by Chinese invention patents and American invention intellectual property rights.

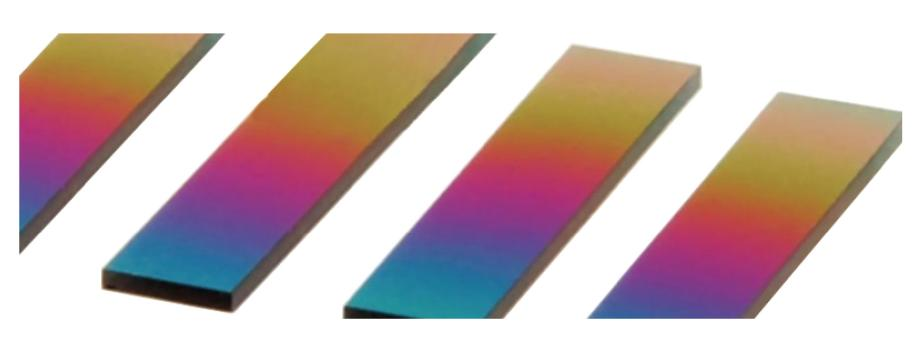

(2) Innovative 5 micron thickness nano-integrated optics

After painstaking research, the nano-integrated optical device is used as the optical splitting device, and only 5 micron thickness of the optical device can achieve nano-level spectroscopy ability, which greatly improves the technical performance of the product. The relevant technology is protected by the intellectual property rights of Chinese inventions.

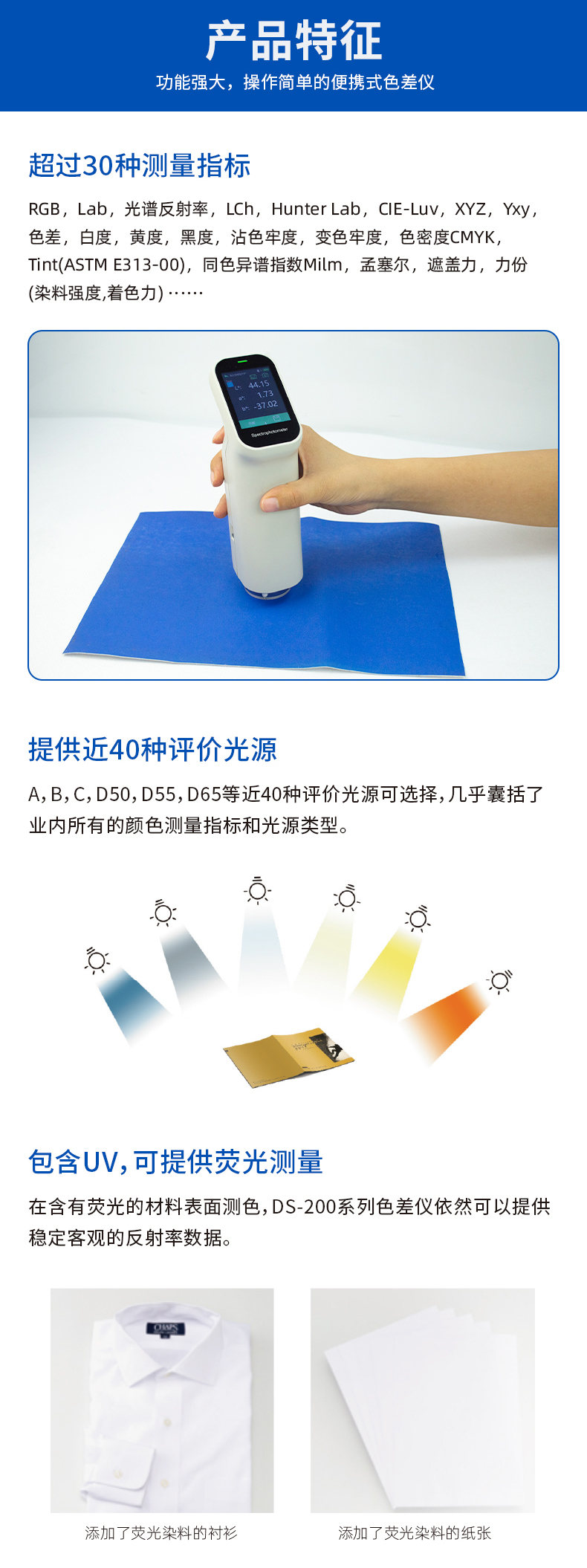

Product Features

(1) More than 30 measurement indicators

• RGB, Lab, Spectral Reflectance, LCh, Hunter Lab, CIE-Luv, XYZ, Yxy

• Chromatic aberration (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00)

• 白度(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby

• Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)

• Blackness (My, dM), Stainfastness, Fastness to Change, Tint (ASTM E313-00)

• Color density CMYK (A, T, E, M), Milm, Munsell, Hiding Strength, Force (Dye Strength, Tinting Strength)

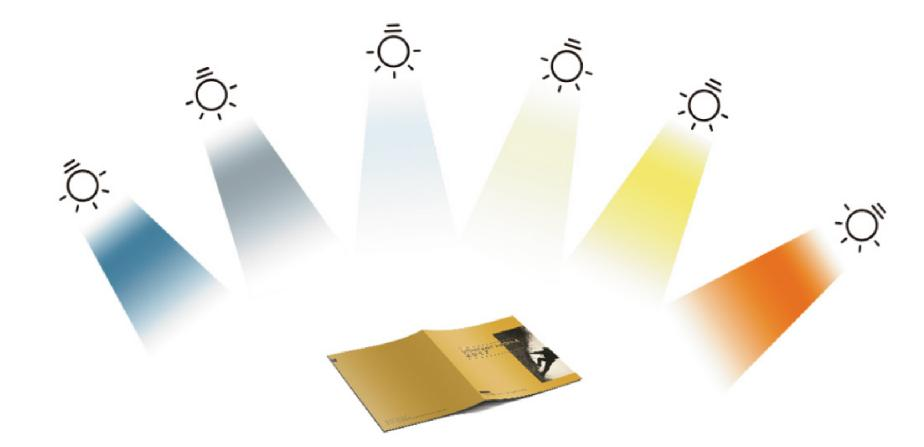

(2) Evaluate whether the color jumps the lamp, and provide nearly 40 kinds of evaluation light sources

Nearly 40 evaluation light sources such as A, B, C, D50, D55, D65 and so on are available, covering almost all color measurement indicators and light source types in the industry.

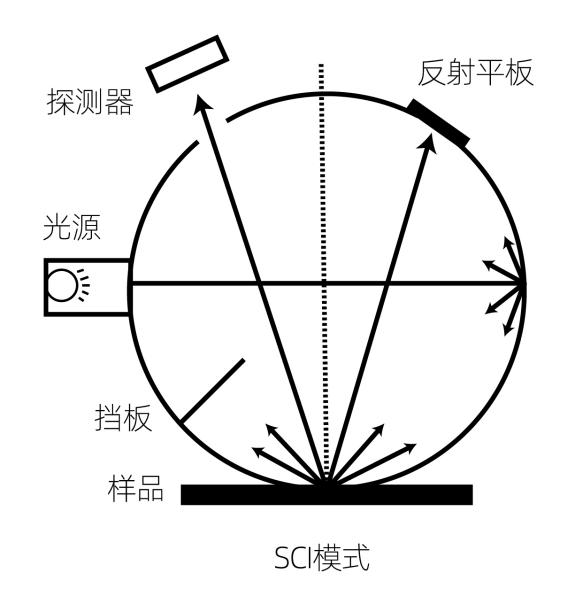

(3) SCI measurement mode is included

SCI refers to the specular reflection method, which is generally used to study the properties of the color itself and does not care about the surface gloss of the color adherence.

(4) Contains UV rays for fluorescent color measurement

The DS-220 Colorimeter can still provide stable and objective reflectance data for color measurement on the surface of fluorescent materials.

(5) The calibration base and the zirconium reference with Mohs hardness of 9 calibrate the instrument to ensure the long-term stability of the instrument

Compared with existing products, DS-220 Colorimeter does not need frequent manual calibration when in use, as long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own state and environmental factors, so as to ensure that the instrument is in a stable state at all times and is ready to be on call at any time.

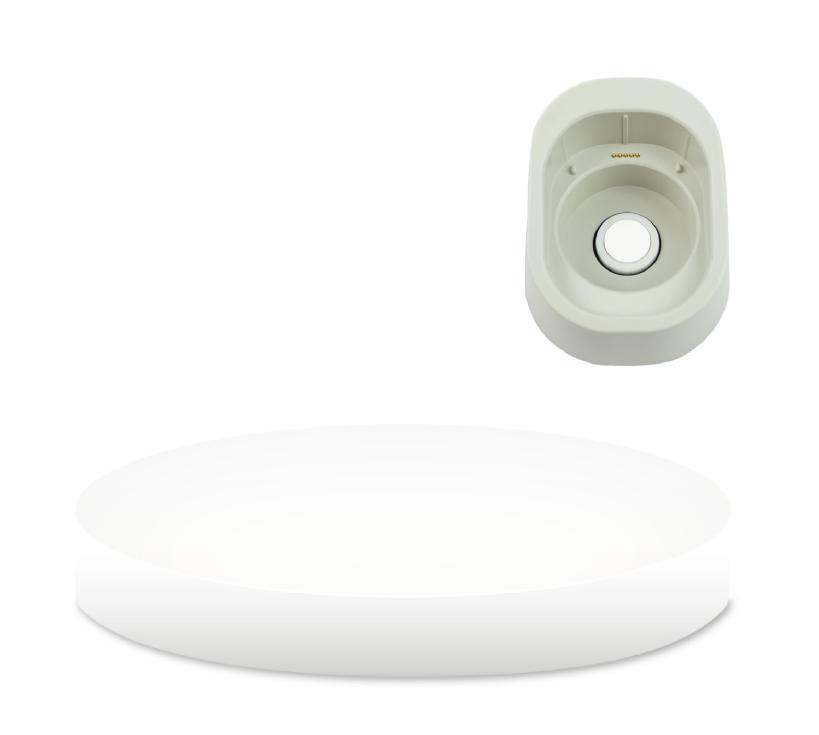

The whiteboard in the calibration base serves as a benchmark for the accuracy of the instrument. Through long-term investment and research, CHNSpec has integrated zirconium material, known as "artificial diamond", as a calibration whiteboard, with a surface Mohs hardness of 9. Because the material itself has a hardness and stability comparable to that of diamonds, it is guaranteed that the surface of the calibration whiteboard will not be scratched and will not change color with changes in temperature and humidity. Compared with similar products in foreign and domestic (CN) countries, ordinary industrial ceramics and even plastics are used as calibration whiteboards, which further improve the stability and durability and ensure the performance of the instrument.

Calibration whiteboard (artificial diamond zirconium material)

Mohs hardness: 9

Spectral reflectance > 90%

Temperature and humidity change without discoloration

Oxidation does not change color

Ultra-high hardness does not scratch

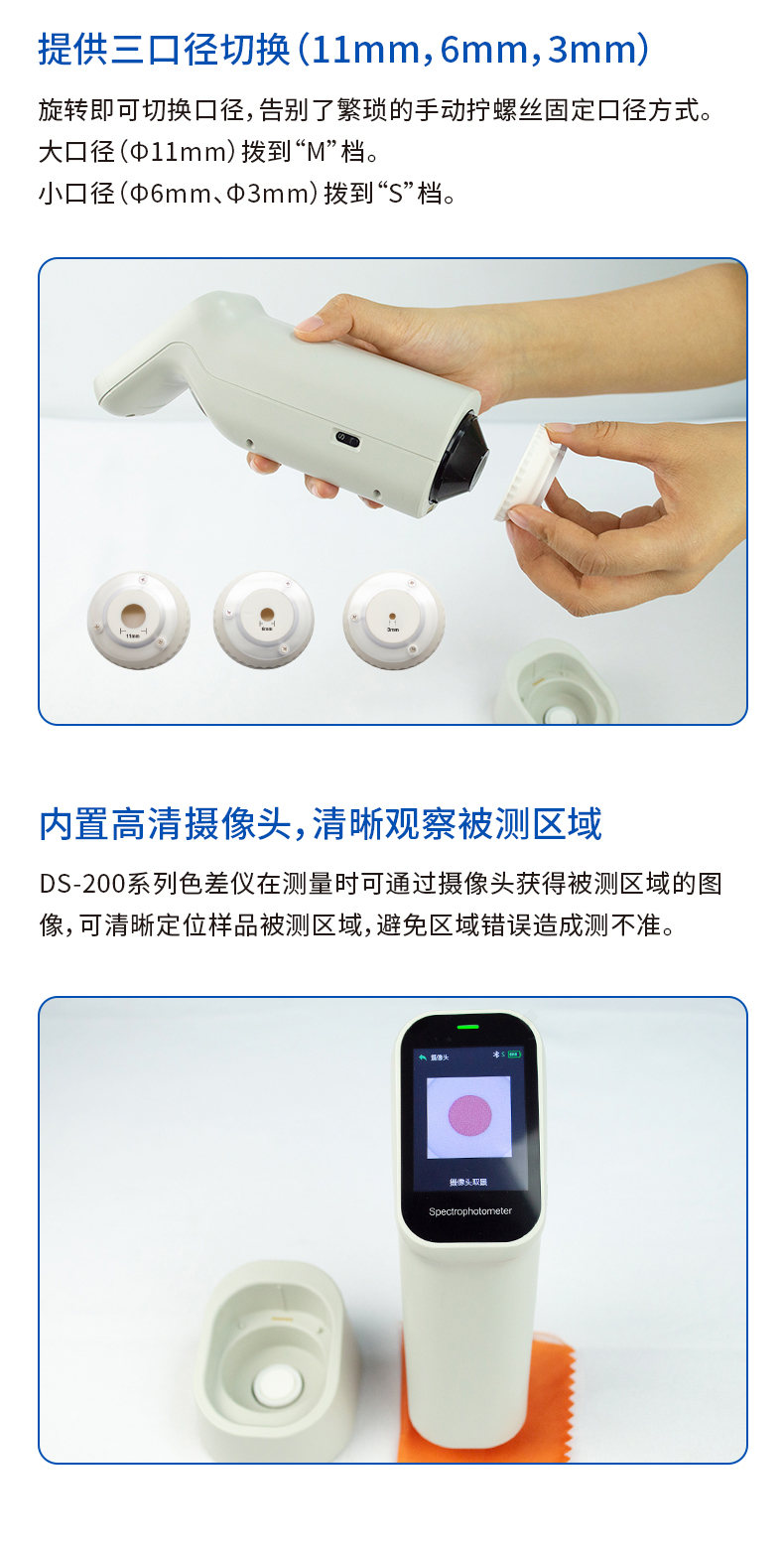

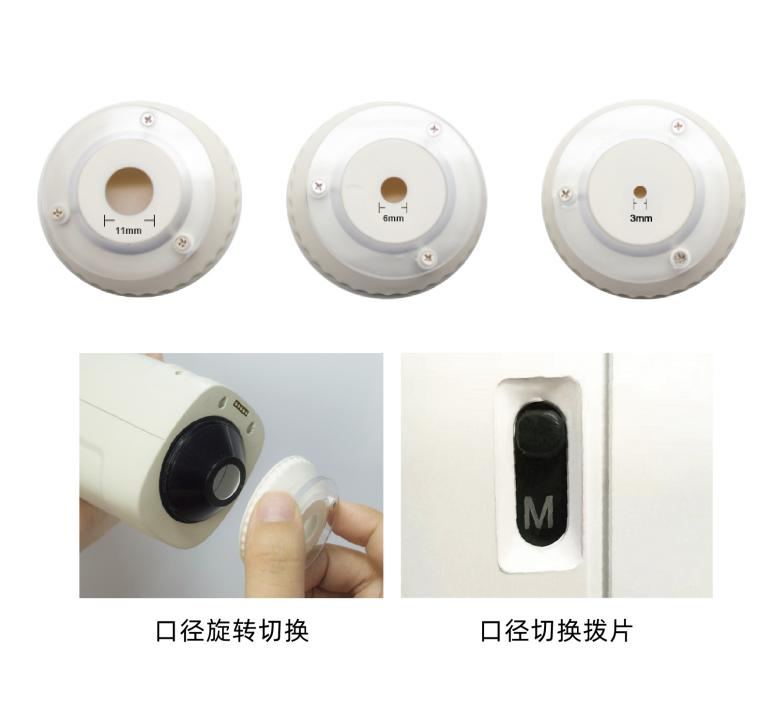

(6) Provide three-caliber switching (11mm，6mm，3mm）

The caliber can be switched by rotating, bidding farewell to the cumbersome way of fixing the caliber by manually screwing.

Large diameter (Φ11mm) dial to "M" gear.

Small diameter (Φ6mm, Φ3mm) dial to "S" gear.

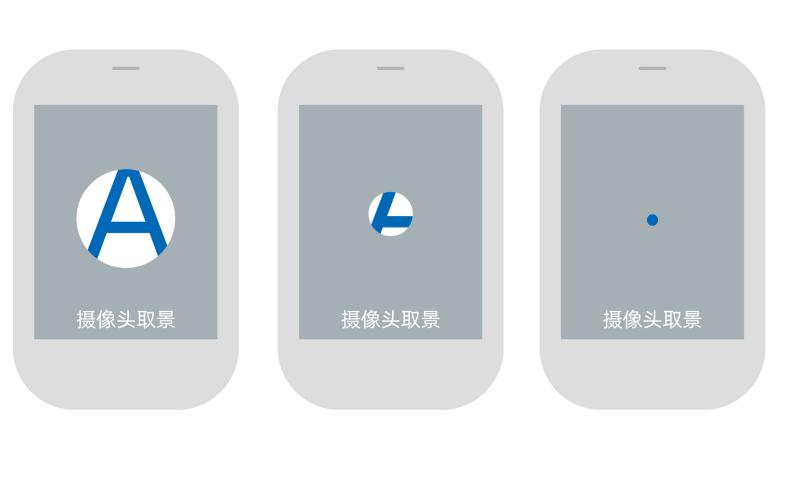

(7) Built-in high-definition camera, clear observation of the measured area

The DS-220 Colorimeter can obtain an image of the measured area through the camera during measurement, which can clearly locate the measured area of the sample and avoid inaccurate measurement caused by regional errors.

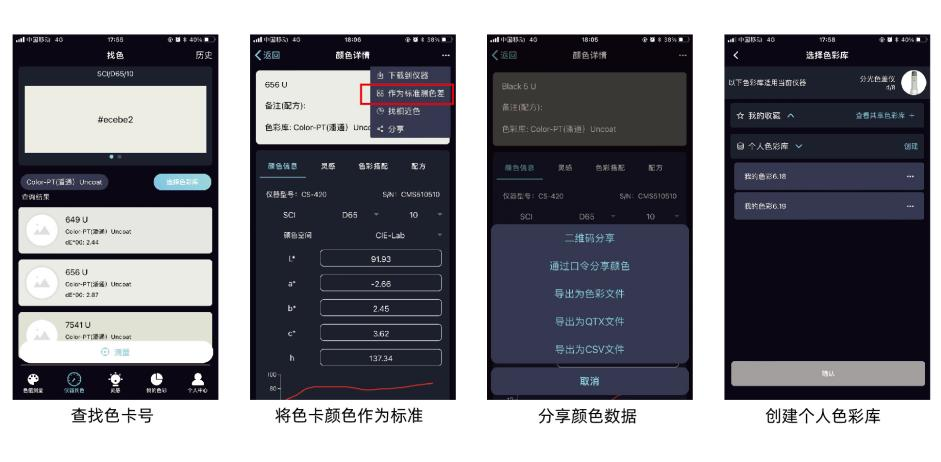

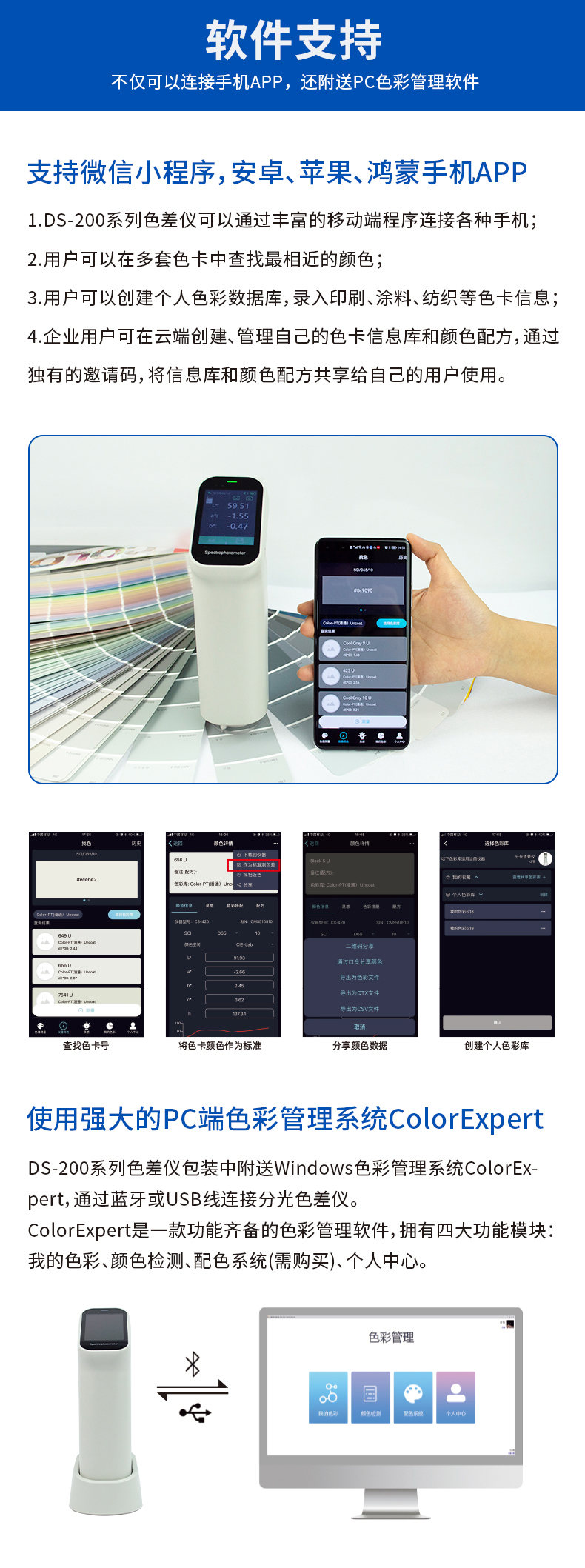

(8) Support WeChat applet, Android, Apple, Hongmeng mobile APP

• The DS-220 Colorimeter can be connected to a variety of mobile phones through a variety of mobile apps. Users no longer need to pass the color value of the sample and the physical object, and can easily transmit the color data through WeChat.

• Users can find the closest colors in multiple color swatches.

• Users can create a personal color database, enter the Color Chart information of printing, coating, textile, etc., and the created color library can be uploaded to the cloud for multi-device data sharing.

• Enterprise users can create and manage their own Color Chart information and color recipes in the cloud, and share the information base and color recipes with their own users by having an invitation code.

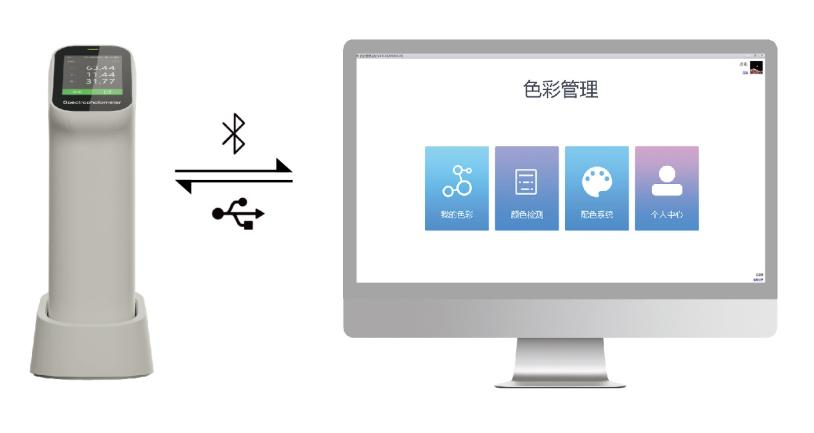

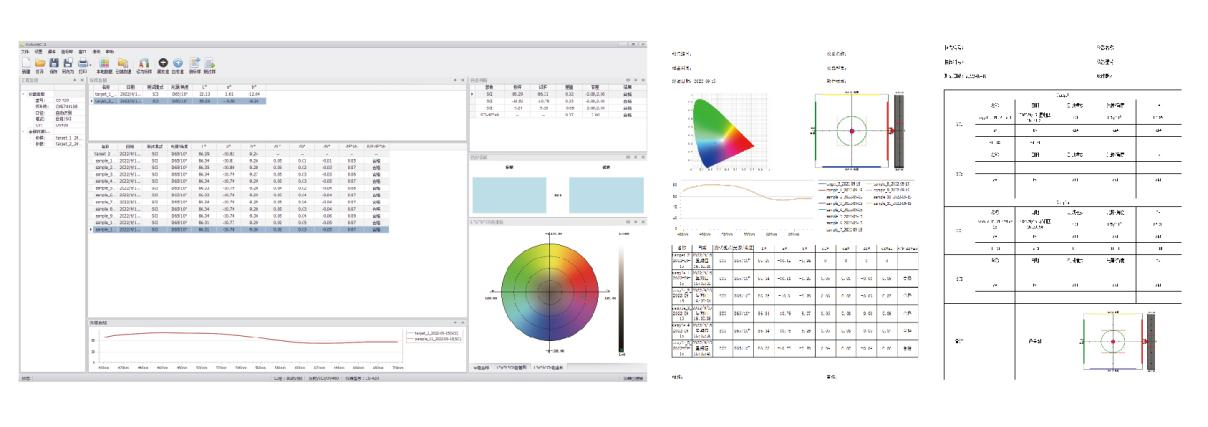

(9) Use the powerful PC color management system ColorExpert

The DS-220 Colorimeter comes with a Windows color management system, ColorExpert, that connects to the Colorimeter via Bluetooth or USB cable.

ColorExpert is a full-featured color management software with four functional modules: My Color, Color Detection, Color Matching System (to be purchased), and Personal Center.

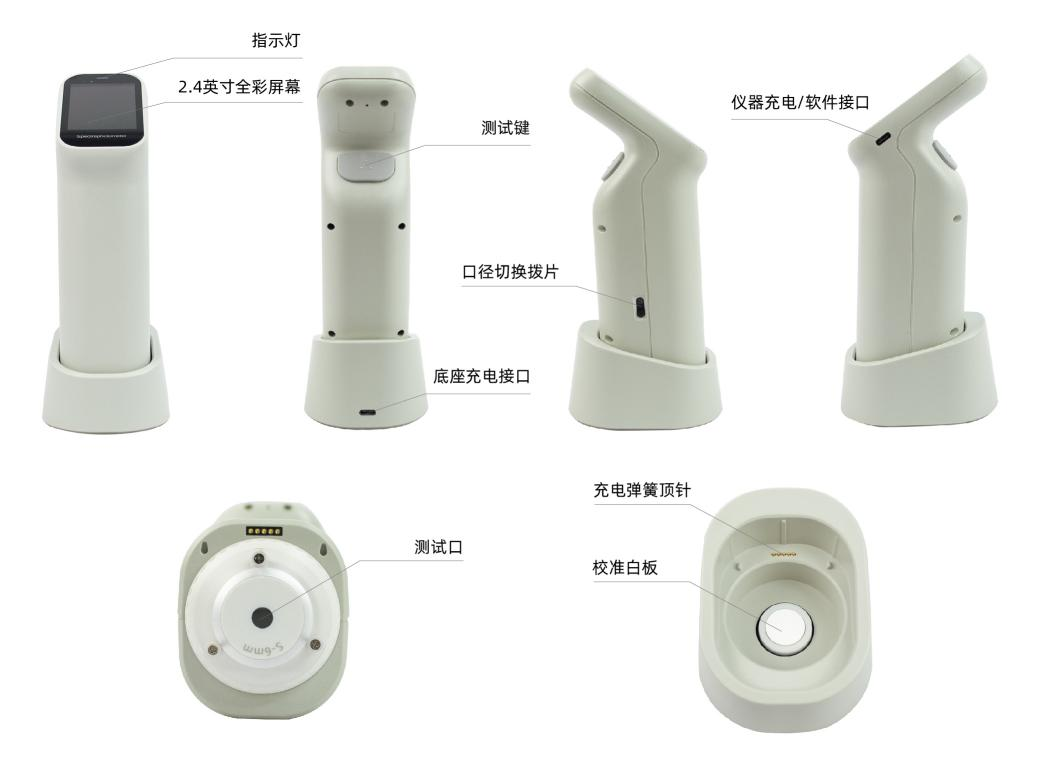

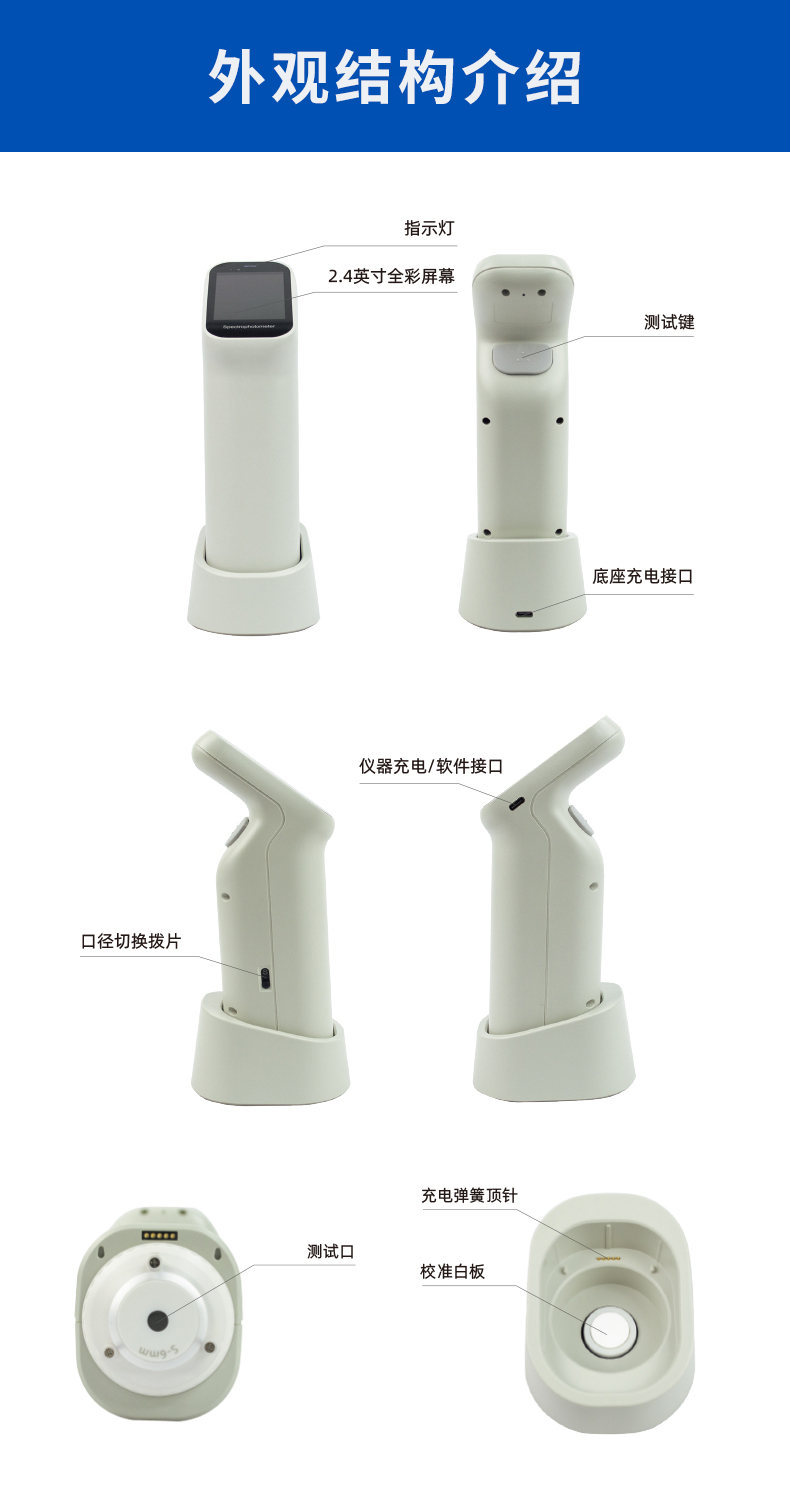

Introduction to the appearance and structure

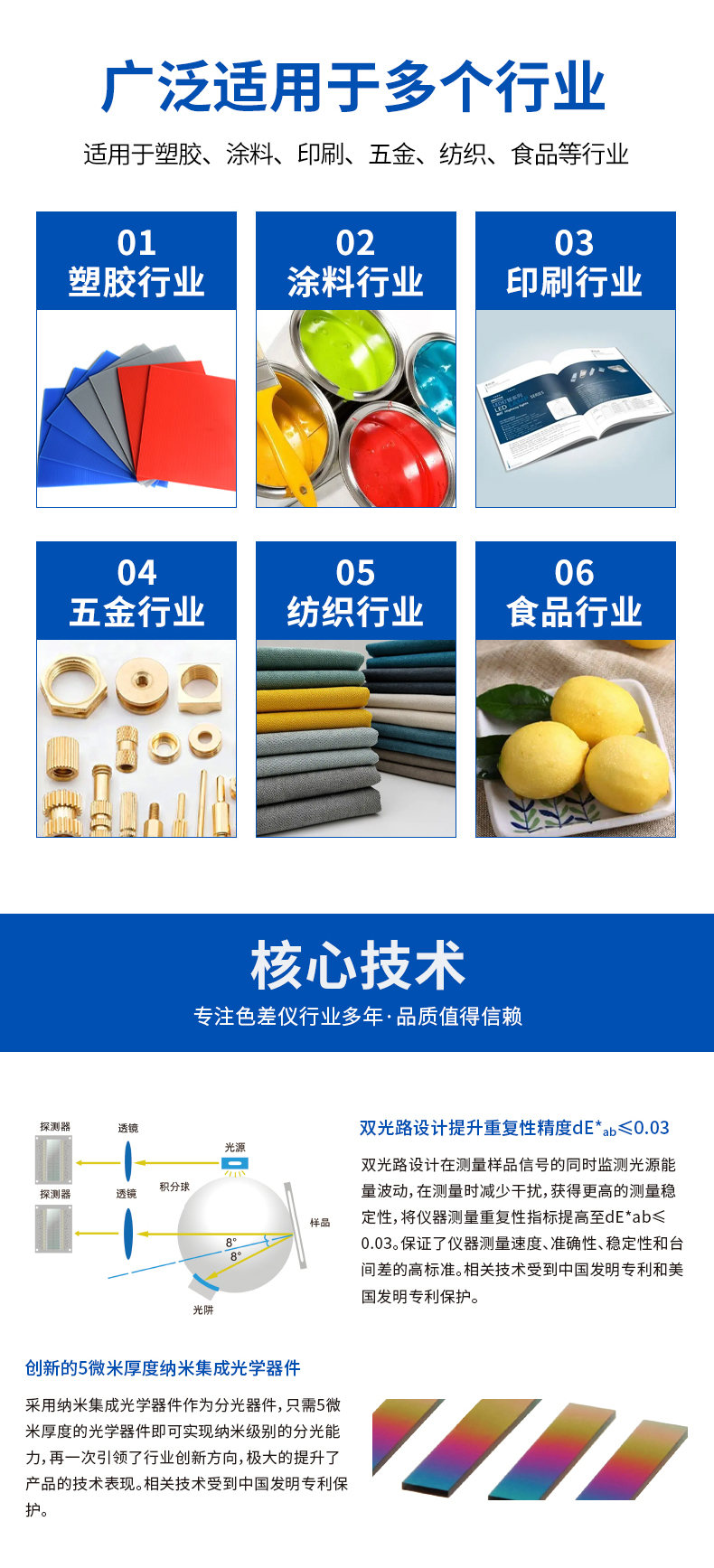

Application examples

Plastics, paints, printing, food, textiles, printing and dyeing

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
