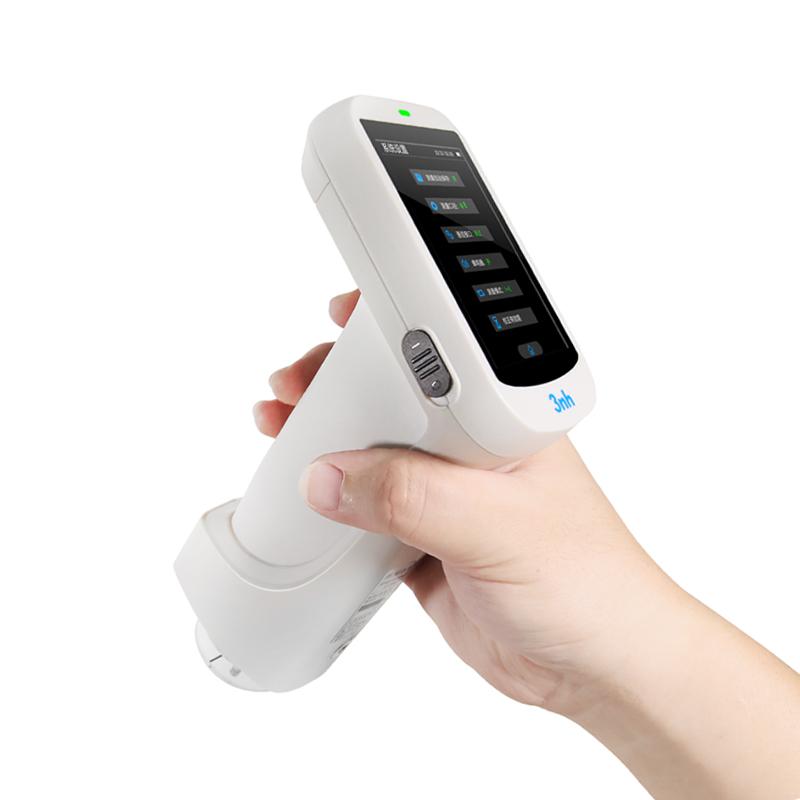

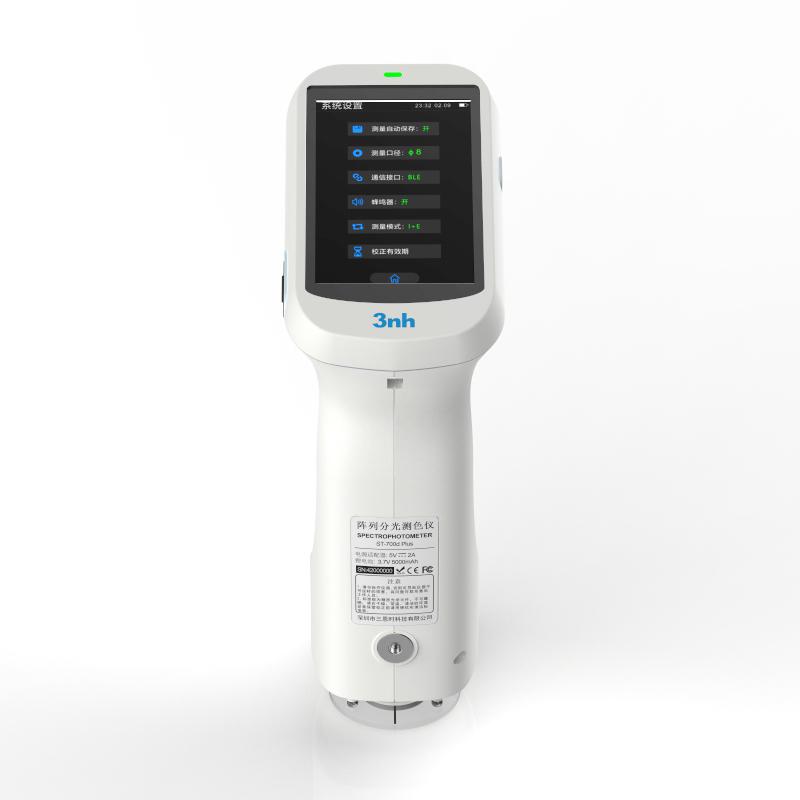

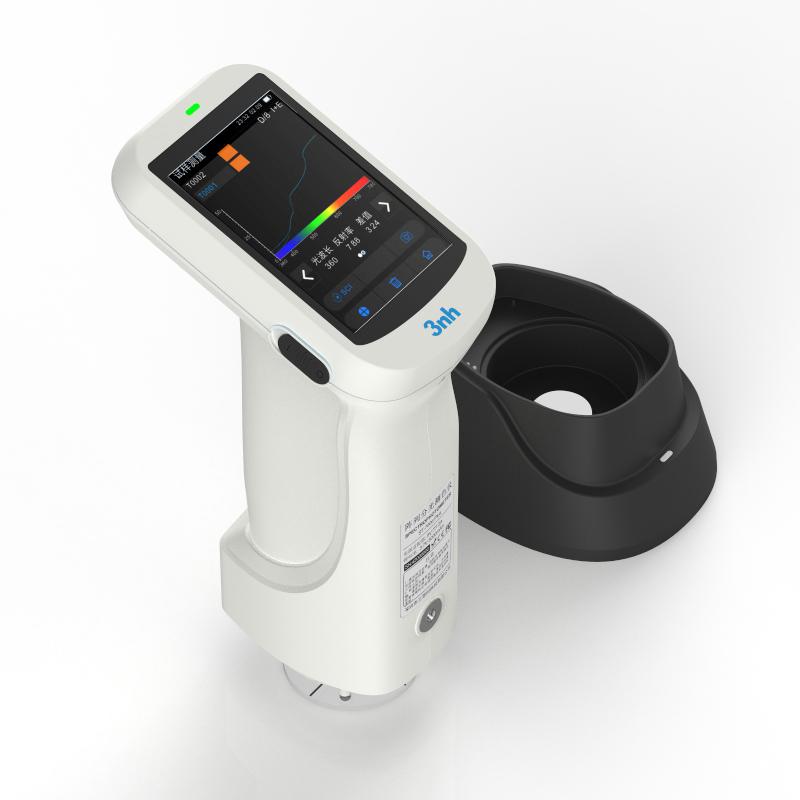

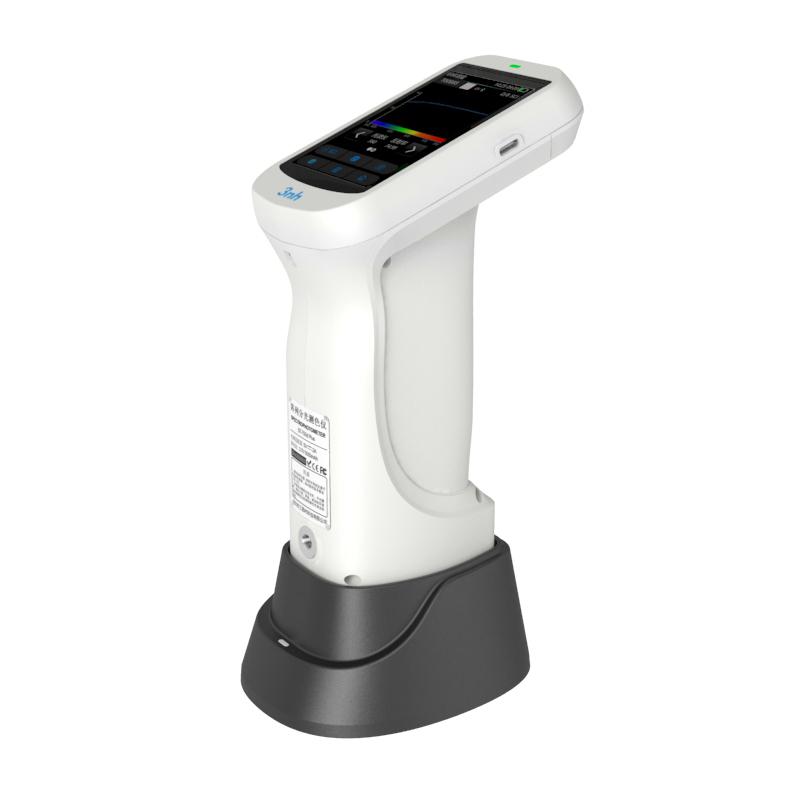

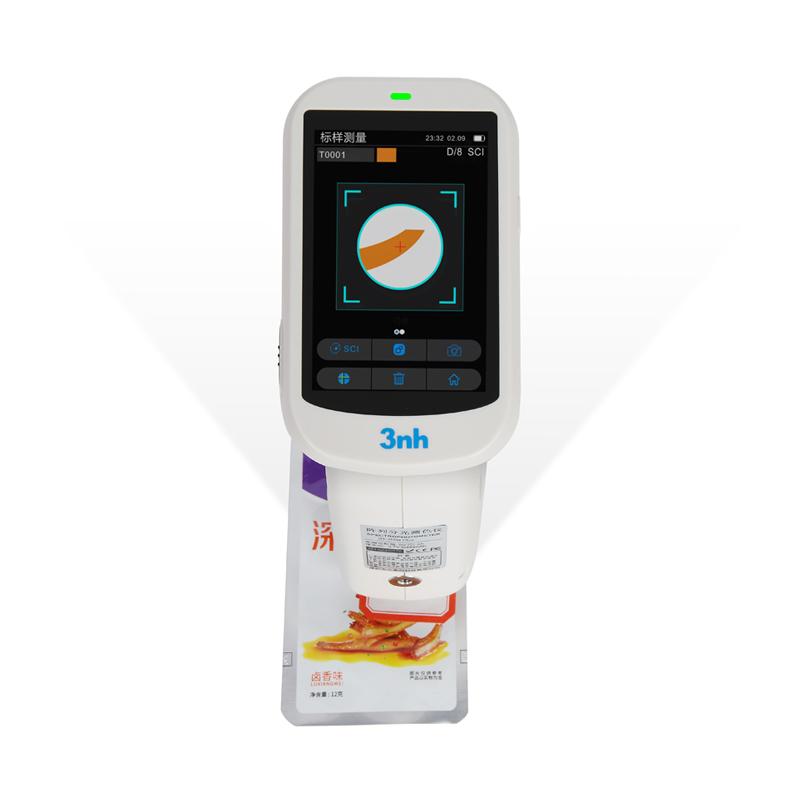

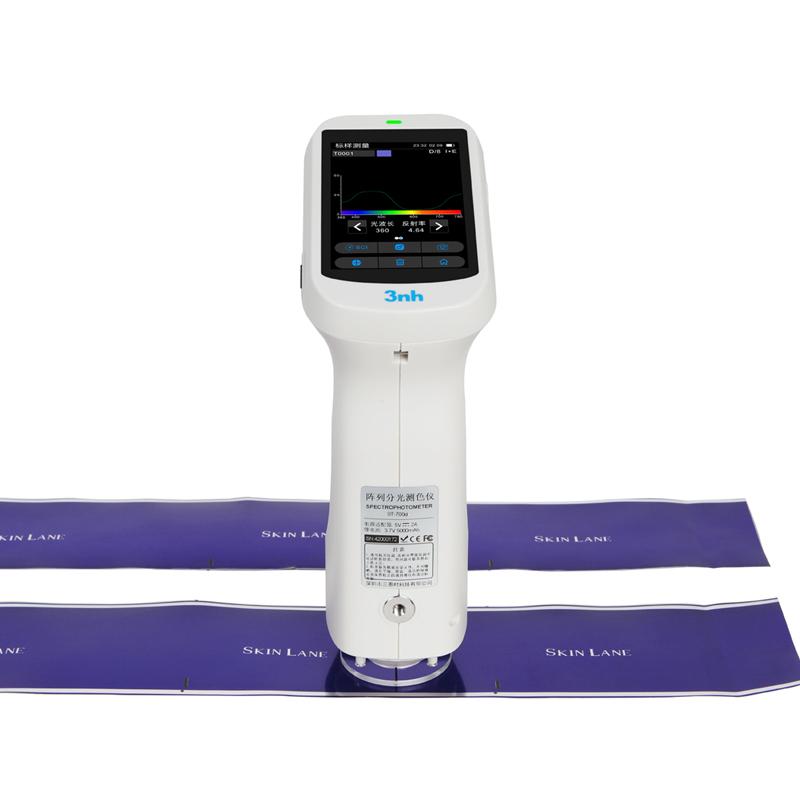

3NH ST-700D Array Colorimeter with φ 8mm/φ 4mm/1x3mm three caliber
SE
ST-700d
3NH ST-700d Array ColorimeterSPEC
3NH ST-700d Array ColorimeterDetails
3NH ST-700d Array ColorimeterPacking list
- SKU
- NB041893
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement; including UV/exclude UV measurement according to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- F40mm
- lighting source
- Light spectrum LED light source, UV light source
- Spectroscopic method
- Plane grating spectroscopy
- sensor
- Large area silicon photodiode array (double row 40 groups)
- Measurement Wavelength range
- 400~700nm
- wavelength spacing
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber configuration
- Three diameter: 8mm platform + 4mm platform + 1 * 3mm
- Positioning method
- Stabilizer positioning + camera viewfinder positioning
- Whiteboard inspection method
- Non-contact automatic whiteboard verification
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chromaticity indicators
- pow<--sep--0/>, 白<--sep--0/> (ASTM E313-00, ASTM E313-73, CIE / ISO, AATCC, Hunter, TaubeBergerStensby), 黄<--sep--0/> (ASTM D1925, ASTM E313-00, ASTM E313-73)
- Observer angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,
- show
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Measurement time
- About 1.5s
- Sexual repeability
- Chromatic value: MAV/SCI, ΔE * ab within 0.022 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) Spectral reflectance: MAV/SCI, standard deviation within 0.07%
- display Accuracy
- 0.01
- Measurement method
- Single measurement, average measurement (2~ 99 times)
- memory
- APP Mass storage
- Accuracy Guarantee
- Guaranteed Level 1 Measurement
- size
- Length X width X height = 114X70X208mm
- Weight
- Approx. 435g (without calibration seat)
- Battery level
- Lithium battery, 3.7V, 5000mAh, 8500 times in 8 hours
- Lighting source life
- More than 1.50 million measurements in 10 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- interface
- USB, Bluetooth ® 5.0
- Store data
- 500 master standards, 20,000 samples (one piece of data can include SCI/SCE at the same time), APP/PC Mass storage
- Software Support
- Android, IOS, Windows, WeChat Mini Program, Hongmeng
- language
- Simplified Chinese, English, Traditional Chinese
- Operating temperature range
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage temperature range
- -20~50 ℃, 0~85% RH (no condensation)
- Standard accessories
- Power adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber
- Optional accessories
- Micro printer, powder test box
- Other chromaticity metrics 2
- Spectral index Mt, lightfastmess, color fastness, force (dyestuff strength, tinctorial strength), coverage
- Other chromaticity metrics 3
- 8 degree glossiness, 555 hue classification, blackness (My, dM), color Density CMYK (A, T, E, M), Tint (ASTM E313-00), color Density, Munsell (some functions are realized through the host computer)
- Observation light source 2
- LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, customizable light sources (41 kinds of light sources in total, partly realized through the host computer/APP)
product description
ST-700d is an array Spectrophotometer developed by 3nh using its independent spectroscopic core technology. It adopts a built-in large-area silicon photodiode array (40 sets of double columns) sensors and an industrial-grade MCU. The powerful data processing capability ensures the stability of the measurement data. sex and accuracy. The array Spectrophotometer ST-700d can easily control the repeatability ΔE*ab within 0.022, and the inter-stage difference ΔE*ab within 0.2, which can be used for accurate color measurement in various occasions and conditions, and the large-size touch screen is more convenient to view the measurement results , The measurement data of the instrument is consistent with other competing products in Japan, the United States, and Europe.
Array Spectrophotometer ST-700d is equipped with three measurement apertures of Φ8mm, Φ4mm and 1x3mm, which has wider adaptability, accurate color measurement and stable performance. It is widely used in scientific research institutions and laboratories in industries such as food and food.
Observe the light source
Provide CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2) color spaces, and a variety of observation light sources D65, A, C, D50, D55, D75, F1 ,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, can be customized light source.
