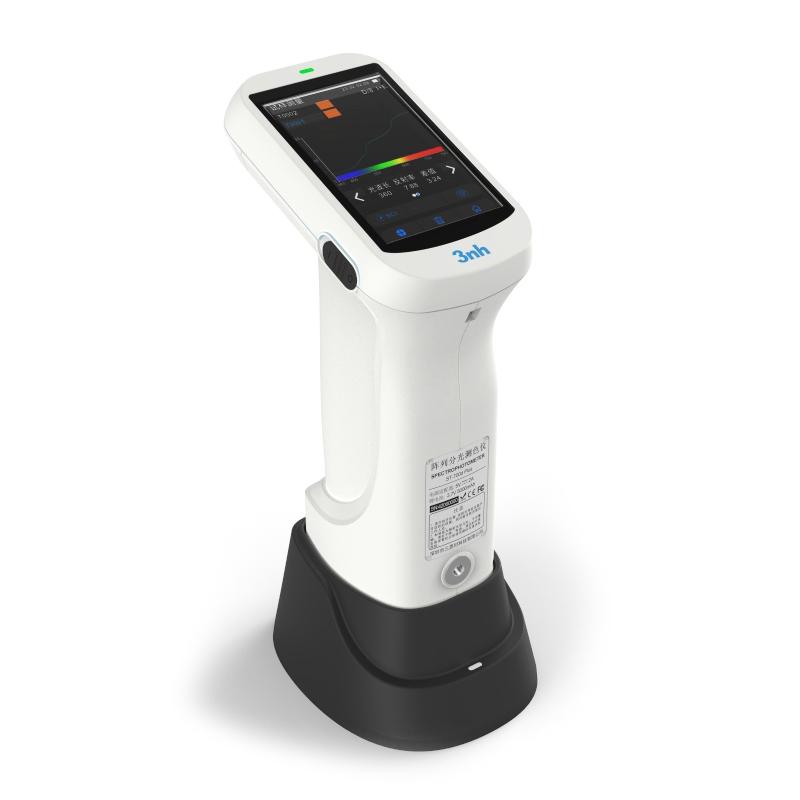

3NH ST-700D Plus Array Colorimeter with five calibers
SEEquipped with φ 8mm (platform + tip), φ 4mm (platform + tip), 1x3mm five measurement diameters, Repeatability Delta E * ab < 0.02, large size touch screen, camera viewing and positioning.
$3149.00/set
PromotionLoading...
Coupon
Model：
ST-700d Plus
Similar products
3NH ST-700d Plus Array ColorimeterSPEC
3NH ST-700d Plus Array ColorimeterDetails
3NH ST-700d Plus Array ColorimeterPacking list
- SKU
- NB041894
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; including UV/exclude UV measurement according to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- F40mm
- lighting source
- Light spectrum LED light source, UV light source
- Spectroscopic method
- Plane grating spectroscopy
- sensor
- Large area silicon photodiode array (double row 40 groups)
- Measurement Wavelength range
- 360~780nm
- wavelength spacing
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber configuration
- Five diameter: 8mm platform + 8mm pointed nozzle + 4mm platform + 4mm pointed nozzle + 1 * 3mm
- Positioning method
- Stabilizer positioning + camera viewfinder positioning
- Whiteboard inspection method
- Non-contact automatic whiteboard verification
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chromaticity indicators
- Light spectrum reflectance, whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby),
- Observer angle
- 2°/10°
- Observation light source
- D65,A,C,D50,D55,D75,F1,F2 (CWF),F3,F4,F5,F6,F7 (DLF),F8,F9,F10 (TPL5),F11 (TL84),F12 (TL83/U30),B,U35,NBF
- show
- Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias
- Measurement time
- About 1.5s
- Sexual repeability
- Chromatic value: MAV/SCI, ΔE * ab within 0.02 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s); spectroscopic reflectance: MAV/SCI, standard deviation within 0.07% (400~700nm)
- display Accuracy
- 0.01
- Measurement method
- Single measurement, average measurement (2~ 99 times)
- memory
- APP Mass storage
- Accuracy Guarantee
- Guaranteed Level 1 Measurement
- size
- Length X width X height = 114X70X208mm
- Weight
- Approx. 435g (without calibration seat)
- Battery level
- Lithium battery, 3.7V, 5000mAh, 8500 times in 8 hours
- Lighting source life
- More than 1.50 million measurements in 10 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- interface
- USB, Bluetooth ® 5.0
- Store data
- 500 master standards, 20,000 samples (one piece of data can include SCI/SCE at the same time), APP/PC Mass storage
- Software Support
- Android, IOS, Windows, WeChat Mini Program, Hongmeng
- language
- Simplified Chinese, English, Traditional Chinese
- Operating temperature range
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage temperature range
- -20~50 ℃, 0~85% RH (no condensation)
- Standard accessories
- Power adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber
- Optional accessories
- Micro printer, powder test box
- Other chromaticity metrics 2
- Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), homochromatic index Mt, lightfastmess, color fastness, dyestuff strength, tinctorial strength, coverage
- Other chromaticity metrics 3
- 8 degree glossiness, 555 hue classification, blackness (My, dM), color Density CMYK (A, T, E, M), Tint (ASTM E313-00), color Density, Munsell (some functions are realized through the host computer)
- Observation light source 2
- ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, Customizable light sources (41 kinds of light sources in total, partially realized through the host computer/APP)

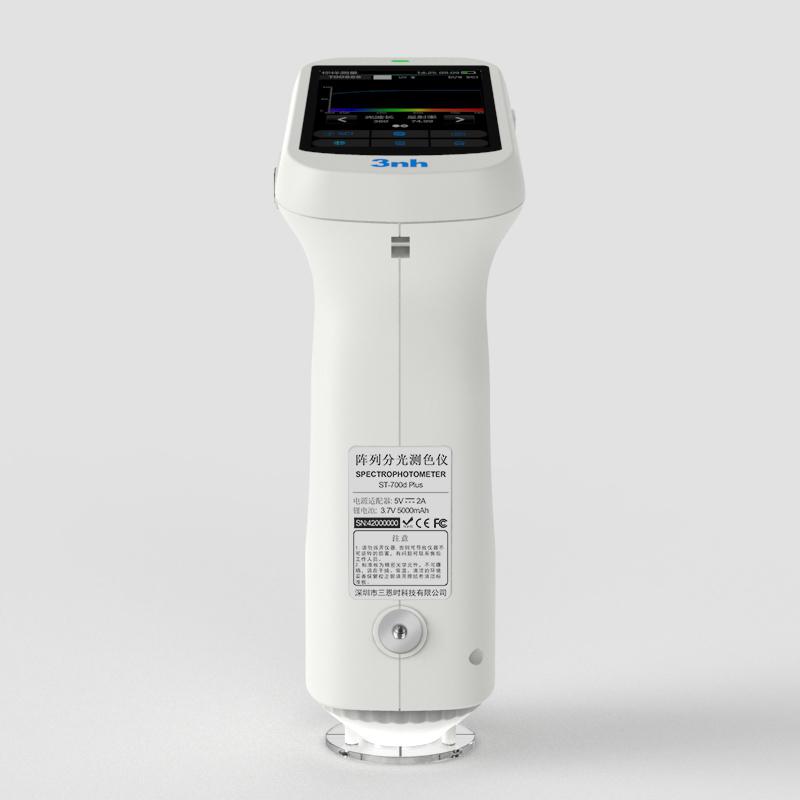

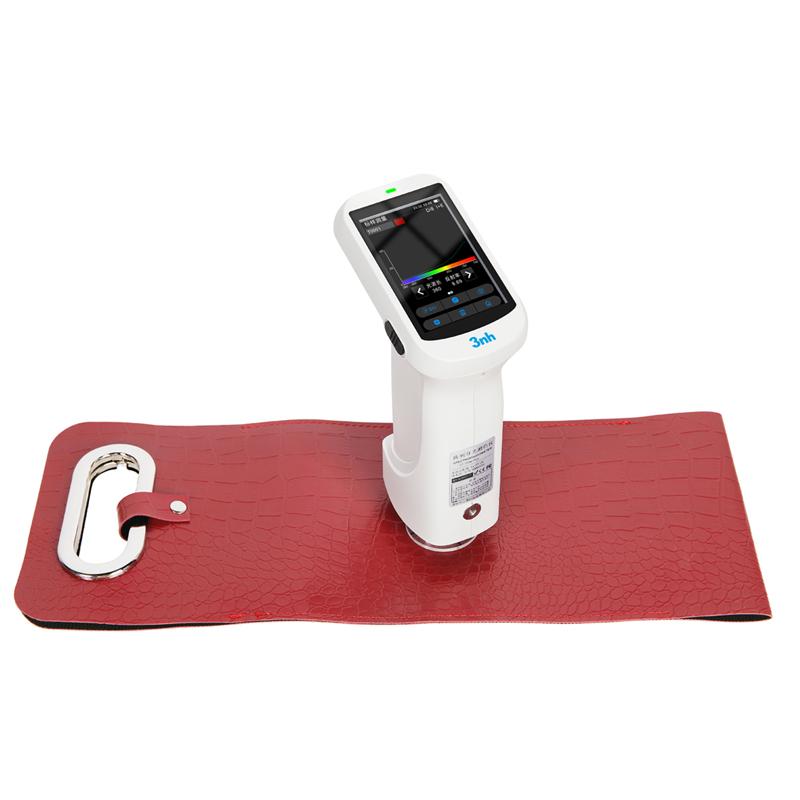

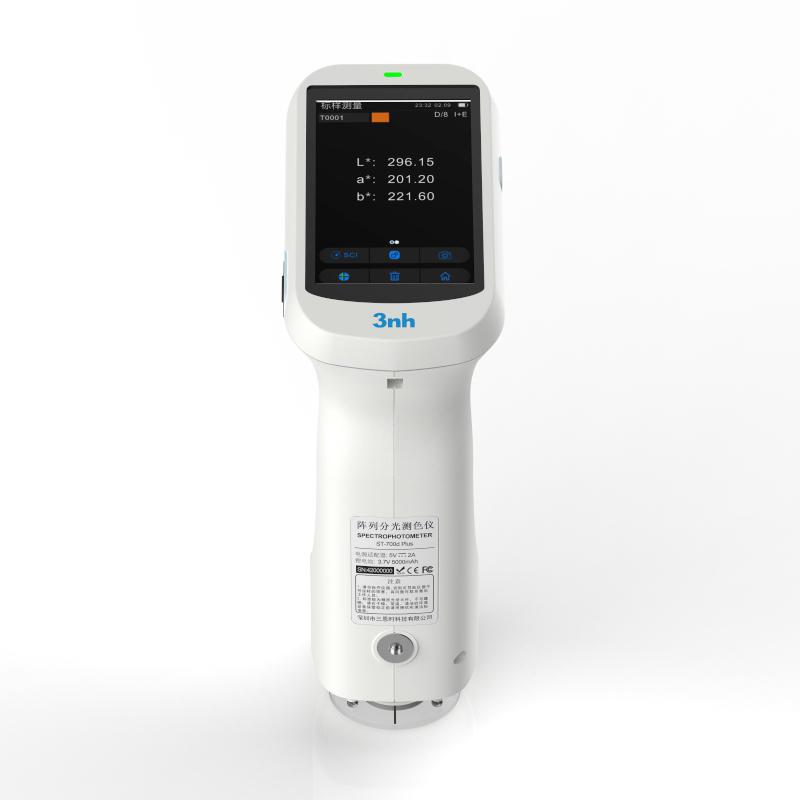

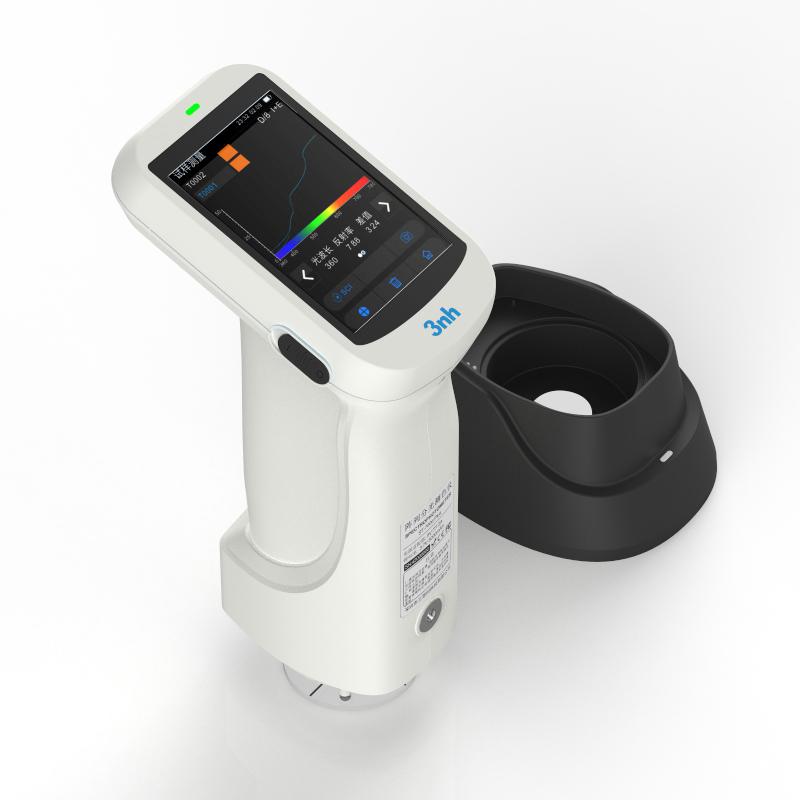

ST-700d Plus
Array Colorimeter
Equipped with φ 8mm (platform + tip), φ 4mm (platform + tip), 1x3mm five measurement diameters, Repeatability Delta E * ab < 0.02, large size touch screen, camera viewing and positioning.
product description
ST-700d Plus is an array Spectrophotometer developed by 3nh using its independent spectroscopic core technology. It adopts a built-in large-area silicon photodiode array (40 sets of double rows) sensors and an industrial-grade MCU. The powerful data processing capability ensures the accuracy of measurement data. stability and accuracy. The array Spectrophotometer ST-700d Plus can easily control the repeatability ΔE*ab within 0.02, and the inter-stage difference ΔE*ab within 0.18. Used for accurate color measurement in various occasions and conditions, and the large-size touch screen can view the measurement results more easily. Convenient, the measurement data of the instrument is consistent with other competing products in Japan, the United States, and Europe.
The array Spectrophotometer ST-700d Plus is equipped with five measurement apertures of Φ8mm (platform + tip), Φ4mm (platform + tip), and 1x3mm. It has wider adaptability, accurate color measurement and stable performance. It is used in plastic electronics, paint and coatings. , textile printing and dyeing, printed paper products, automobiles, medical care, cosmetics and food industries, and are widely used in scientific research institutions and laboratories.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
