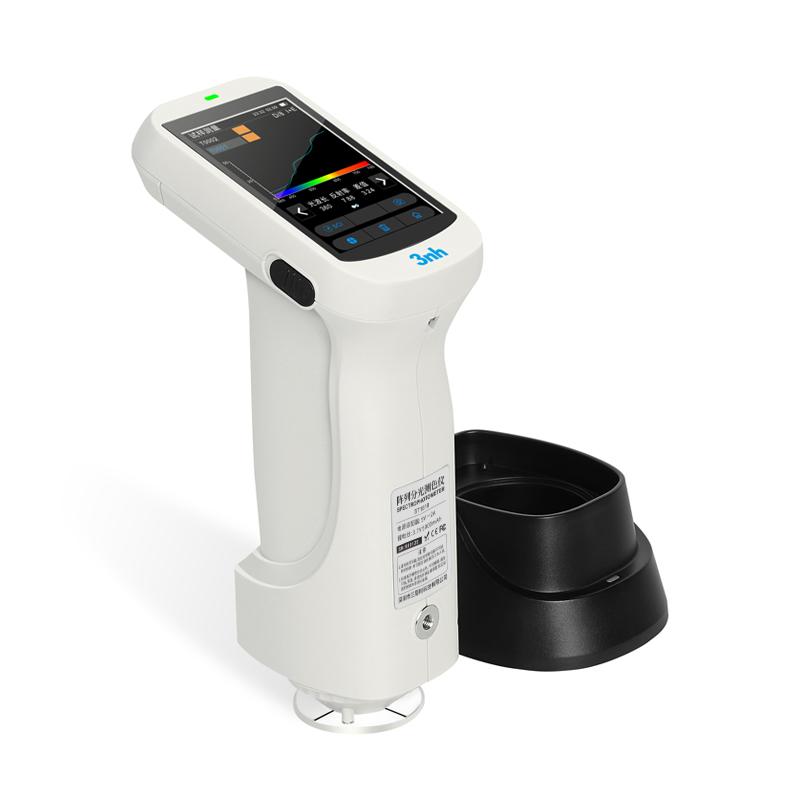

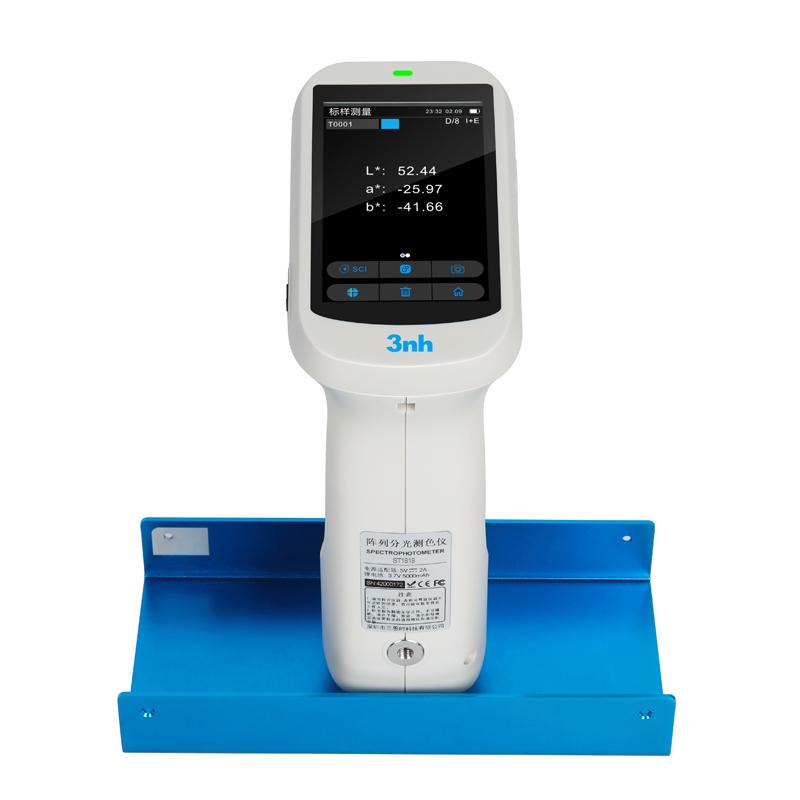

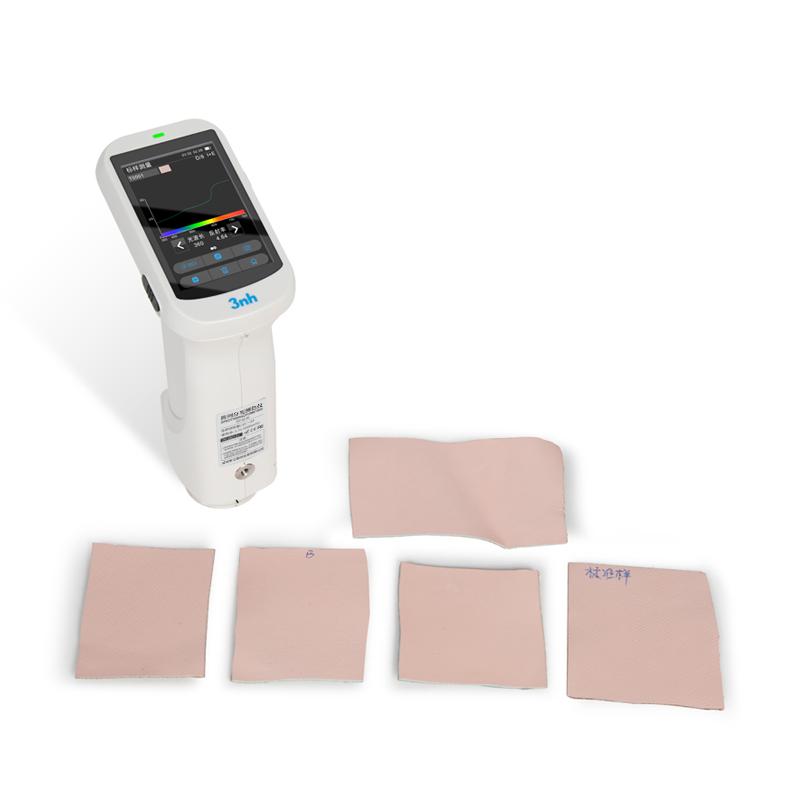

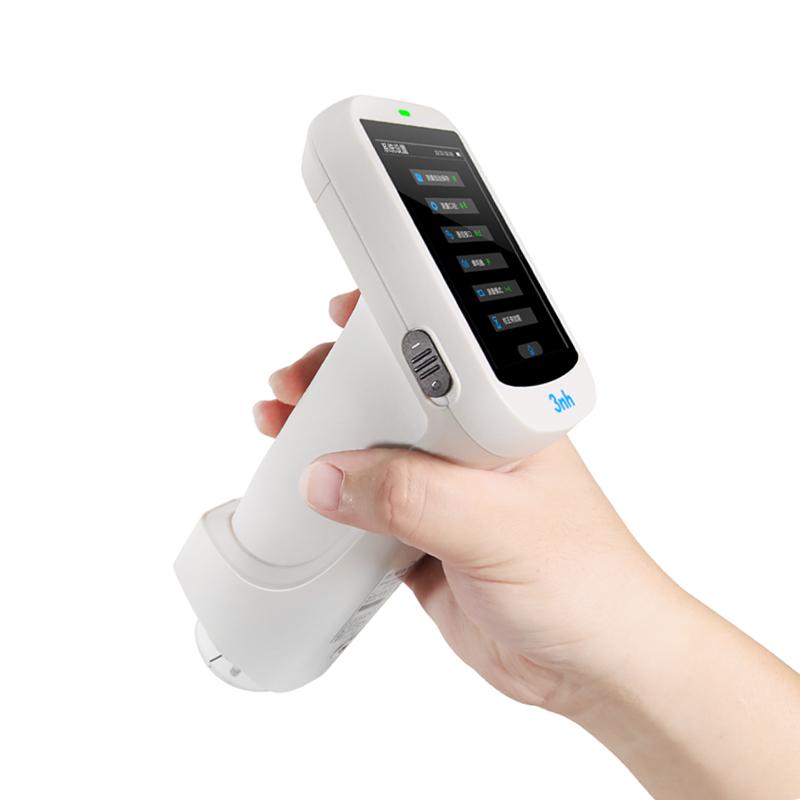

3NH ST2020 Handheld Colorimeter with three calibers
Equipped with φ 8mm/φ 10mm platform, φ 4mm/φ 5mm platform, 1x3mm three measurement diameters, repeability Delta E * ab < 0.028, camera view positioning, touch operation.
Model：
ST2020
Similar products
3NH ST2020 Array ColorimeterSPEC
3NH ST2020 Array ColorimeterDetails
3NH ST2020 Array ColorimeterPacking list
- SKU
- NB041897
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception)
- Measurement structure
- SCI/SCE includes specular reflection/excludes specular reflection; includes UV measurement/excludes UV measurement
- Meet the standard
- CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
- Measurement repeability
- ΔE*ab≤0.028
- stand-alone difference
- ΔE*ab≤0.28
- Display Accuracy
- 0.01
- Measurement/Lighting Aperture ***
- Three caliber: φ 8mm/φ 10mm platform + φ 4mm/φ 5mm platform + 1 * 3mm
- Measurement index
- Light spectrum reflectance, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, color difference (delta E * ab, delta E * cmc, delta E * 94, delta E * 00)
- Light source conditions
- A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50
- display mode
- Light spectrum plots/data, sample chromatic values, color difference values/plots, pass/fail results, Color simulation, Color bias
- lighting source
- Light spectrum LED light source, UV light source
- Measurement and positioning method
- Camera viewfinder positioning, stabilizer, visual
- Calibrating method
- Intelligent auto calibration (contact)
- Accuracy
- First Class Measurement Pass
- Viewing Angle
- CIE 2°/10°
- Integrating sphere size
- Φ40mm
- spectroscopy
- Plane grating spectroscopy
- Sensor
- Large Area Silicon Photodiode Array (Dual Row 20 Group)
- wavelength interval
- 10nm
- Wavelength range
- 400~700mm
- Reflectance Measurement Range
- 0~200%
- Reflectance resolution
- 0.01%
- measurement mode
- Single measurement, average measurement (2~ 99 times)
- Measurement time
- About 1 second
- Dimensions
- 114*70*208mm
- Weight
- Approximately 435g (excluding calibration seat)
- battery life
- Lithium battery, 3.7V, 5000mAh, 8500 cycles in 8 hours
- Lifetime of lighting source
- More than 1.50 million measurements in 10 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- interface
- USB, Bluetooth ® 5.0
- data storage
- 500 master standards, 20,000 samples (one data can include SCI/SCE at the same time); APP/PC Mass storage
- Software Support
- Windows, Android, IOS, Hongmeng, WeChat Mini Program, color scheme cloud
- operating language
- Simplified Chinese, English, Traditional Chinese
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- standard attachment
- Power adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber
- optional accessories
- Micro printer, powder test box
- Measurement index 2
- Whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73)
- Measurement index 3
- Blackness (My, dM), colour fastness, color fastness to change, Tint (ASTM E313-00), Color Density CMYK (A, T, E, M), Isochromatic Index Milm, Munsell, hiding power, force (dyestuff strength, tinctorial strength)
- Light source condition 1
- ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-B6, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-V3, customizable light source
ST2020
Array Colorimeter
Equipped with φ 8mm/φ 10mm platform, φ 4mm/φ 5mm platform, 1x3mm three measurement diameters, repeability Delta E * ab < 0.028, camera view positioning, touch operation.
product description
ST2020 is an array Spectrophotometer developed by 3nh using its own spectrometric core technology. It uses a built-in large-area silicon photodiode array (dual rows of 20 groups) sensor. It has excellent repeatability and inter-stage difference, and the measurement data is continuously stable, accurate and reliable. . The repeatability ÎE*ab of the array Spectrophotometer ST2020 is easily controlled within 0.028, and the inter-stage difference ÎE*ab is controlled within 0.28. The measurement is accurate and can be used for accurate color analysis and transmission in the laboratory.
The ST2020 array Spectrophotometer is equipped with three measurement apertures: Φ8mm/Φ10mm platform, Φ4mm/Φ5mm platform, and 1x3mm. Whether the sample surface is regular, flat or curved, it can easily measure and obtain reliable and repeatable data. , widely used in scientific research institutions and laboratories in industries such as plastic electronics, paint and coatings, textile printing and dyeing, printing paper products, automobiles, medical care, cosmetics and food.
