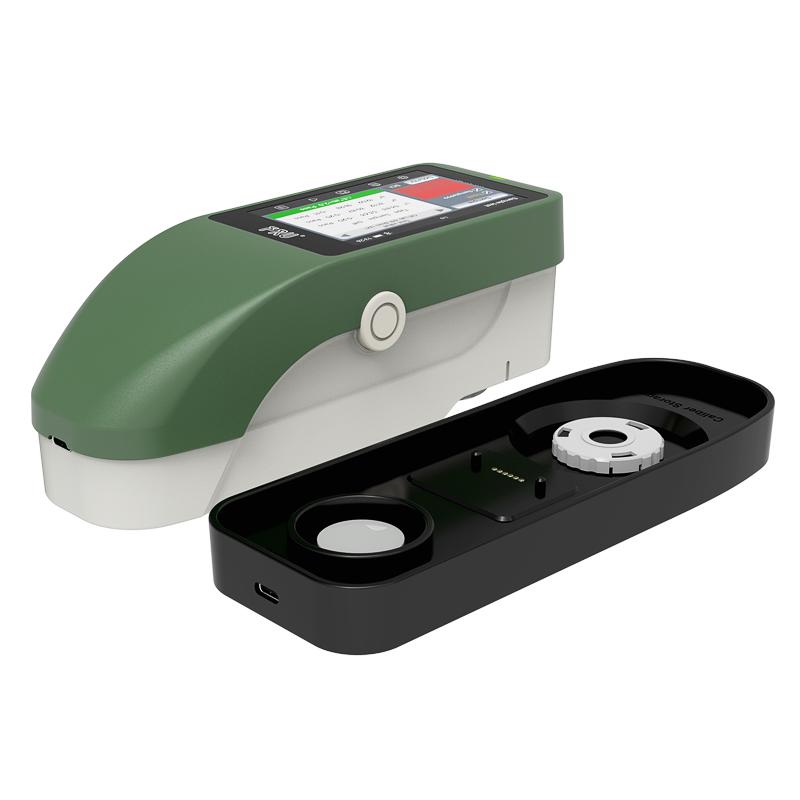

IWAVE SA26 Colorimeter φ 8mm/φ 4mm Dual Caliber, Professional Edition
SEφ 8mm/φ 4mm dual aperture, dual light path Colorimeter, camera assisted positioning, can simultaneously measure SCI and SCE, large LCD screen, multi-angle measurement.
$4739.00/set
PromotionLoading...
Coupon
Model：
SA26
Similar products
IWAVE SA26 ColoriMeterSPEC
IWAVE SA26 ColoriMeterDetails
IWAVE SA26 ColoriMeterPacking list
- SKU
- NB041906
- Measurement caliber
- Dual diameter φ 8mm/φ 4mm can be switched
- Light-containing method
- SCI (including specular reflection)/SCE (excluding specular reflection) can be measured simultaneously
- Measurement light source
- Light spectrum LED + dual UV lamp
- positioning method
- camera positioning
- Sexual repeability Accuracy
- Delta E * ab ≤ 0.03 (after calibrating, take the average value of the whiteboard measurement 30 times at 5s interval)
- Color Space
- CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A/T/E/M/I) field density, Munsell, reflectance (bright vision), Blackness, YI yellowness, homochromatic spectrum (jumping lights), hiding power
- Color difference formula
- ΔE*ab、ΔE*ch、ΔE*uv、ΔE*HunterLab、ΔE*CMC(l:c)、ΔE*94、ΔE*00、ΔE*sRGB、ΔE*BFD、ΔE*FCMII、ΔE*DIN99
- Standard light source
- A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84
- Observer
- 10°（CIE1964）/2°（CIE1931）
- wavelength interval
- 10Nm (range 400-700nm)
- Reflectance Measurement Range
- 0~200%
- Sensor
- CMOS sensor
- Geometry conditions

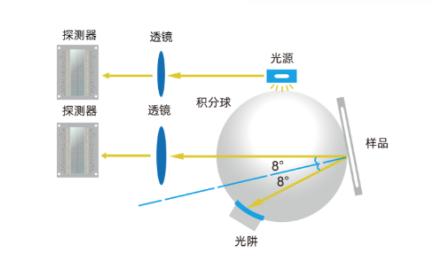

- D/8 diameter 40mm integrating sphere
- calibrate
- automatic
- Accuracy
- Measurement
- Display Accuracy
- 0.01
- Inter-instrument Agreement
- Delta E * ab ≤ 0.4 (the average measurement value of 0026 12 color blocks)
- Measurement speed
- 1.0s 2.0s (simultaneous SCI/SCE measurement)
- Operation mode
- Capacitive touch screen
- screen
- 3.5-Inch full-color LCD screen
- Battery Capacity
- Polymer battery, fully charged for 10,000 consecutive measurements
- interface
- Type C/Bluetooth
- language
- Simplified Chinese, Traditional Chinese, English
- APP platform
- Android/IOS/Windows
- Storage
- The fuselage stores 8000 pieces, and also supports App Mass storage
- Volume
- 181X67x67mm (without base)
- Weight
- 330G (without base)
- Color Space 2
- Tinting strength/strength/dyestuff strength, colour fastness, Taube whiteness, Berger whiteness, Tappi whiteness, Cros whiteness, Stephansen whiteness, Ganz whiteness, Hunter whiteness, whiteness (ASTM), whiteness (CIE), AATCC whiteness, R457/ISO2470 whiteness, GB/T17644 whiteness
SA26
ColoriMeter
φ 8mm/φ 4mm dual aperture, dual light path Colorimeter, camera assisted positioning, can simultaneously measure SCI and SCE, large LCD screen, multi-angle measurement.
The SA26 can measure SCI and SCE at the same time and display it on the large LCD screen, allowing you to enjoy a comprehensive and effective measurement experience with multi-angle measurement. It can be widely used in paints, plastics, resins, textiles, leather and other fields to help you achieve professional color control.
Features
Dual-optical path array sensor to ensure effective and stable measurement
Camera assist, accurate adjustment of positioning anytime and anywhere
Dual-caliber can be switched arbitrarily, supporting a variety of sample measurements
High-precision spectroscopic structure, accurate acquisition of LAB values
Simultaneous measurement of SCI and SCE, fast and effective
Small body and large screen, easy to carry and measure
FAQ
QWhen we make plastic products, we need to measure Color and Gloss. Is SA26 suitable?
A
Yes. The SA26 Colorimeter can simultaneously measure SCI (including specular reflection) and SCE (excluding specular reflection), which is just right to fully evaluate the Color and Glossiness of plastics. It also has dual aperture switching, and plastic parts as small as 4mm can also be measured. The camera positioning also makes it easy for you to align the measurement points to ensure accurate data.
QWhen selecting a colorimeter, is it important for SCI and SCE to measure this function simultaneously?
A
Very important. SCI measures the total reflected light, including mirror reflection, which is suitable for looking at the overall Color of the material; SCE excludes mirror reflection, which is closer to the Color seen by the human eye at a specific angle. SA26 can measure both at the same time, and get two data in one measurement, no need to change the mode, which is convenient. For example, if you measure paints or leather with Gloss, you can comprehensively analyze the color and Gloss effect.
Standard
