Specifications
| Application mode | Wire Application |
| Coating size | 300*500mm |
| Application width | 300mm |
| Application rate | 1~ 200mm/s stepless speed change |
| Application Film thickness range | Optional film thickness 1.5μm~ 171.5μm |
| Temperature display Accuracy | ±2℃ |
| Vacuumpump configuration | external |
| Vacuum Area | 300 * 500mm (can be customized) |
| Vacuum aperture | F1.2mm |
| Key control method | Touch screen control |
| Regulator display Accuracy | ±0.001mm |
| Display | digital display |
| Total power consumption | 2060W |
| Host Power | 220V 50Hz |
| Dimensions | 790*410*520mm |
| Total Weight | 65Kg |
| Bottom plate material | aluminum alloy |
| Vacuumpump size | 380*180*280mm |
| Optional accessories | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for Application substrate Film thickness uneven applications), film width control baffle |
| Customizable functions | Jet system device, UV solid inclusion device, automatic inking system |
Packing list

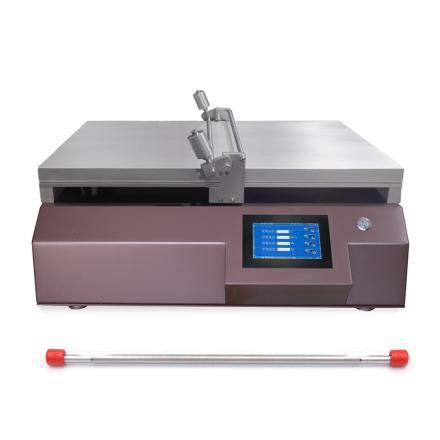

Film Applicator X1, imported bar X3, external vacuum pump X1, product manual X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/41929/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
