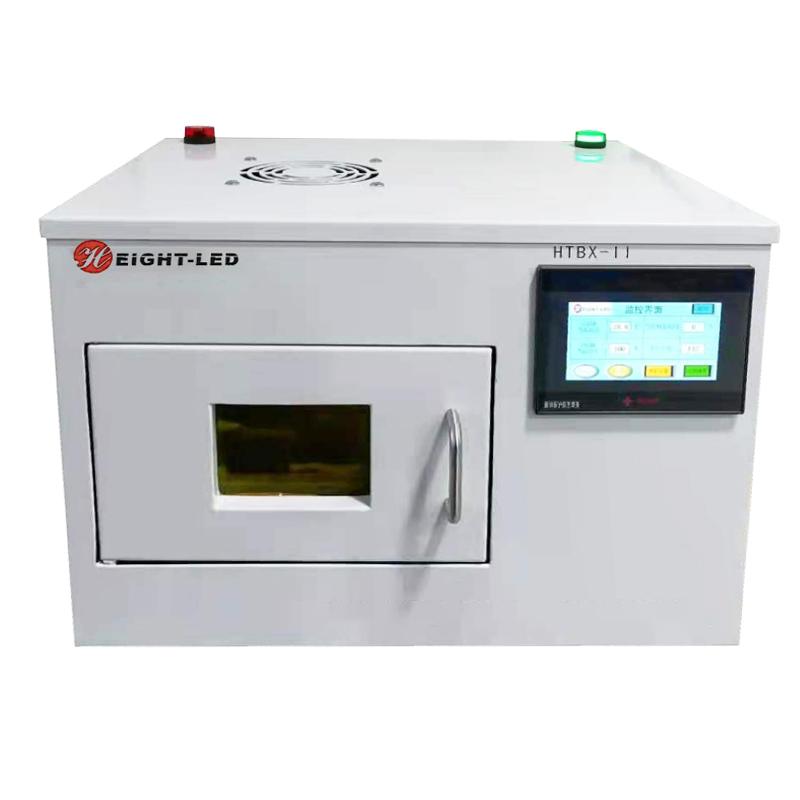

HEIGHT-LED HTBX-II-FS200200-BL (395nm) UVLED Curing Oven

HTBX-II-FS200200-BL(395nm)

UVLED Curing Oven

Wavelength 395nm, Cavity size 230 * 220 * 130mm, Power density 0.8W/cm ² (10mm irradiation distance), Heat dissipation mode air-cooled, control mode PLC control, Parameter setting Touch screen operation, Power adjustment Digital dimming (1-100%)

device characteristics

safety door

The device has an intelligent safety door protection function, and the UVLED will be turned off immediately when the door is opened in any mode.

control mode

The equipment provides optional automatic mode and manual mode. In automatic mode, the equipment cures according to the irradiation time you set.

Automatically turn off the UVLED after the countdown; in manual mode, the equipment needs to manually turn on the UVLED and record the curing time in real time.

Function

The equipment has functions such as digital dimming, production counting, and historical data query.

Light source characteristics

effective energy saving

The output band of UVLED is concentrated, the photoelectric conversion rate is high, energy saving and power saving, fast curing speed, and high production efficiency.

Wide range of applications

UVLED is a cold light source with low infrared heat radiation, which will not cause thermal stress and deformation during work, and is suitable for curing various heat-sensitive materials.

long life

UV LED has a long service life and reduces the investment cost of equipment. Instant on and off, no need to preheat, and the number of switches does not affect the service life.

Green

RoHS compliant and mercury free.

Standard sizes

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
