Linshang LS176 Colorimeter Portable Spectrophotometer

SE
In line with the national first-class standard, it provides professional Light spectrum reflectance Linear dispersion, a variety of Color space and color difference formula to choose from, and can measure whiteness, yellowness and other Color parameters.
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

LinShang LS176 ColorimeterSPEC

LinShang LS176 ColorimeterDetails

LinShang LS176 ColorimeterPacking list

SKU
NB041943
parameter name
parameter value
Lighting method
D/8, including specular reflection (SCI)
lighting source
Light spectrum LED light source
Wavelength range
400-700nm
wavelength spacing
10nm
Measurement caliber
8mm
Measurement conditions
Light source D65, field of view 10 °
Measurement time
About 1s
Color space
CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, Yellowness-98, whiteness-98, whiteness-Gauz, whiteness-Hunter, Light spectrum reflectance
Color difference formula
ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00
Sexual repeability
Standard deviation △ E * ab, within 0.03 (measurement conditions: after preheating correction, the average value of 30 whiteboard measurements at intervals of 3s)
Inter-station difference
△ E * ab < = 0.4 (average measurement value of 12 colored bricks in BCRA II series)
size
179mm*64.5mm*93mm
Weight
About 471g
Battery level
Rechargeable lithium battery 3.7V@4000mAh, a single charge can be continuously measured 10000 times
Display
480 × 320 dot matrix IPS color screen
Language
Simplified Chinese, English
Charging port
USB(Type-C)
Operating temperature range
0~45 ℃, 0~85% RH (no condensation)
Storage temperature range
-25~ 55 ℃, 0~85% RH (no condensation)
LS176
Colorimeter
In line with the national first-class standard, it provides professional Light spectrum reflectance Linear dispersion, a variety of Color space and color difference formula to choose from, and can measure whiteness, yellowness and other Color parameters.

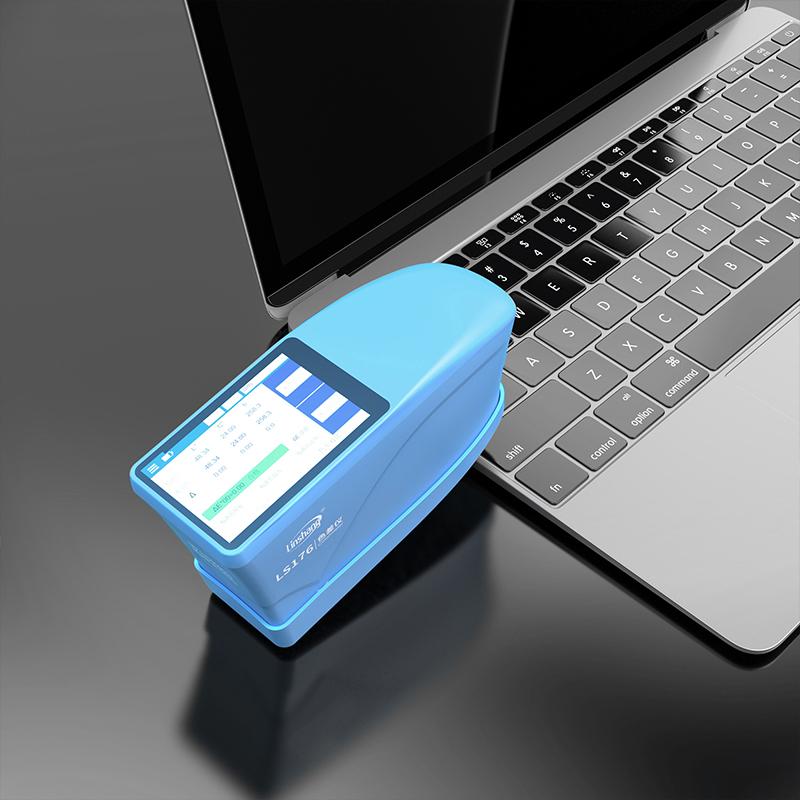

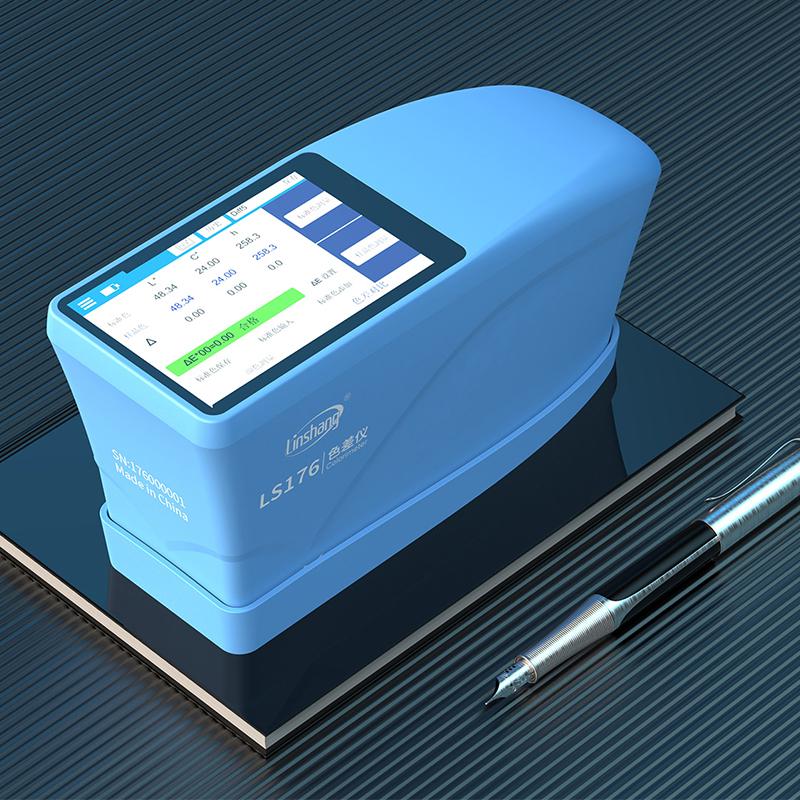

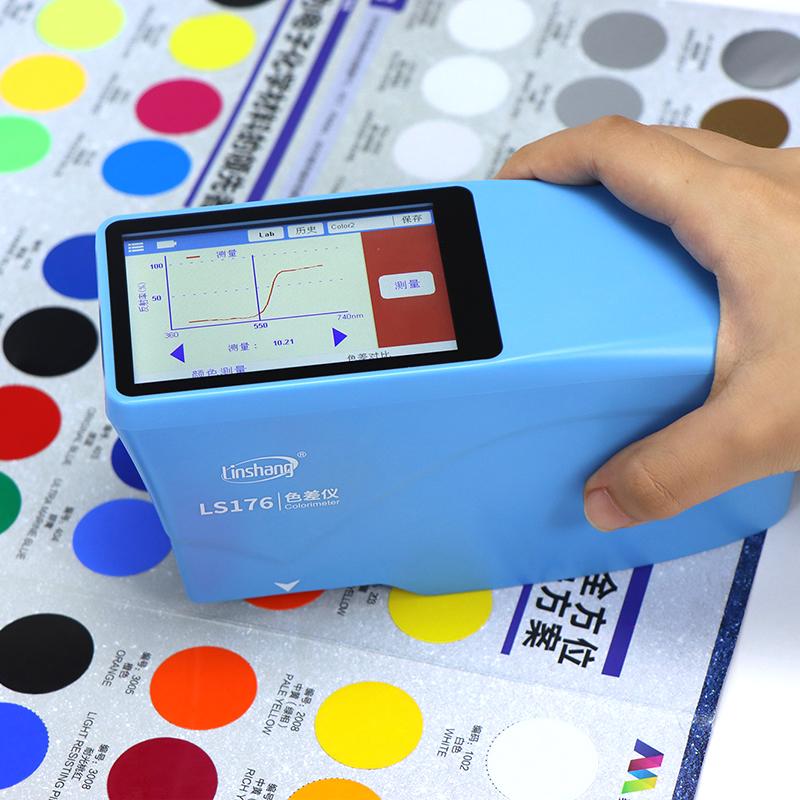

Linshang LS176 Colorimeter Portable Spectrophotometer Picture

Introduction

LS176 is a hand-held multifunctional Colorimeter with a 3.5-inch IPS color screen and a capacitive touch screen, which has a better operating experience. The instrument integrates multiple Color Charts, which can quickly match the measured color to the closest Color Chart number. The instrument also has a color difference comparison function, the color difference threshold can be set, and a variety of color difference formulas can be selected, which can realize QC rapid detection.

The instrument adopts full-spectrum LED light source and spectral sensor design, D/8 lighting mode, high measurement accuracy, widely used in automotive paint, metal processing, stone, decorative materials, plastic and plastic industries.

LS176 characteristic map

Standards

GBT 3978-2008 Standard illuminants and geometric conditions

GBT 3979-2008 Measurement method of object color

GBT 7921-2008 Uniform color space and color difference formula

GBT 11186.1-1989 Method for measuring the color of coating film Part 1: Principle

GBT 11186.2-1989 Method for measuring the color of coating film Part 2: Color measurement

GBT 11186.3-1989 Method for measuring the color of coating film Part 3 Calculation of color difference

JJG 595-2002 Verification Regulations for Color Meter

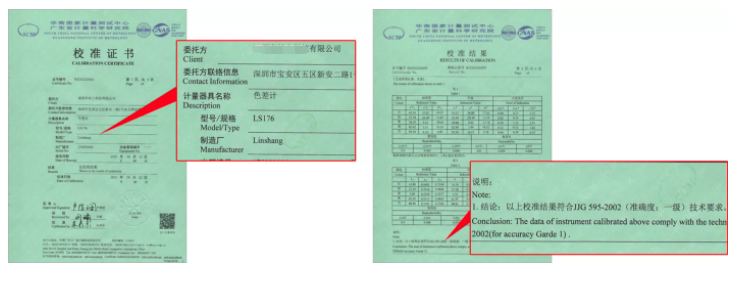

Calibration certificate


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
