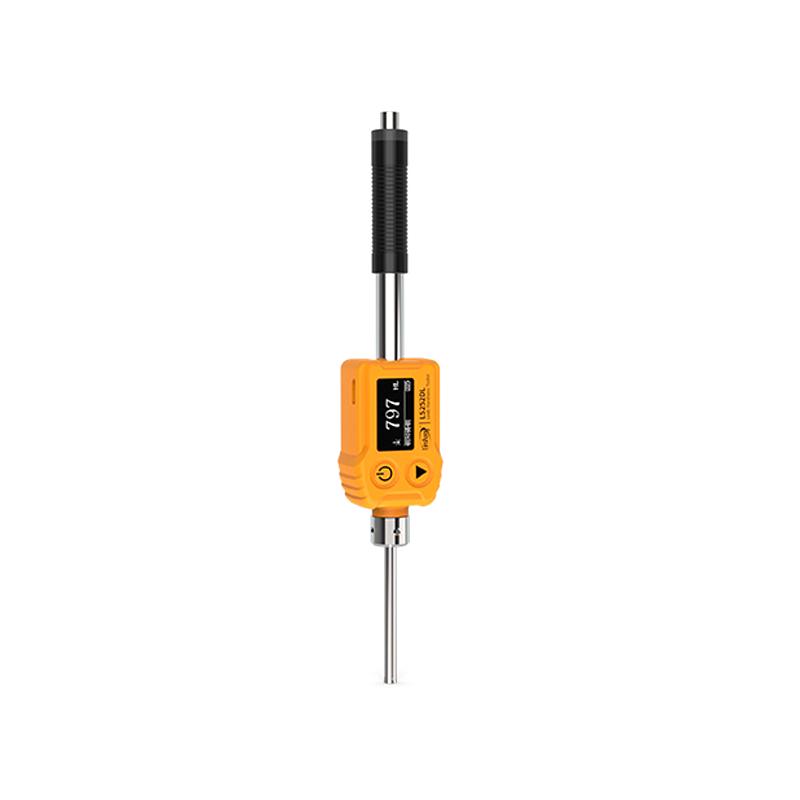

LS252DL gear Leeb Hardness Tester DL type impact device

DL type impact device, suitable for small space Hardness value measurement, probe built-in Direction Sensors, full angle measurement without error, a variety of measurement materials can be switched

$413.00/set

PromotionLoading...

Coupon

Model：

LS252DL

Certificate

LinShang

Manufacturer authorization

Contact

Details SPEC Con VIDEO

LinShang LS252DL Leeb Hardness TesterSPEC

LinShang LS252DL Leeb Hardness TesterDetails

LinShang LS252DL Leeb Hardness TesterPacking list

SKU: NB041948

Impact device: DL type

Hardness system: HL、HV、HB、HS、HRA、HRB、HRC

Measuring range: HLDL (170-960) ； HV (194-976) ； HB (188-651) ； HRC (17.6-68.5) ； HS (29.5-99.5) ； HRB (91.5-100) ； GAME (60-85.8)

resolution: 1HL

Measurement Accuracy: ± 12 HL, ± 6HL typical

Sexual repeability: 6HL

Display: 128 * 64 dot matrix OLED

Power Supply: Rechargeable lithium battery 3.7V@250mAh, a single charge can be continuously measured more than 5000 times

Charging port: USB(Type-C)

size: 203*34*24mm

Weight: About 78g

Operation temperature range: -10~50 ℃, 0~85% RH (no condensation)

Storage temperature range: -10~60 ℃, 0~85% RH (no condensation)

LS252DL

Leeb Hardness Tester

DL type impact device, suitable for small space Hardness value measurement, probe built-in Direction Sensors, full angle measurement without error, a variety of measurement materials can be switched

Introduction

LS252DL is an integrated Hardness Tester. The instrument detects hardness based on the Leeb hardness measurement principle, and can measure the hardness of various metal materials. The instrument adopts DL impact device, which is suitable for testing on grooves or gears with narrow spaces. The instrument adopts excellent dual-coil technology, which has good repeatability and measurement accuracy. The probe has a built-in direction sensor, which automatically compensates the measurement error of different impact directions. The system has a variety of built-in hardness scales, including Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), Rockwell (HRA), Rockwell (HRB), Rockwell (HRC) Convert between each other to avoid tedious manual calculations.

Application

The instrument adopts DL impact device, built-in a variety of metal materials can be selected, to meet the testing needs of different metal hardness.

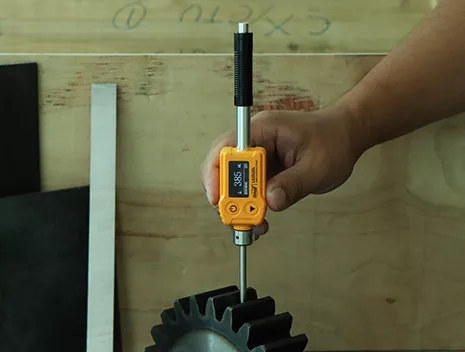

Linshang LS252DL Leeb Hardness Tester Details Figure 1

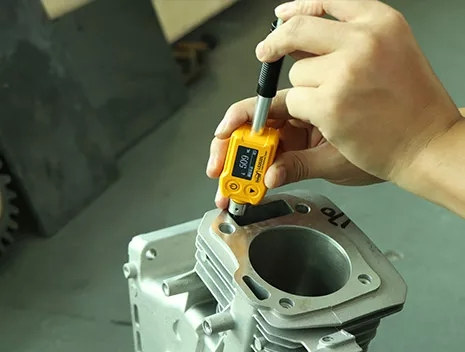

Linshang LS252DL Leeb Hardness Tester Details Figure 2

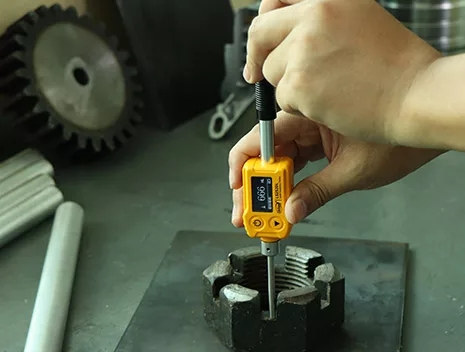

Linshang LS252DL Leeb Hardness Tester Details Figure 3

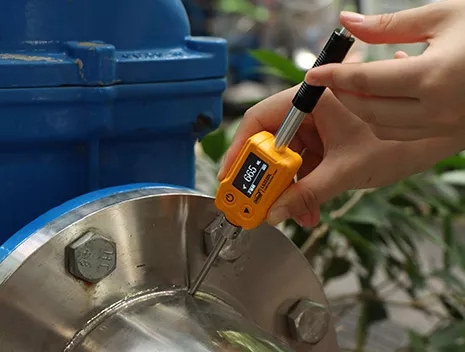

Linshang LS252DL Leeb Hardness Tester Details Figure 4

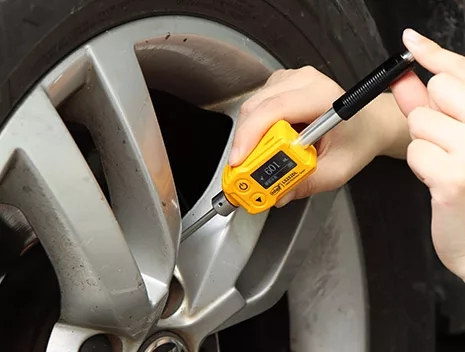

Linshang LS252DL Leeb Hardness Tester Details Figure 5

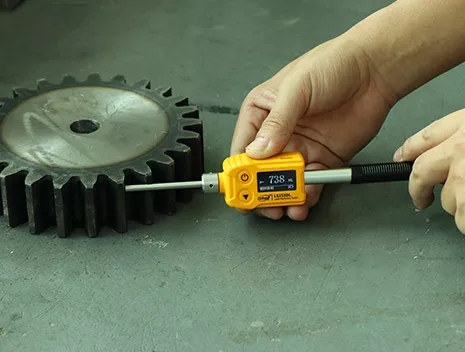

Linshang LS252DL Leeb Hardness Tester Details Figure 6

Standards

GB/T 13794.1 Leeb Hardness Test Part 1: Test Method

GB/T 13794.2 Leeb Hardness Test Part 2: Calibration and Calibration of Hardness Testers

GB/T 13794.4 Leeb Hardness Test Part 4: Hardness Value Conversion Table

JB/T 9378-2001 Leeb Hardness Tester industry standard
