Linshang LS252C Light and thin metal parts Leeb Hardness Tester

SE
Hardness Twin Coil technology for testing surface hardening and parts with small mass or Film thickness, providing good measurement accuracy and repeatability. The probe has built-in Direction Sensors for full angle measurement
$173.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO

LinShang LS252C Leeb Hardness TesterSPEC

LinShang LS252C Leeb Hardness TesterDetails

LinShang LS252C Leeb Hardness TesterPacking list

SKU
NB041949
Impact device
Type C
Hardness system
HL、HV、HB、HS、HRC
Measuring range
HLC(170-960);HV(80-996);HB(80-683);HRC(20-69.5); HS(31.9-102.3)
resolution
1HL
Measurement Accuracy
± 12 HL, ± 6HL typical
Sexual repeability
6HL
Display
128 * 64 dot matrix OLED
Power Supply
Rechargeable lithium battery 3.7V@250mAh, a single charge can be continuously measured more than 5000 times
Charging port
USB(Type-C)
size
140*34*24 mm
Weight
About 66g
Operation temperature range
-10~50 ℃, 0~85% RH (no condensation)
Storage temperature range
-10~60 ℃, 0~85% RH (no condensation)
LS252C
Leeb Hardness Tester
Hardness Twin Coil technology for testing surface hardening and parts with small mass or Film thickness, providing good measurement accuracy and repeatability. The probe has built-in Direction Sensors for full angle measurement

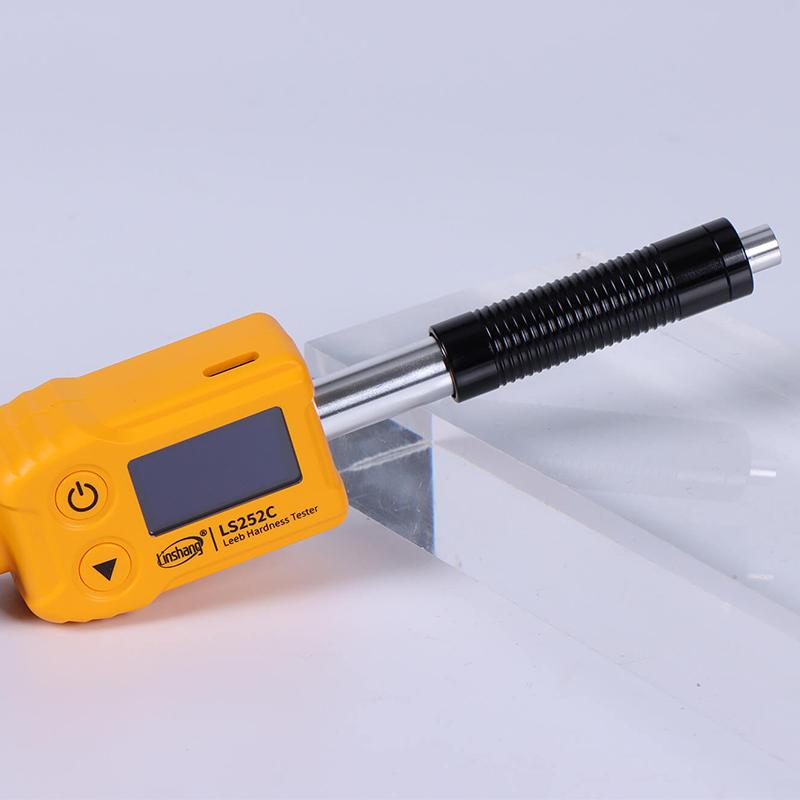

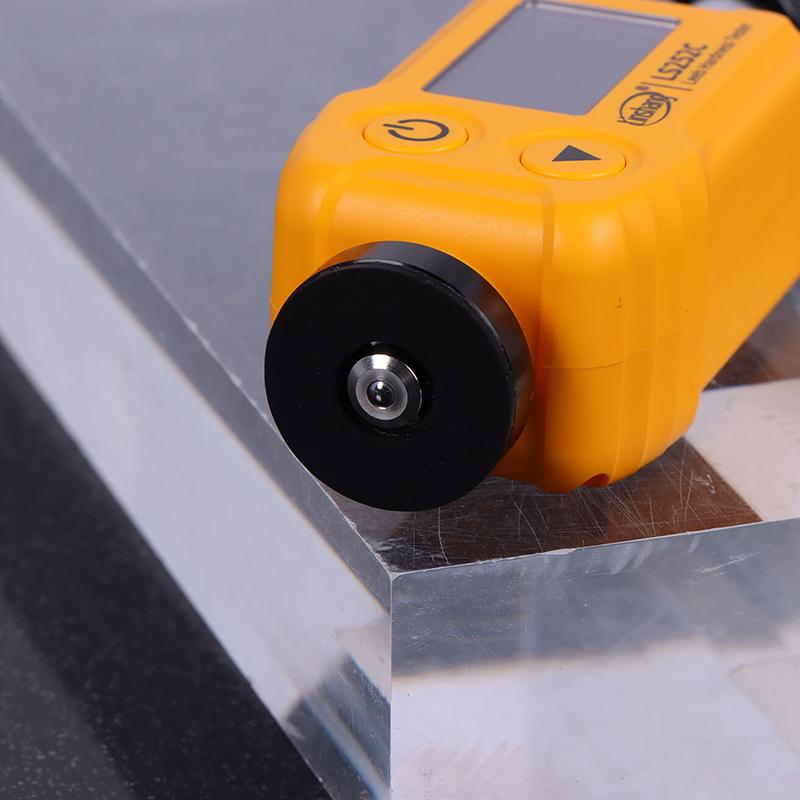

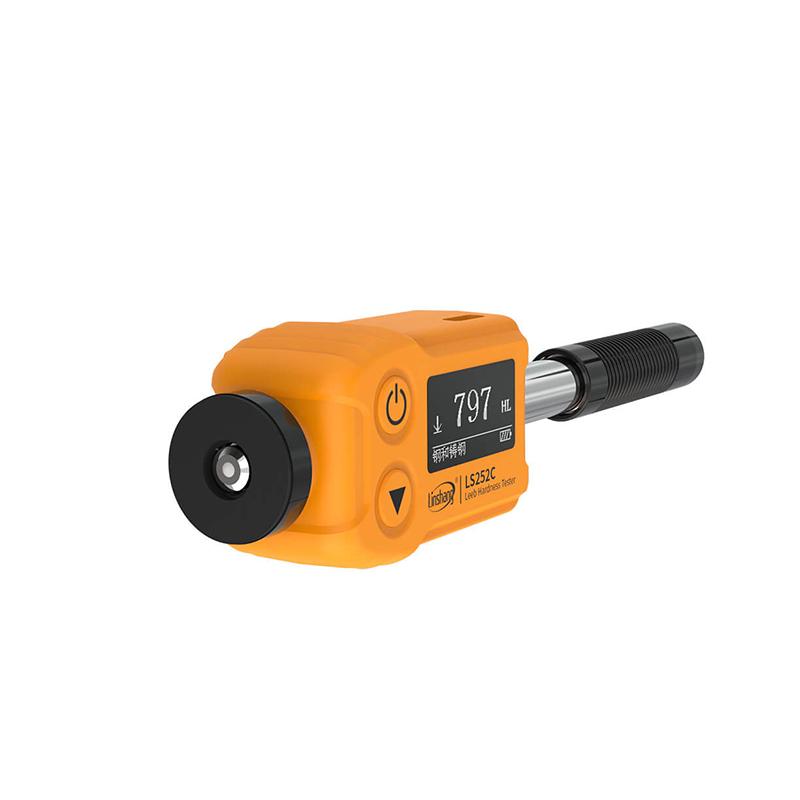

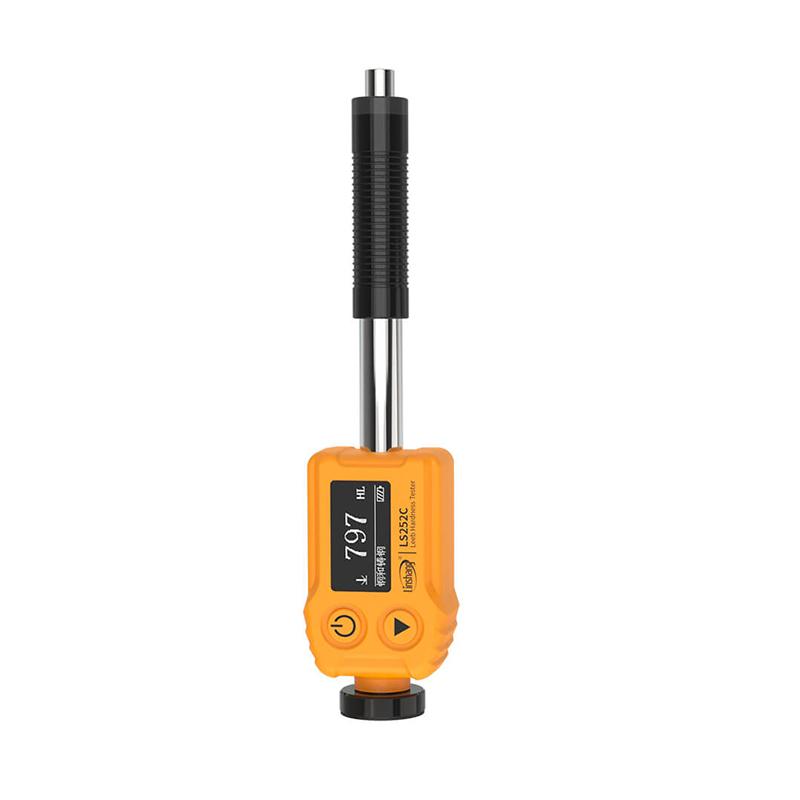

Linshang LS252C Light and thin metal parts Leeb Hardness Tester Picture

Introduction

LS252C is an integrated Hardness Tester with small size, which can measure the hardness of various metal materials. C-type impact device is adopted, with small impact force, suitable for testing the hardness of surface hardened layer and parts with small mass or thin thickness. The instrument adopts excellent dual-coil technology, which has good repeatability and measurement accuracy. The probe has a built-in direction sensor, which automatically compensates the measurement error of different impact directions. The system has a variety of built-in hardness scales, which can be converted between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), and Rockwell (HRC), avoiding tedious manual calculations.

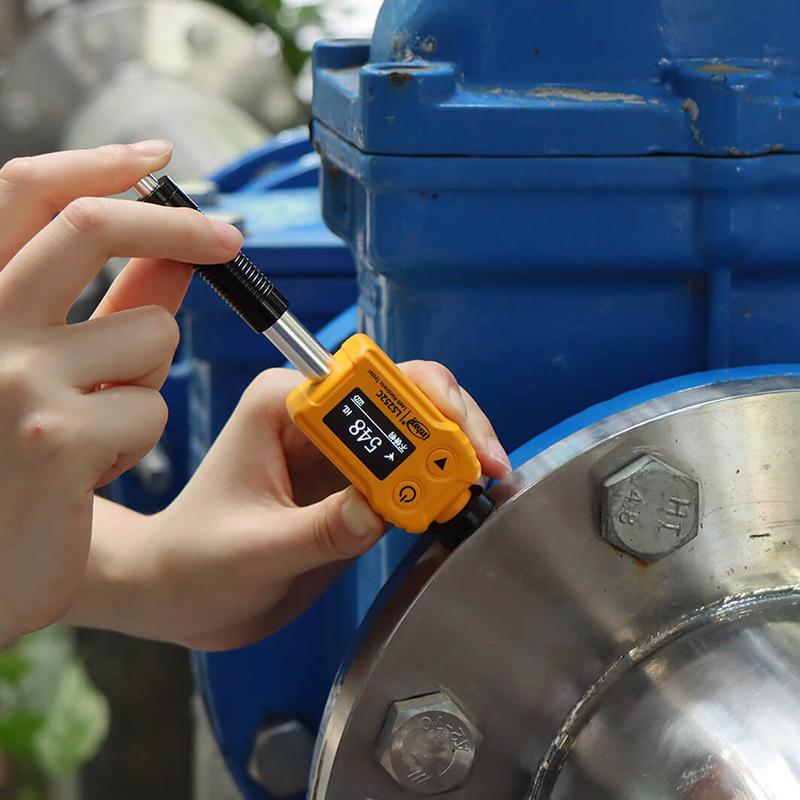

Application

The instrument adopts C impact device, built-in a variety of metal materials to choose from, and has a wide range of applications.


Standards

GB/T 13794.1 Leeb Hardness Test Part 1: Test Method

GB/T 13794.2 Leeb Hardness Test Part 2: Calibration and Calibration of Hardness Testers

GB/T 13794.4 Leeb Hardness Test Part 4: Hardness Value Conversion Table

JB/T 9378-2001 Leeb Hardness Tester industry standard

JJG 747-1999 Verification Regulations for Leeb Hardness Tester

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
