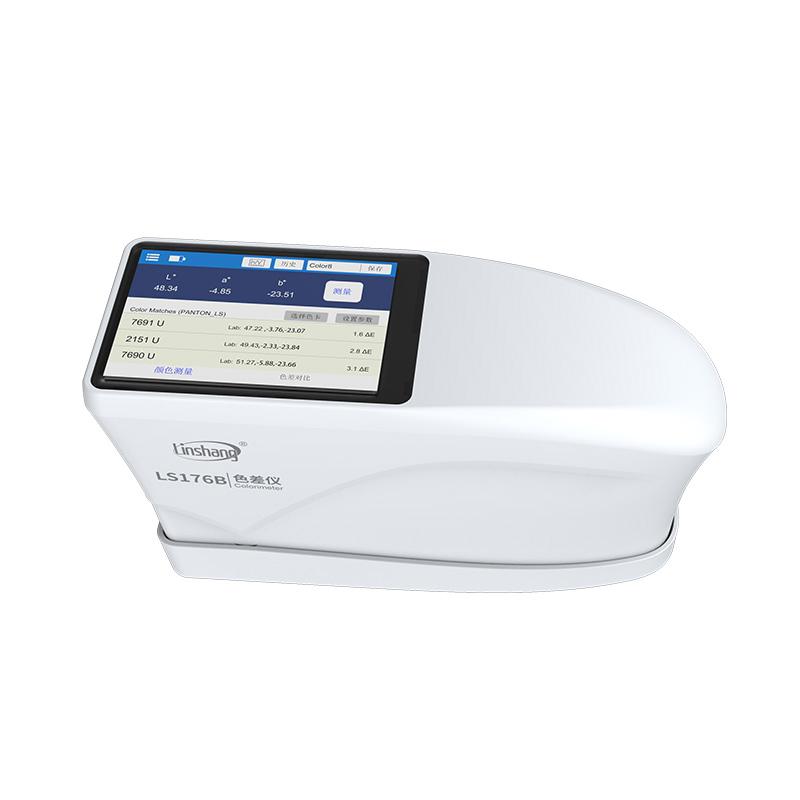

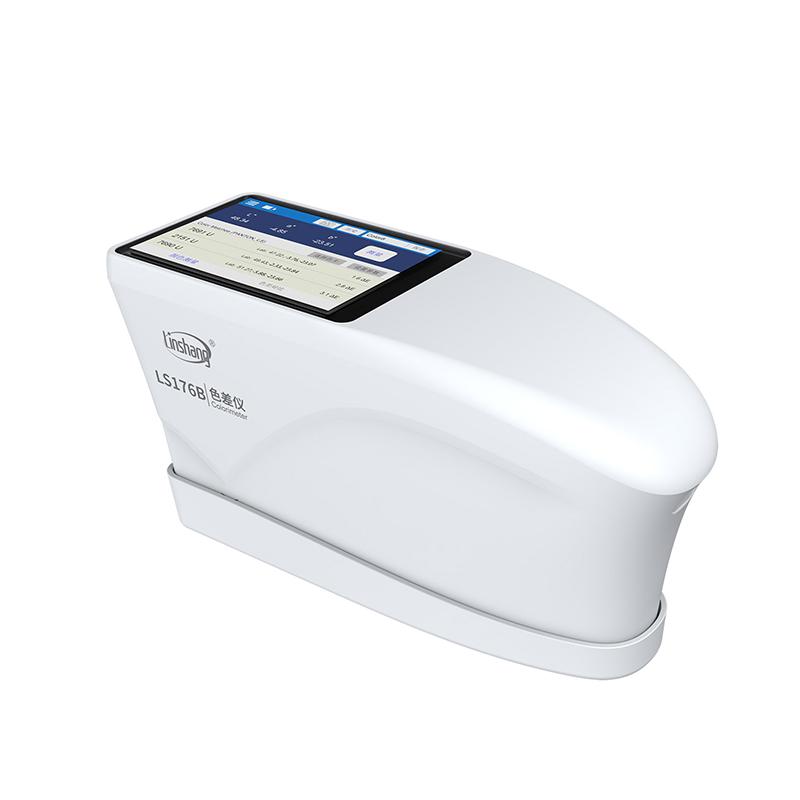

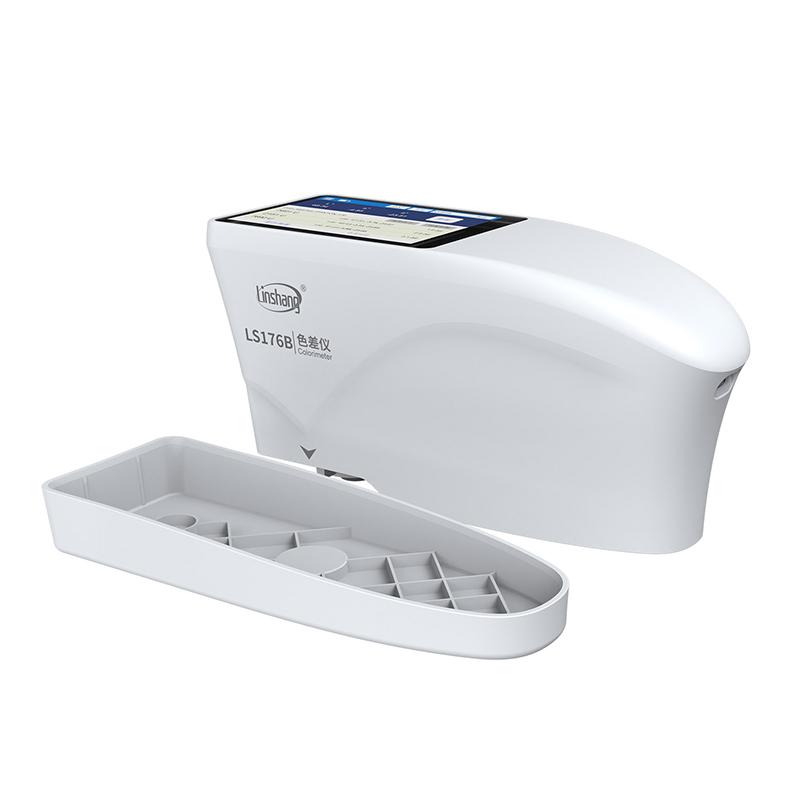

Linshang LS176B Portable Spectroscopic Colorimeter Connected to Mobile APP
LS176B
LinShang LS176B ColorimeterSPEC
LinShang LS176B ColorimeterDetails
LinShang LS176B ColorimeterPacking list

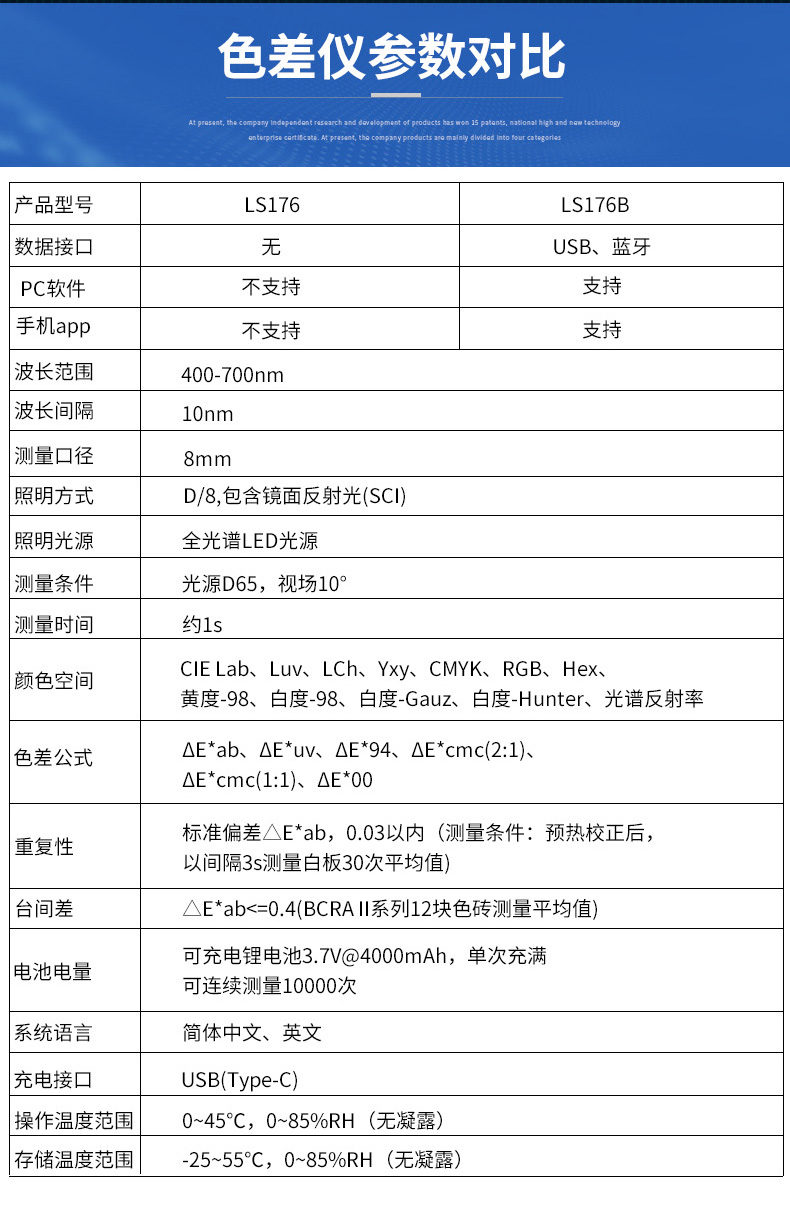

- SKU
- NB041950
- Lighting method
- D/8, including specular reflection (SCI)
- lighting source
- Light spectrum LED light source
- Wavelength range
- 400-700nm
- wavelength spacing
- 10nm

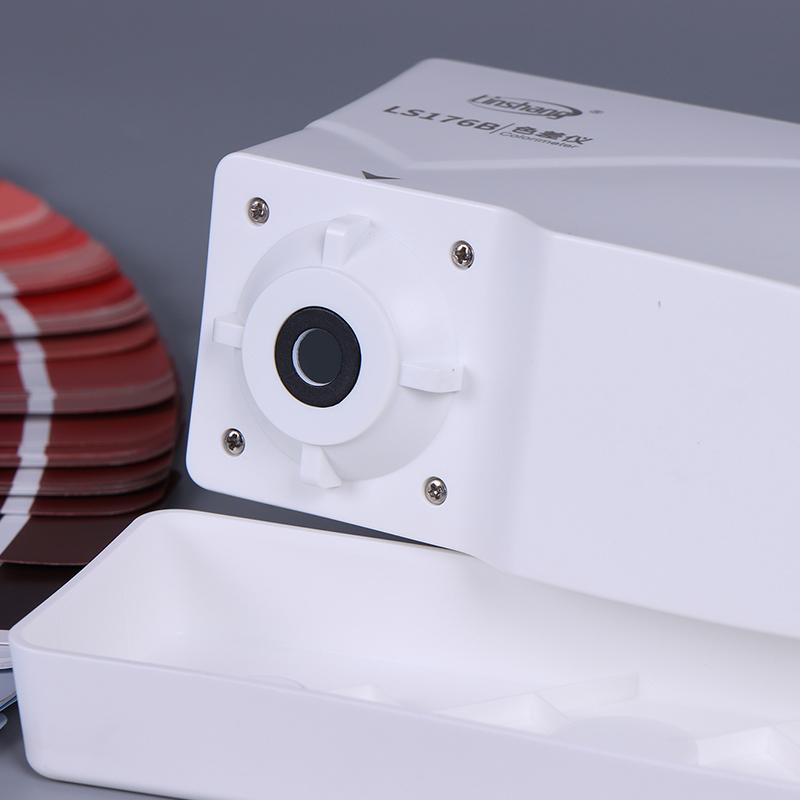

- Measurement caliber
- 8mm
- Measurement conditions
- Light source D65, field of view 10 °
- Measurement time
- About 1s

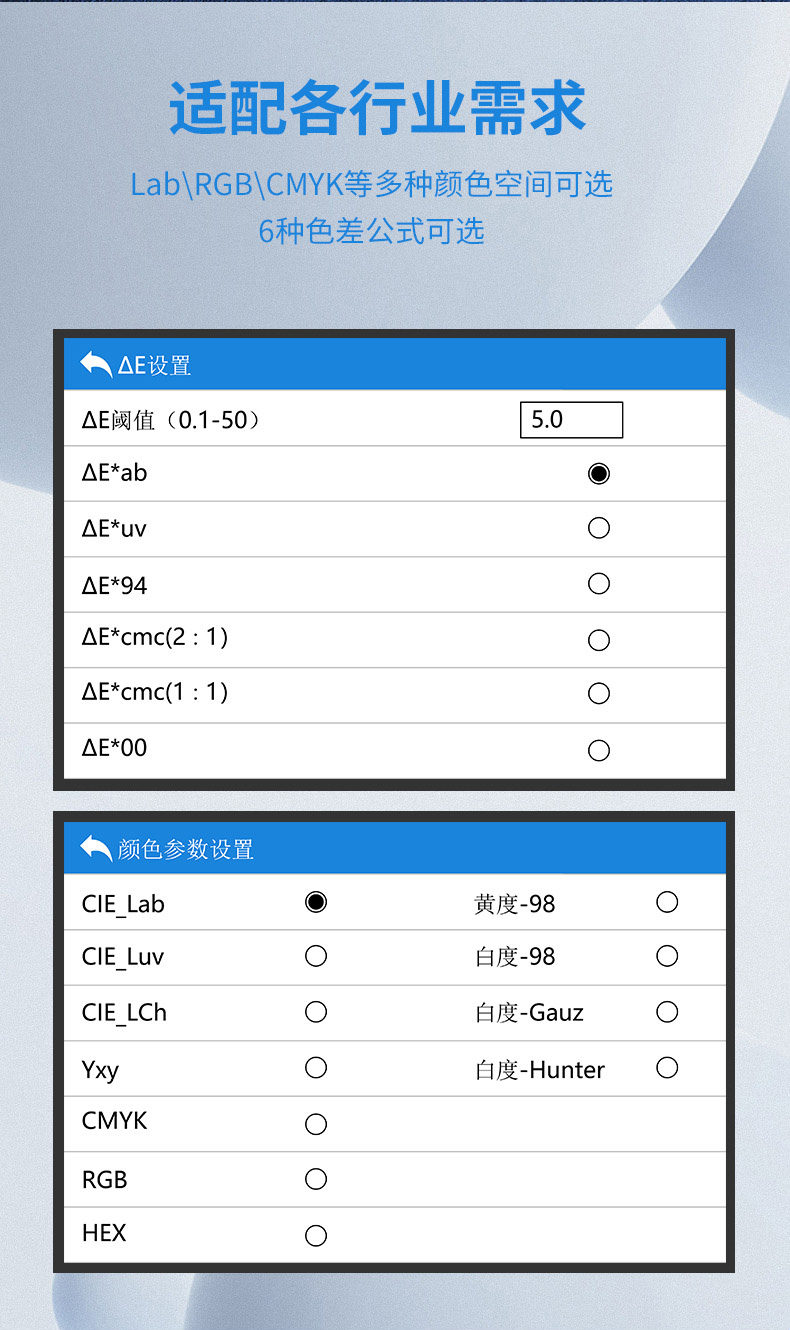

- Color space

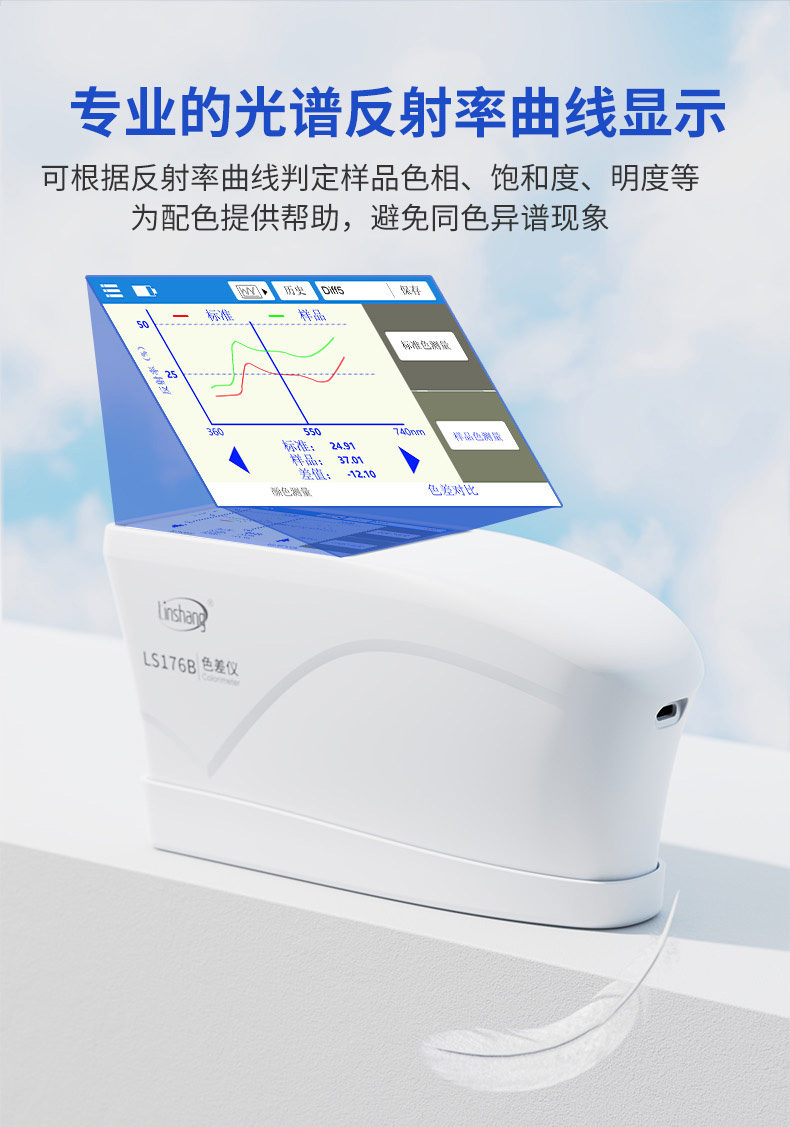

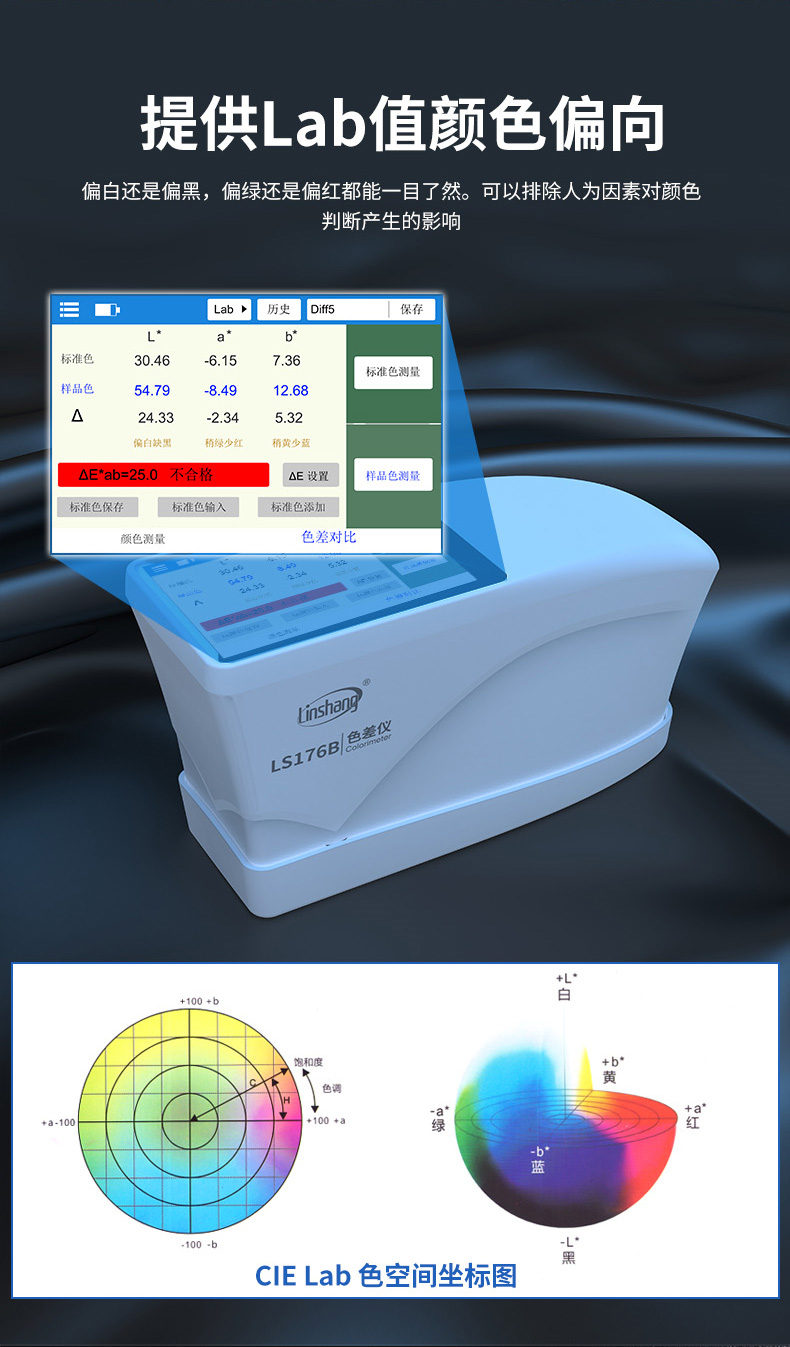

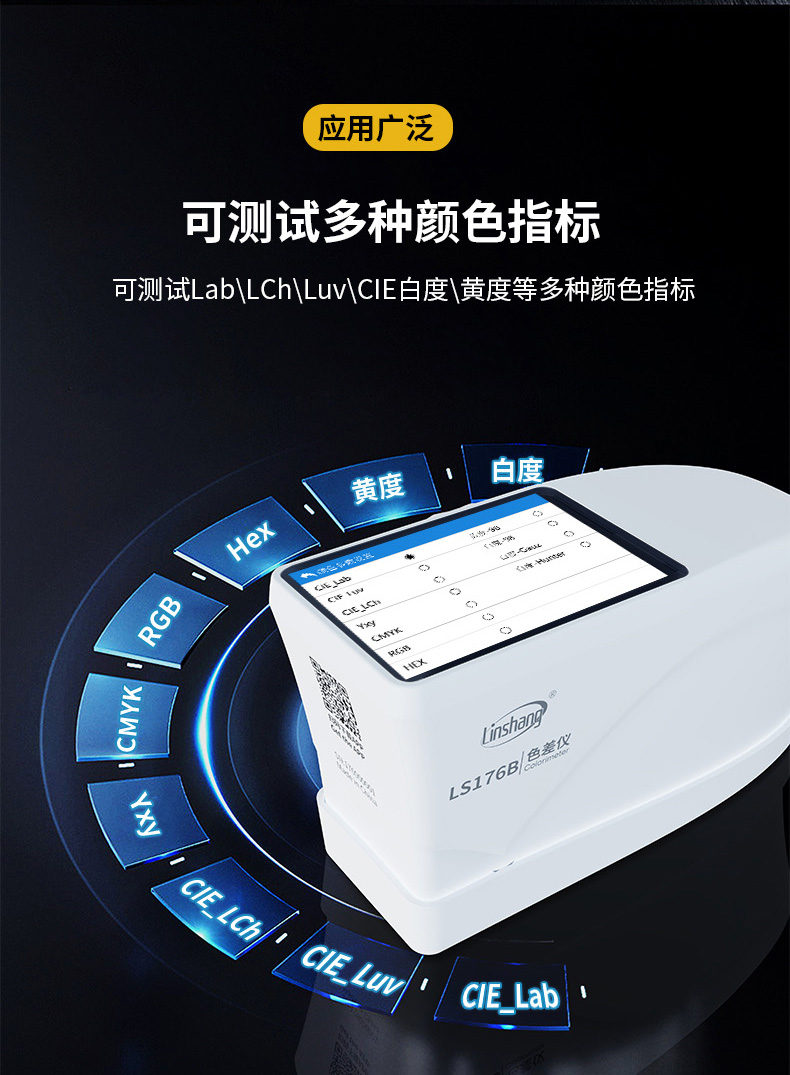

- CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, Yellowness-98, whiteness-98, whiteness-Gauz, whiteness-Hunter, Light spectrum reflectance
- Color difference formula
- ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00
- Sexual repeability
- Standard deviation △ E * ab, within 0.03 (measurement conditions: after preheating correction, the average value of 30 whiteboard measurements at intervals of 3s)
- Inter-station difference
- △ E * ab < = 0.4 (average measurement value of 12 colored bricks in BCRA II series)
- size
- 179mm*64.5mm*93mm
- Weight
- About 471g
- Battery level

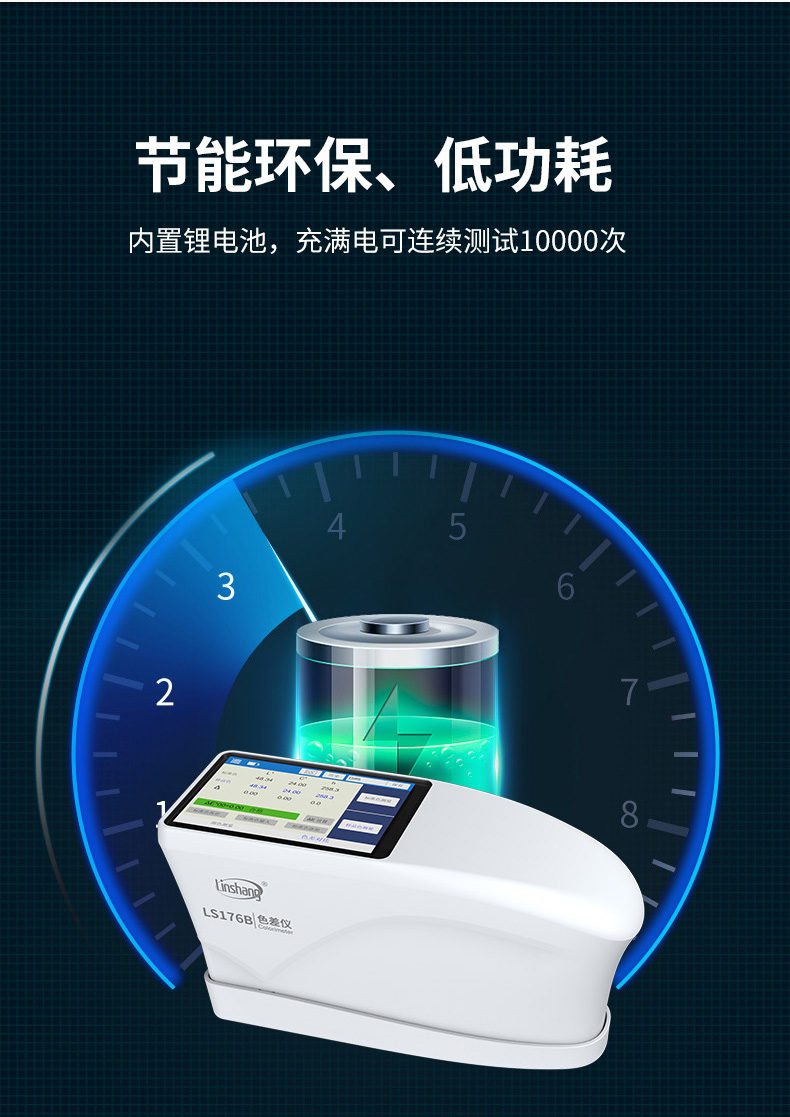

- Rechargeable lithium battery 3.7V@4000mAh, a single charge can be continuously measured 10000 times
- Display
- 480 * 320 dot matrix IPS color screen
- Language
- Simplified Chinese, English
- Charging port
- USB(Type-C)
- Data Interface
- USB, Bluetooth
- Operating temperature range
- 0~45 ℃, 0~85% RH (no condensation)
- Storage temperature range
- -25~ 55 ℃, 0~85% RH (no condensation)
Introduction

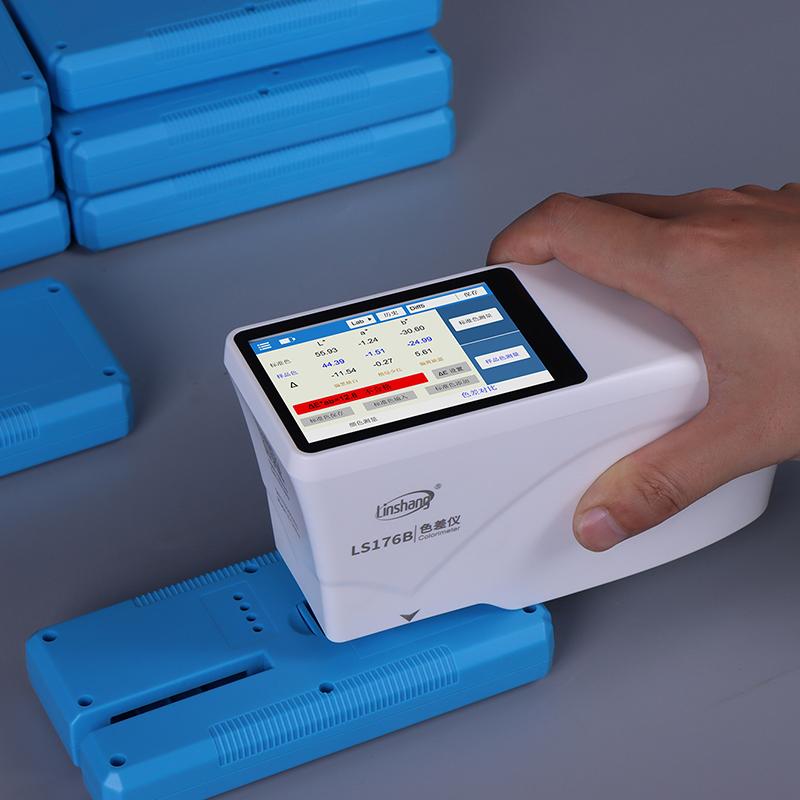

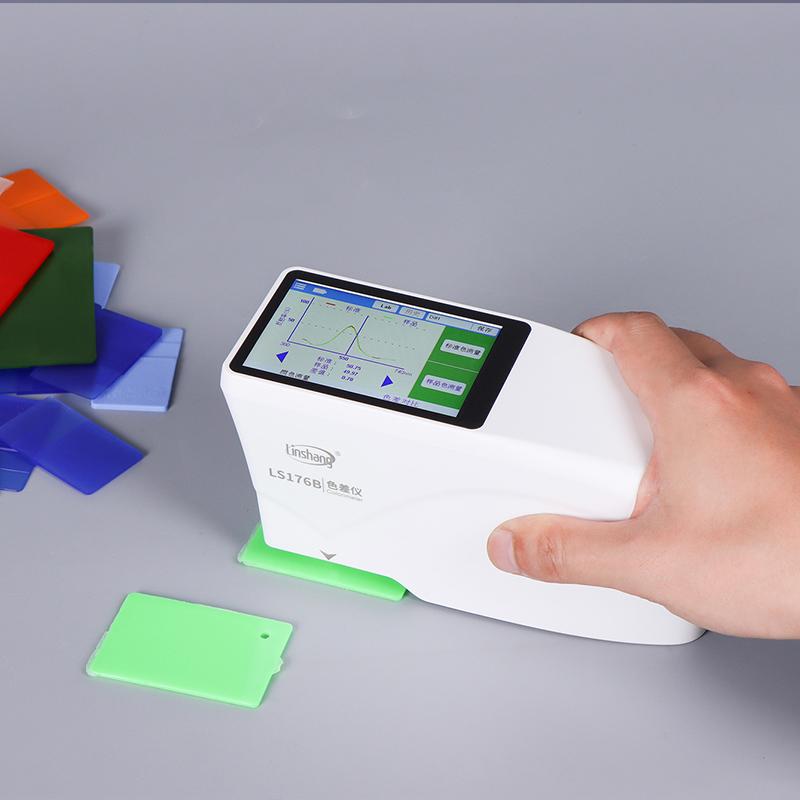

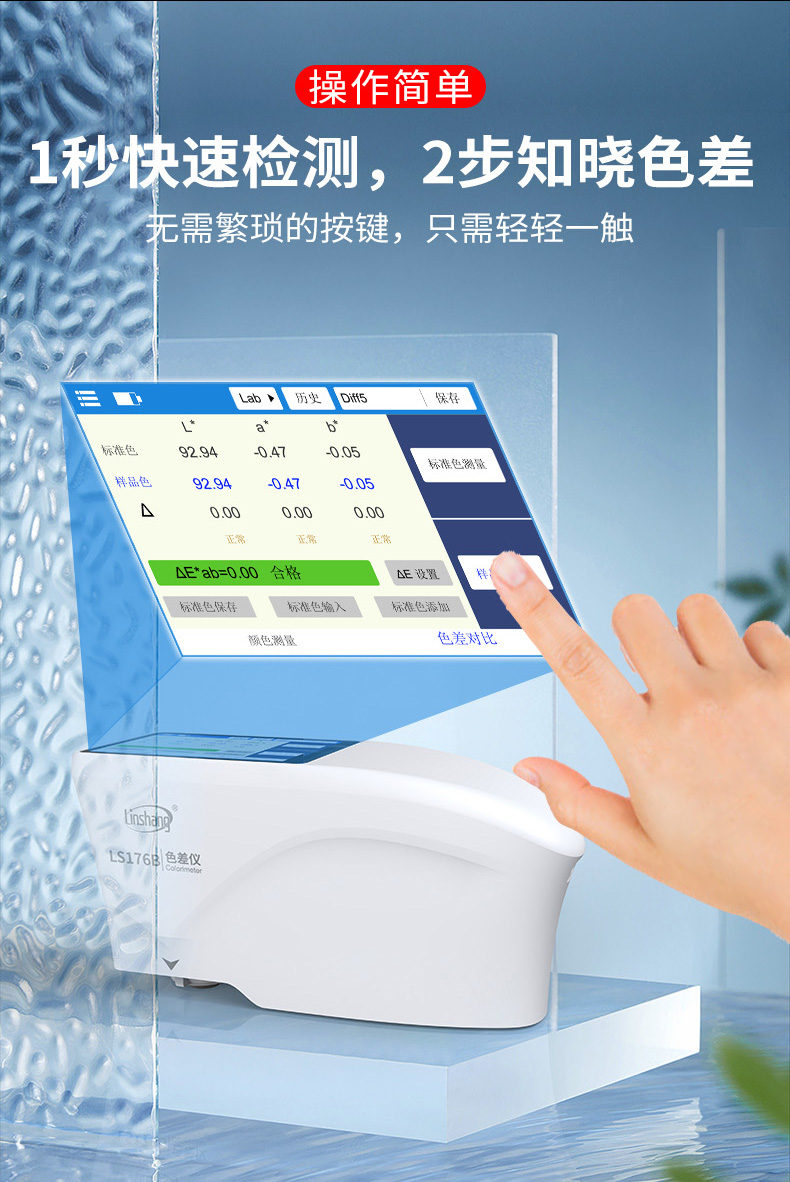

LS176B is a portable Spectrophotometer , which uses a 3.5-inch IPS color screen and capacitive touch screen for a better operating experience. The instrument has integrated multiple Color Charts, which can quickly match the measured color to a close Color Chart number. At the same time, the instrument has the function of color difference comparison, the color difference threshold can be set, and a variety of color difference formulas can be selected, which can realize QC rapid detection. It can also be connected to the mobile APP for color measurement and sharing, and it is also equipped with powerful PC software to meet the different needs of customers. All indicators are in line with the requirements of the national first-class measurement machine.
Meets standards
GBT 3978-2008 Standard Illuminator and Geometric Conditions
GBT 3979-2008 Methods for measuring object color
GBT 7921-2008 Uniform color space and color aberration formulas
GBT 11186.1-1989 Methods for measuring the color of coating films Part 1: Principle
GBT 11186.2-1989 Methods for measuring the color of the coating film Part II: Color measurement
GBT 11186.3-1989 Methods for measuring the color of the coating film Part 3 Calculation of color difference
JJG 595-2002 V. R. of Color Colorimeter
Software downloads

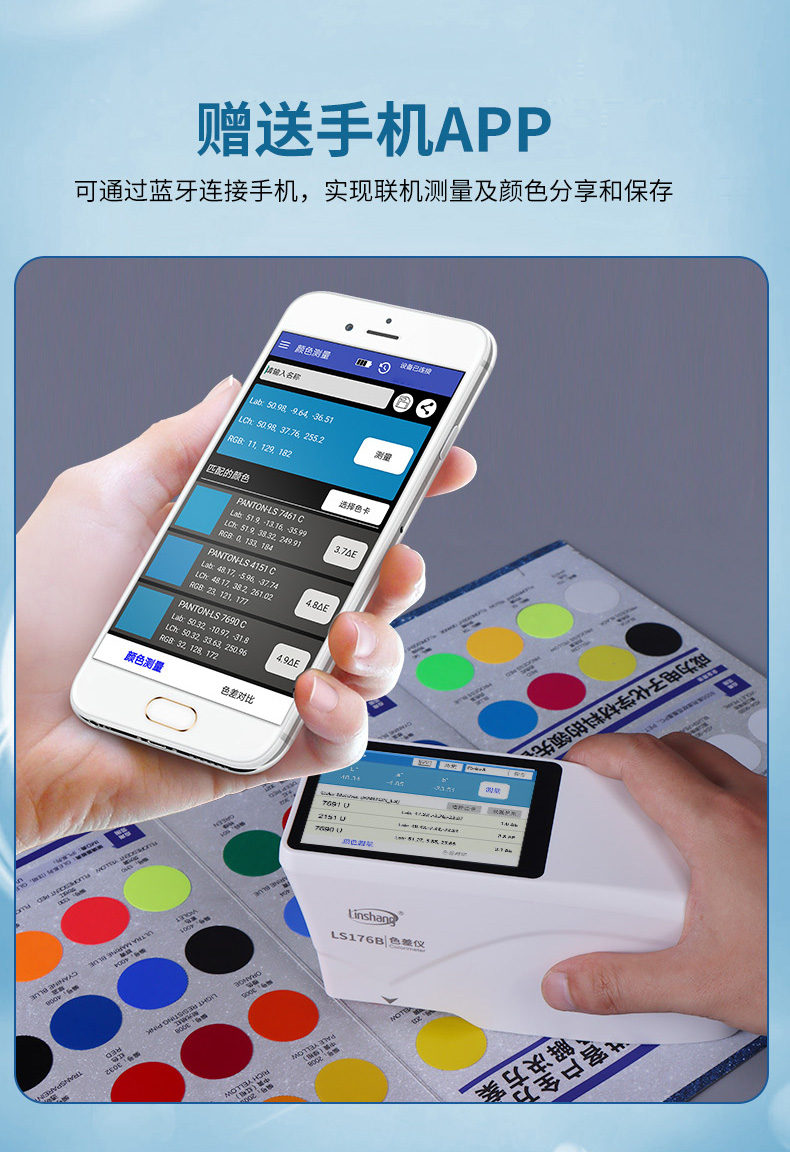

1. Mobile APP installation
The app supports Android OS version 7.0 or higher, and Apple phones support iOS 7.0 or later.
It can be installed in the following ways:
1) Use a mobile browser or WeChat to scan the QR code on the device, download and install it according to the prompts.
2) Click on the link linshangtech.cn/a/170/ install the APP.
3) Search for "LSColor" (case insensitive) in the App Store/Google Play to install the app.
2. PC software installation
By connecting to a PC via USB, you can use the Colorimeter PC software. (PC software only supports Windows operating system)
It can be installed in the following ways:
1) In the product packaging box, the included U disk is equipped with PC software, which can be run directly without installation
2) Download the Colorimeter-windows-V1.3.zip to your local computer, decompress it and run it directly
