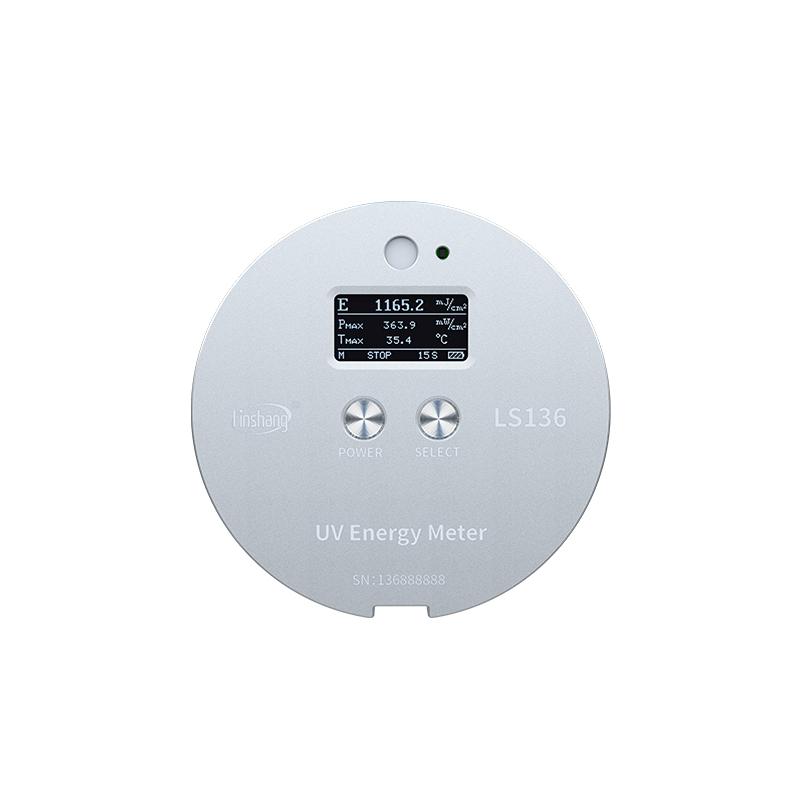

Linshang LS136 UV Energy Meter, for high pressure mercury lamps

LS136

UV energy meter

Specializing in high pressure mercury lamps, halogen lamps and other light sources for ultraviolet energy measurement, disc design, thin body, high temperature design, can run normally in a high temperature environment for a long time.

Introduction

LS136 UV Energy Meter is a professional UV detection instrument used to detect UV energy and intensity in light sources such as high-pressure mercury lamps and halogen lamps. It can be used to measure various UV curing machines, UV coating machines, exposure machines, drying machines, and printing machines. UV intensity, energy, and temperature in equipment such as Disc design, slimmer body, easy operation, equipped with high temperature protection cover, no fear of high temperature environment.

LS136 UV Energy Meter is specially used for light sources such as high-pressure mercury lamp and halogen lamp. If you need to measure UVLED light source, please choose LS137 UV Energy Meter.

Application

Electronic component industry, 3D printing industry, UV coating industry, screen printing industry

Features

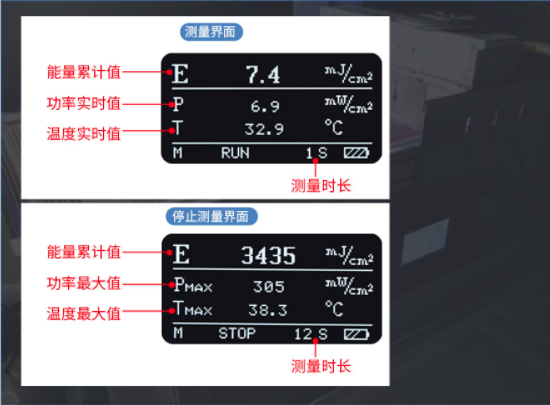

1. Simultaneous measurement of energy, power and temperature

Real-time power value and real-time temperature value can be dynamically displayed during measurement

Display energy accumulation value, maximum power value and maximum temperature value after measurement

2. Suitable for high-pressure mercury lamps and halogen lamps

The spectral range is 315nm-400nm, and the peak wavelength is 365nm

Professionally used for UV energy measurement of high-pressure mercury lamps, halogen lamps and other light sources

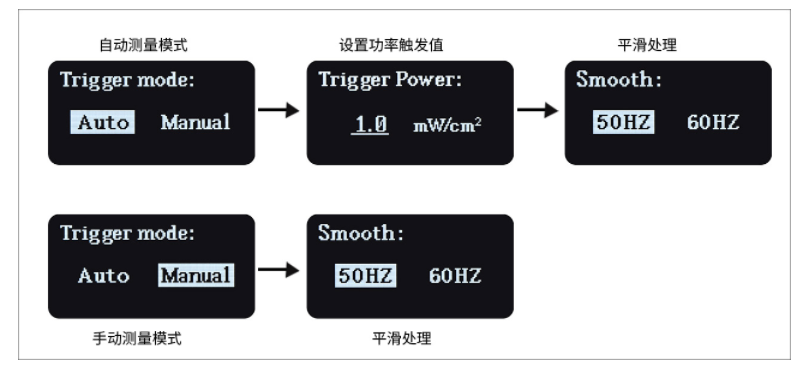

3. Two measurement modes can be selected

Automatic mode: automatically trigger measurement and end measurement, accurately measure curing time and energy value;

Manual mode: can measure the energy value of multiple curing light sources

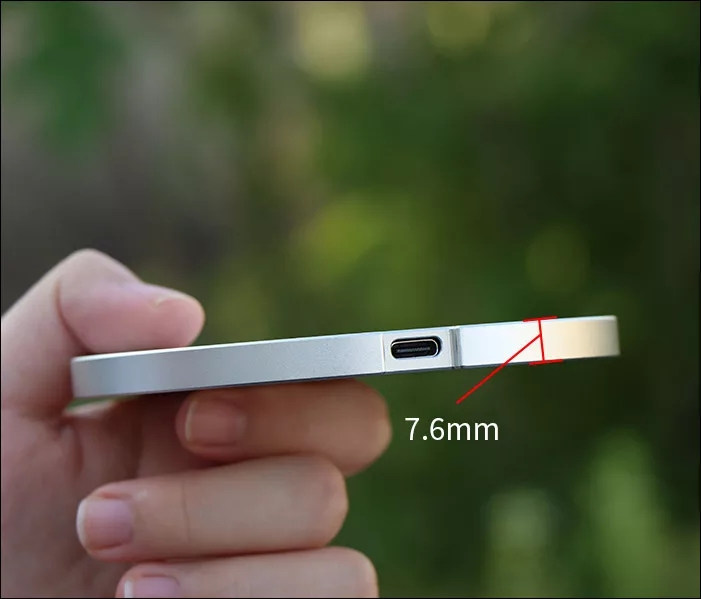

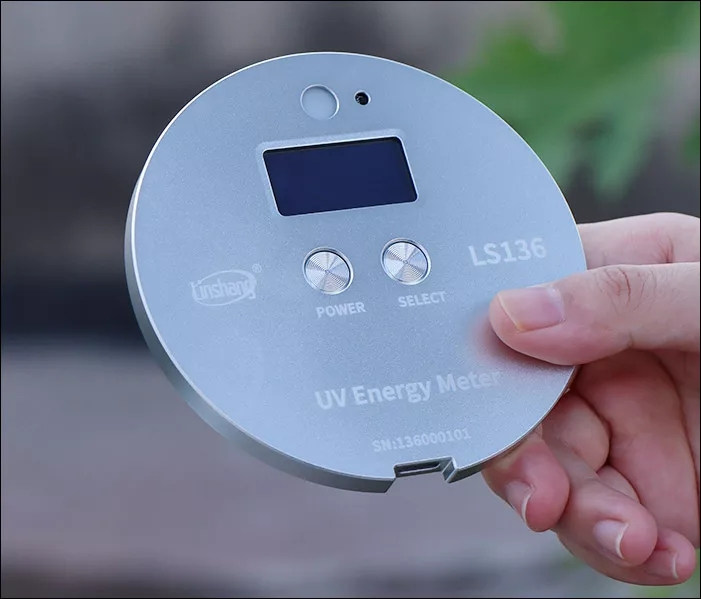

4. Slim and compact body

Thinner thickness, lighter body weight, suitable for narrow spaces

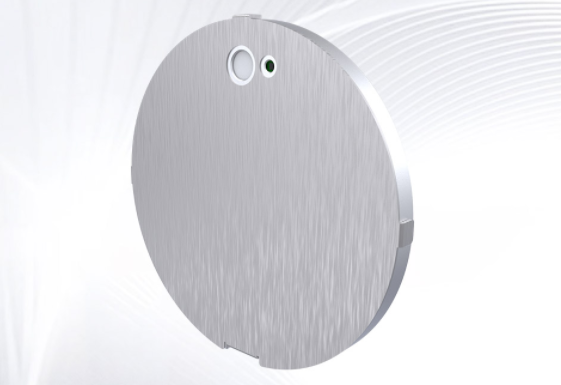

5. Free high temperature protection cover

With high temperature resistant design, the instrument can operate normally for a long time in an environment of 100 degrees Celsius

6. 2048 times/second high-speed sampling, high-speed data collection frequency makes the UV energy meter more accurate, and can obtain a calibration certificate from a trusted testing institution

7. Built-in high-precision and high-sensitivity temperature Detector and timer, which can dynamically display the actual temperature in the device in real time and accurately record the measurement time

8. Automatically display the last test data when booting up, no need to worry about data loss

Standards

"JJG 879-2015 Verification Regulations for Ultraviolet Illuminance Meters"

Product qualification

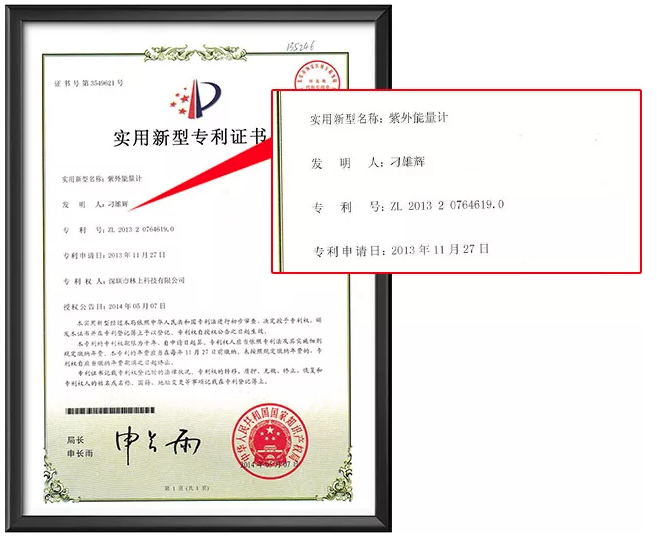

LS136 UV energy meter patent certificate

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
