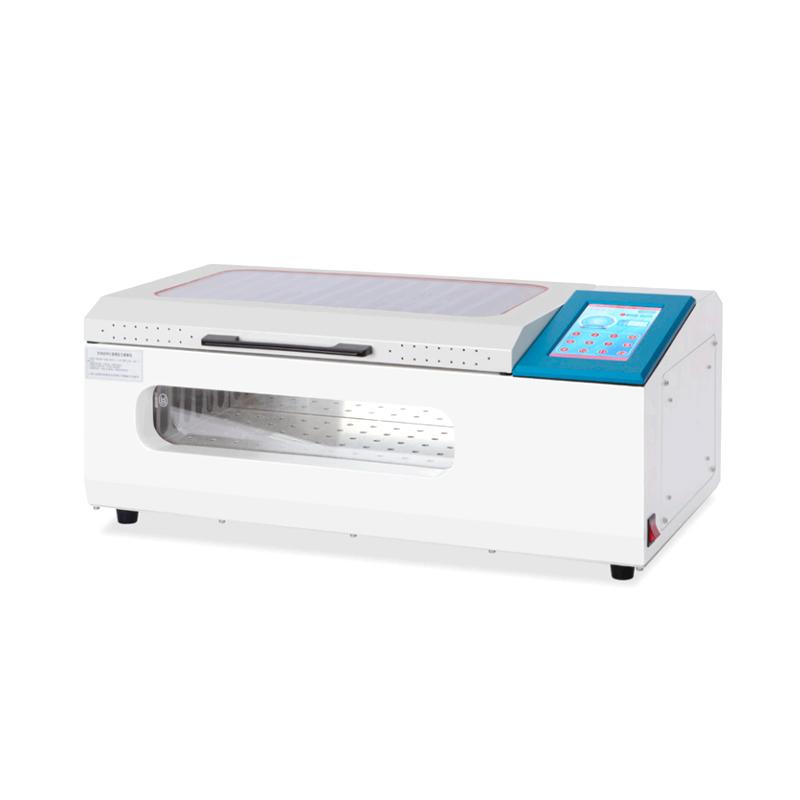

LICHEN LC-DCY-60ATP Automatic nitrogen blowing condenser for 60 samples
LC-DCY-60ATP
LICHEN LC-DCY-60ATP Automatic nitrogen blowing condenserSPEC
LICHEN LC-DCY-60ATP Automatic nitrogen blowing condenserDetails
LICHEN LC-DCY-60ATP Automatic nitrogen blowing condenserPacking list
- SKU
- NB041966
- Number of samples processed
- 60.
- Temperature range
- RT~100℃
- Power
- AC220V/50HZ
- Power
- 1800W
- Display mode
- LCD touch screen
- Condensing bottle Volume
- 50ml
- Temperature control Accuracy
- ±0.1℃
- Timer
- 0-9999min
- Maximum intake pressure
- 0.2-0 MPa, external maximum allowable pressure: 1.0MPa
- Blowing pinholing diameter
- Outer diameter 1.6mm; Inner diameter 1.2mm
- Weight
- 43Kg
- Product size
- 600×450×400mm
Introduction
When a large number of samples or a large amount of solvent needs to be analyzed simultaneously, the concentration step is very laborious and time-consuming. Lichen Technology's fully automatic nitrogen concentrator better solves these problems and greatly avoids the operator's contact with organic toxic solvents. It can be used as a device required for routine laboratories.
Features
7-inch LCD touch screen display, intuitive and easy to operate
The unique automatic water replenishment function can realize automatic water supply and replenishment, and effectively prevent dry burning.
The instrument automatically alarms when the lid is opened, concentration is completed, or the water volume or nitrogen pressure of the Water Bath is insufficient.
12 channels, each channel is controlled by an independent solenoid valve, the switches do not affect each other
You can choose to control the purge endpoint manually or intelligently according to the actual situation.
Each working channel is equipped with an independent optical sensor to detect the end point automatically and independently.
Volume-fixing sensitivity, adjustable in ten levels, ensures more accurate volume-fixing of solvents of different colors or transmittances
The volume that can be fixed is 1.0ML, 0.5ML or nearly dry (â0.1ML, the purge time can to dry the solvent). Concentration bottles of different specifications can be used cross-wise at the same time without affecting each other.
