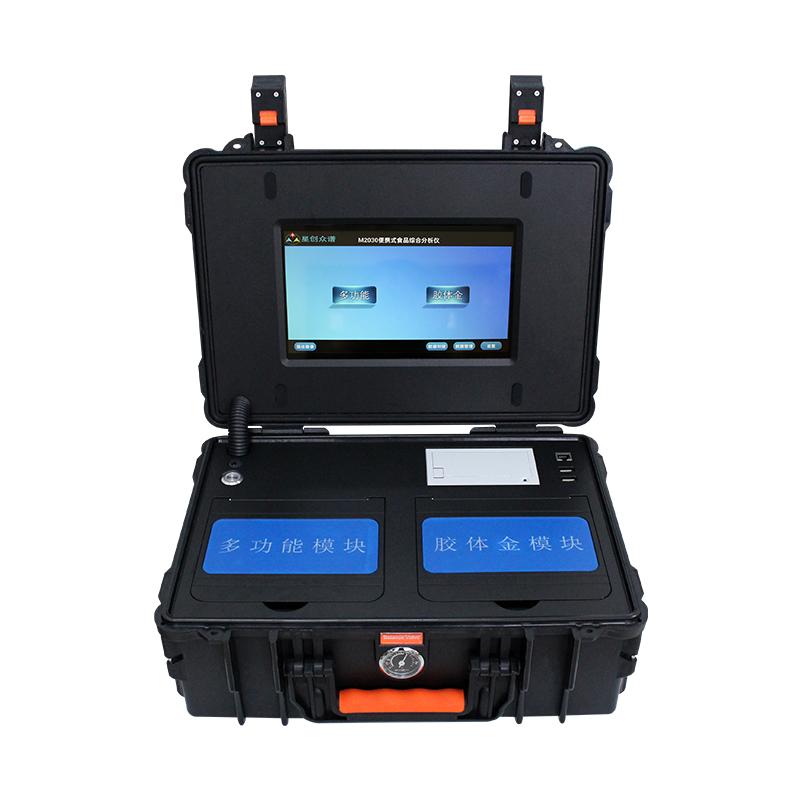

SPECTRASTAR M2030 Portable Food Comprehensive Analyzer
M2030
spectrastar M2030 Portable food comprehensive analyzerSPEC
spectrastar M2030 Portable food comprehensive analyzerDetails
spectrastar M2030 Portable food comprehensive analyzerPacking list
- SKU
- NB041971
- Operating system
- Intelligent Operating system
- function module
- Spectrophotometric detection module and colloidal gold detection module
- High definition display
- Resolution 1024 * 600, capacitive touch screen
- Large Capacity battery
- Built-in high-Capacity rechargeable battery, can maintain detection for more than 4 hours without external Power Supply
- Large storage space
- ≥8GB
- Rich interface
- Support WIFI, wired network, USB and other interfaces
- Testing equipment
- Built-in thermal printer, test results can print test reports
- Light sources and Detectors
- Solid State Cold Light source, High Sensitivity Silicon Photodiode
- Test item
- 50 detection items such as pesticide residues, prohibited additions, excessive additions, and diseased meat
- Transmittance error of indication
- ≤±2%
- Transmittance Repeatability
- ≤±0.5%
- Stability
- ±0.01/10min
- inter-channel error
- ≤±0.05Abs
- wavelength error
- ≤±10nm
- Channel performance
- 18 multi-function spectrophotometric measurement channels, each channel integrates 4 LED Light sources, supports simultaneous detection of multiple samples
- Spectrophotometric detection time
- Pesticide residue ≤ 3min, detection time of diseased meat characteristics ≤ 1min, Miscellaneous ≤ 3S
- Multifunctional spectrophotometric module
- Light source Automatic calibration system to ensure that the Light source always works in the best condition, improve the conformity between the channels
- Detection system
- High Resolution CMOS Digital Image Sensors, Low Power Consumption, High Accuracy, Reliability
- light source
- The combination of ultra-bright LED Light source and uniform soft light module can effectively solve problems such as occlusion and shadow, improve the uniformity of light in the field of view, effectively reduce the influence of the position and posture of the test paper card on the measurement, and reduce the difference between channels
- Detection method
- Still image acquisition, no motion mechanism, fast detection speed, Stability
- Good compatibility
- No need for manual adjustment, support colloidal gold card strips from different manufacturers
- detection channel
- 2-Channel colloidal gold detection module with high detection efficiency
- Colloidal gold card detection time
- < 5S, real-time display detection Linear dispersion
- Colloidal gold card detection
- It can adapt to various colloidal gold card inspections, and new items can be added according to the new card strip.
Introduction
The M2030 portable comprehensive food analyzer includes a spectrophotometric detection module, a colloidal gold detection module and a data processing platform. It can simultaneously detect most veterinary drug residues, pesticide residues, illegal additives, toxins, and heavy metal indicators in food, including agricultural and sideline products , aquatic products, livestock and poultry products, etc.
Spectrophotometric detection module - pesticide residues, illegal additives, food additives, etc.
Colloidal gold detection module - veterinary drug residues, toxins, illegal additives, etc.
Features
âBuilt-in national standard values ââfor various items, and the test results interface can be compared and judged with the corresponding national standards in real time
âThe detection data can be automatically and seamlessly connected with the food safety supervision platform, and the project can be upgraded by automatically updating the monitoring database.
âHigh degree of automation, the instrument can automatically diagnose system faults, and has a built-in remote monitoring system for data transmission to facilitate maintenance and fault diagnosis.
âFunction can be expanded, and the instrument adopts standardized and modular design
âBuilt-in operation video, users can operate the instrument while watching the video, and supports printing reports of test results
âIntegrated design, portable and compact
âUsing integrated chemical chromogenic and biological chromogenic technology to conduct qualitative and quantitative detection of food safety indicators
âLarge-screen color LCD display in Chinese, humanized operation interface, accurate and intuitive readings
âYou can view test item information and measurement records according to user needs
