LICHEN LC-DCY-24G Laboratory Dry Nitrogen Evaporator 24 digits

24 Sample Handling, LED digital tube display, temperature control RT + 5~ 150 ℃, independent valve, independent blow pipe, metal aluminum module heating, manual adjustment of distribution chamber height.
Model：
Contact
Details SPEC CAT

LICHEN LC-DCY-24G Nitrogen EvaporatorSPEC

LICHEN LC-DCY-24G Nitrogen EvaporatorDetails

LICHEN LC-DCY-24G Nitrogen EvaporatorPacking list

SKU
NB041972
Number of samples processed
24 pieces
Temperature range
RT+5~150℃
Power
220V 50HZ
Power
300W
Display mode
LED digital tube
Temperature control Accuracy
≤ ±0.5℃
Timer
99h59min
Gas flow rate meter
15L/min
Maximum intake pressure
0.02MPa (≤ 16 pcs) 0.05MPa (> 16 pcs)
Blowing pinholing diameter
φ 2.4 × 150mm, inner diameter 1.6mm
Maximum lifting stroke
200mm
Metal Module Specifications
96×153mm
Net Weight
7.5kg
Product size
280×240×500mm
LC-DCY-24G
Nitrogen Evaporator
24 Sample Handling, LED digital tube display, temperature control RT + 5~ 150 ℃, independent valve, independent blow pipe, metal aluminum module heating, manual adjustment of distribution chamber height.

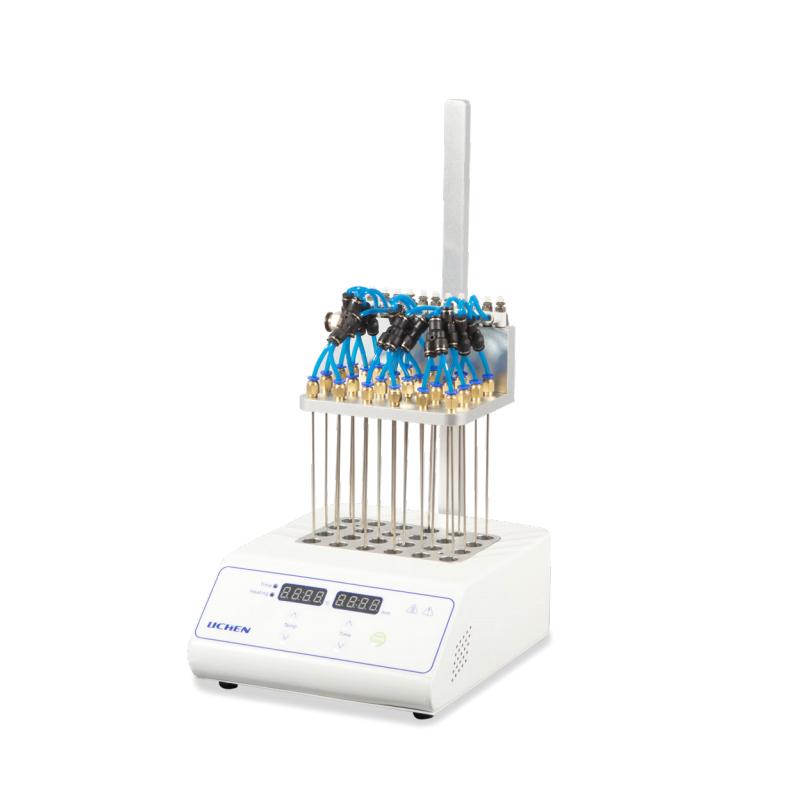

LICHEN LC-DCY-24G Laboratory Dry Nitrogen Evaporator 24 digits Picture

Introduction

The dry nitrogen blower is a high-precision control instrument formed by combining microcomputer processing and PID control. Its Principle is to blow nitrogen to the surface of the heated sample quickly, continuously and controllably. According to the evaporation rate and the evaporation rate of the concentrated solvent Boiling point, set heating temperature to achieve rapid concentration of large quantities of samples.

Lichen LC-DCY-24G dry nitrogen blower details picture 1

Features

▪ LED digital tube display, clear and intuitive

▪ When the operation is completed, the buzzer alarm function

▪ Independent valves and independent blow pipes make the nitrogen blowing target clearer, save nitrogen and prevent cross-contamination.

▪ Using metal aluminum module for heating, which facilitates rapid temperature rise and temperature control.

▪ Manually adjust the height of the distribution chamber for easy access to samples
