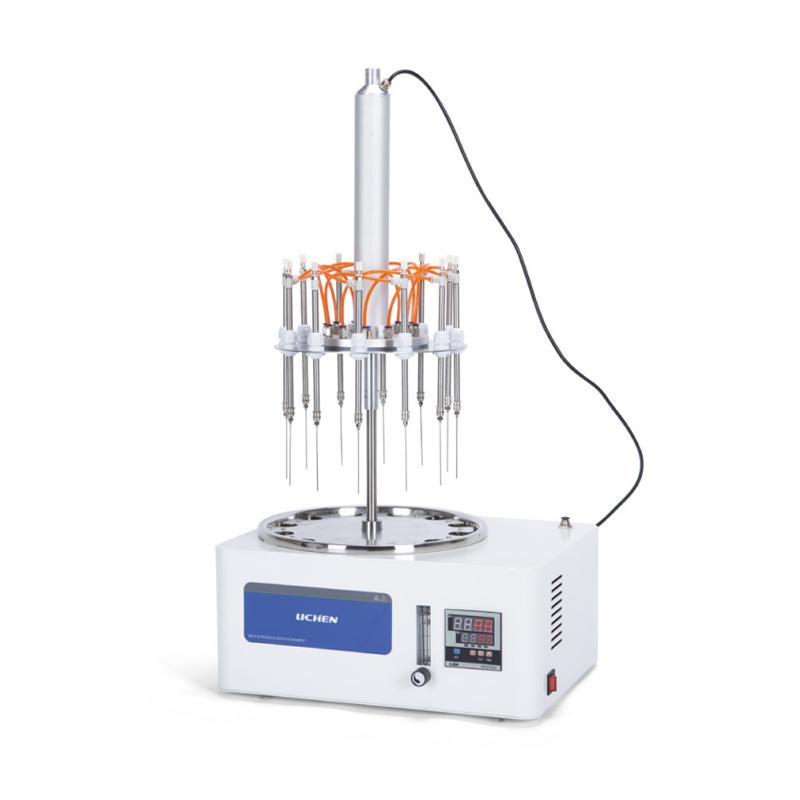

LICHEN LC-DCY-12SYD Circular electric Water Bath Nitrogen Evaporator 12 positions

12, LED digital tube display, independent valve, independent blowpipe, purge device can be 360 ° swirl/spin, Water Bath heating room temperature~ 100 ℃, can achieve over-temperature alarm.

LICHEN LC-DCY-12SYD Round electric Water Bath Nitrogen EvaporatorSPEC

LICHEN LC-DCY-12SYD Round electric Water Bath Nitrogen EvaporatorDetails

LICHEN LC-DCY-12SYD Round electric Water Bath Nitrogen EvaporatorPacking list

SKU
NB041976
Number of samples processed
12.
Temperature range
RT+~100℃
Heating mode
Water bath heating
Power
220V 50Hz
Power
1000w
Display mode
LED digital tube
Temperature control Accuracy
±1℃
Gas flow rate meter
15L/min
Maximum intake pressure
0.02-0.05MPa
Blowing pinholing diameter
φ 1.8 × (150 + 100) mm, inner diameter 1.3mm
Maximum lifting stroke
100mm
Net Weight
12.8kg
Product size
425×320×680mm
LC-DCY-12SYD
Round electric Water Bath Nitrogen Evaporator
12, LED digital tube display, independent valve, independent blowpipe, purge device can be 360 ° swirl/spin, Water Bath heating room temperature~ 100 ℃, can achieve over-temperature alarm.

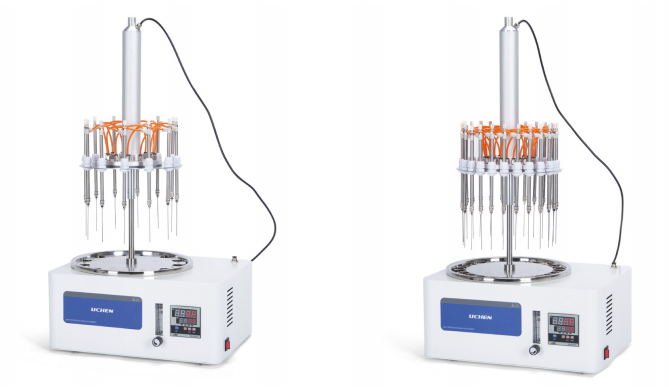

LICHEN LC-DCY-12SYD Circular electric Water Bath Nitrogen Evaporator 12 positions Picture

Introduction

The circular electric Water Bath nitrogen blower adopts purge and capture technology. It can also control the temperature of the sample and use inert gases such as nitrogen to quickly, controllably and continuously blow onto to achieve rapid oxygen-free concentration of the sample solution. This method is time-saving, convenient and accurate. It is widely used in fields such as food safety, medicine, pesticide residue testing , and clinical drug metabolism.

Features

  • LED digital tube displays the set temperature and current temperature, clear and intuitive

  • Adopts PID temperature control technology and can realize over-temperature alarm

  • Parts that may come into contact with solvents are made of 316 stainless steel, which has a long service life and is easy to clean.

  • Unique self-balancing suspension remote control motor lifting system makes the height adjustment of the distribution room more flexible

  • Independent valves and independent blow pipes make the nitrogen blowing target clearer, save nitrogen and prevent cross-contamination.

  • The purge device can be rotated 360°, and the height of each blowing needle is individually adjustable, making it easy to pick and place a single sample.

  • Using Water Bath heating method, heating is more uniform
