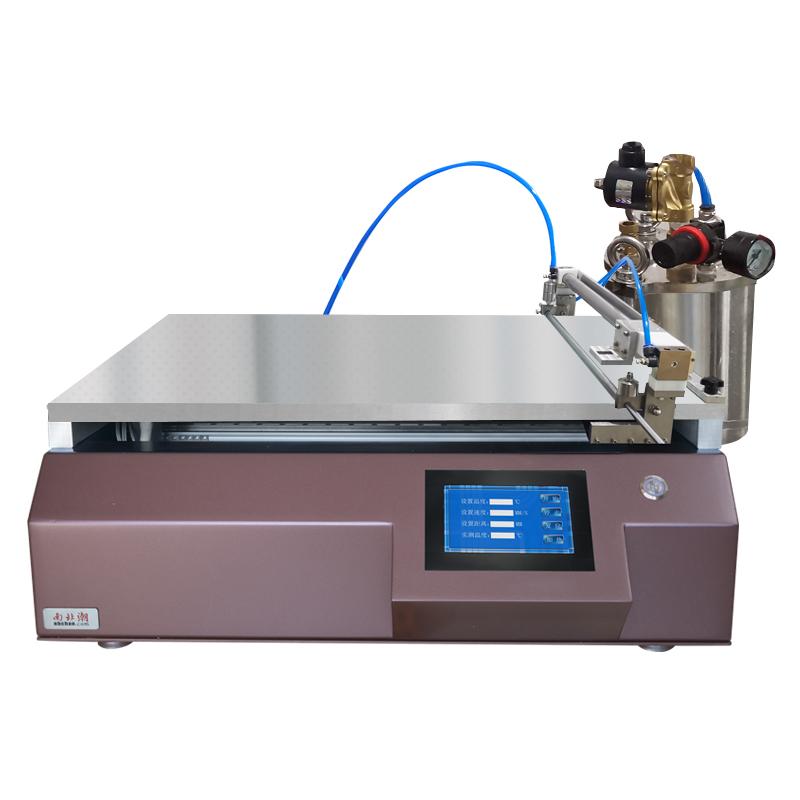

CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model

Customized, 2-300mm/s servo motor, width 300 * 600mm, drawdown blade with vacuum adsorption, heating Temperature range RT +~ 180 ℃
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

zy TBJ-X5-DJ3 Automatic Film ApplicatorSPEC

zy TBJ-X5-DJ3 Automatic Film ApplicatorDetails

zy TBJ-X5-DJ3 Automatic Film ApplicatorPacking list

SKU
NB042052
Spreader Accuracy
±0.003mm
Spreader thickness range
0~10Mm drawdown blade can be lifted
Coating speed
2~ 300Mm/s servo motor
Coating size
300*600mm
Vacuum Area
300 * 600Mm (can be customized)
Heating Temperature range
RT+~180℃
Temperature Accuracy
±3℃
Vacuum aperture
Φ1.2mm
Vacuum hole spacing
20*20mm
Vacuum pump size
380*180*280mm
Host Power Supply
220V 50Hz
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Optional
Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
Customizable function
Jet system device, UV solid inclusion device
Feeding principle
Air source pressure flows out
Feed Sport Mode
Reciprocating linear motion
Feeding back and forth traverse speed
2-150mm/s
spit Volume
Adjustable (by adjusting the air pressure and the operating speed of the discharge port)
Shaft drive mode
Timer belt
Feeding system air source
0.6Mpa, can be connected to the trachea of φ 8 (self-matching)
Power Voltage of feeding system
220V,50Hz
Tank pressure
Maximum withstand 8Mpa
Material of feeding barrel
304 stainless steel with a wall thickness of 4mm
Feeding drum configuration
Safety valve, pressure regulating valve, pressure gauge, relief valve
Feeding drum Volume
1L
TBJ-X5-DJ3
Automatic Film Applicator
Customized, 2-300mm/s servo motor, width 300 * 600mm, drawdown blade with vacuum adsorption, heating Temperature range RT +~ 180 ℃
CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Picture


CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 1



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 2



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 3



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 4



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 5



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 6

CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 7



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 8



CHINA TBJ-X5-DJ3 Vacuum adsorption drawdown blade Film Applicator Servo motor, format 300 * 600mm customized model Figure 9
