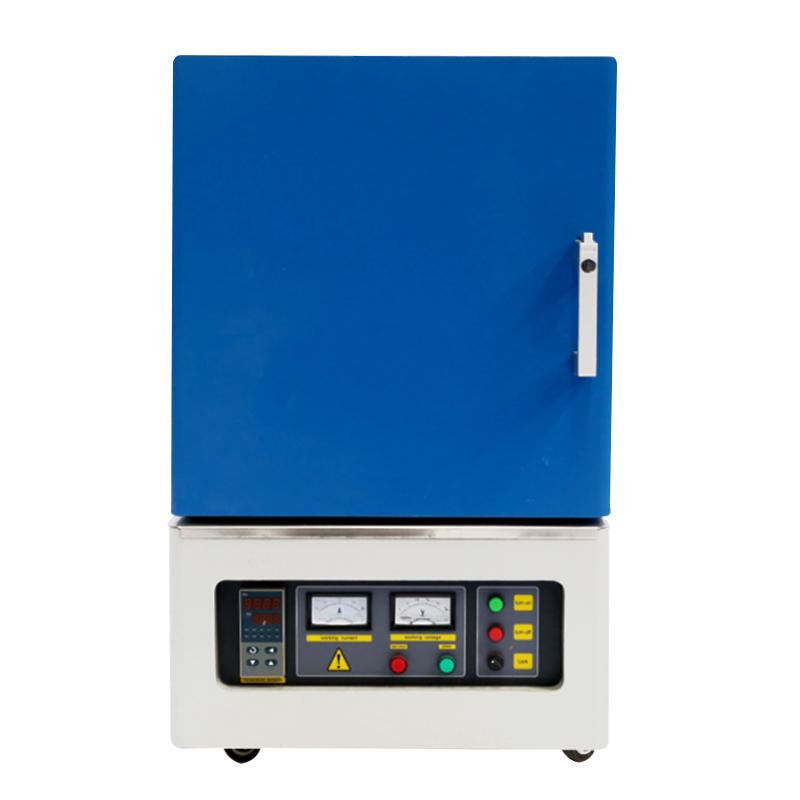

BenTing SX2-16-17T high temperature box Resistance Furnace ≤ 1600 ℃

SX2-16-17T

High temperature box Resistance Furnace

30 intelligent program control, temperature control ≤ 1600 ℃, high purity aluminum oxidation polycrystalline fiber curing furnace, volume 36L, double furnace shell with Air-cooled system.

product description

The SX2 series 1700 box-type furnace uses silicon-molybdenum rods as heating elements, adopts double-layer shell structure and intelligent temperature control system, controlled by thyristor, phase-shift trigger, and the furnace is made of 1700-type alumina polycrystalline fiber material, double-layer furnace The shell is equipped with an air cooling system, which can quickly raise and lower the temperature, and adopts soft start constant current control to prolong the life of the heating element. The furnace has the advantages of high temperature control accuracy, balanced temperature field, simple operation, fast temperature rise and fall, and low energy consumption.

The main purpose

Universities, scientific research institutes, industrial and mining enterprises are used for powder sintering, ceramic sintering, high temperature experiments, and quality inspection.

1. According to the size of the furnace, heating on three sides can be selected to ensure uniform temperature in the furnace.

2. The hearth is made of lightweight ceramic fiber, which greatly saves energy compared with traditional muffle furnaces;

3. The furnace body has a beautiful shape and adopts an inner and outer double-layer air-cooled structure. When the furnace is working at high temperature, the surface of the furnace shell remains low to avoid damage to the operator.

Packing list：Complete-built unit x1, manual x1, certificate of conformity x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
