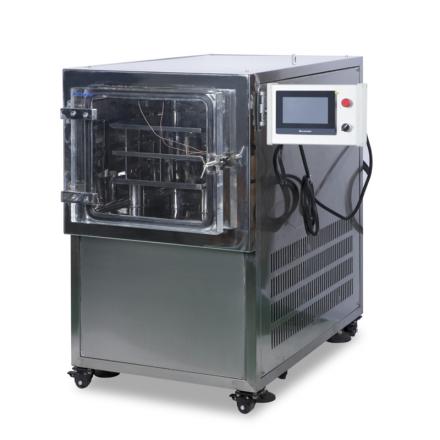

Specifications
| Power supply Voltage | 220V/50Hz |
| Rated Power | 3300w |
| Display mode | Touch screen |
| cold trap temperature | <-75℃ |
| lyophilized area | 0.3㎡ |
| Ultimate Vacuum | ≤10pa |
| water capture Capacity | 7Kg/24H |
| Shelf layer | 2 |
| Material tray specifications | 300*400mm |
| Disk material Volume | 3L |
| number of manifolds | 4 |
| Net Weight | 280kg |
| Dimension | 1100*900*1280mm |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/42072/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
