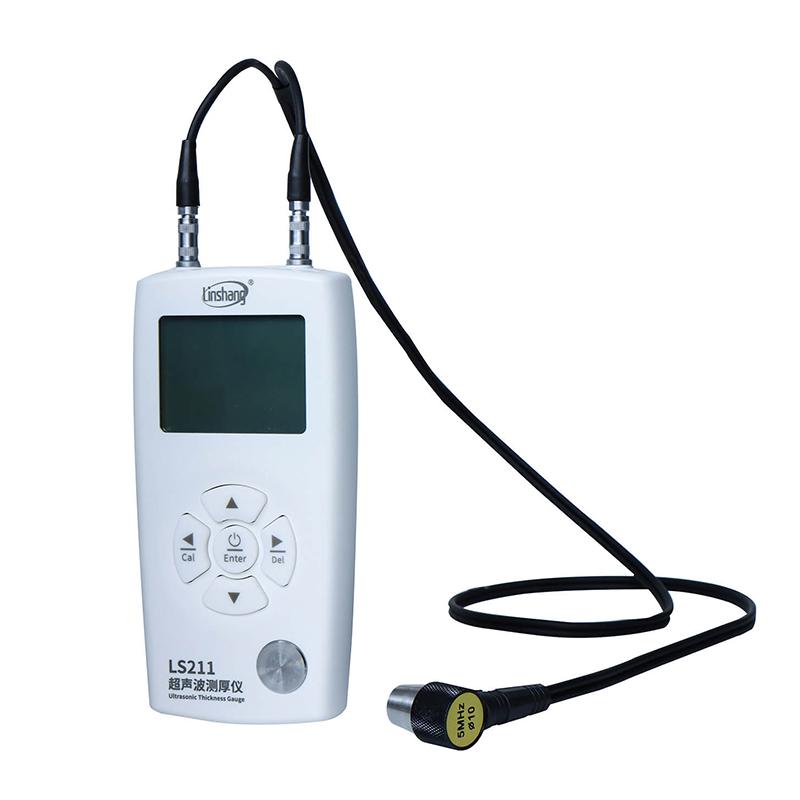

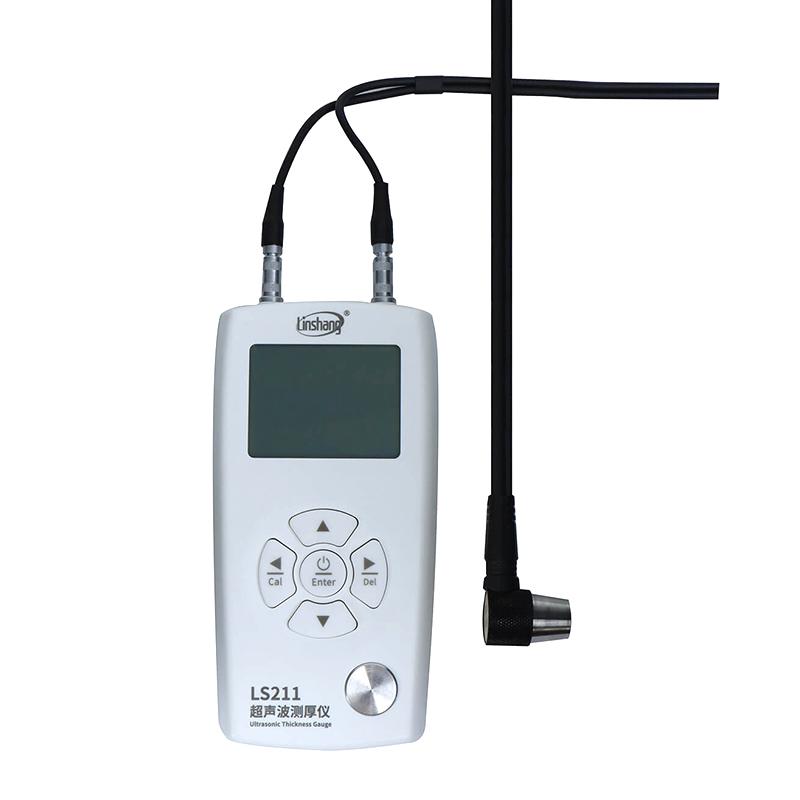

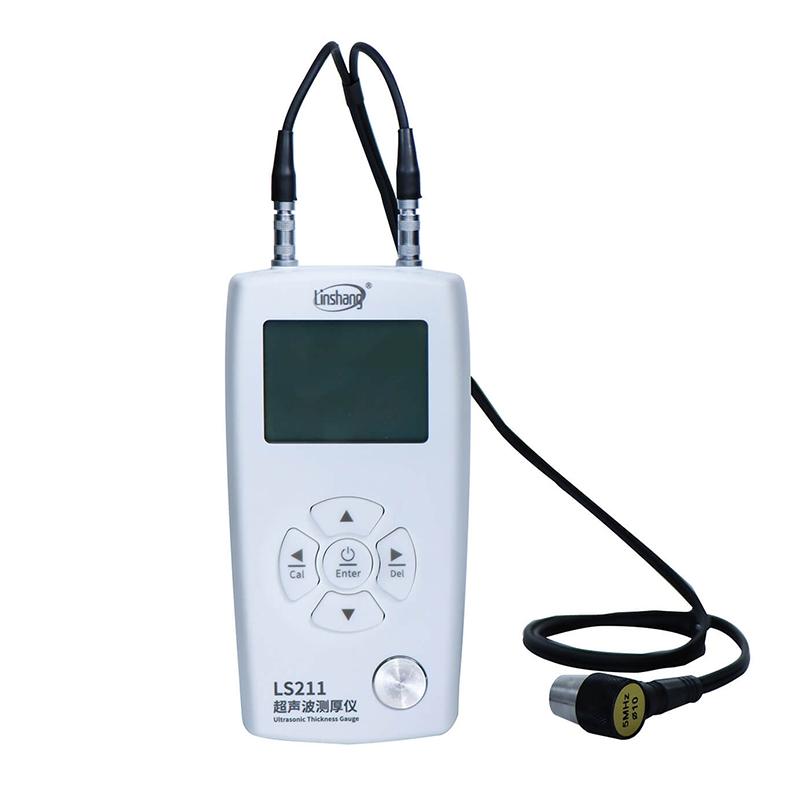

Linshang LS211 Professional Ultrasonic Thickness Gauge Thickness 0.8-600mm
SEThickness measurement range 0.8~ 600mm, over-Measurement, automatic shutdown, aviation aluminum connection port, support QC detection and statistical mode, 3 ways to adjust the speed of sound.
$444.00/set
PromotionLoading...
Coupon
Model：
LS211
LinShang LS211 Ultrasonic Thickness GaugeSPEC
LinShang LS211 Ultrasonic Thickness GaugeDetails
LinShang LS211 Ultrasonic Thickness GaugePacking list
- SKU
- NB042133
- Measuring range
- 0.8-600mm (45 #steel)
- resolution
- 0.8-10mm：0.001mm10-100mm：0.01mm100-600mm：0.1mm
- Measurement Accuracy
- 0.8-10mm: ± 0.05mm; 10-600mm: ± 0.5% H, H is the standard value
- Sound speed range
- 1000~9999 m/s
- Probe Specifications

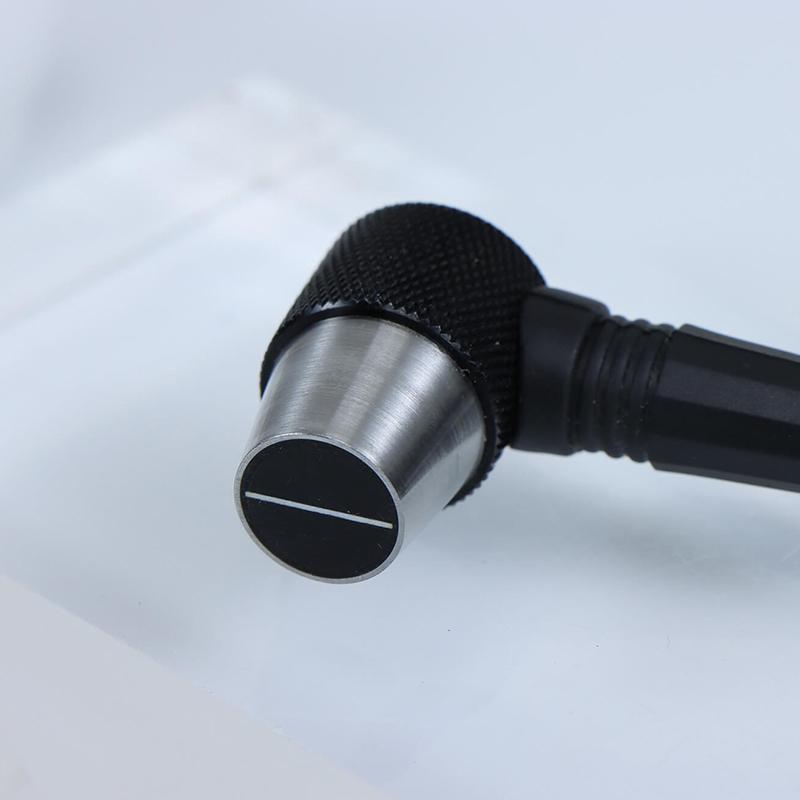

- 5MHz φ10 dual crystal probe
- Display
- 240 × 160 dot matrix LCD
- unit
- mm/inch
- Power Supply
- 2 AA alkalinity dry batteries
- Host size
- 142*72*28 mm
- Weight
- About 230g
- Operation temperature range
- -10~50 ℃, 0~85% RH (no condensation)
- Storage temperature range
- -10~60 ℃, 0~85% RH (no condensation)
- Standard
- JJF1126-2004
LS211
Ultrasonic Thickness Gauge
Thickness measurement range 0.8~ 600mm, over-Measurement, automatic shutdown, aviation aluminum connection port, support QC detection and statistical mode, 3 ways to adjust the speed of sound.
FAQ
QCan carbon fiber be measured?
A
If it is pure carbon fiber, it is OK. Film thickness needs to be within our range. If the carbon fiber composite of Miscellaneous material is mixed, it cannot be measured.
Standard
