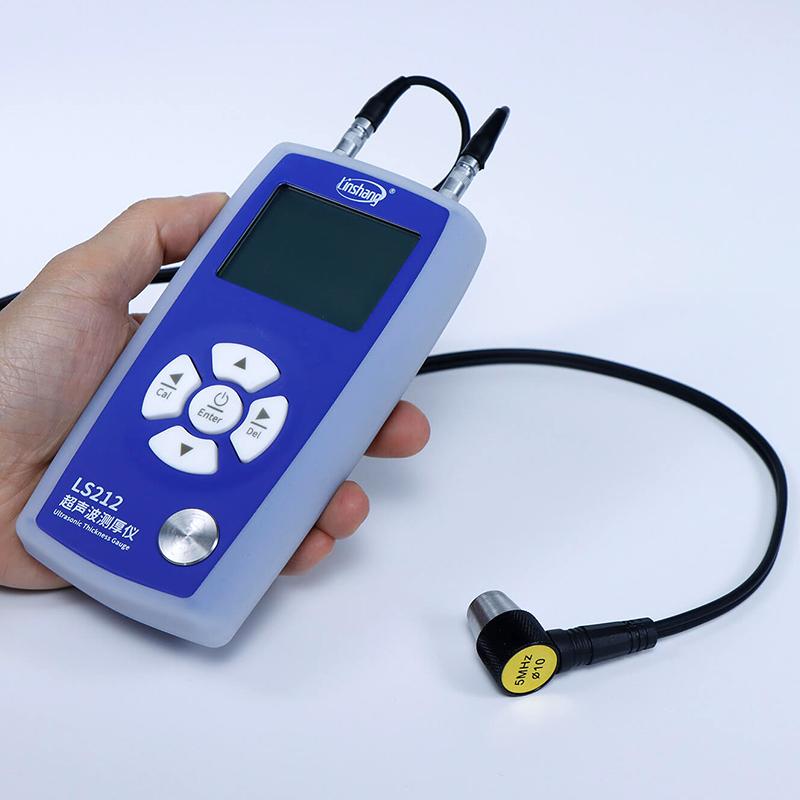

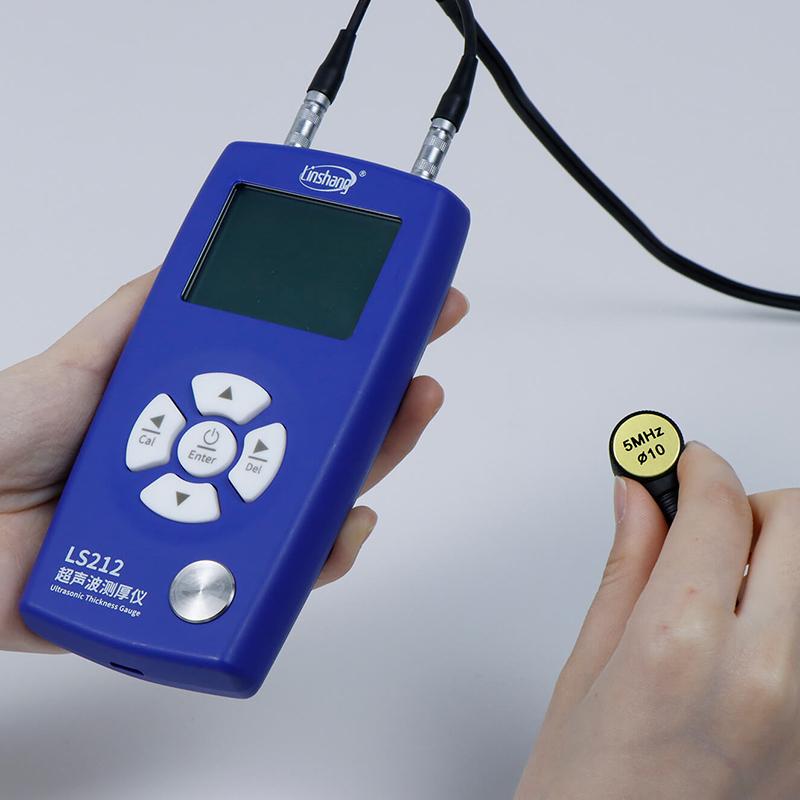

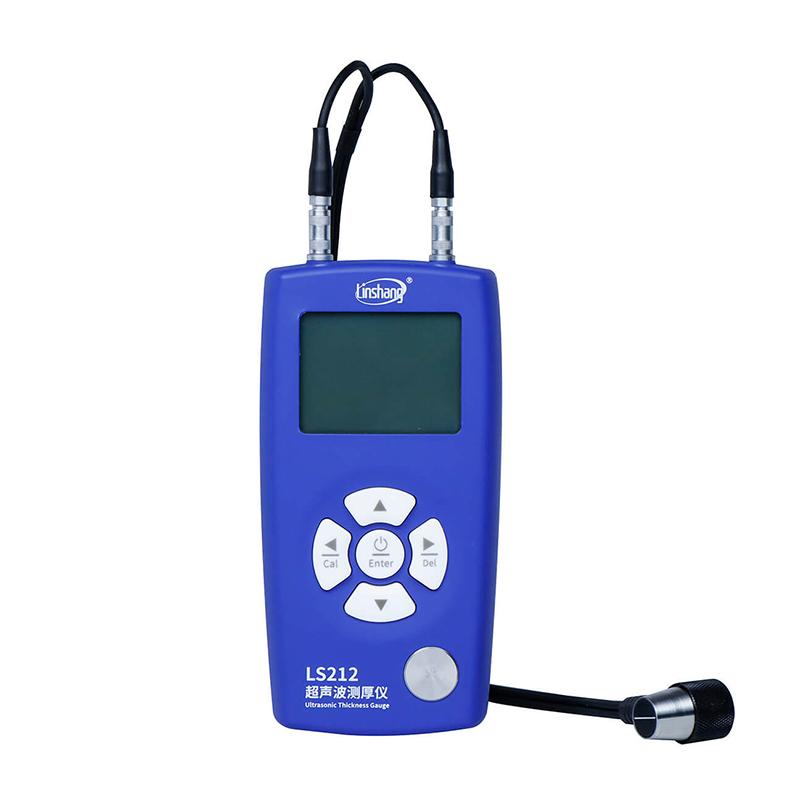

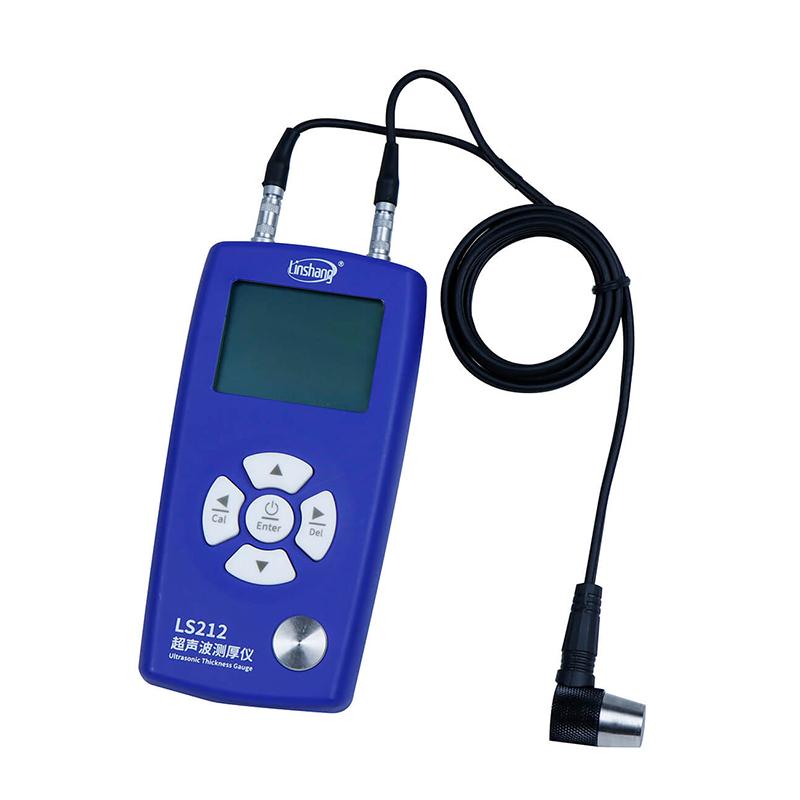

Linshang LS212 Professional Ultrasonic Thickness Gauge Thickness Measurement 0.8~ 350mm

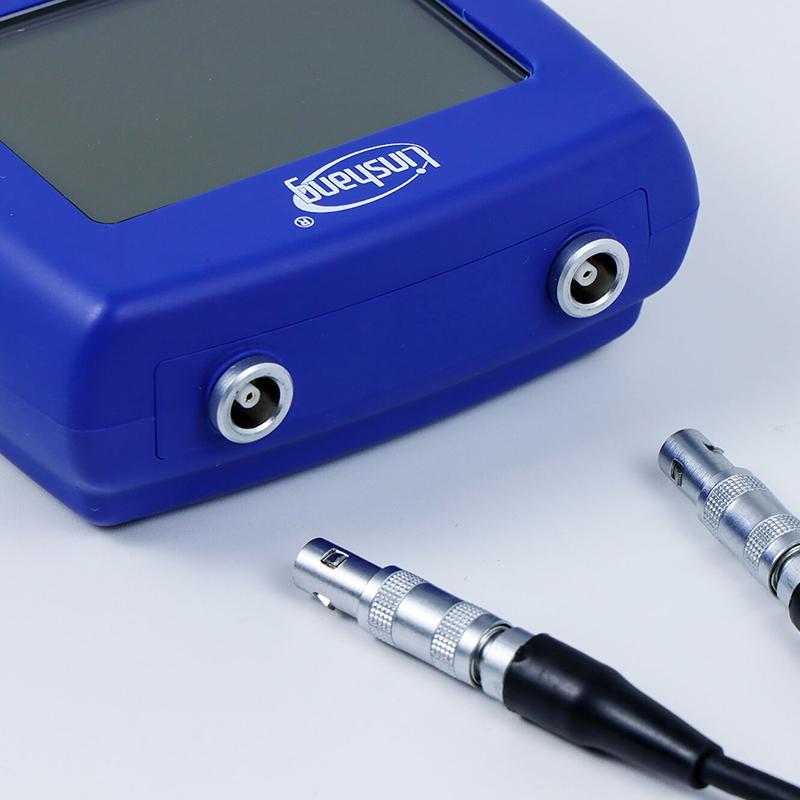

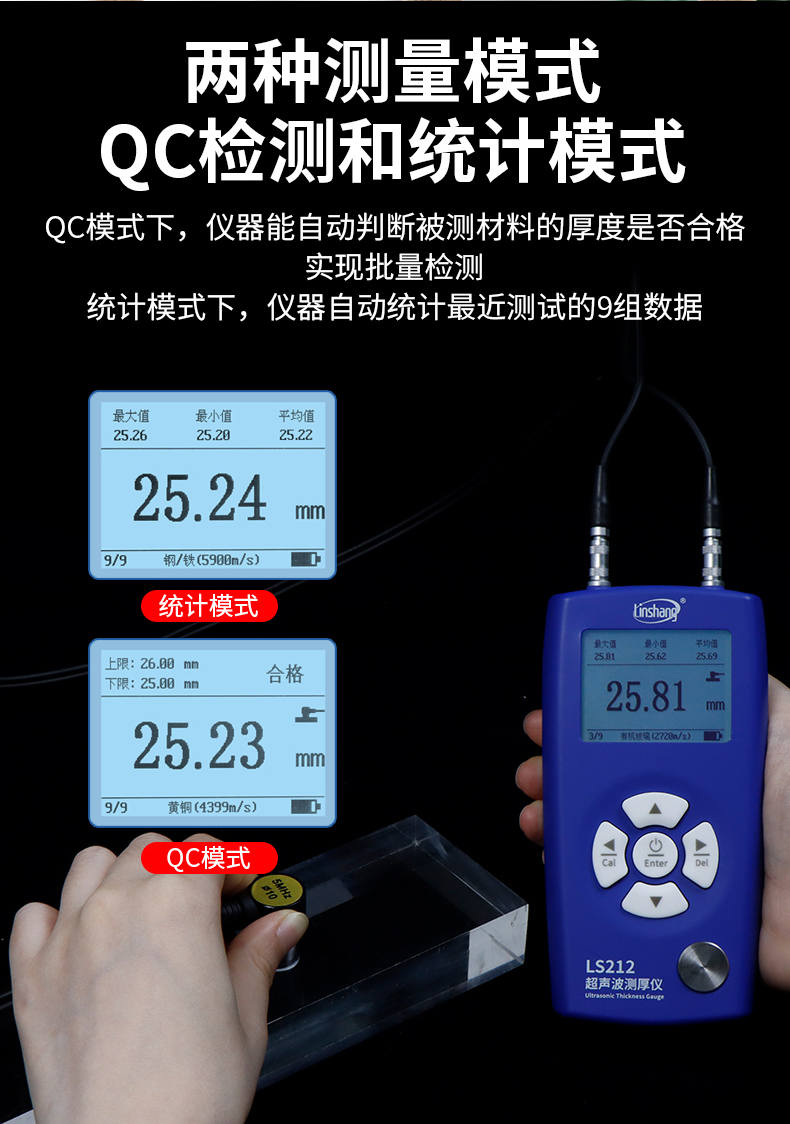

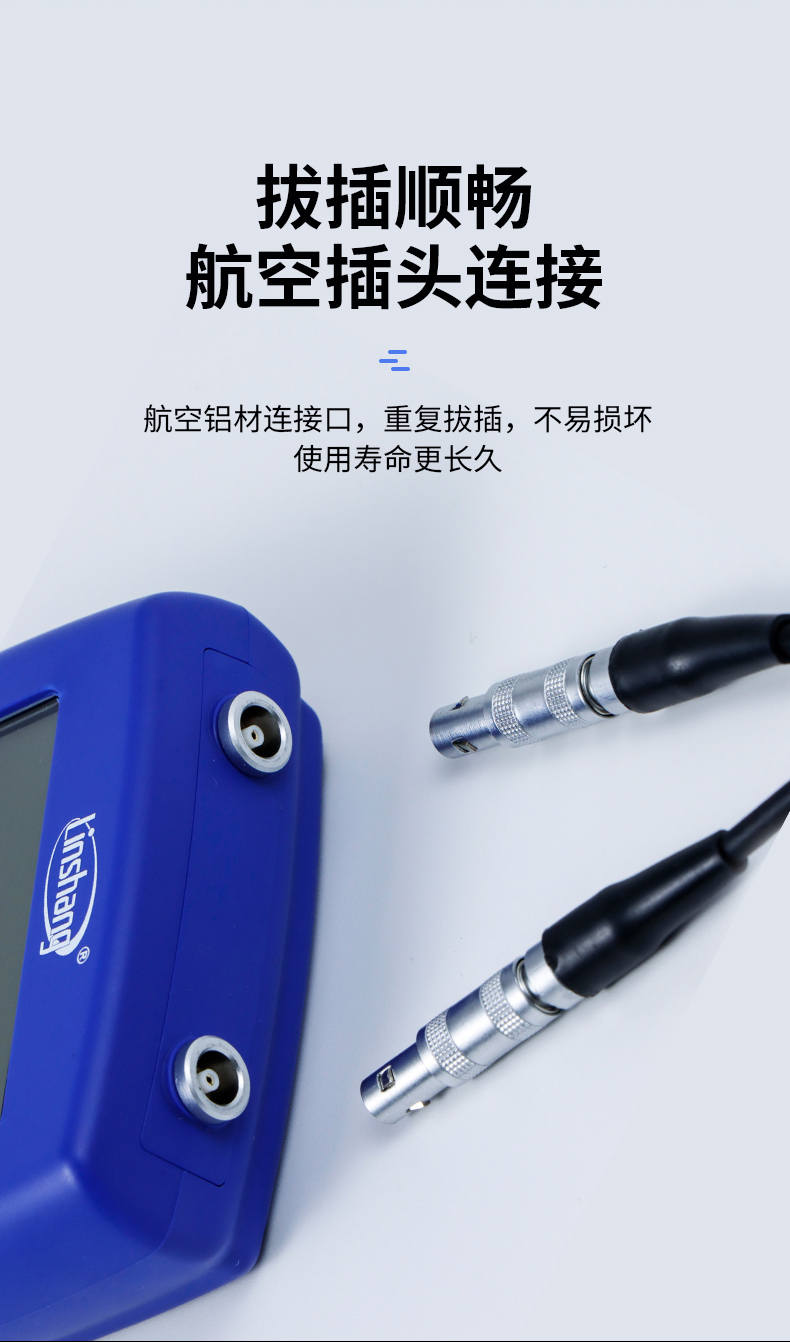

SEThickness measurement range 0.8~ 350mm, over Measurement, automatic shutdown, aviation aluminum connection port, support QC detection and statistical mode, 3 ways to adjust the speed of sound.
$273.00/set
PromotionLoading...
Coupon
Model：
LS212
LinShang LS212 Ultrasonic Thickness GaugeSPEC
LinShang LS212 Ultrasonic Thickness GaugeDetails
LinShang LS212 Ultrasonic Thickness GaugePacking list
- SKU
- NB042134

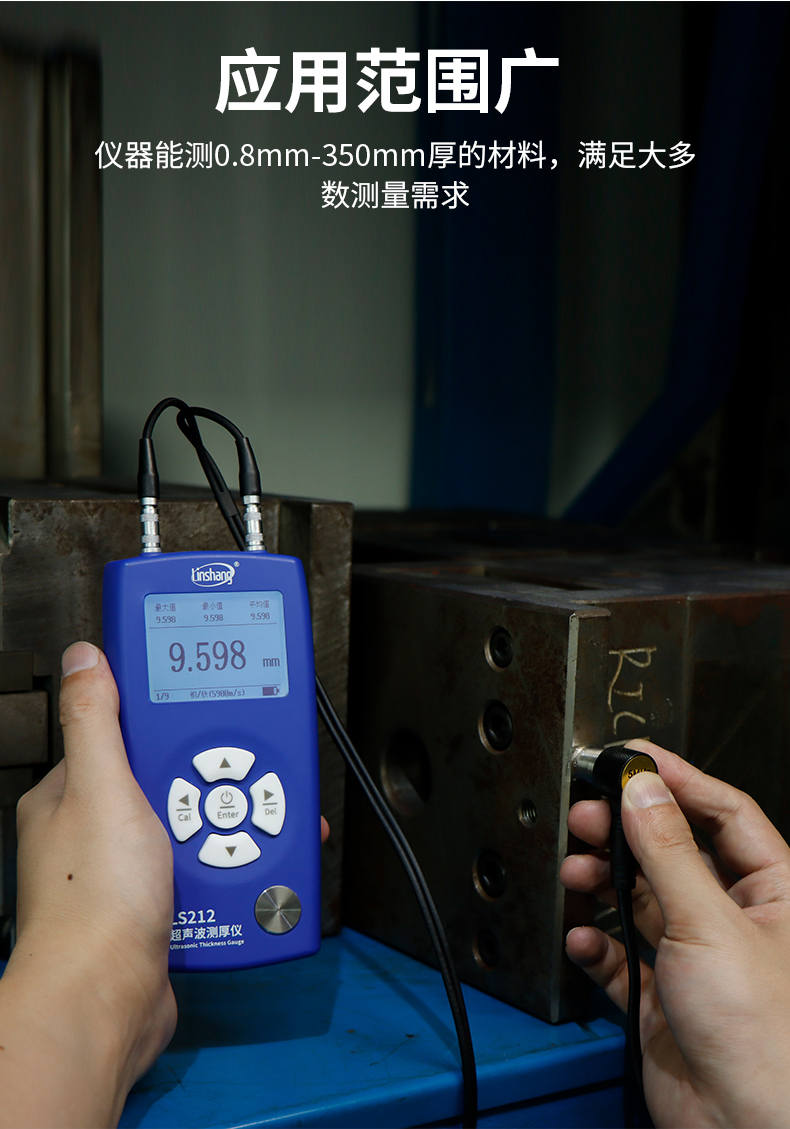

- Measuring range
- 0.8-350mm (45 #steel)
- resolution
- 0.8-10mm：0.001mm10-100mm：0.01mm100-350mm：0.1mm
- Measurement Accuracy
- 0.8-10mm: ± 0.05mm10-350mm: ± 0.5% H, H is the standard value
- Sound speed range
- 1000~9999 m/s
- Probe Specifications

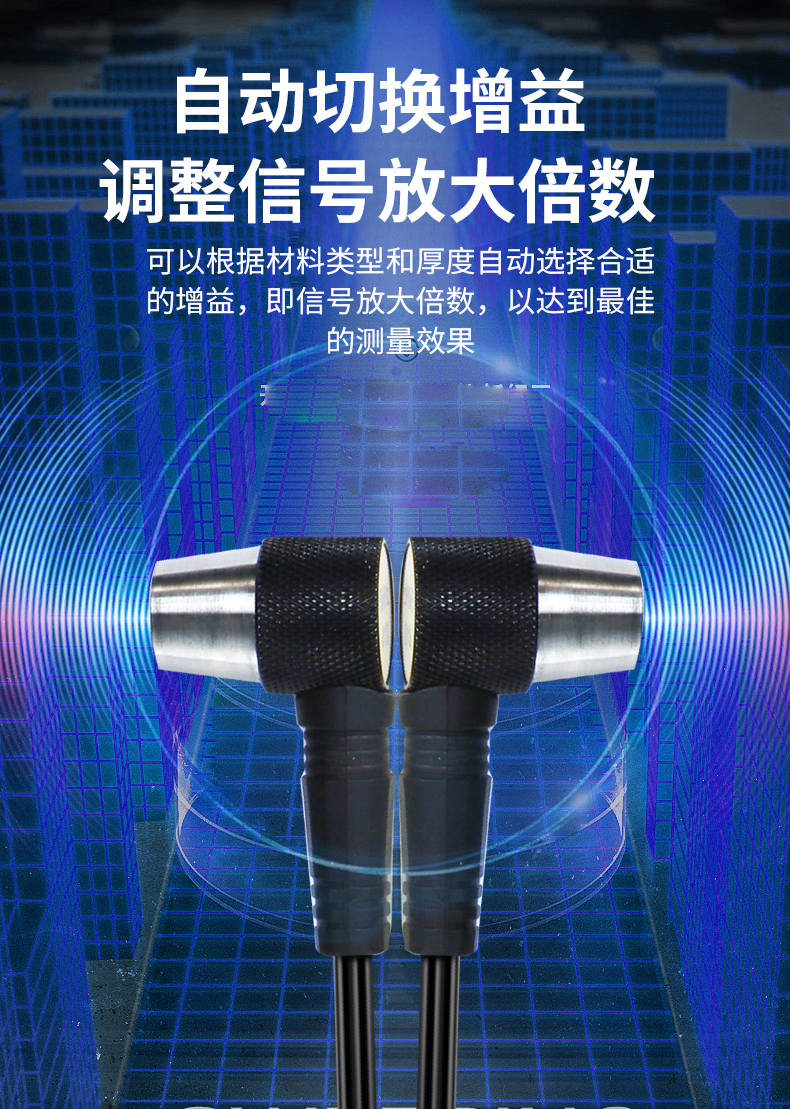

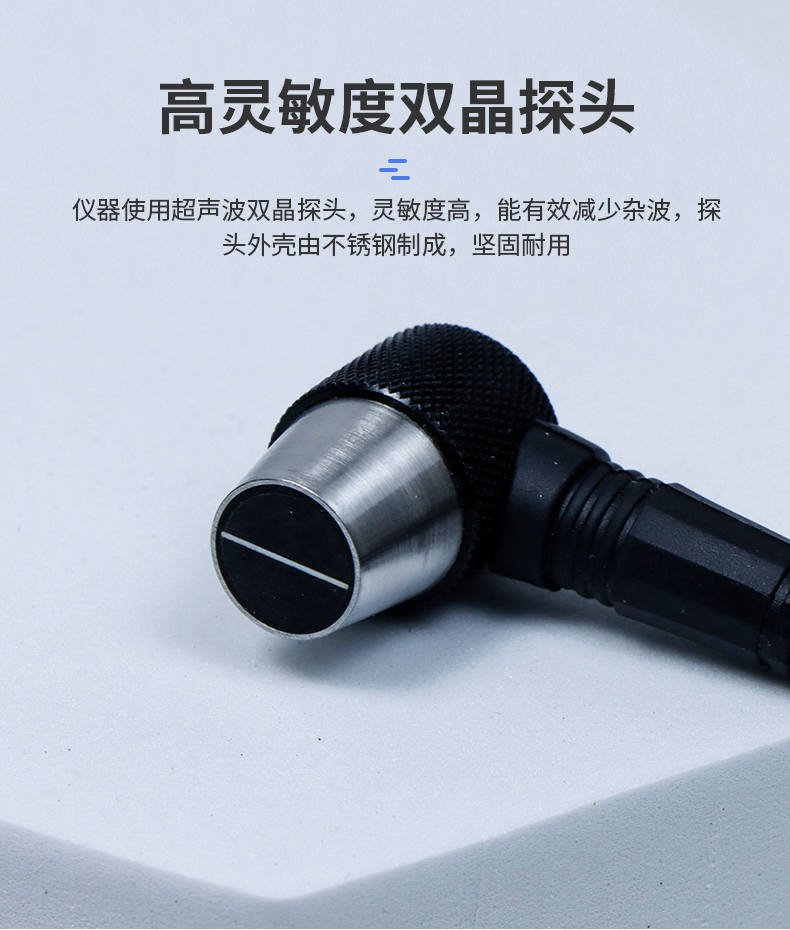

- 5MHz φ10 dual crystal probe

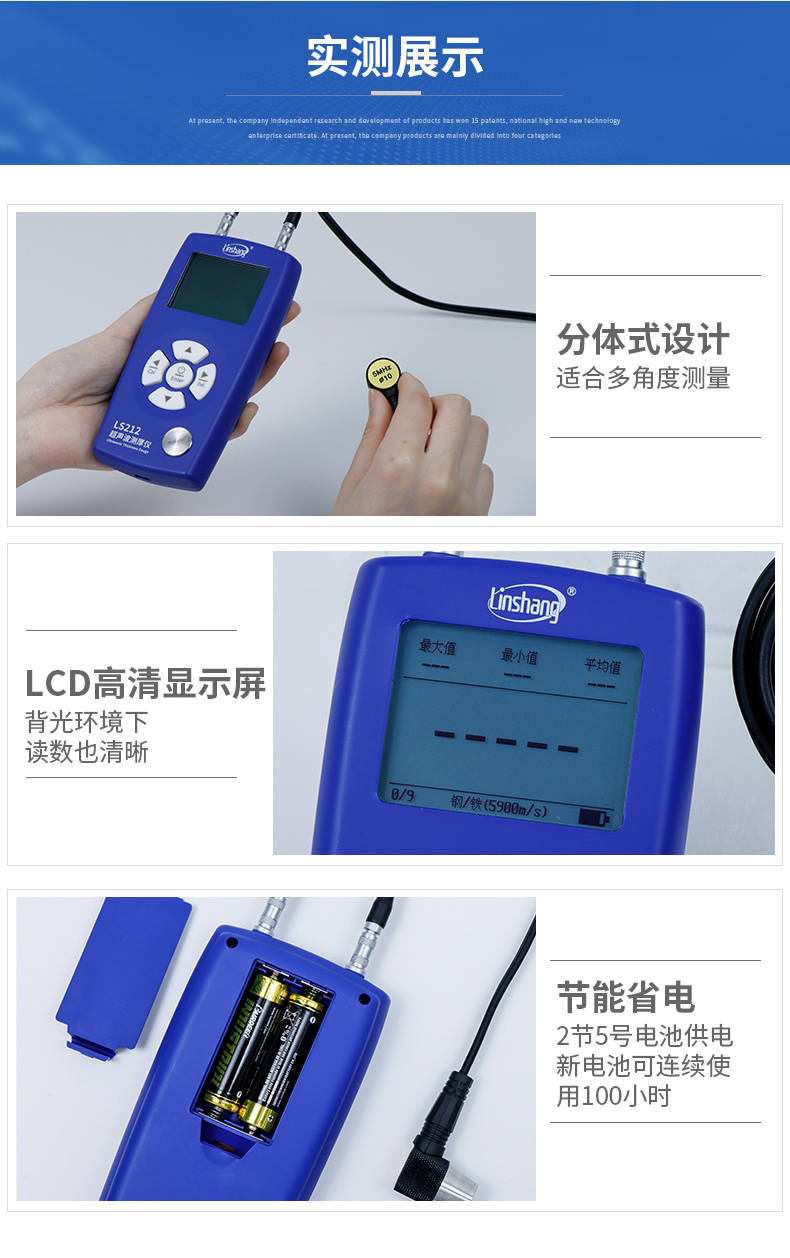

- Display
- 240 × 160 dot matrix LCD
- unit
- mm/inch
- Power Supply

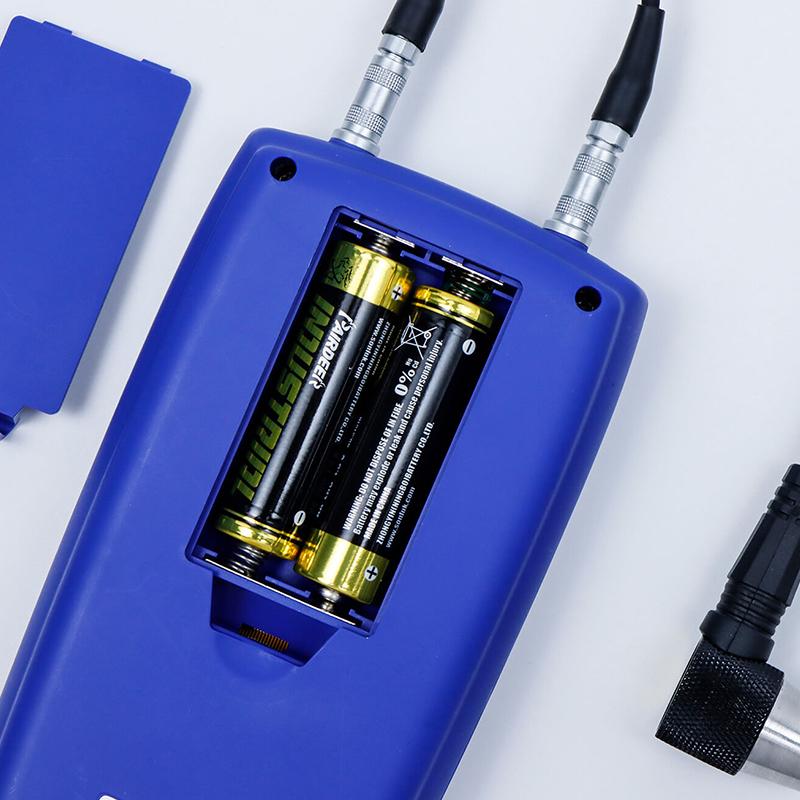

- 2 AA alkalinity dry batteries
- Host size
- 142*72*28 mm
- Weight
- About 230g
- Operation temperature range
- -10~50 ℃, 0~85% RH (no condensation)
- Storage temperature range
- -10~60 ℃, 0~85% RH (no condensation)
- Standard
- JJF1126-2004
LS212
Ultrasonic Thickness Gauge

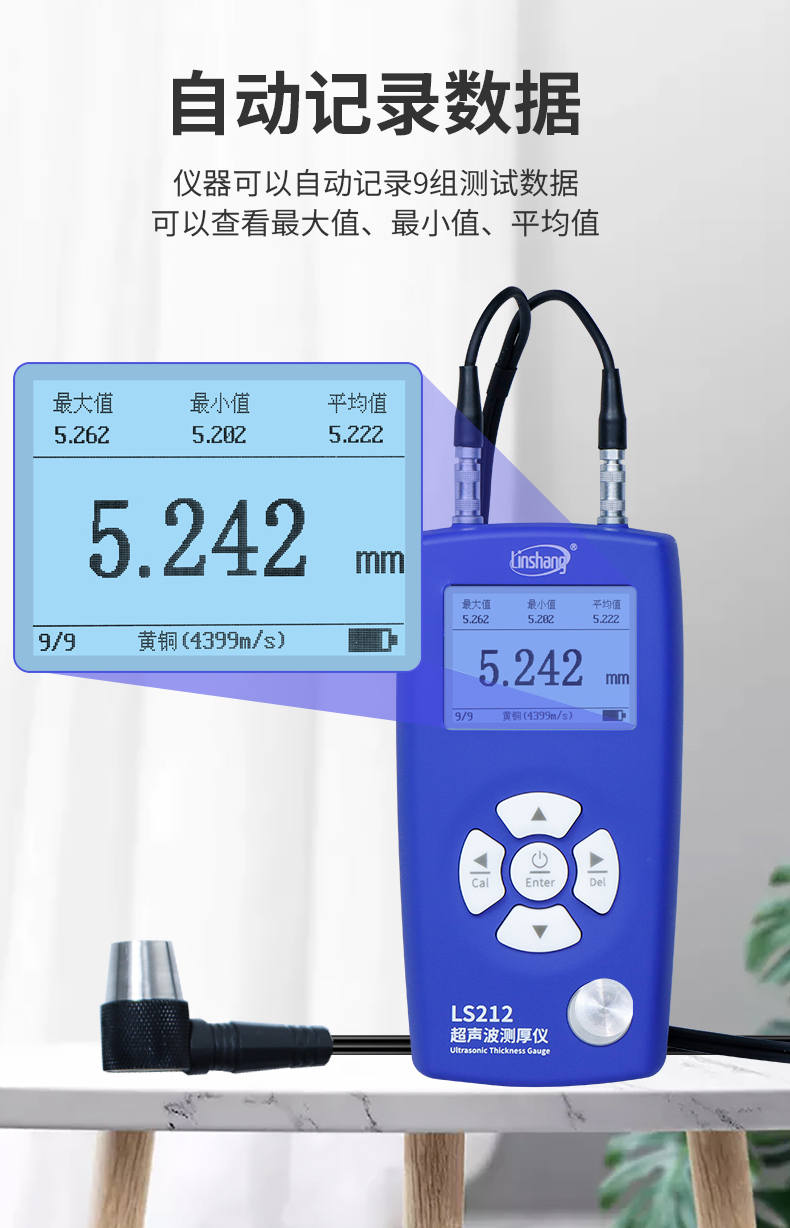

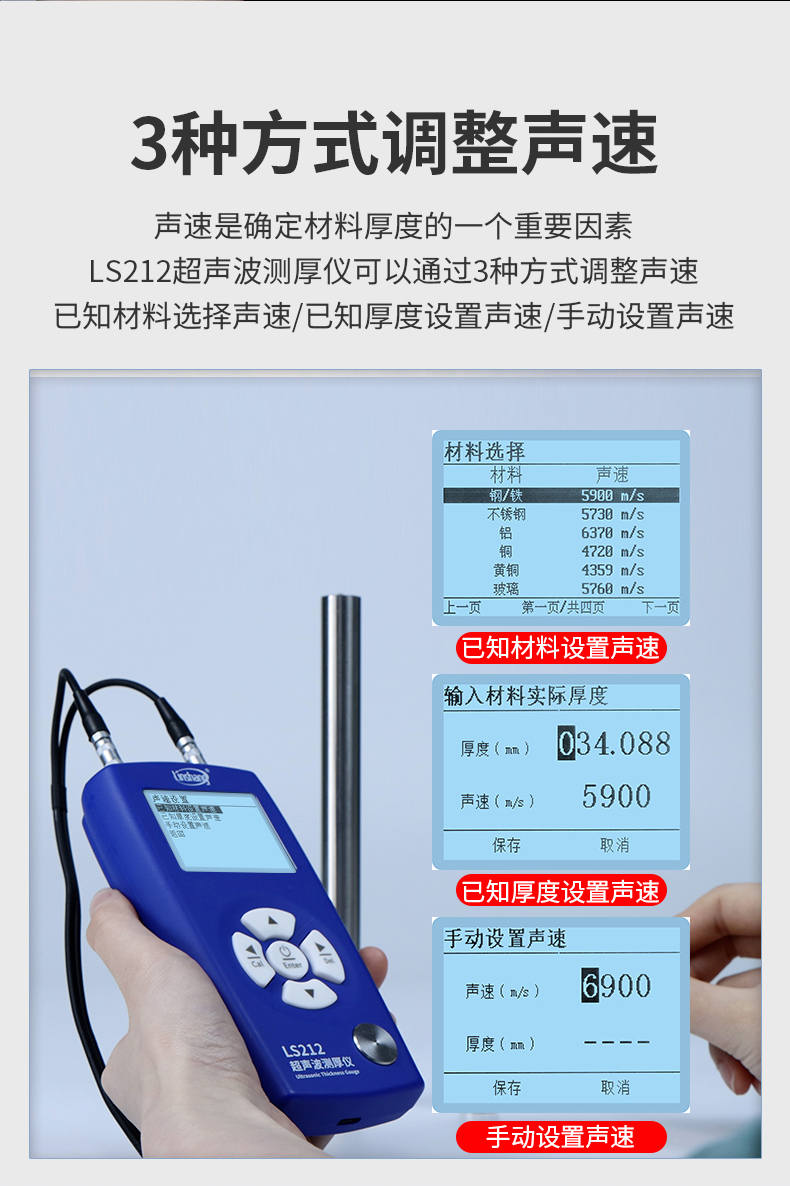

Thickness measurement range 0.8~ 350mm, over Measurement, automatic shutdown, aviation aluminum connection port, support QC detection and statistical mode, 3 ways to adjust the speed of sound.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
