CHINA universal material Tester NBC-LL-5T load 5000kg

SE
Adopt high-precision encoder to measure displacement, the resolution of force value is as high as 1/25000, the load is 5000kg, the accuracy is 0.5 grade, the LCD touch screen is used, and the effective test width is 380mm.
Model：
Certificate
Contact
Details SPEC CAT

JiangKai NBC-LL-5T Tensile TesterSPEC

JiangKai NBC-LL-5T Tensile TesterDetails

JiangKai NBC-LL-5T Tensile TesterPacking list

SKU
NB042219
Capacity selection
100,200,500,1000,2000,5000kg
Force measurement Accuracy
Within ± 0.5% of the indication
Display
LCD Chinese display, film touch key
Data sampling frequency
200times/sec
Testing machine resolution
The maximum load is 1/± 25,000 yards, there is no division between inside and outside, and the whole resolution remains unchanged
Load Sensors
Basic Configuration: Pull and Pressure Sensors (Maximum Load)
Effective test width
380mm
Efficient stretch space
1000mm
Test speed range
50-300mm/min stepless speed regulation and 5-speed constant speed (special test speed can also be customized according to customer needs)
Displacement measurement Accuracy
Within ± 0.5% of the indication
Breakpoint Ratio Settings
0~99%, users can set the appropriate break downtime according to different materials
Test bench Safety Devices
Up and down stroke limiting device
Overload protection
10% more than the maximum load, the machine is automatically protected
Fixture configuration
A set of stretching fixtures
Host size
1100×700×2000mm
Host Weight
About 200 Kg
Power
220V/50Hz
NBC-LL-5T
Tensile Tester
Adopt high-precision encoder to measure displacement, the resolution of force value is as high as 1/25000, the load is 5000kg, the accuracy is 0.5 grade, the LCD touch screen is used, and the effective test width is 380mm.

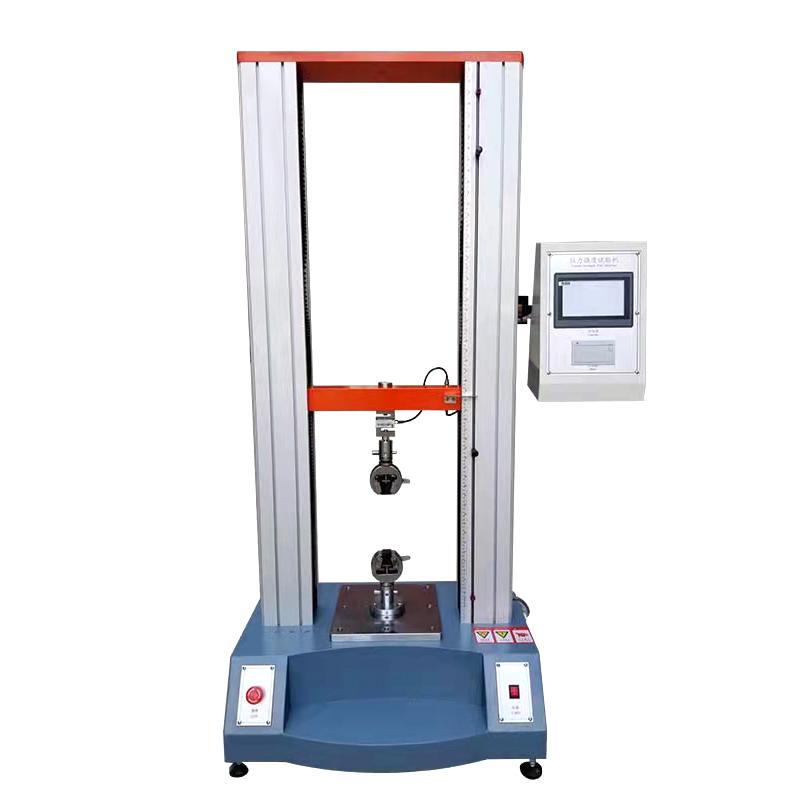

CHINA universal material Tester NBC-LL-5T load 5000kg Picture

The main function

It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, tension, compression, bending, shearing, peeling, tearing, two-point extension (an extensometer is required), etc. Various tests.

This machine adopts mechanical and electrical integration design, mainly composed of load cell, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer. It has a wide and accurate range of loading speed and force measurement, and has high precision and sensitivity for the measurement and control of load and displacement. It can also perform automatic control tests of constant-velocity loading and constant-velocity displacement. The floor-standing models and the modeling and painting have fully considered the relevant principles of modern industrial design and ergonomics.

main feature

*Using AC frequency conversion motor to drive precision T-shaped screw drive, stable operation and low noise;

*Digital display force value, maximum force value, displacement, extension displacement, test speed is stepless adjustable;

*A high-precision encoder is used to measure the displacement, the resolution of the force value is as high as 1/25000, the test accuracy is high, the measurement range is wide, the operation is convenient, and the price is low;

* It has the functions of automatic shutdown, overcurrent, overVoltage and overload protection when the test is broken;

* Equipped with a micro-printer to print test data in real time.
