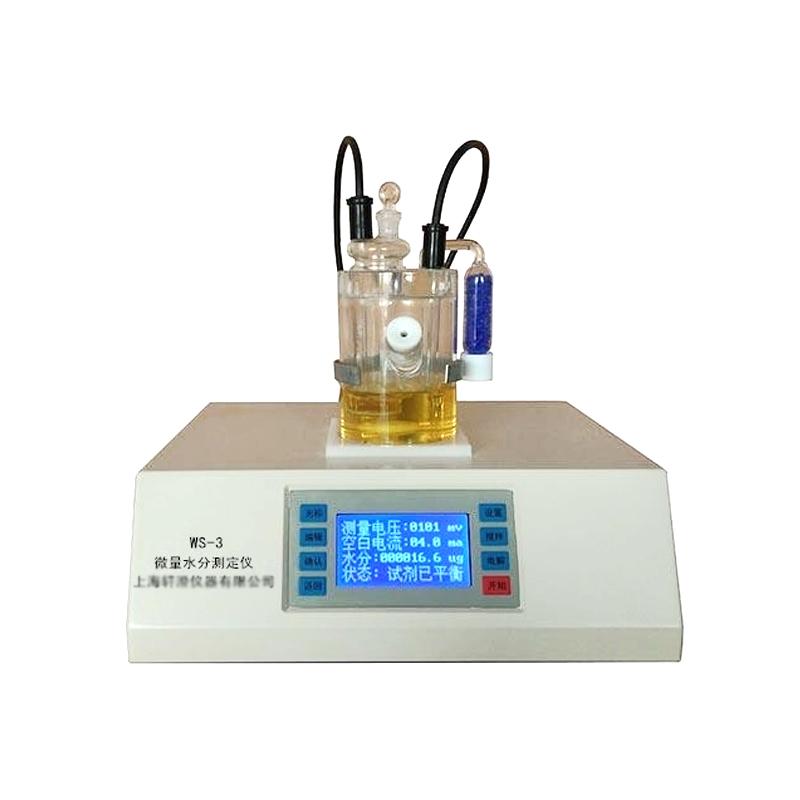

PINGXUAN PXWS-3 Karl Fischer Moisture Analyzer 3μg~ 100mg

PXWS-3

Karl Fischer Moisture Analyzer

Range 3μg~ 100mg, with large current background compensation function, instrument Self-check function, resolution 0.1μg, Precision 3ug-1mg.

Main features

• Simple operation

The pxws-3 trace moisture analyzer adopts a large-screen LCD display and user-friendly menu settings to facilitate user operation. The instrument program contains all operations in relevant standards such as GB7600-87 "Method for determination of moisture content of transformer oil in operation" (Coulomb method). With just one click, the experiment is completed automatically.

• Humanized appearance design

The instrument adopts humanized appearance design. The height and width of the instrument are in line with the operating habits. The electrolytic cell is located on the upper right side of the instrument and the buttons are located on the left side of the instrument. When injecting samples with your right hand, just press your left thumb gently, and the instrument will automatically complete all test analysis and output and display the test results.

• High current background compensation function

A major problem with using existing domestic (CN) micro-water meters is that the waiting time before sample injection testing is too long, sometimes even requiring several hours of waiting, making the test analysis work extremely boring. The WS series fully automatic trace moisture analyzer is the first among similar domestic (CN) instruments to introduce a high current background compensation function, which can shorten the standby time to less than 30 minutes.

• Excellent technology

1. Adopts a powerful microprocessor, dual CPU design, and full Chinese interactive menu.

2. Dual power channels separate the electrolysis electrode and the measurement electrode, and the instrument can automatically suppress various interferences to improve the accuracy of test results.

3. The measured electrode data is directly A/D sampled and converted, and the true value of the measured data eliminates errors caused in the analog circuit, making the test results more accurate.

4. Users can choose a micro thermal printer to check test records at any time.

5. The measuring electrode fault diagnosis program detects at any time and prompts the user if any abnormalities are found.

• Instrument self-test function

If there is a short circuit or open circuit failure in the electrode, the instrument will automatically prompt the user.

• Test end point display

The buzzer sounds, Chinese characters prompt, and the measurement results are displayed intuitively.

• Built-in perpetual calendar

The year, month, day, day of the week, hour, minute and second are automatically stored after power failure and will not be lost.

Instrument operation

• Power on

  After the electrolyte is installed, first place the electrolytic cell on the cell holder, then insert the measuring electrode and electrolytic electrode into the corresponding socket, turn on the power switch, and the instrument automatically enters the main menu.

• Setting parameters

     Press the "Settings" key to enter the setting menu; press the "▲" or "▼" key to move the cursor and select different setting items. Use the "Confirm" key to confirm the operation and enter the submenu corresponding to the setting item. Press the "Return" key Return to the previous menu. In each submenu, as long as data entry is involved, press the "↑" key to increase the corresponding bit of the data by 1, press the "↓" key to decrease the corresponding bit of the data by 1, and press the "←" or "→" key to left or right Move the cursor. Press the "Return" key continuously to exit from the current menu step by step until the main menu. [Note] When setting parameters, press the "Confirm" key to confirm the return, and the data will be saved and returned; if you press "Return" directly, the data will not be saved. "Electrolysis settings" are important parameters of the system, do not change them at will!

• Sample measurement

   Press the "Stir" button to make the stirrer in the electrolytic cell rotate. If the stirrer does not rotate, you can appropriately adjust the speed control knob on the panel to increase the clockwise rotation speed. Then turn on the "Electrolysis" button. If the measured Voltage value is >100, it will display "The electrolyte is initially balancing, please wait...". When the balance is reached, the instrument will alarm and prompt "The electrolyte has been balanced, please press Start." Inject sample after keying". At this time, the sample can be injected. After pressing the "Start" key to inject the sample, the instrument will automatically perform the test. After the test is completed, the buzzer will sound and the display will indicate "Test has ended".

 [Note]: If the measured Voltage is <20, it will prompt "Measuring electrode short circuit!"

   If 20 < measured Voltage < 80, it will prompt "Excess iodine in the electrolyte!"

   In this case, you can inject an appropriate amount of pure water to neutralize the excess iodine, and the error message will be automatically eliminated.

   If the measured Voltage is >6000, it will prompt "Measuring electrode open circuit!"

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
