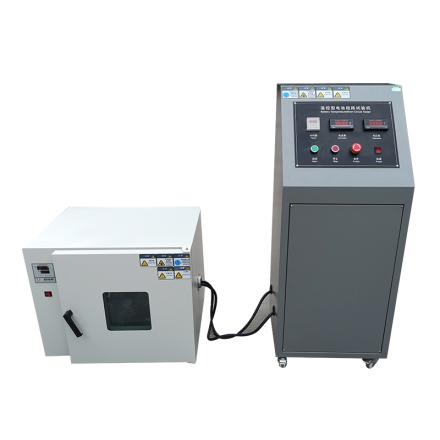

AISRY ASR-9010 Temperature controlled battery short circuit testing machine Specifications
Search
Brand：AISRY
Model：ASR-9010
Name：Temperature controlled battery short circuit testing machine
Specifications
| Control method | PLC touch screen Control system (with remote control) |
| Voltage | 0-100V |
| short circuit current | 0-1000A |
| Temperature control box temperature control | Room temperature~ 150 ℃ |
| Temperature transducer | -20℃~ 130℃ |
| Temperature control Accuracy | 0.1℃ |
| Temperature Uniformity | ±1℃ |
| Temperature control explosion-proof box measurement space | 450X450x350mm (can be customized) |
| Working Voltage | AC 220V 50Hz~ 60Hz |
| impulse Voltage | AC 1kv/1.2-50μs（峰值）1min |
| DC response time | ≤ 5 μs |
| Device internal resistance | 80 ± 20mΩ (load current 400A) |
| Action time | Pucking time/release time ≤ 30ms |
| Action characteristics | Cold pull-in Voltage ≤ 66% Us |
| Cold release Voltage | ≯30％Us，≮5％Us |
| Exhaust fan | 100mm diameter exhaust pipe protrudes out at the rear |
| Complementary trend | There are two 50mm diameter trends on the left side of the box (can also be used for Voltage measurement, etc.) |
| Window size | 300 * 300mm, Film thickness 20mm tempered Explosion-proof Glass |
| Weight | About 100Kg |
| Power | AC220V，50/60Hz |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
