EVERFINE PSC-40S Portable Colorimeter

SE
D/8 measurement structure, can perform SCI and SCE tests at the same time, large-size color touch screen and ultra-large-capacity lithium battery power supply, one-button operation.
$4703.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO

EVERFINE PSC-40S Portable ColorimeterSPEC

EVERFINE PSC-40S Portable ColorimeterDetails

EVERFINE PSC-40S Portable ColorimeterPacking list

SKU
NB042279
Measurement geometry
D/8°
Light spectrum Measurement Range
400-700nm
Standard observer
2 ° and 10 °
Light spectrum reflectance Measurement Range
0-175%
Color space and Measurement parameters
CIELabCh, CIELab, CIELCh, HunterLab, XYZ, CIELuv, CIE1960UCS, CIE1976UCS, yellowness index, shade index, luminance factor, whiteness index, isochromatic index MI
Gloss standard
CIELab? CIELch? CIELuv? CMC? CIE1994? CIE2000? HunterLab
Measurement Repeatability
< 0.03ΔE * as of
inter-device difference
AVG 0.2 ΔE * as of
Lighting/measurement aperture
F5 / 3mm
interactive interface
USB，WIFI
PSC-40S
Portable Colorimeter
D/8 measurement structure, can perform SCI and SCE tests at the same time, large-size color touch screen and ultra-large-capacity lithium battery power supply, one-button operation.

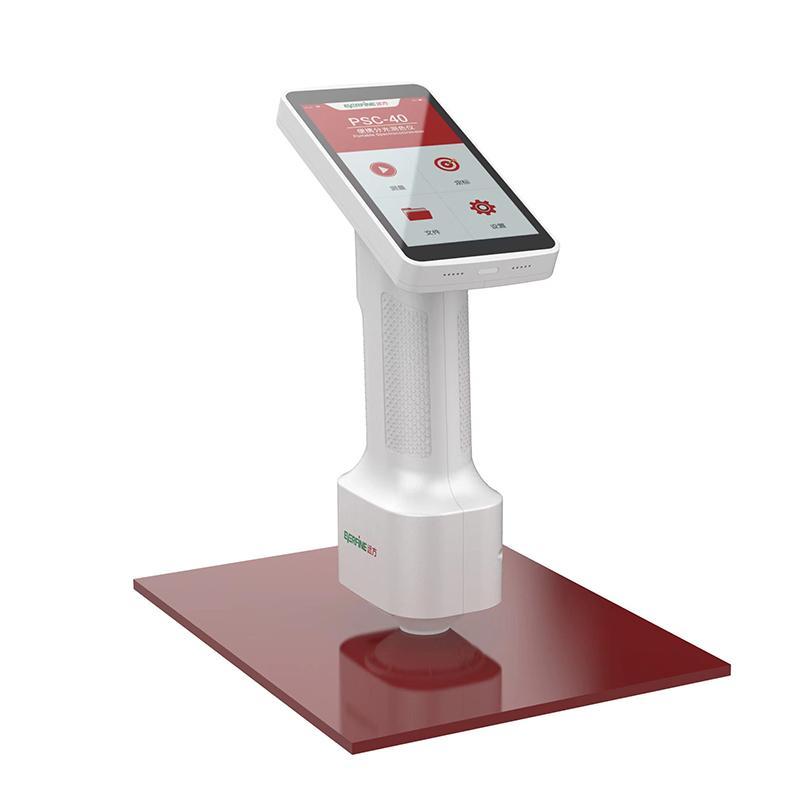

EVERFINE PSC-40S Portable Colorimeter Picture

Introduction

PSC-40 Portable Spectrophotometer is a portable multifunctional color measurement device developed with reference to CIE, GB and other standards. It adopts D/8 measurement structure and can perform SCI and SCE tests at the same time. It is equipped with an intelligent operating system and cooperates with large-size color touch screens. Powered by the screen and a large-capacity lithium battery, it can realize one-button operation and complete measurement reading and analysis in one step. PSC-40 adopts a vertical structure, which can quickly locate the measurement area, and can accurately measure flat and curved surface samples. It is easy to use, fast in measurement, stable in performance, and accurate in testing. On-site measurement and color management of similar materials.

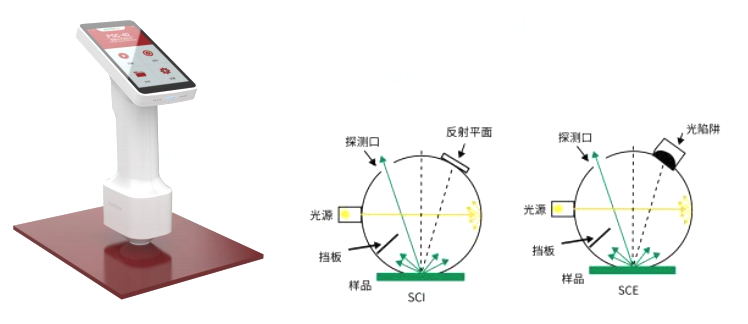

Yuanfang PSC-40S Portable Spectrophotometer Details Figure 1

main feature

  • SCI and SCE two measurement modes;

  • Using patented technology to monitor and compensate for light source changes in real time, with higher stability;

  • Equipped with an intelligent operating system and a large-size color touch screen, it is clear at a glance and easy to operate;

  • Vertical structure, convenient and accurate positioning;

  • Large-capacity memory space can easily handle 10,000 sets of tests, making on-site comparative analysis more calm;

  • Super-capacity and high-quality lithium battery can easily solve the problem of battery life;

  • USB, WIFI communication, can easily complete the measurement data transmission with the PC.

FAQ
QWe do Automotive Interior Color Detection, need portable equipment, do you recommend it?
A The PSC-40S Portable Colorimeter features a vertical structure for accurate measurement of curved surface samples, making it especially suitable for complex surfaces in automotive interiors. At the same time, it supports SCI/SCE dual mode, which can comprehensively analyze material Color to ensure interior Color conformity.
QTo test the effect of teeth whitening, which model of Colorimeter is suitable?
A If the teeth are relatively flat and there is a 5mm area to measure, use the psc-40s. If the teeth are small and irregular, an image colorimeter is required.
