Smart Sensor ST1004 Handheld Multi-channel Thermometer 4 channels
SE
ST1004
SMART SENSOR ST1004 Handheld multi-channel thermometerSPEC
SMART SENSOR ST1004 Handheld multi-channel thermometerDetails

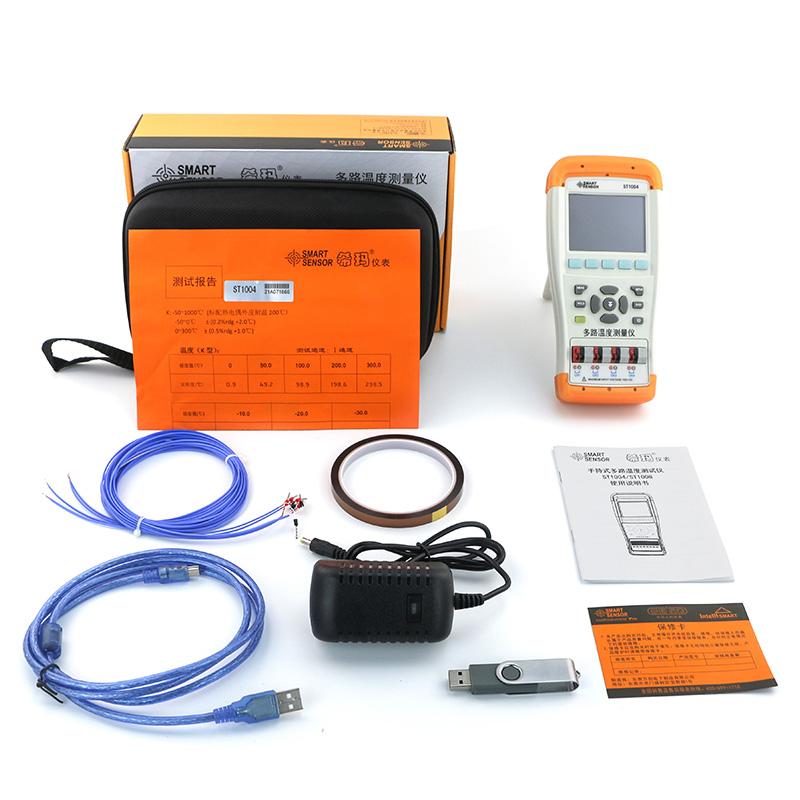

SMART SENSOR ST1004 Handheld multi-channel thermometerPacking list
- SKU
- NB042282
- Connection on the test side
- With 4 sets of inputs
- indexing mark
- Thermocouple: J, K, T, E, S, N, B, R
- Temperature Measurement Range
- -200~1800℃
- Basic Precision
- 0.2%+1
- resolution
- 0.1℃
- Number of channels
- 4 channel
- FUNCTION
- Yes.
- Sampling rate
- Default medium speed (slow, medium, fast)
- unit conversion
- ℃/℉
- comparator
- Upper/lower limit alarm, Upper/Lower limit values are set separately for each channel
- Swift function settings
- Support for opening and closing
- language settings
- Chinese/English switch
- USB remote control
- Using USB-HID protocol, ASVII transmission
- Backlight luminance adjustment
- 4 gears display, 20%/40%/80%/100%
- accessory interface
- U disk interface/MICROSD card slot
- save settings
- Storage mode settings (U disk/micro SD card)
- Net Weight
- 500g
- Dimension
- 194*91*34.5mm
- Measurement parameter
- temperature

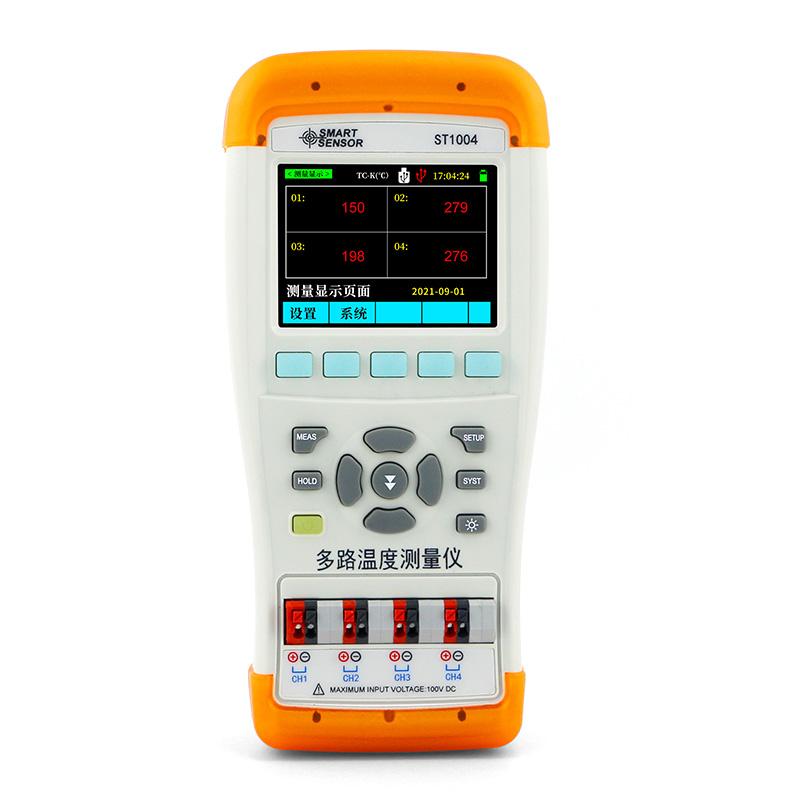

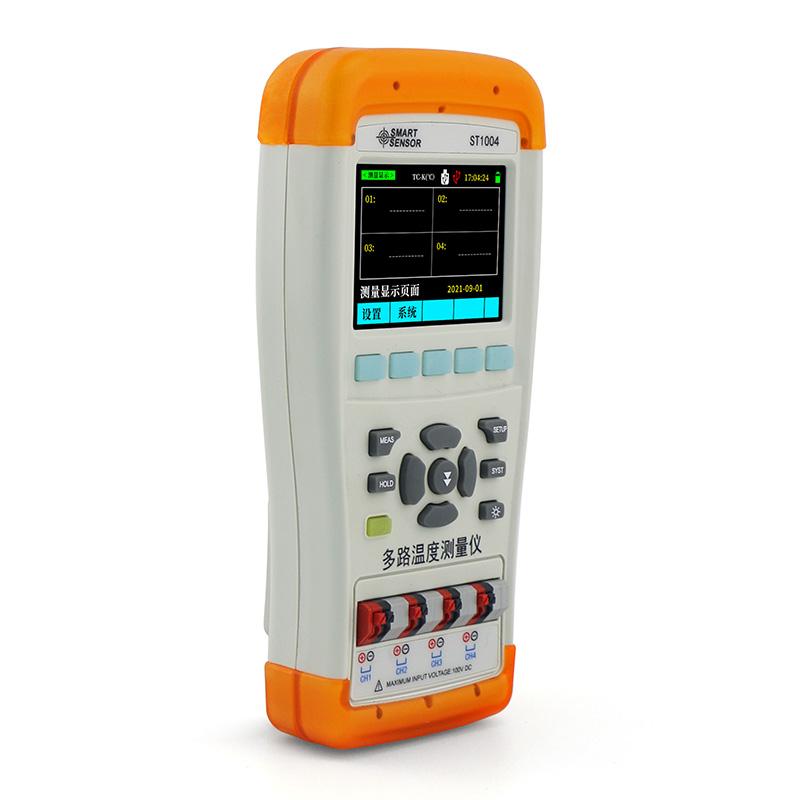

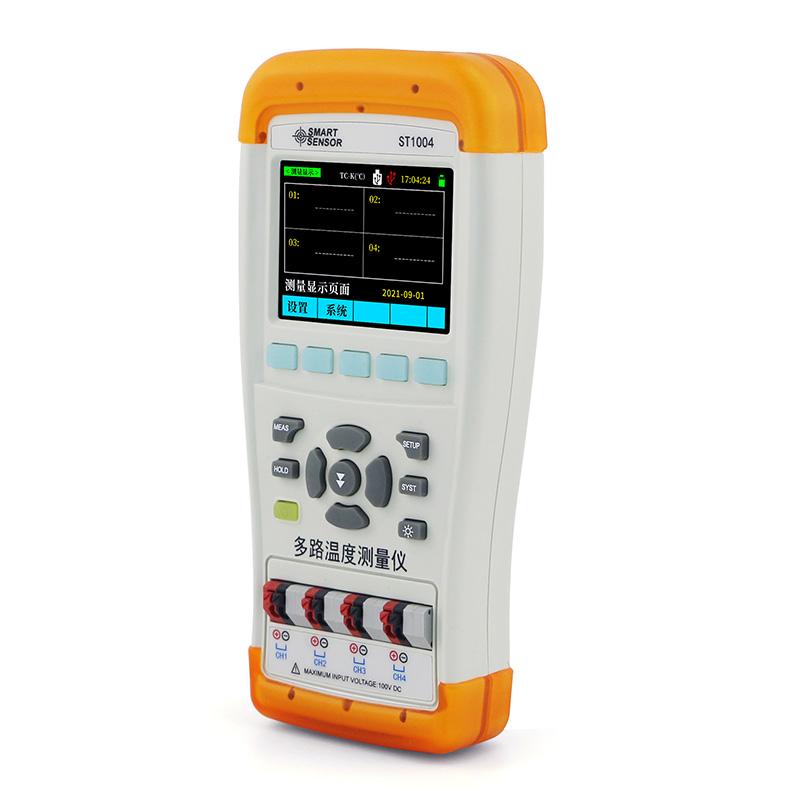

ST1004 multi-channel temperature Tester can collect multi-channel temperature data at the same time, alarm and communication transmission for upper and lower super, compatible with a variety of temperature sensors, fast response, stable data, and has a burnout detection function. Moreover, it is controlled by a high-performance 32-bit ARM microprocessor. The instrument uses true-color TFT-LCD, full Chinese operation interface, keyboard and touch screen operation, high-precision measurement and ease of use to bring users a new testing experience. The instrument supports large-capacity USB memory.
The whole series of instruments are equipped with USB-HID interface as standard. Through the computer remote control command open to users and compatible with SCPI, users can independently write computer software to effectively complete remote control and data acquisition functions.
