Specifications
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 400*400mm |
| Coating rod specification | Standard 1 imported wire rod with Accuracy up to 1μm (film thickness: 1.5μm~ 171.5μm) |
| Spreader displacement | Digital display, different speeds, displacement Accuracy control |
| Power Supply | Voltage 220V 50HZ |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
Packing list

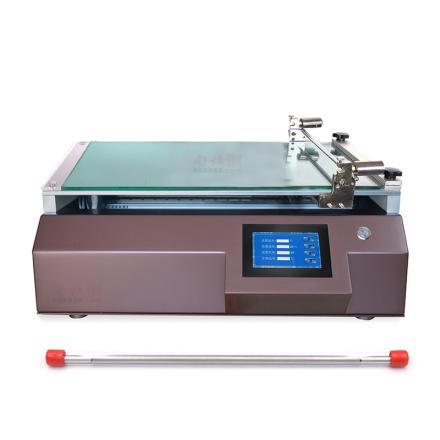

Film Applicator X1, imported bar L500 length X1, product manual X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/42293/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
