SHUCHANG SC-JZL Impact Tester Non-metallic Resistance Impact performance

SE
Cantilever beam 1/2.75/5.5J, simply supported beam 0.5/1/2/4/5 J, using semi-automatic control, LCD display supports printout.
$1470.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

ShuChang SC-XJZH Suspension Impact TesterSPEC

ShuChang SC-XJZH Suspension Impact TesterDetails

ShuChang SC-XJZH Suspension Impact TesterPacking list

SKU
NB042299
Impact velocity
3.5m/s
The distance from the center of the pendulum axis to the center of the specimen
327mm
blade angle
750
Blade fillet radius
0.8mm
Bearing fillet radius
without
Support front angle
without
Support back angle
without
blade rake angle
50
blade back angle
100
bearing span
without
Impact energy
Cantilever Beam 2.75J, 5.5J or Maximum Impact Energy Specified by User
Pendulum elevation angle
150°
Power Supply
AC 220V 50Hz
Dimensions
360×240×680mm
net Weight
Approx. 80kg
Sample type and size
Type 1 sample: 80 × 10 × 4mm3; Type 2 sample: 63.5 × 12.7 × 6.4mm3; Type 3 sample: 63.5 × 12.7 × 3.2mm3
cantilever beam
2.75J、5.5J
maximum allowable friction loss
0.06J、0.12J
Pendulum moment
1.47372N·m、2.9474N·m
SC-XJZH
Suspension Impact Tester
Cantilever beam 1/2.75/5.5J, simply supported beam 0.5/1/2/4/5 J, using semi-automatic control, LCD display supports printout.

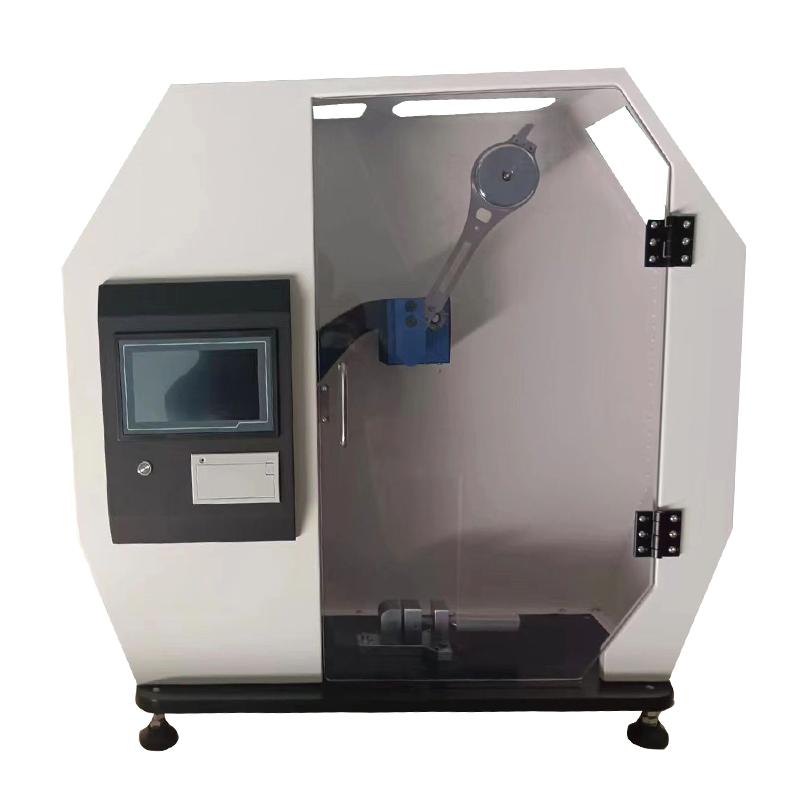

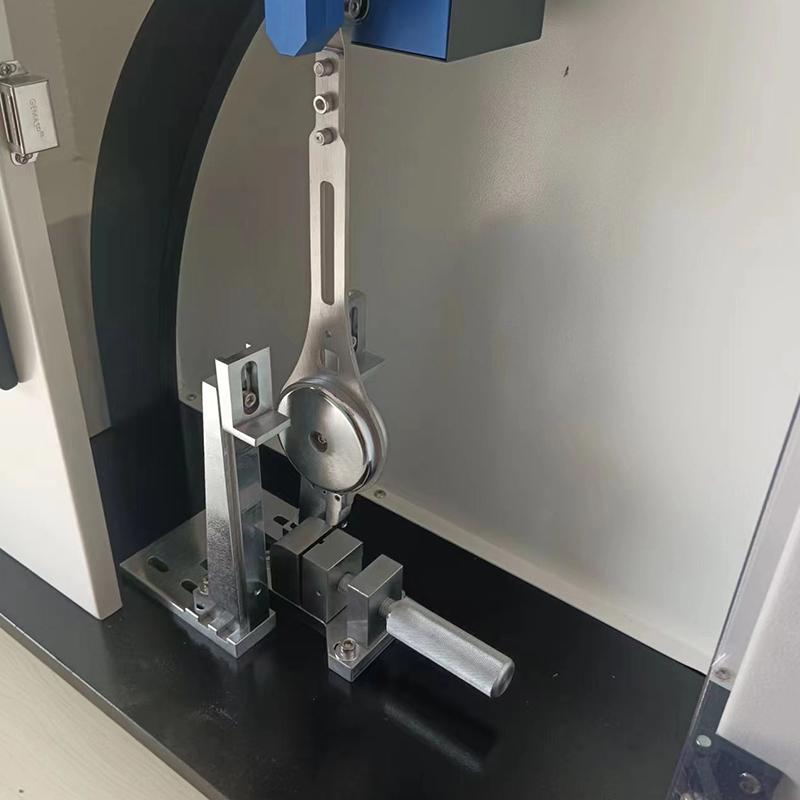

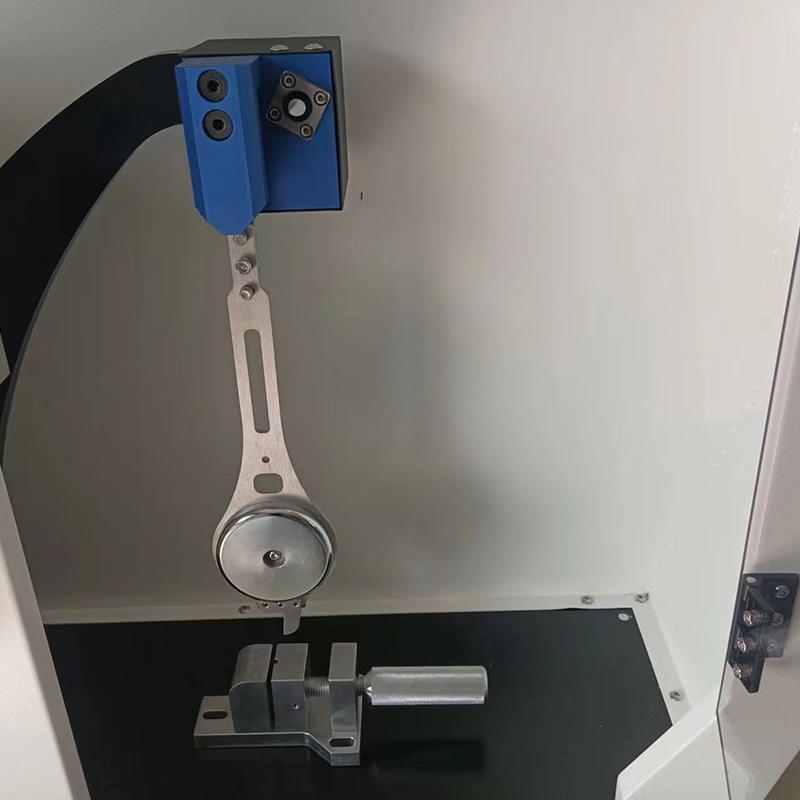

SHUCHANG SC-JZL Impact Tester Non-metallic Resistance Impact performance Picture

product description

This series of digital display cantilever beam impact testing machine is an instrument for testing the impact resistance of non-metallic materials such as hard plastics, nylon, hard rubber, and electrical insulation materials under dynamic loads. It is required by non-metallic material manufacturers and quality inspection departments. It is also an indispensable testing instrument for scientific research units to conduct research on new materials.

main feature

  • This machine adopts semi-automatic control, easy to operate and high working efficiency.

  • The special LCD equipped with this machine can display instant information.

  • Printable output.　

Implementation standards

ISO180-2000 "Plastics - Determination of Izod Impact Strength of Hard Materials"

GB/T1843—2008 "Rigid Plastic Izod Impact Test Method"

JB/T8761—1998 "Plastic Izod Impact Testing Machine"

ASTM D256-2010 "Test method for determining the impact strength of plastic IZOD pendulum"


FAQ
QI want to test the Impact Strength of rigid plastics, which instrument should I choose?
A SC-XJZH suspension simple combination Impact Tester is specially used for impact performance testing of non-metallic materials such as hard plastics and nylon. It meets international and domestic standards such as ISO180 and GB/T1843, and can accurately measure the anti-Impact ability of materials under dynamic load. Easy to operate and high efficiency.
