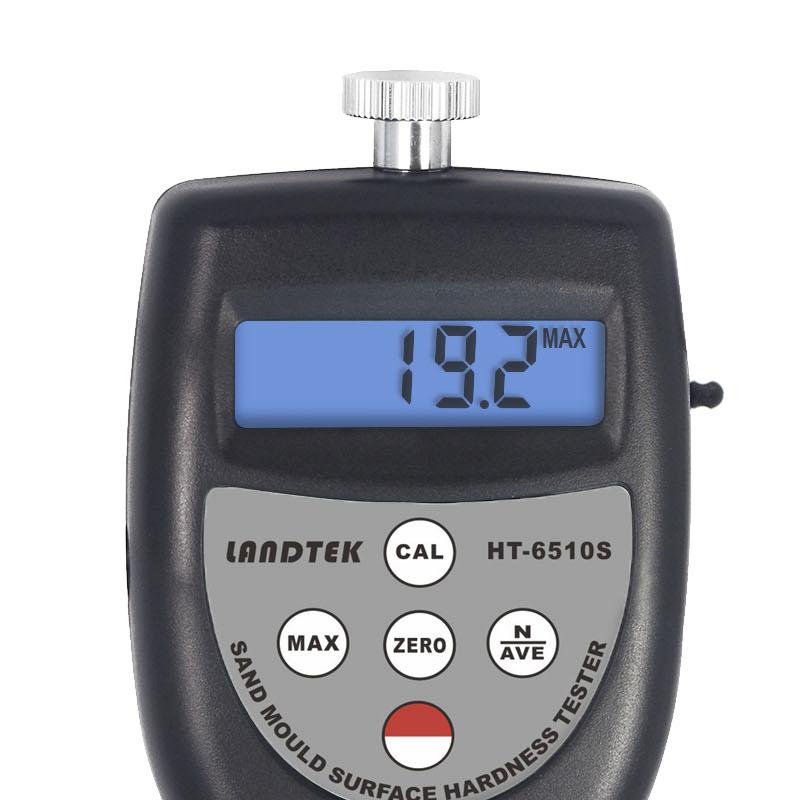

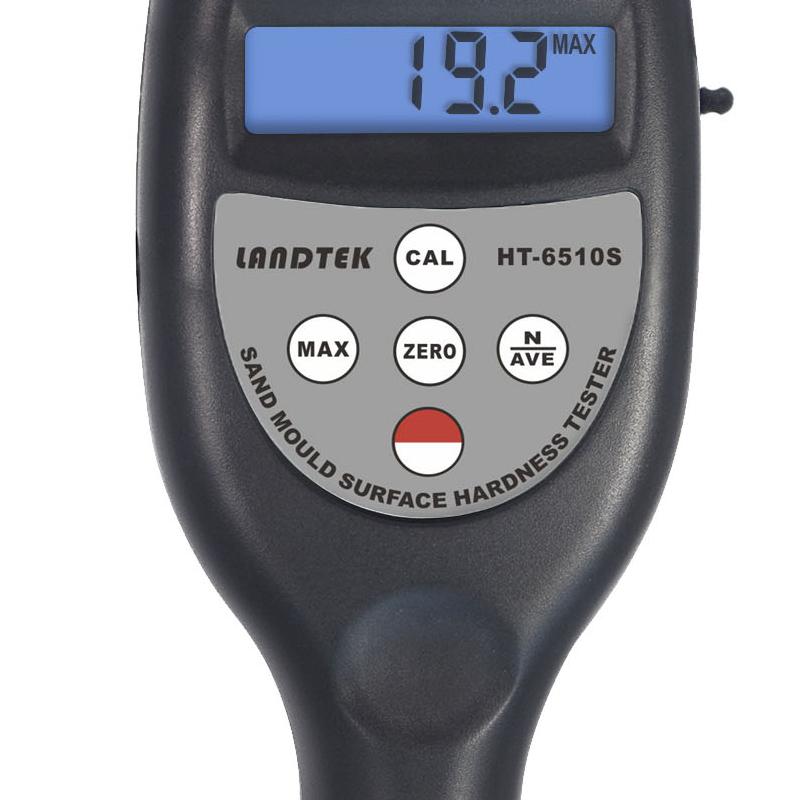

LANDTEK HT-6510S-A Sand surface Hardness Gauge Fine sand type/core
SE
HT-6510S-A
LANDTEK HT-6510S-A Sand surface Hardness GaugeSPEC
LANDTEK HT-6510S-A Sand surface Hardness GaugeDetails
LANDTEK HT-6510S-A Sand surface Hardness GaugePacking list
- SKU
- NB042403
- Compression stroke
- 2.50mm
- load
- 237g
- preload
- 90g
- Head shape and size
- Ball R2.50
- Measurement Units
- HA
- Display parameters
- Hardness/Average/** Value
- display
- 4-Position 10mm LCD
- Display range
- 0HA (HB / HC) ~ 100HA (HB / HC)
- Measuring range
- 10HA (HB / HC) ~ 90HA (HB / HC)
- Accuracy
- ≤ ± 1HA (HB / HC)
- resolution
- 0.1HA (HB / HC)
- Low Voltage prompt
- √
- Automatic shutdown function
- √
- Operating Environment
- Temperature: 0~40 ℃ Humidity: < 80% RH
- Power
- 2 AA batteries
- size
- 176x65x27mm
- Weight (without battery)
- 170g
- Optional accessories
- USB cable and software, Bluetooth adapter and software
Features
The sand surface Hardness Tester is used to measure the surface hardness of the wet mold sand mold/core, and provide Specifications for formulating the molding process.
The sand surface Hardness Tester is divided into three types: A, B, and C, and the commonly used type is B type. in:
Type A: Suitable for surface hardness testing of fine sand molds/cores for manual or mechanical low and medium pressure molding.
Type B: suitable for surface hardness testing of fine and coarse sand molds/cores for manual or mechanical low and medium pressure molding.
Type C: suitable for testing the surface hardness of sand molds for high-pressure molding.
The unit of type B of the sand surface Hardness Tester is (g/mm), but it is customary to use the hardness H (A/B/C) instead of the unit. Because their values are related and consistent, if the unit value is large (g/mm), the corresponding hardness value is also large.
Average value calculation, maximum value latch, underVoltage alarm indication function.
Use USB cable, bluetooth data output to communicate with PC.
Models
|
model | HT-6510S-A | HT-6510S-B | HT-6510S-C |
| Compression stroke | 2.50mm | 2.50mm | 2.50mm |
| load | 237g | 980g | 1500g |
| Preload | 90g | 50g | 180g |

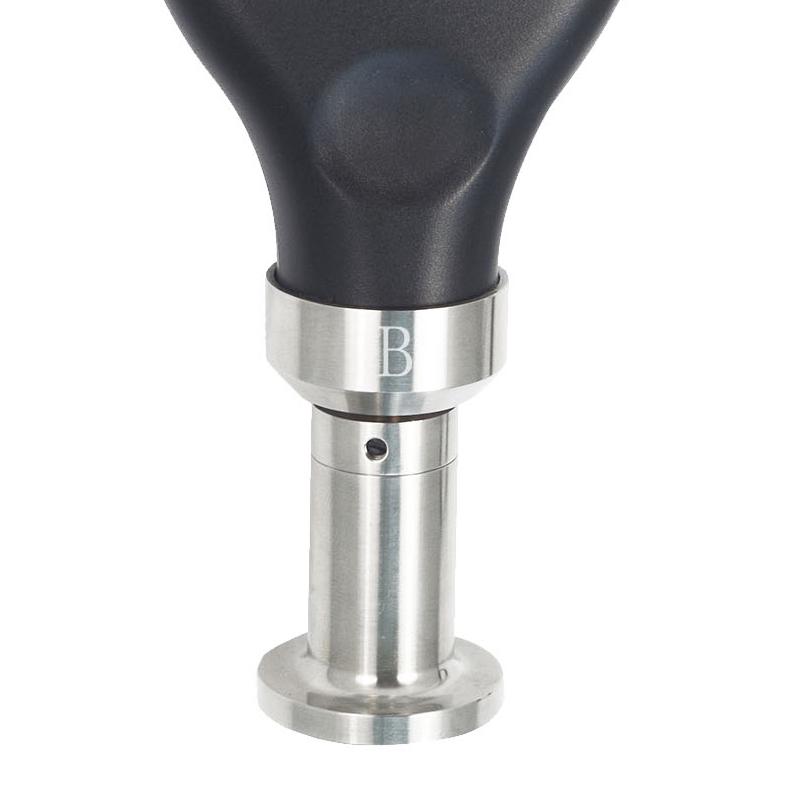

| Indenter shape and size | Ball R2.50 | Ball R12.70 | Ball R1.20 |
| Units of measurement | HA | HB | HC |
| display parameters | Hardness value/average value/** value | ||
| monitor | 4 digits 10mm LCD | ||
| display range | 0HA(HB/HC)~100HA(HB/HC) | ||
| Measuring range | 10HA(HB/HC)~90HA(HB/HC) | ||
| Accuracy | ≤±1HA(HB/HC) | ||
| resolution | 0.1HA(HB/HC) | ||
