QIWEI JFS-2200 Three-phase Asynchronous Disperser 380V Handling Capacity 60kg

JFS-2200 (manual lift)

Disperser

1.6 meters bracket, Power 2.2 kW, manual lifting, dispersion 60kg, using three-phase asynchronous motor, lifting stroke 60 cm, manual lifting.

overview

The experimental dispersing machine is a new type of environment-friendly laboratory product designed and developed by adopting new technologies at home and abroad . This product integrates the functions of stirring, sanding and dispersing into one experimental equipment.

This equipment adopts motor, which has the advantages of small size, low noise, no commutation interference, no mechanical wear of carbon brush, and environmental friendliness . It can adapt to the needs of different tests in the laboratory, and can directly calculate the relationship between the linear speed of the stirring, dispersing and sanding blades, the viscosity of the material and the chemical reaction rate according to the displayed shaft speed, and provide correct data for large-scale production.

product structure

1. The machine adopts the manual lifting method (first loosen the safety buckle of the hand crank switch, then shake it to the desired height, and then tighten the safety buckle). It is easy to lift.

2. A new type of motor is adopted, and the stepless speed regulation of the motor is implemented through an intelligent frequency conversion controller. Using digital PID technology, the control precision is high, and the 4-digit digital tube directly displays the spindle speed.

3. The dispersing impeller and sanding disc are directly connected to the rotating shaft with screws.

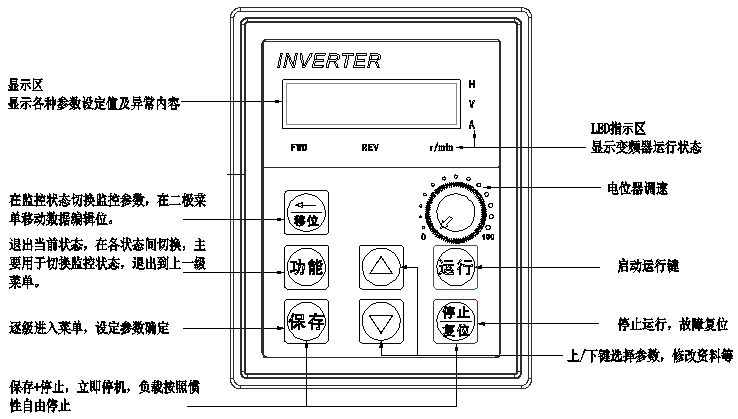

Frequency conversion controller key description

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
