DONGRU B60M color screen intelligent Glossmeter Measurement angle 60 °

SE
60 ° Measurement angle, 2.4 inch large color screen, metal highlight type large range, built-in lithium battery rechargeable, 10. LED long life Light source, with sunlight mode.
$378.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

DongRu B60M Color screen intelligent GlossmeterSPEC

DongRu B60M Color screen intelligent GlossmeterDetails

DongRu B60M Color screen intelligent GlossmeterPacking list

SKU
NB042555
Gloss unit
Gs/Gu
Geometry
60°
Measurement range
0-1000 Gs
Resolution
0.1Gs
Measurement mode
Single measurement/continuous measurement
Error of indication
±（0.3+1%）
stable value
±（0.2+0.2%）
data storage
Can store 10 groups, 2000 data
screen
2.4 inch color screen
Measurement window size
28*14（mm）
Instrument size
Length 144 * Width 55 * Height 76mm
Weight
400G (including battery)
Battery level
Battery Voltage 3.7V (3000mAH lithium battery)
Operating Environment
Temperature: 0~40 ℃, humidity less than 85% (no condensation)
Bluetooth
Customizable
B60M
Color screen intelligent Glossmeter
60 ° Measurement angle, 2.4 inch large color screen, metal highlight type large range, built-in lithium battery rechargeable, 10. LED long life Light source, with sunlight mode.

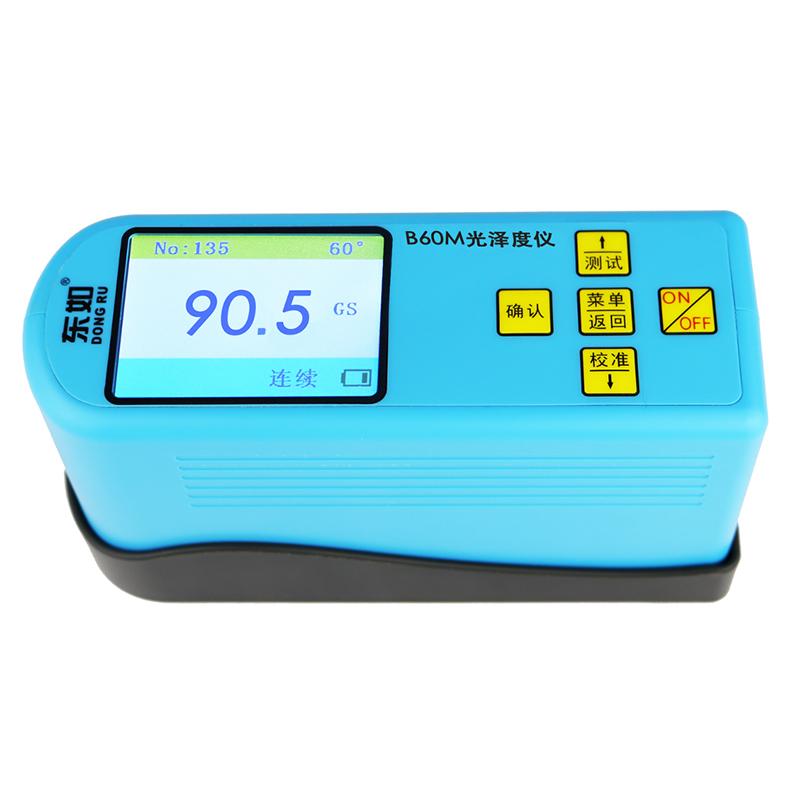

DONGRU B60M color screen intelligent Glossmeter Measurement angle 60 ° Picture

Introduction

B60M intelligent high-gloss gloss meter is a product independently developed by Dongru Company with independent intellectual property rights. It is designed and produced in accordance with international standards ISO2813, foreign standards ASTMD523, DIN67530 and national standards GB9754, GB9966, GB/T13891. All technologies have reached JJG696-2002 "Specular Gloss Meter and Gloss Board" Appraisal Regulations Requirements for a first-class working machine.

The gloss meter is intelligent in operation, has a large screen display, and uses a built-in lithium battery for a long battery life. It has the characteristics of convenient use, stable performance, and accurate measurement.

Features

1. Small size, light weight, real portable machine.

2. 2.4 inches large color screen, high resolution, full Viewing Angle display.

3. The metal high-gloss type has a large range and can measure the gloss of metal paint and other materials.

4. It has the functions of single measurement and automatic continuous test, fool-like operation, and a real intelligent machine.

5. It has one-key calibration, one-key restore to factory settings, and built-in adjustment function.

6. With large capacity data storage, it can store 10 groups of 2000 data.

7. The built-in lithium battery is rechargeable, with a super large capacity of 3000mAH, saving and environmental protection.

8. Adopt metal base, aesthetic ergonomic structure design, more durable.

9. High stability, high precision, automatic shutdown function, long standby time.

10. LED long life light source

11. Chinese and English bilingual versions

12. Sunlight mode (can also be used under strong light)

13. Unit Conversion GU/GS

14. Wireless bluetooth connection, real-time monitoring of mobile smart app (bluetooth version can be customized)

Application

It is suitable for testing the glossiness of large-scale high-gloss materials such as metal polishing and electroplating coatings.

FAQ
QIs the B60M suitable for gloss measurement of metal coatings?
A Sure.
QWill the measurement of the instrument in the sun have any effect?
A The B60M glossmeter is equipped with a sunlight mode, which can be used normally in strong light to ensure measurement accuracy.
QBattery capacity of the instrument?
A The B60M features a built-in lithium battery with a capacity of 3000mAH and a long battery life, making it suitable for long-term use.
QWhat is the B60M Screen size?
A The B60M glossmeter is equipped with a 2.4-inch large color screen with a large display area, high resolution, and multi-directional observation data.
QDoes this instrument have Bluetooth connectivity?
A Yes, the B60M has wireless Bluetooth connection function, which can be monitored in real time with the mobile smart APP, and supports customized Bluetooth version.
QIs there a Data storage function?
A B60M has a large-capacity Data storage function, which can store 10 groups of 2000 data, which is convenient for subsequent reference.
QWhat types of materials is this glossmeter suitable for?
A The B60M is suitable for the gloss measurement of a large number of high-gloss materials, including metal polishing, Eletroplating Coating and other materials.
