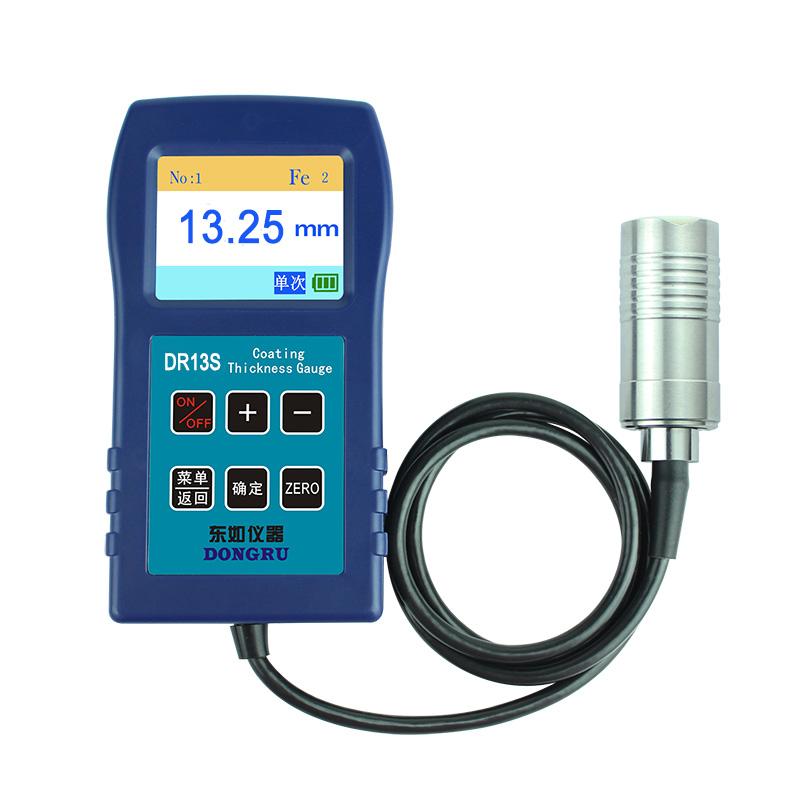

DONGRU DR13S Anti-corrosion and fireproof Coating Thickness Gauge 100~13000μm

SE
Adopt alloy probe, support continuous and single measurement, store 2000 data, have upper and lower limit alarm function, automatically identify the substrate, Measurement accuracy +/- 3% H + 2 μm.
$716.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

DongRu DR13S Coating Thickness GaugeSPEC

DongRu DR13S Coating Thickness GaugeDetails

DongRu DR13S Coating Thickness GaugePacking list

SKU
NB042556
Operating Environment
Temperature: 0 ℃ -60 ℃, Humidity: 20% RH - 90% RH, use in environment without strong magnetic field
thinnest matrix
1mm
Minimum matrix area
F32mm
Minimum radius of curvature
Concave 10mm; Concave 16mm
Dimensions
130（L）×70（W）×25（H）mm
Weight
260g
Power
Three (7) alkaline batteries
DR13S
Coating Thickness Gauge
Adopt alloy probe, support continuous and single measurement, store 2000 data, have upper and lower limit alarm function, automatically identify the substrate, Measurement accuracy +/- 3% H + 2 μm.

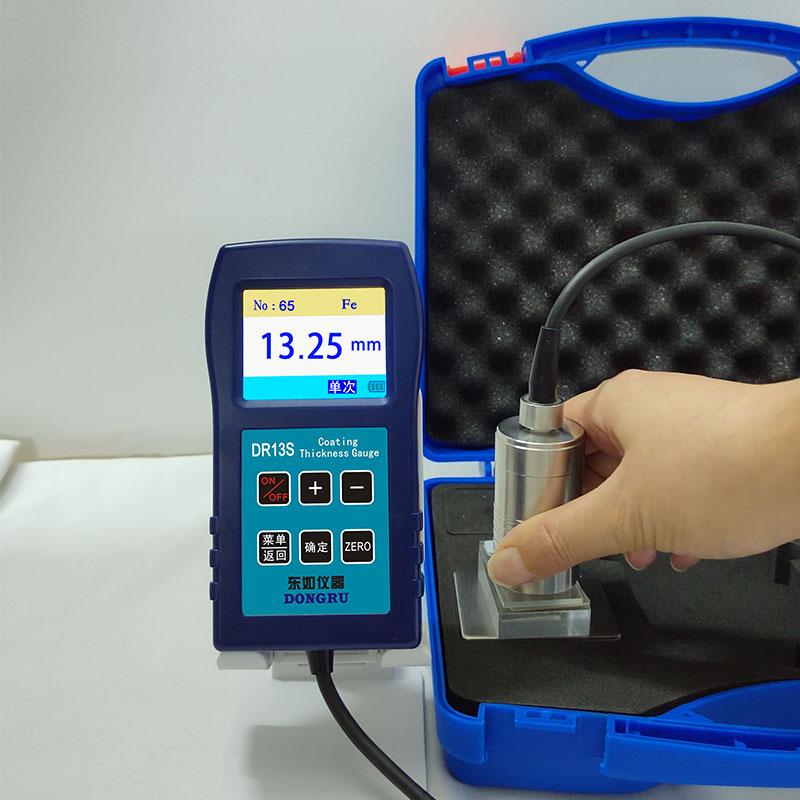

DONGRU DR13S Anti-corrosion and fireproof Coating Thickness Gauge 100~13000μm Picture

Introduction

DR13S Coating Thickness Gauge is a large-range coating Thickness Gauge, which is a professional non-destructive testing instrument mainly used to measure the thickness of coated coatings on the surface of magnetic metal materials. It adopts the principle of magnetic thickness measurement, which can quickly and non-destructively measure the thickness of non-magnetic coatings (galvanized, chrome, enamel, rubber, powder, paint, electrophoresis, enamel, plastic spraying, etc.) on magnetic metal substrates (such as steel and iron). Coatings, anti-corrosion and fire-proof coatings, etc.), very suitable for measuring ultra-thick anti-corrosion coatings on various large workpieces, the range can reach 13MM, Applications: widely used in coating industry, manufacturing industry, petroleum, chemical industry, shipbuilding , fire protection engineering, construction industry, commodity inspection and other testing fields.

Features

  • Large range: 100-13000μm (0.1-13mm)

  • Simple operation, fast test speed, good sensitivity and high measurement accuracy

  • Alloy probe, wear-resistant and pressure-resistant, durable, accurate

  • There are two measurement methods: continuous measurement and single measurement

  • There are four statistical functions: maximum value (MAX), minimum value (MIN), average value (MEA), measurement times (No)

  • Large-capacity storage, can be stored in 10 groups, 200 in each group, and can store 2000 data in total

  • Stored data store view delete function

  • Three calibration methods: zero point calibration, two-point calibration, multi-point calibration

  • Upper and lower limit alarm function (can be set in single measurement mode)

  • The operation process is marked by a beep (in single measurement mode)

  • Automatic identification of ferrous and non-ferrous substrates

  • Metric and imperial conversion μm/Mil

  • Sunlight mode (used under strong light)

  • Chinese and English bilingual version

  • 2.3-inch large color screen large font size display

  • Manual/automatic shutdown function

  • Bluetooth synchronous data transmission function (customized)


FAQ
QI want to measure thick fire retardant coatings on large steel structures, which thickness gauge should I choose?
A Recommended DONGRU DR13S anticorrosive and fireproof Coating thickness gauge. It has a range of up to 13mm, is specially designed for thick coating measurement, and uses a wear-resistant alloy probe to quickly and accurately measure the thickness of nonmagnetic coatings such as fire-proof coatings and anticorrosive coatings on steel structures. It is suitable for on-site inspection of large workpieces.
QData storage and alarm functions are required for the thickness gauge. Do you recommend it?
A Consider the DONGRU DR13S. It can store 2000 measurement data, supports group management, and has upper and lower limit alarm functions. When the Measured value exceeds the set range, it will alert. It is suitable for occasions where data recording and quality control are required, such as painting production lines or engineering acceptance.
QIn the shipyard test steel plate anticorrosive coating, which thickness gauge is suitable?
A DR13S can, it specializes in measuring nonmagnetic coatings on magnetic metal substrates, such as anti-corrosion coatings on steel plates, with high accuracy and wear resistance of the probe, suitable for frequent inspection needs in the shipbuilding industry.
QIs there a sun mode to adapt to use in a strong light environment?
A The DR13S Coating thickness gauge has a sunlight mode that allows it to function properly in bright light.
QDoes the instrument automatically identify the substrate type?
A Yes, the DR13S can automatically identify ferrous and non-ferrous substrates to suit the measurement needs of different materials.
QWhat Calibration methods does DR13S support?
A Calibrating methods: zero-point calibrated, two-point calibrated and multi-point calibrated to ensure measurement accuracy.
QWhat principle does this Coating thickness gauge use for measurement?
A DR13S adopts the principle of magnetic thickness measurement to rapidly and nondestructive measurement of the thickness of nonmagnetic coating layer on magnetic metal substrate by magnetic measurement.
