HBO HCY-100 pocket surface roughness meter Ra/Rz/Rq/Rt

SE
With Ra, Rz, Rq, Rt parameters, stroke length 6mm, one point calibrated simple to use, optional 0.25, 0.8, 2.5 three cut-off wavelength filter, metal shell.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

HBO HCY-100 Pocket surface roughness TesterSPEC

HBO HCY-100 Pocket surface roughness TesterDetails

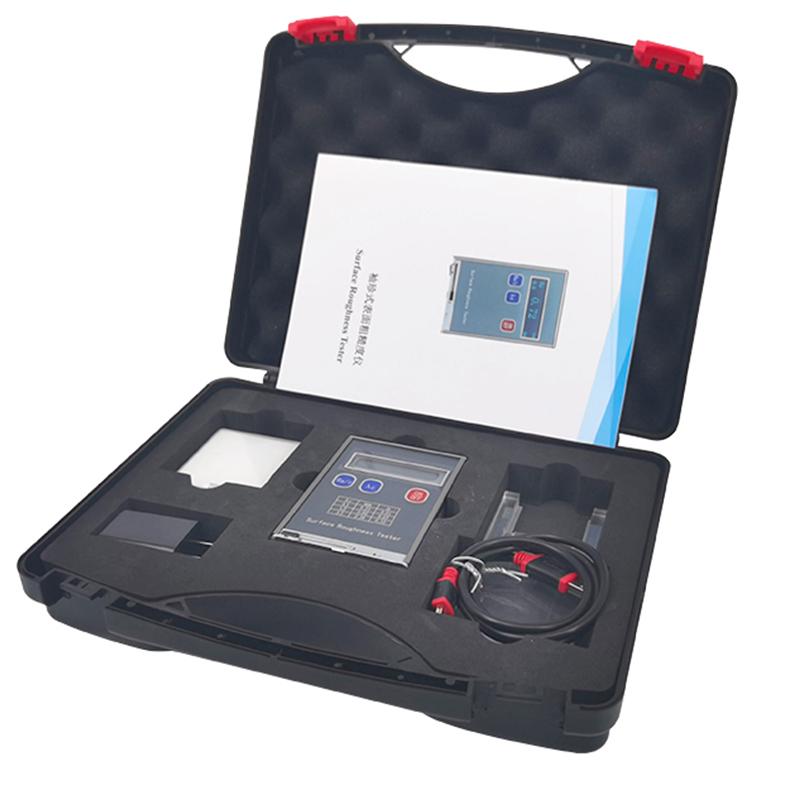

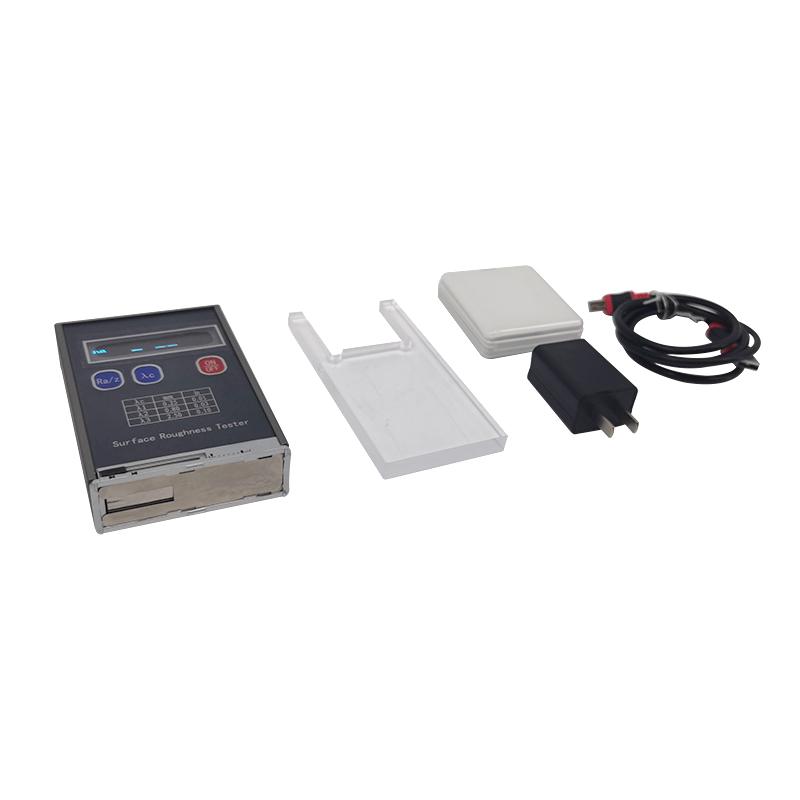

HBO HCY-100 Pocket surface roughness TesterPacking list

SKU
NB042560
Display mode
digital display
Measurement parameter
Ra、Rz、Rq、Rt
Measurement range
Ra、Rq：0.05µm ~ 15.0µm; Rz、Rt：0.1µm ~ 50µm
error of indication
±(10nm+0.1A)
Indication variability
＜6%
Sampling length
0.25mm，0.80mm，2.50mm
evaluation length
1.25mm，4.0mm，5.0mm
stroke length
6mm
Sensors - Radius
10 µm±1 µm
Sensors - Angle
80°-95°
Battery
3.7V lithium-ion battery
Dimension
106 mm×70 mm×24 mm
Product Weight
200g
Sensors Static Force Measurement of Stylus
≤0.016N
Sensors Force Change Rate
≤800N/m
Sensors Guide Pressure
≤0.5N
Operating Environmental conditions
Temperature: -20 ℃~ 40 ℃; Relative Humidity: < 90%; no vibration around, no corrosion medium
Storage environmental conditions
Temperature: -25 ℃~ 60 ℃; Relative Humidity: < 90%
HCY-100
Pocket surface roughness Tester
With Ra, Rz, Rq, Rt parameters, stroke length 6mm, one point calibrated simple to use, optional 0.25, 0.8, 2.5 three cut-off wavelength filter, metal shell.

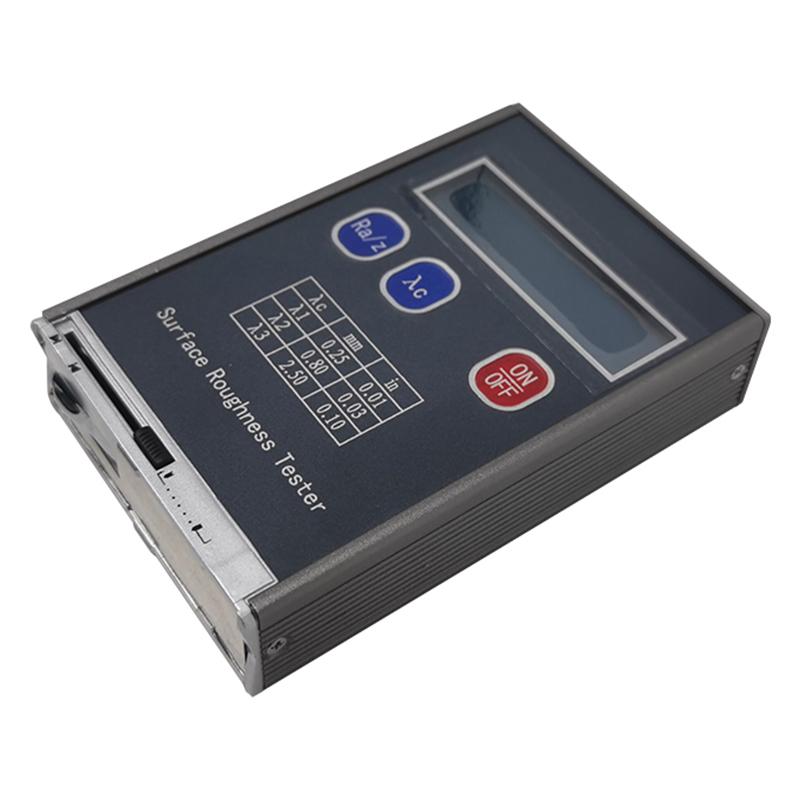

HBO HCY-100 pocket surface roughness meter Ra/Rz/Rq/Rt Picture

product description

This pocket roughness meter is a new generation of pocket surface roughness meter newly developed. It has the characteristics of high measurement accuracy, wide measurement range, easy operation, easy to carry, stable work, etc. It can be widely used in the detection of various metal and non-metal processing surfaces. Hand-held features, more suitable for use in the production site.

Features

  • With Ra, Rz, Rt, Rq parameters.

  • Small size, anti-shock and vibration, pocket size, easy to carry.

  • One-point calibration is easy to use and can be quickly completed by the user.

  • Piezoelectric sensors are stronger and more durable than inductive sensors.

  • 256*64 OLED display, high brightness, low power consumption, fine font display.

  • Large capacity rechargeable lithium battery, long working time.

  • Optional 0.25, 0.8, 2.5 three cut-off wavelength filtering.

  • Metal shell, strong anti-interference ability.

  • Comply with GB, ISO, DIN, JIS standards.

  • High-speed DSP measurement chip, fast calculation speed.

  • The measurement speed is fast, and the number will be counted in 2 seconds after the test journey is completed.
