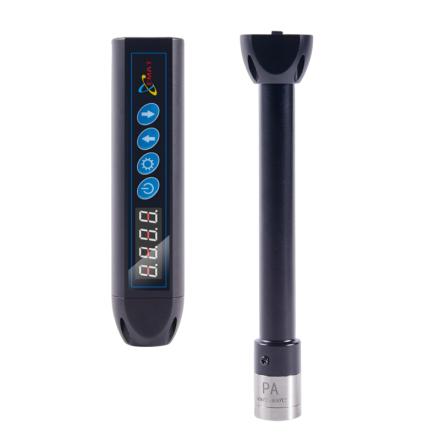

KairDa NDT370 (High Temperature Probe) Pen electromagnetic ultrasonic Thickness Gauge Specifications
Search
Brand：KairDa
Model：NDT370 (High Temperature Probe)
Name：Pen electromagnetic ultrasonic Thickness Gauge
Specifications
| Can detect workpiece material | Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, bowl and other conductor materials |
| Receive gain | s100dB |
| Measurement range | 1~ 240.0mm (Measurement Range depends on the material) |
| Highest resolution | 0.01mm |
| High temperature probe | < 800 ℃, 4MHz, mainly used to detect ferromagnetic fine-grained materials such as low-carbon steel |
| Error range of measurement equipment | Film thickness < 10mm, error + 0.05mm; Film thickness > 10mm error ± (0.01 + H/200) mm (H is the workpiece Film thickness value) |
| High temperature probe operation temperature range | Low carbon steel (or other ferromagnetic steel): -150~ + 800C austenitic stainless steel (or other non-ferromagnetic materials): -150~ + 150C |
| Minimum diameter (curvature) of workpiece can be detected | 8 mm |
| Waveform display | Positive half wave, negative half wave, radio frequency wave |
| Power | Built-in battery, working time > 6 hours, can be used with power bank |
| data storage | Can store A scan data, B scan data, unlimited storage quantity |
| Measurement mode | Automatic mode, manual mode, semi-automatic mode |
| Sound wave type | Shear wave (shear wave) |
| Communication interface | USB communication, software lifetime free upgrade |
| Reverse speed of sound | Reverse the speed of sound when the speed of sound of the material is unknown |
| Host Weight | 250G (with normal temperature probe) |
| Host storage | Storage temperature range 0~ + 40C |
| High temperature compensation | With high temperature sound speed automatic compensation function |
| Sound wave speed adjustment range | 1000~9999m/s |
| Host normal operation temperature range | -10~+50°C |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
