KAIRDA NDT380 Ultrasonic Thickness Gauge 0.15~ 20mm

Can pass through the coating, using high frequency single crystal probe, support 0.15mm ultra-thin thickness measurement, can be connected to the computer USB interface, Probe diameter 6mm.
Model：
Certificate
Contact
Details SPEC CAT

KairDa NDT380 Ultrasonic Thickness GaugeSPEC

KairDa NDT380 Ultrasonic Thickness GaugeDetails

KairDa NDT380 Ultrasonic Thickness GaugePacking list

SKU
NB042577
Accuracy
H<10mm±0.005mm；H≥10mm±；（0.005mm+H/100）mm
Measurement mode
United States
measurable material
Steel, Iron, Glass, Plastic, Aluminum etc
Storage Capacity
500 sets of data
Supported languages
Chinese/English
Environment humidity
Relative Humidity less than 90%
Product size
151*76*33mm
Measurement range
0.15~20mm
Probe size
Diameter 6mm
Display size
2.4 inch FSTN, LED backlight
Sound speed range
1000~9999m/s
Measurement unit
Metric/Imperial
Operating temperature
0~50℃
Power
2 * 1.5V dry battery
Product Weight
220g
NDT380
Ultrasonic Thickness Gauge
Can pass through the coating, using high frequency single crystal probe, support 0.15mm ultra-thin thickness measurement, can be connected to the computer USB interface, Probe diameter 6mm.

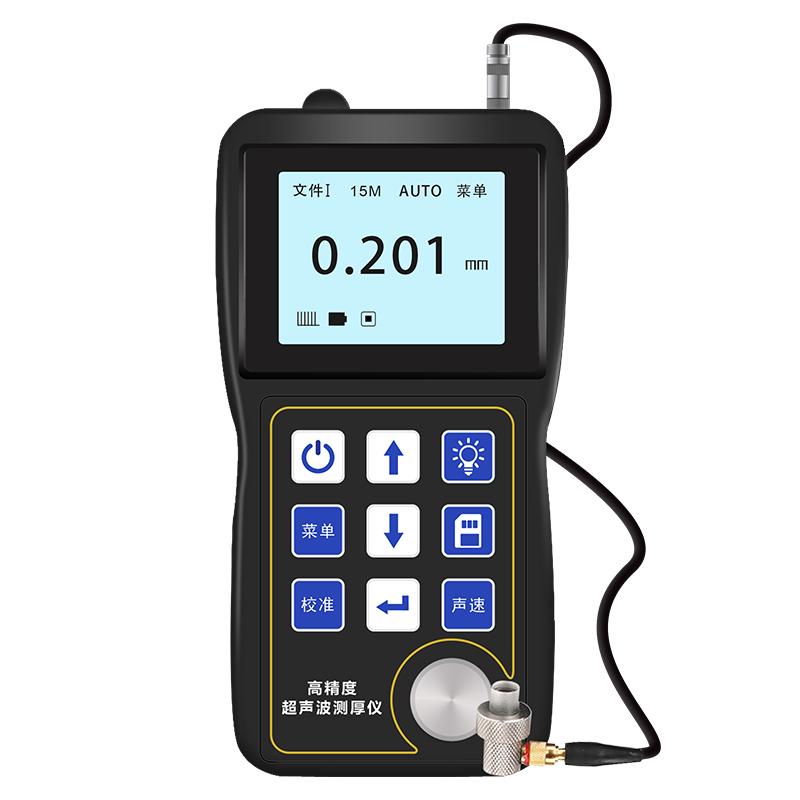

KAIRDA NDT380 Ultrasonic Thickness Gauge 0.15~ 20mm Picture

Introduction

NDT380 Ultrasonic Thickness Gauge adopts the principle of pulse reflection ultrasonic measurement, which is suitable for measuring the thickness of various materials in which ultrasonic waves can propagate at a constant speed and can be reflected from the back. This instrument can accurately measure various plates and various processed parts. Can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type, high temperature type, cast iron type and precision type.

Features

  • Using high-frequency single-crystal probes, it can realize the function of measuring ultra-thin parts.

  • Adopt the "echo-echo" ultrasonic thickness measurement technology to realize the thickness measurement through the coating.

  • Display resolution is 0.001mm, measuring range: 0.15~20mm.

  • LCD display with adjustable contrast, 128*64 dot matrix LCD display, and LED backlight, can be used in various light environments.

  • Data can be transferred to a computer using the USB interface.


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
